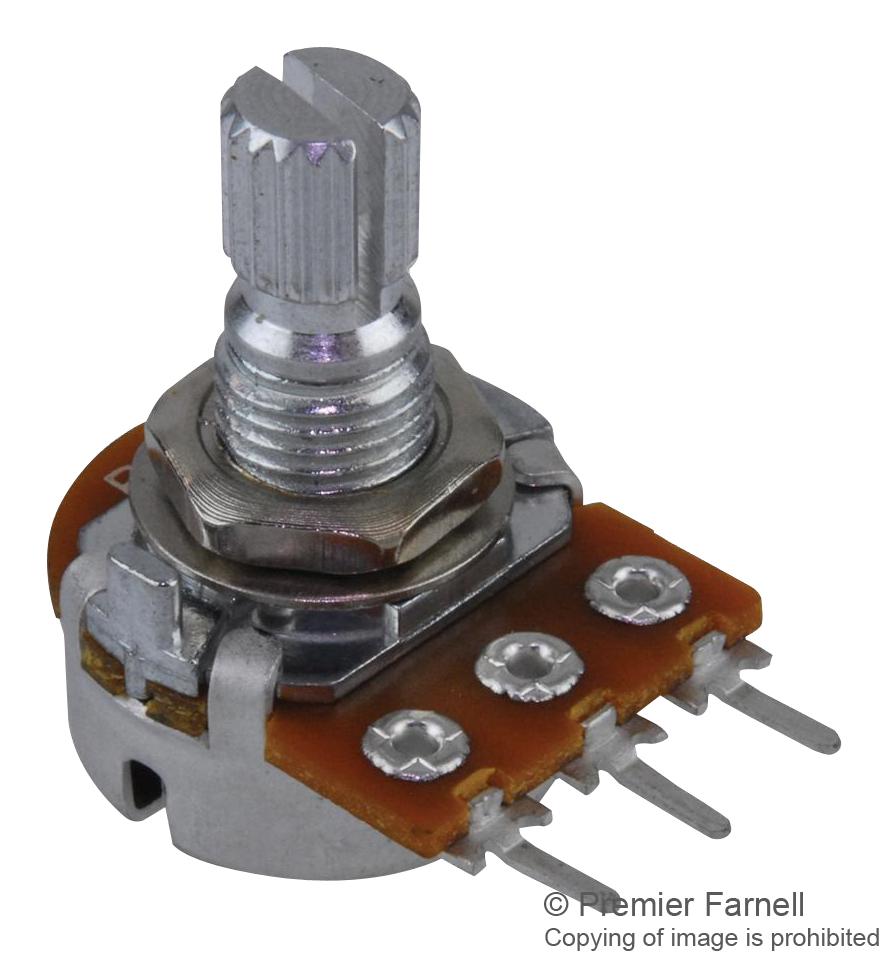

The P160KN-0QD15B10K is a Rotary Potentiometer with a conductive plastic element and screwdriver slot side adjustment. This P160 series side adjust potentiometer features solder lug terminals, metal shaft/bushing and linear track taper.
- 100MR at 250VDC Minimum insulation resistance
- 500VAC at 1 minute Dielectric strength
- 260° Nominal actual electrical travel
- 100000 cycles Rotational life
- -20 to 70°C Operating temperature range
Applications
Audio
Product details
| Track Resistance |
10kohm |
| No. of Turns |
1Turns |
| Track Taper |
Linear |
| Power Rating |
200mW |
| Resistance Tolerance |
± 20% |
| Product Range |
P160 Series |
| Potentiometer Mounting |
Panel |
| Shaft Diameter |
6mm |
| No. of Gangs |
1 |
| Adjustment Type |
Knurled |
| Shaft Length |
15mm |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
TT ELECTRONICS / BI TECHNOLOGIES |
| Part Number |
P160KN-0QD15B10K |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
