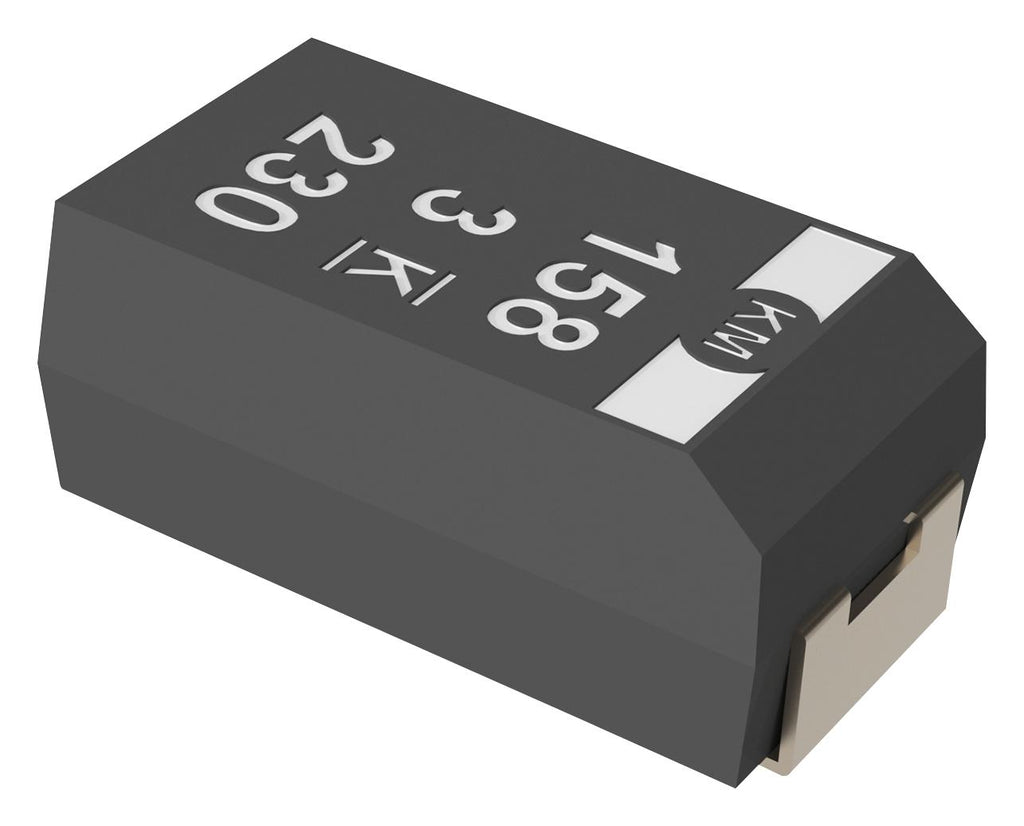

Kemet T530X477M006ATE004 Tantalum Polymer Capacitor KO-CAP® 470 µF ± 20% 6.3 V X 0.004 ohm 2917 [7343 Metric]

The T530 High Capacitance Polymer Electrolytic expands the capacitance ranges of the T520 KO-CAP with a higher 125°C operating temperature and lower ESR options. The improved ESR levels allow for higher ripple current capability than the T520. The T530's reduced ESR, ripple current capability and capacitance retention at higher frequencies provides the lowest total capacitance and most economical solution for high switching frequency DC power applications. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities.

• Extremely low ESR
• Volumetrically efficient
• High frequency capacitance retention
• 100% accelerated steady state aging
• 100% surge current tested
• Utilizes multiple tantalum anode technology
• Halogen-Free Epoxy/RoHS Compliant

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KEMET
Part Number	T530X477M006ATE004
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
Manufacturer Catalogue EN
CAD Multiple Formats EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
