Description

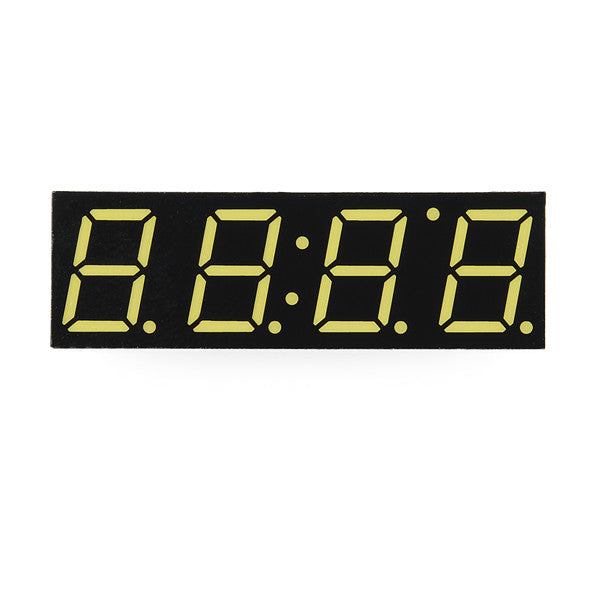

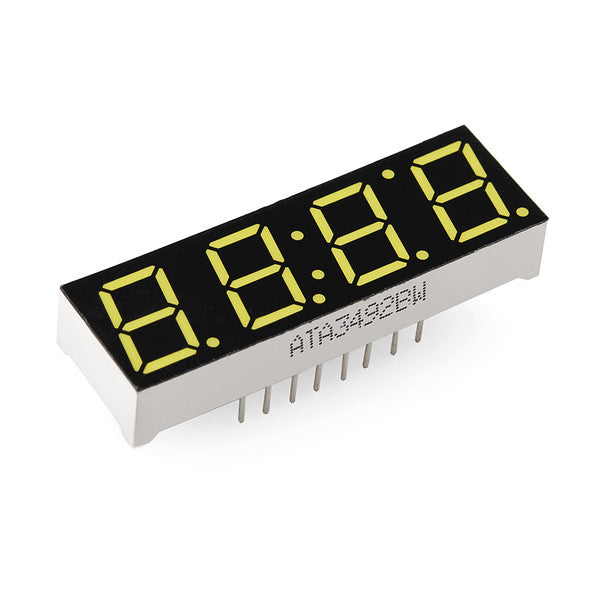

This is a basic, 4-digit 7-segment display - white in color. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points.

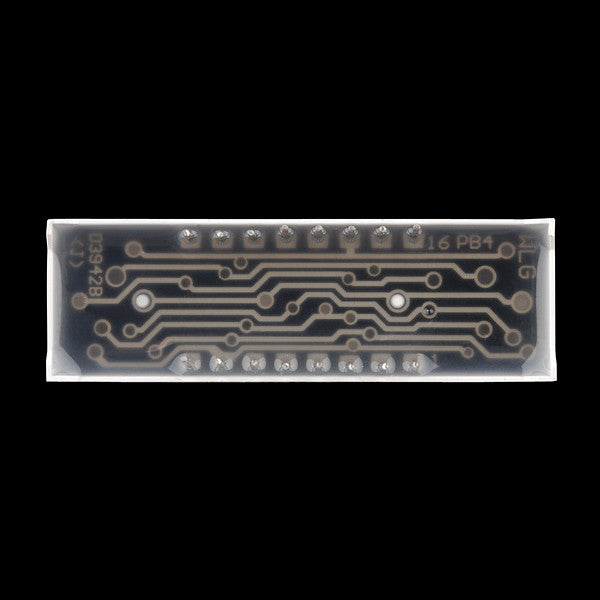

The LEDs have a forward voltage of 1.9VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pins
The datasheet for this device says “blue” but that’s because the white display is simply a blue display with a colored film over it.
We carry this same display in yellow, green, red, and blue.
Dimensions:
- Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")
- Digit Height: 10mm (0.39")
Documents:
Bulk Discount
| Quantity | Price |
| 2 | ₹ 666.4 |
| 3-5 | ₹ 659.6 |
| 5-10 | ₹ 646.0 |
| 10+ | ₹ 632.4 |
Bulk discount will be automatically applied during checkout based on quantity.
