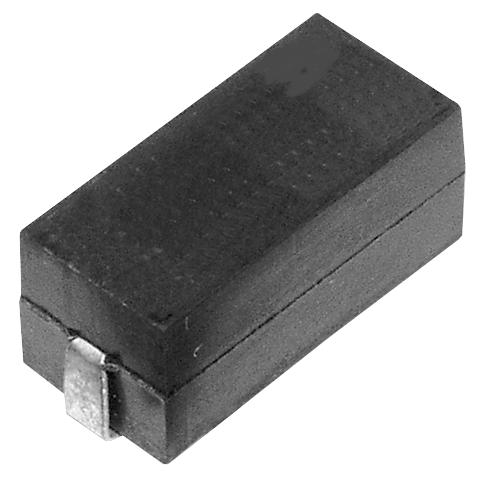

Type SM, SMW series wirewound surface mount moulded power resistors are designed to meet today's circuit design needs. Each size offers low profile case design with flexible tinned copper terminations for reliable solder joints. All styles utilize a fully welded construction technique, unlike other designs that rely solely on tinned termination connections. These features allow the SM series to withstand the higher temperatures associated with reflow, vapour phase or infrared (IR) manufacturing processes without degradation.
- Low profile design
- Very wide value range
- Ideal for power circuitry
- UL94-V0 flameproof coating
- Operating temperature range from -55°C to 200°C
Product details
| Resistance:
24ohm
|
| Resistance Tolerance:
± 5%
|
| Power Rating:
5W
|
| Resistor Case / Package:
SMD
|
| Resistor Technology:
Wirewound
|
| Resistor Type:
High Power
|
| Product Range:
SMW Series
|
| Temperature Coefficient:
± 200ppm/°C
|
| Voltage Rating:
500V
|
| Product Length:
13.5mm
|
| Product Width:
7.3mm
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
200°C
|
| Qualification:
-
|
Other details
| Brand |
CGS - TE CONNECTIVITY |
| Part Number |
SMW524RJT |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
