Product details
| Resistance:
4.3ohm
|
| Resistance Tolerance:
± 1%
|
| Power Rating:
1.5W
|
| Resistor Case / Package:
0612 Wide [1632 Metric]
|
| Resistor Technology:
Thick Film
|
| Resistor Type:
High Power
|
| Product Range:
3430 Series
|
| Temperature Coefficient:
± 100ppm/°C
|
| Voltage Rating:
200V
|
| Product Length:
1.55mm
|
| Product Width:
3mm
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
155°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
CGS - TE CONNECTIVITY |
| Part Number |
3430B2F4R3TDF |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

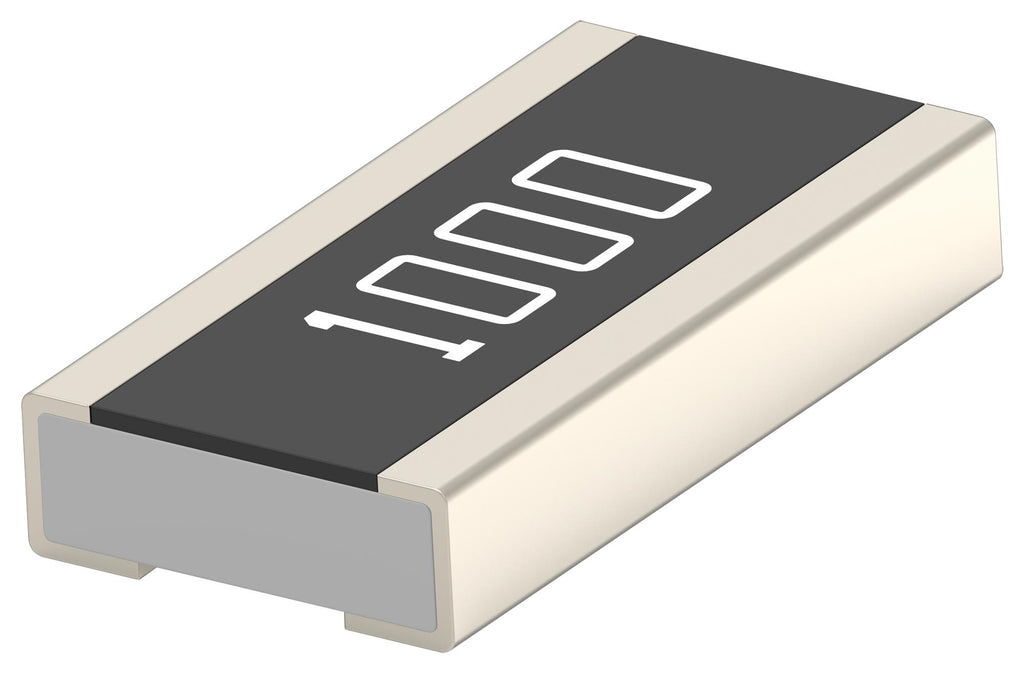

![CGS - TE CONNECTIVITY 3430B2F4R3TDF SMD Chip Resistor, 4.3 ohm, ± 1%, 1.5 W, 0612 Wide [1632 Metric], Thick Film, High Power](http://www.tanotis.com/cdn/shop/files/0424f3b66cf638aa24d4b55034f01360_0cea75a8-5bbc-4ca3-8f89-d51c237adacf_{width}x.jpg?v=1706946252)
