Product details
| Resistance:
4.7ohm
|
| Resistance Tolerance:
± 1%
|
| Power Rating:
3W
|
| Resistor Case / Package:
1225 Wide [3264 Metric]
|
| Resistor Technology:
Thick Film
|
| Resistor Type:
High Power
|
| Product Range:
3430 Series
|
| Temperature Coefficient:
± 200ppm/°C
|
| Voltage Rating:
200V
|
| Product Length:
3.2mm
|
| Product Width:
6.4mm
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
155°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
CGS - TE CONNECTIVITY |
| Part Number |
3430A3F4R7TDF |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

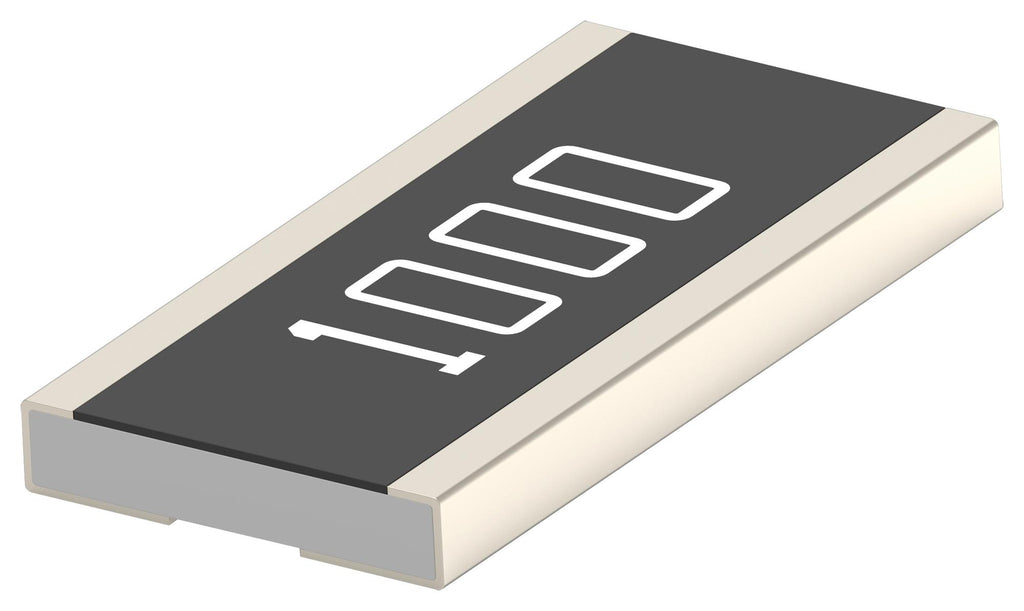

![CGS - TE CONNECTIVITY 3430A3F4R7TDF SMD Chip Resistor, 4.7 ohm, ± 1%, 3 W, 1225 Wide [3264 Metric], Thick Film, High Power](http://www.tanotis.com/cdn/shop/files/296cc0e374c8d2f1b93877e79b77de3b_ea4330d9-3299-4c72-a840-ef134ab8b959_{width}x.jpg?v=1706946606)
