Description
Product Overview

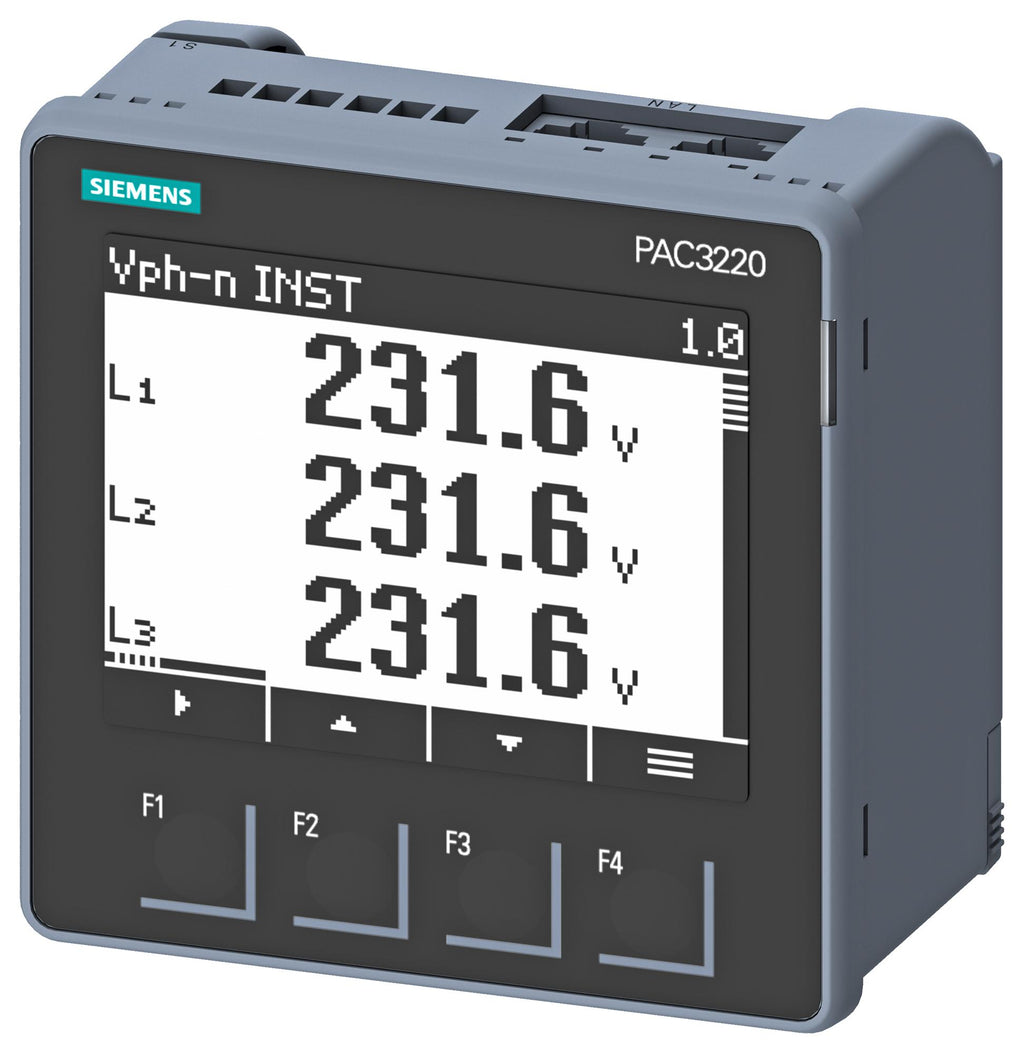

7KM3220-1BA01-1EA0 is a SENTRON PAC3220 LCD 96 X 96mm power monitoring device control panel instrument for electrical values protocol. It is used in voltage measurement, current measurement, active power measurement, reactive power measurement, frequency measurements.
- Sinusoidal or distorted voltage curve, 45Hz initial, 65Hz full scale measurable line frequency
- 24 to 60V supply voltage at DC, IP65 protection class IP on the front
- LCD design of the display, 54mm height of the display, 72mm width of the display
- White colour of the background of the display, 4 number of keys
- 100000kbit/s max transfer rate, 2 number of interfaces according to fast ethernet
- 2 x RJ45 type of electrical connection of the fast ethernet interface
- MODBUS TCP protocol at the ethernet interface is supported, 2 number of digital inputs
- 130mA output current at the digital outputs at DC limited to 100ms maximum
- 17Hz switching frequency at digital output maximum
- Dimension is 96 x 96 x 56mm (H x W x D), ambient temperature from -25 to 55°C
Product details
Other details
| Brand | SIEMENS |
| Part Number | 7KM3220-1BA01-1EA0. |
| Quantity | Each |
| Technical Data Sheet EN |  |
