Description
Product Overview

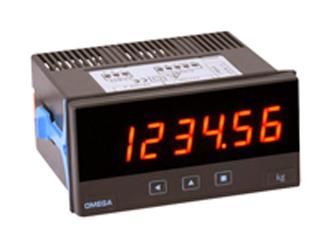

DPS20-HV is a DPS20 series 1/8 DIN load cell panel meter. It accepts 4 and 6 wire load cells and provides 5VDC and 10VDC configurable excitation voltage to power the load cell. Two power supply options for high and low AC/DC power, allows this unit to be suited for global use. Additional features of the DPS20 load cell meter include independent scaling of the load cell signal and reading units, prevention of false tares, stability alarms, and rear terminal with configurable function. Typical applications are assembly line, control panel, laboratory.
- 85/265VAC/DC power supply
- Define a maximum tare value to prevent undesired tares
- Recursive display filter and configurable steps for minimum predefined changes on the reading
- 5 levels of brightness
- Password protection, 1 year warranty
- Load cell characterization based on sensibility, nominal load and excitation voltage values
- 14mm digit height, red LED colour
- Configurable decimal point
- 140?mA maximum excitation current
- Operation temperature range from 0 to 50?ºC
Product details
Other details
| Brand | OMEGA |
| Part Number | DPS20-HV |
| Quantity | Each |
| Technical Data Sheet EN |  |
