Description

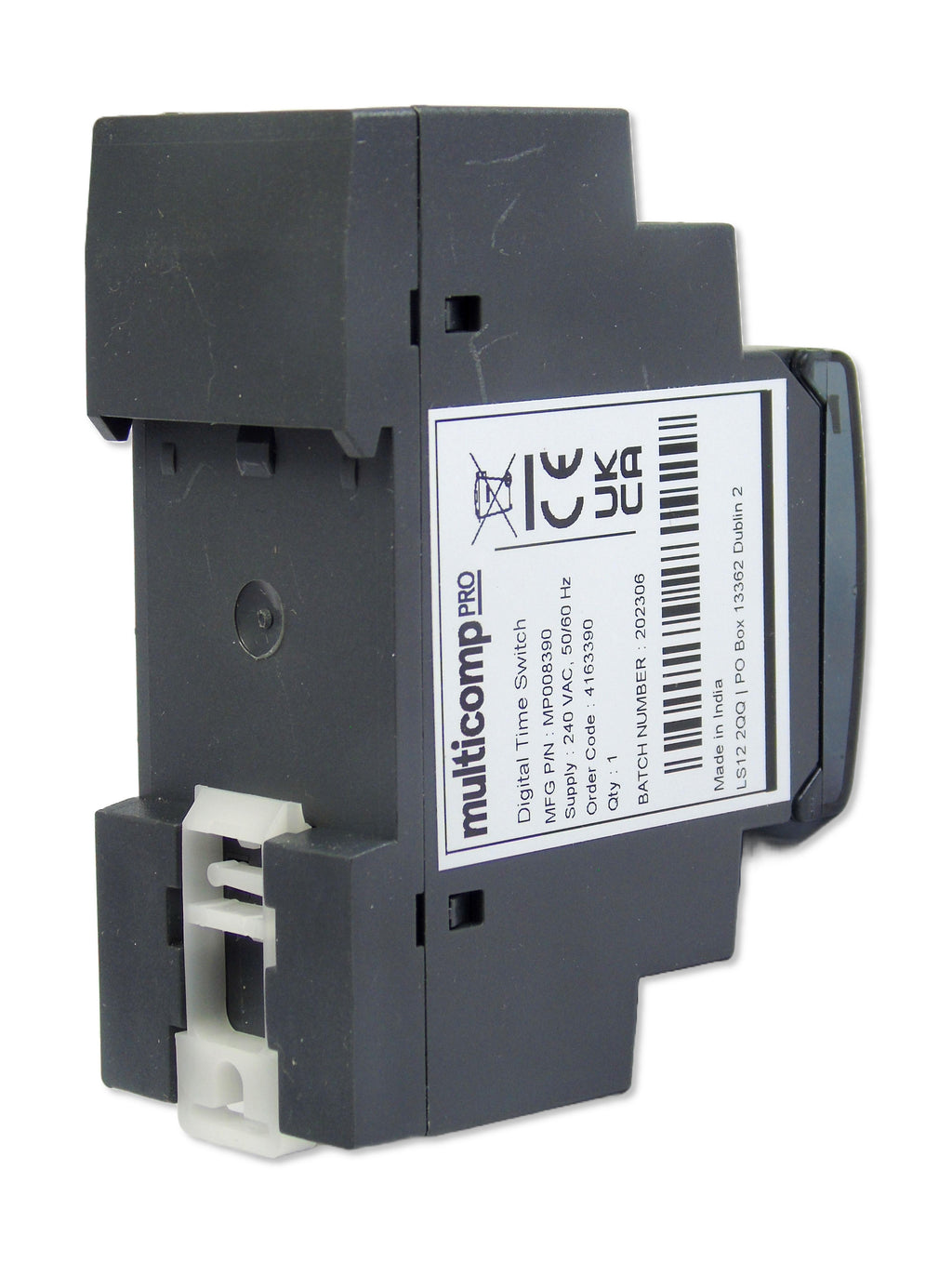

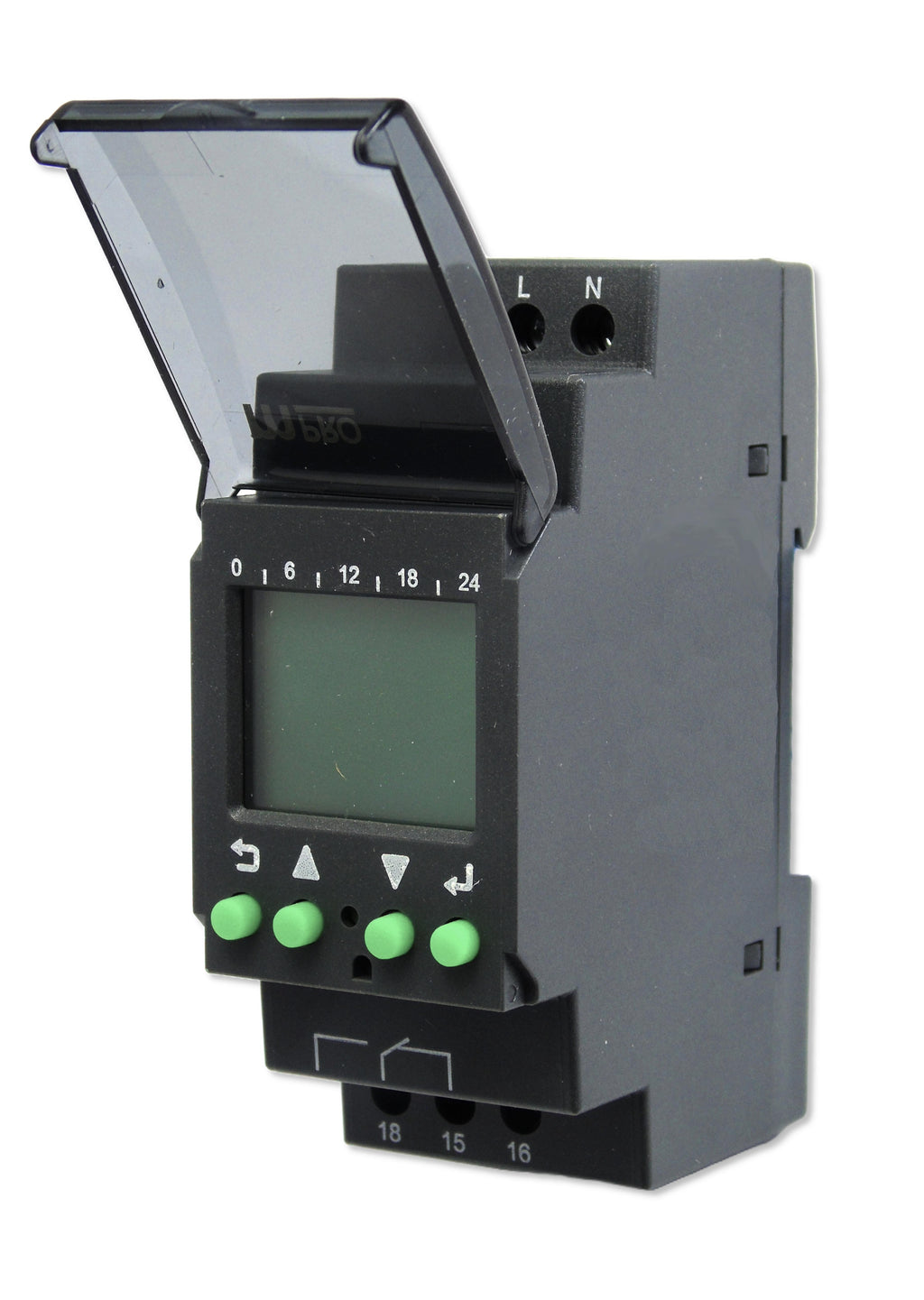

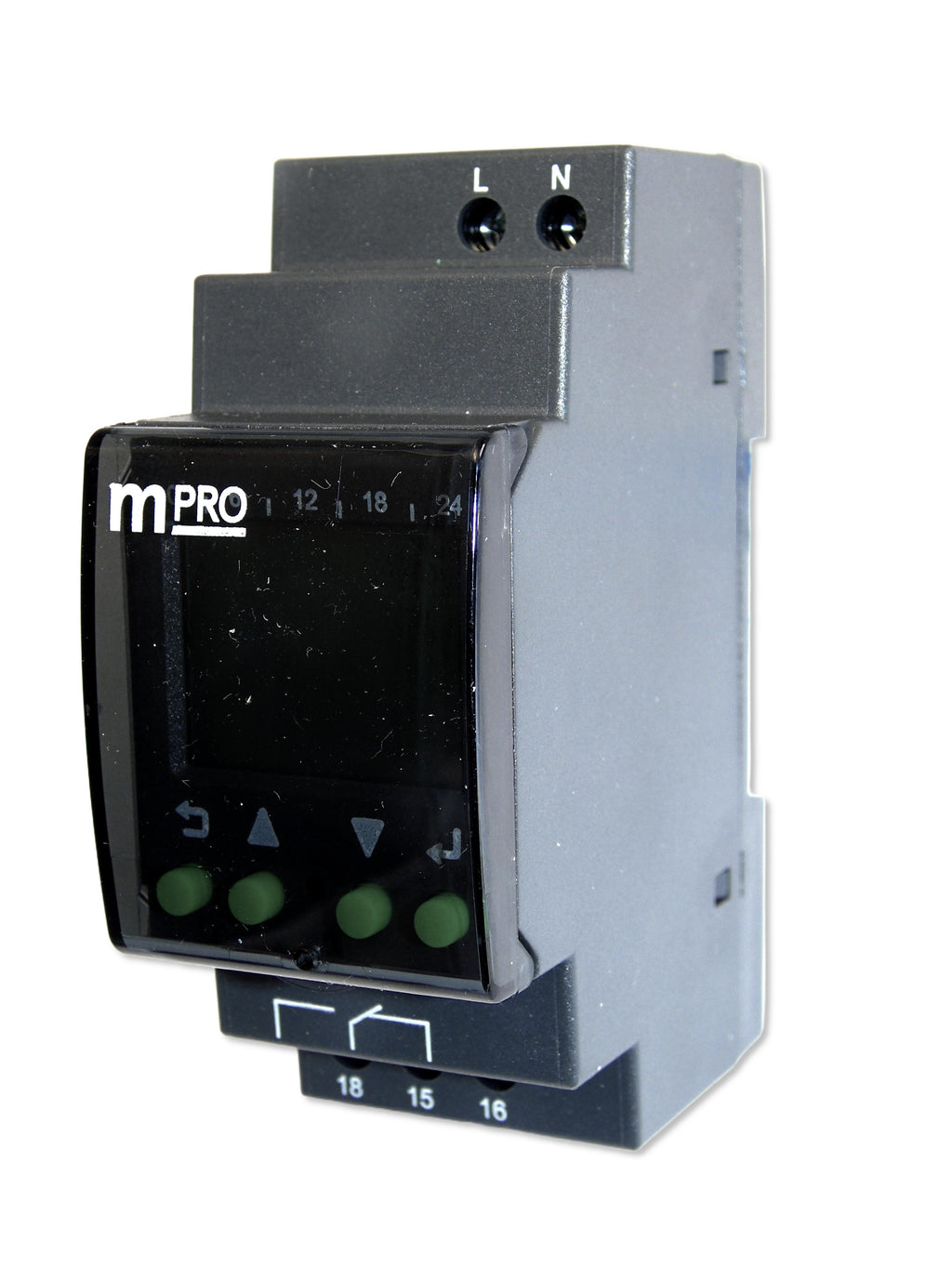

MP008390 robust Digital time switch comes with an LCD display with green backlight. It is known for its precise time programming for daily/weekly pulse switching. With over 50 on/off programs, you can rely on all your timer needs on this one device. It also offers ease of day selection in weekly programming. With 6 years of battery reserve and very little maintenance needs, it doesnâ��t make one to worry about itâ��s presence once installed. The product has 5 operating modes with clock accuracy of max 0.5s/day. The Wide operating temperature range from -10°C to 55°C allows the equipment to be under control at all challenging conditions. Our product is CE & UL certified and covers with a IP20 protection for terminals and IP40 for enclosures. Itâ��s easy DIN rail mounting is just another advantage to its exciting features.
- 240VAC power supply
- 1 changeover relay
- 1s timer
- Clock accuracy of 0.5s/day
- 6 years of battery reserve
- 5 operating modes and 50 ON/OFF program settings
Applications
Industrial, Automation & Process Control, Factory Automation, Clock & Timing
Contents
x1 Digital time switch 36mm � 90mm � 65mm.
Footnotes

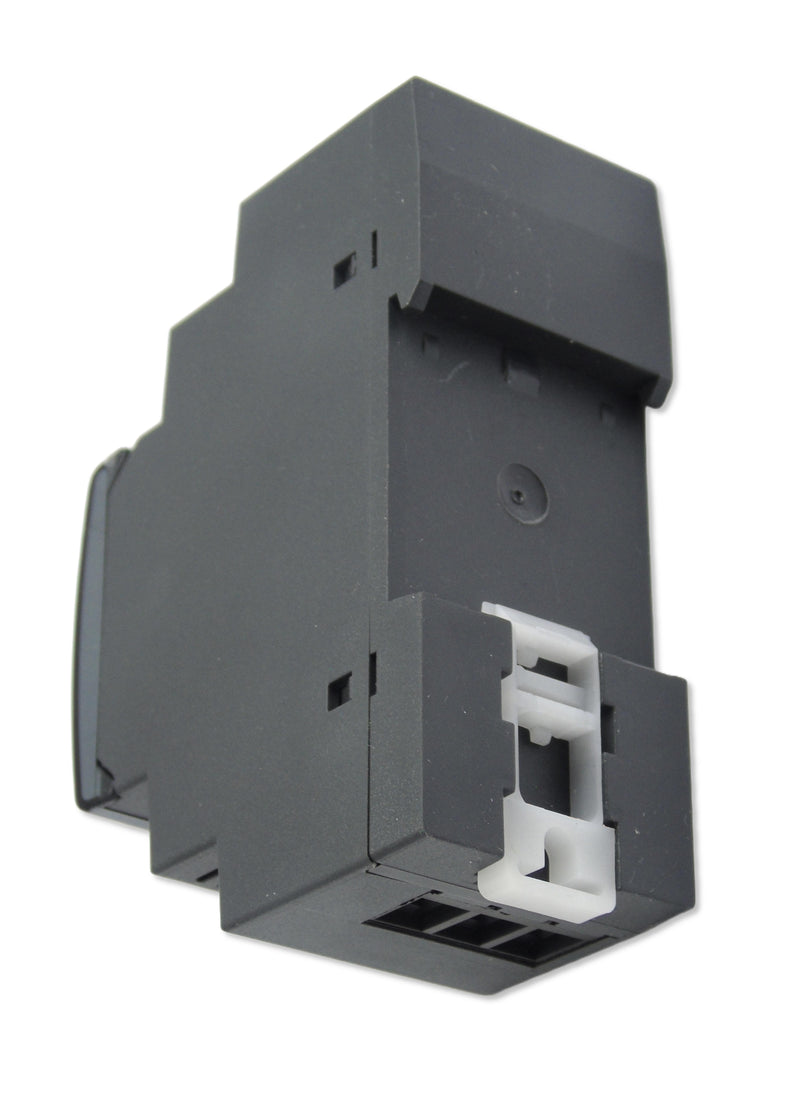

Easy DIN installation. IP 20 protection for terminals and IP 30 for enclosure.
Product details
| Time Min: 1s |
| Time Max: -999s |
| No. of Timing Ranges: -999Ranges |
| Supply Voltage Max: 240VAC |
| Current Rating Nom: 16A |
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP008390 |
| Quantity | Each |
| Technical Data Sheet EN |  |
