Description

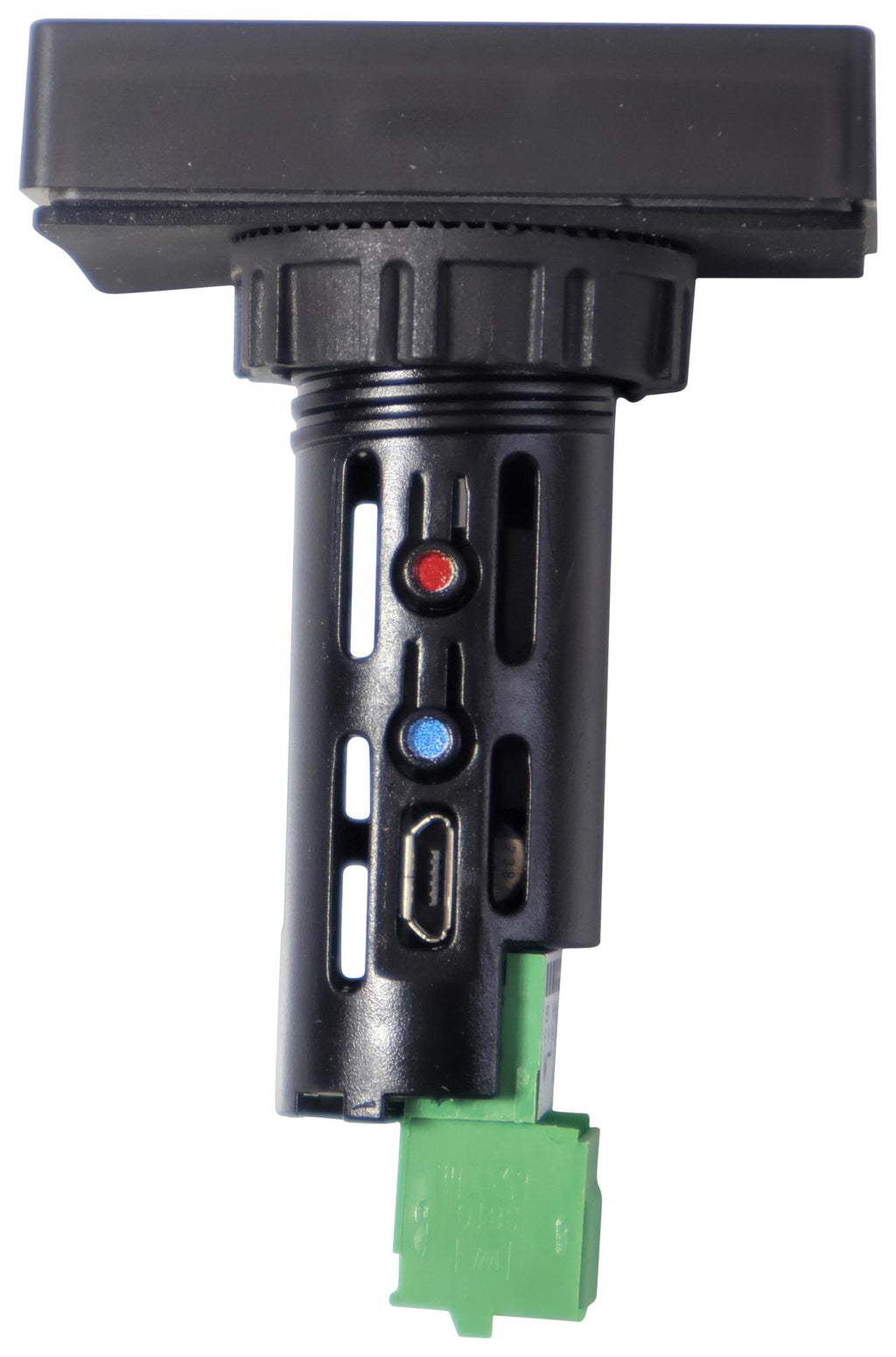

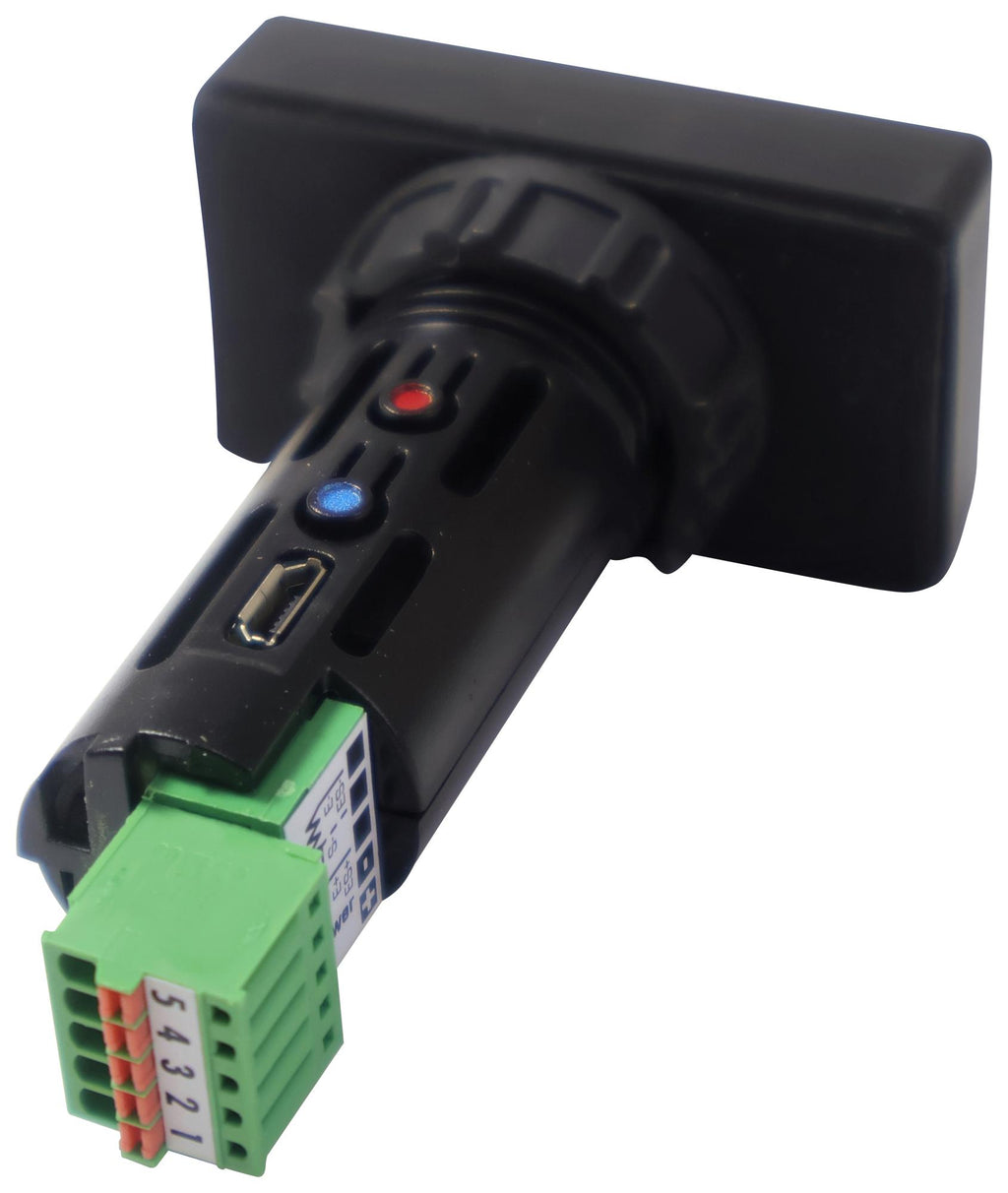

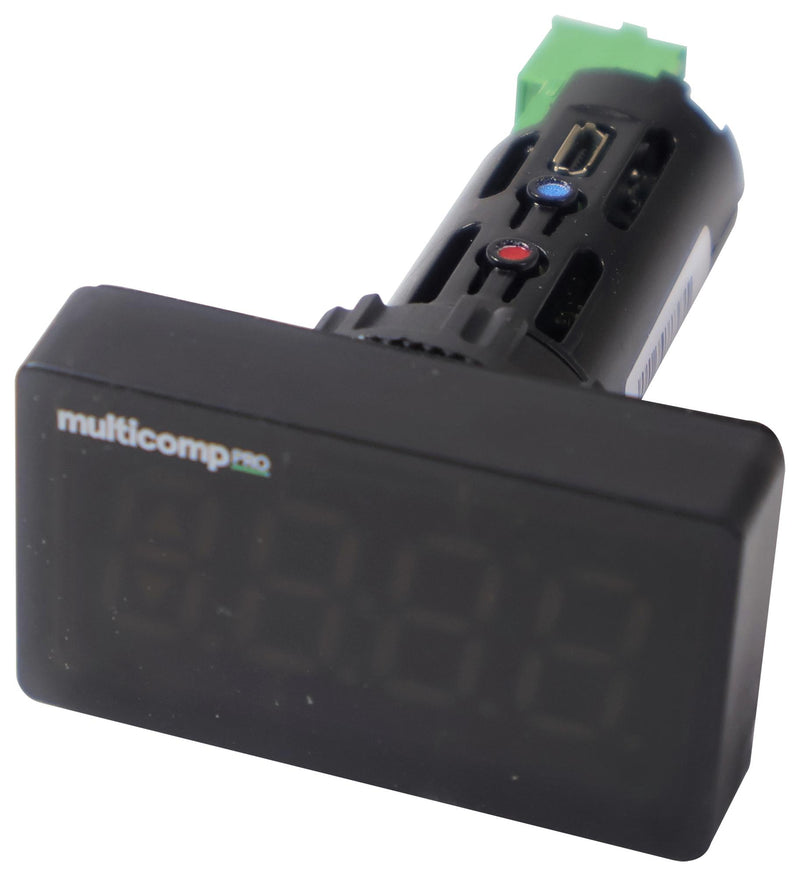

MP-335RTD-01 4 digit process monitor has wide temperature measurement with Pt 100/1000, Ni 1000Ω inputs. It has a supply voltage rating of 24V AC/DC. The meter has a depth of 66mm, digits height of 14mm making it user-friendly. This instrument is based on a microcontroller and an A/D converter, which ensures good accuracy and easy operation of the instrument. The 22mm cross-section of the circular instrument body allows for convenient mounting into mosaic and signalling panels. MP-335RTD-01: power supply 10 to 30V DC/24V AC.
- 4-digit programmable projection
- Power supply is 10 to 30VDC/24VAC
- 14mm digit height user-friendly panel
- Adjustable decimal point and brightness control
- Input: Pt 100/1000 Ni 1000 ohm
Applications
Industrial & Manufacturing, Automation & Process Control, Power Management, Test & Instrumentation
Contents
x1 Digital panel meter 51.5 � 29.5 � 66mm (w � h � d).
Footnotes
Easy DIN installation. IP65 protection for front panel & EN 61326-1 certified.
Product details
| Digit Height: 14mm |
| Panel Cutout Height: 28.5mm |
| Panel Cutout Width: 50.5mm |
| Supply Voltage Min: 10VDC |
| Supply Voltage Max: 30VDC |
| Operating Temperature Min: -20°C |
| Operating Temperature Max: 60°C |
| Product Range: MP-335 |
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP-335RTD-01 |
| Quantity | Each |
| Technical Data Sheet EN |  |
