Description

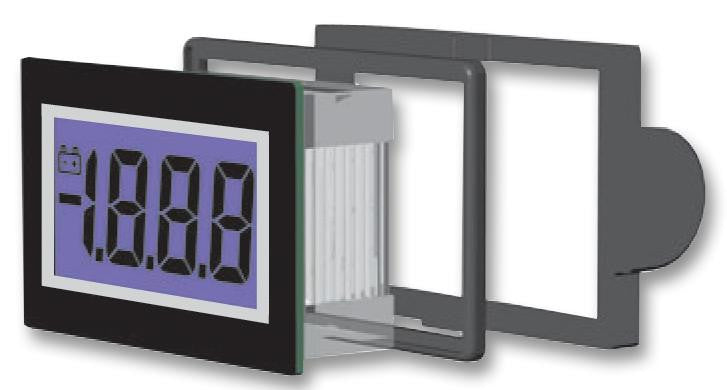

The SP400-BLUE is a 3.5-digit LED Voltmeter features a 200mVDC measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The SP 400-BLUE features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. Blue LED backlighting ensures excellent readability under low light conditions. The module is easily fitted into the panel, using the fixing clip provided.
- Programmable decimal points
- 9.75mm Digit height
- Blue LED display
- Auto-zero and Auto-polarity
- Low battery warning
- Splash-proof protection
- -0 to 50�C Operating temperature range
Applications
Power Management, System Monitoring, Automation & Process Control
Product details
| Operating Temperature Min | 0�C |
| Operating Temperature Max | 50�C |
| No. of Digits / Alpha | 3-1/2 |
| Digit Height | 9.75mm |
| Panel Cutout Height | 21.3mm |
| Product Range | - |
| Meter Range | 0mV to 200mV |
| Supply Voltage Min | 3VDC |
| Meter Function | DC Voltage |
| Supply Voltage Max | 15VDC |
| Panel Cutout Width | 34.1mm |
Other details
| Brand | LASCAR |
| Part Number | SP400-BLUE |
| Quantity | Each |
| Technical Data Sheet EN |  |
