Description
Anchor Audio WR-EXT500 Overview
The Anchor Audio WR-EXT500 External Wireless Receiver is a professional-quality UHF wireless microphone receiver that operates in the 540 to 570 MHz bandwidth. The receiver is compatible with the WH-EXT500 wireless handheld microphone transmitter and the WB-EXT500 wireless beltpack transmitter.

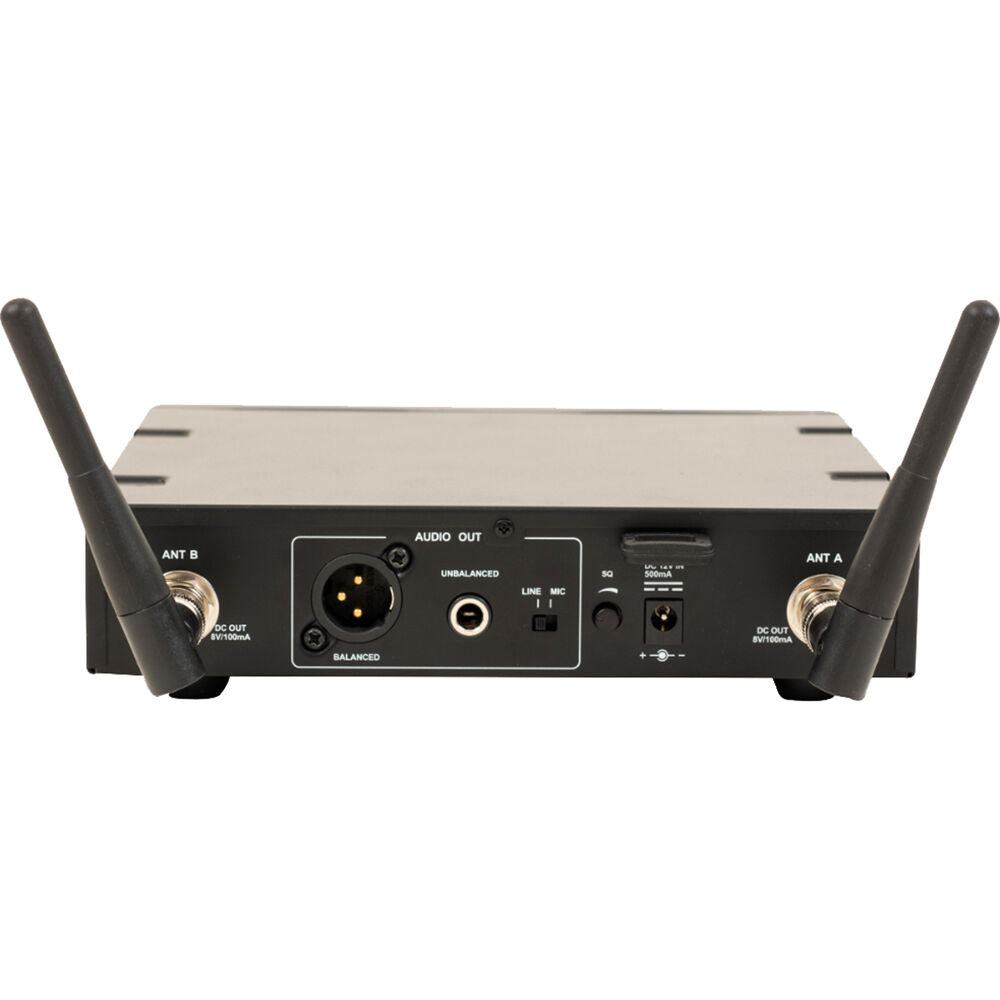

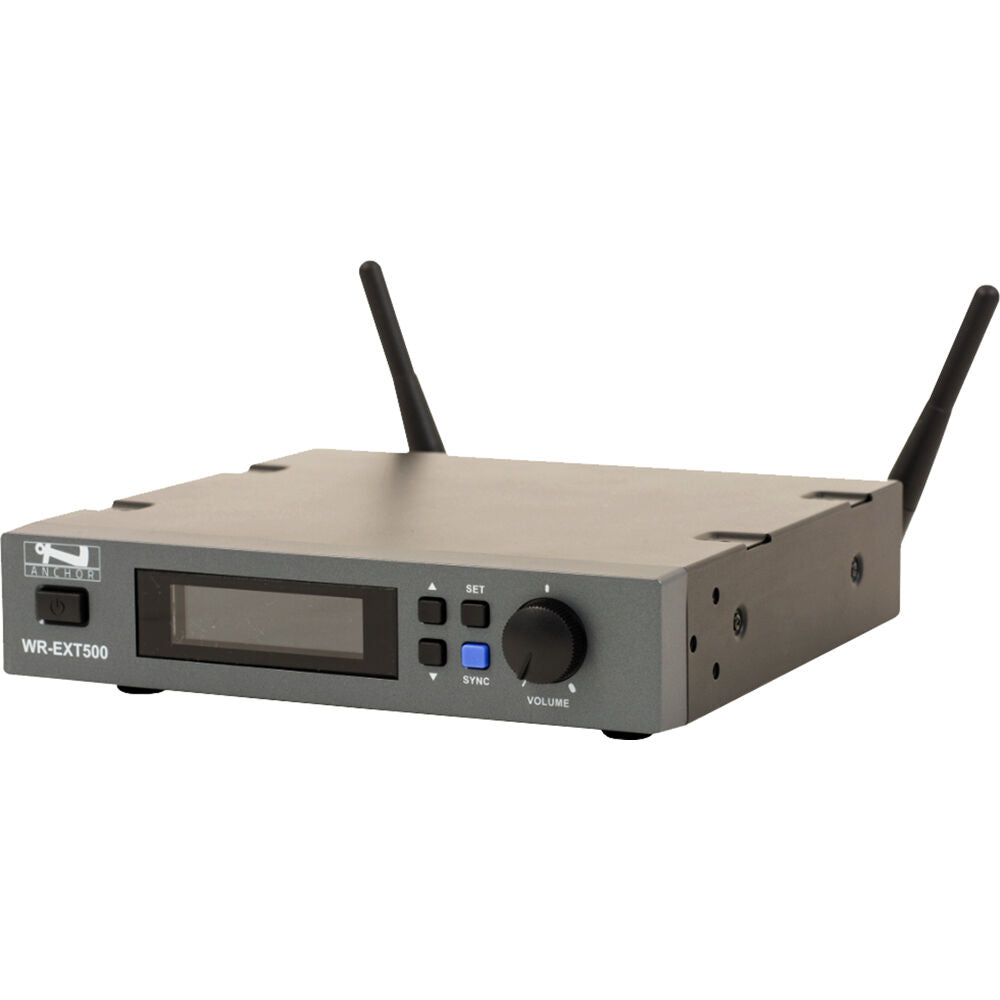

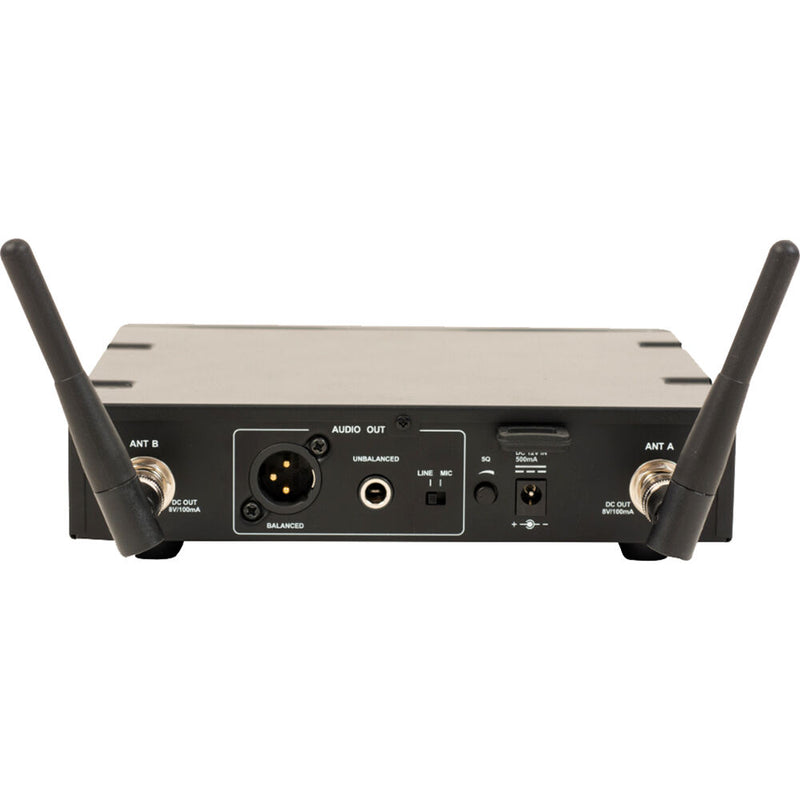

The front panel of the WR-EXT500 features an LCD display, channel up/down buttons, a sync button, and a set button, plus a volume controller dial to adjust the receiver output. The rear panel includes two BNC antennae connectors, a balanced XLR output, an unbalanced 1/4" output, and a mic/line switch. A squelch knob is available to adjust or decrease the noise floor level. The WR-EXT500 ships with two antennas and a 12 VDC power adapter.
In the Box
- Anchor Audio WR-EXT500 External Wireless Receiver
- 2 x Antennas
- 12 VDC Power Adapter
- Limited 2-Year Warranty
Anchor Audio WR-EXT500 Specs
| Display | LCD |
| Front Panel Controls | Up/Down Button: Channel Forward / Backward Sync Button: Actuate the Synchronization with Transmitter Set Button: Actives Manual, Auto-Scan, or Preset Mode Volume Dial: Adjusts Receiver Output Level |
| Rear Panel | Antennae: 2 x BNC Balanced Output: XLR Unbalanced Output: 1/4" / 6.35 mm Mic/Line Switch: Adjusts Audio Level for Mic (-20 dB) or Line (0 dB) Squelch Knob: Adjust or Decrease Noise Floor Level Power Adapter: 12 VDC (Center-Pin Positive) |
| Frequency Range | UHF 540 to 570 MHz (Regionally Selected) |
| Oscillator | PLL Synthesized |
| Modulation | FM |
| Signal-to-Noise Ratio (SNR) | >100 dB, at 200 kHz Deviation and 60 dBµV Antenna Input |
| Image & Spurious Rejection | 70 dB Minimum |
| Receiving Sensitivity | At 2 µV over 52 dB S/N Ratio |
| AF Response | 80 Hz to 18 kHz |
| THD | <1% at 1 kHz |
| IF Frequency | 1st: 243.95 MHz, 2nd: 10.7 MHz |
| Dynamic Range | >100 dB |
| Tone Signal | 32.768 kHz |
| Audio Output | Balanced & Unbalanced |
| Enclosure | Half 19" EIA Rack Metal Case |
| Power Supply | 12 VDC, 500 mA |
| Current Consumption | 260 W ±10 mA |
| Dimensions (H x W x D) | 1.7 x 7.9 x 7.2" / 4.2 x 20.1 x 18.3 cm |
| Weight | 2.1 lb / 930 g |
