Product Overview

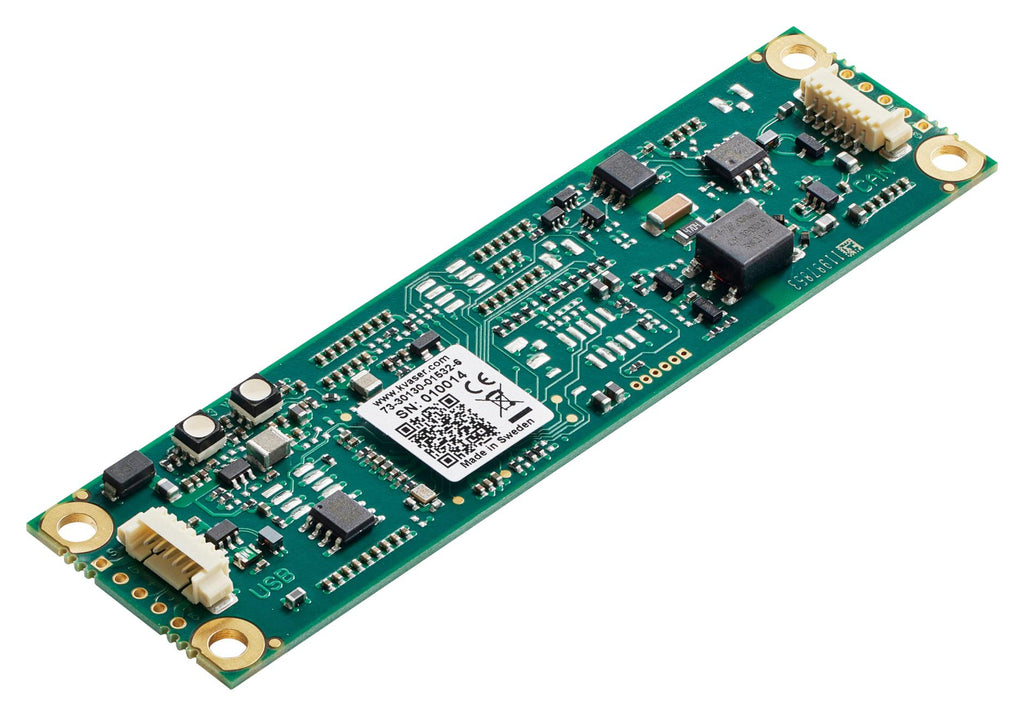

01532-6 is a Kvaser Leaf v3 CB, which is a circuit board version of Kvaser's popular single-channel, high speed, USB-to-CAN bus interface, the Kvaser Leaf v3. This board boasts a timestamp precision of 50µs and support for a wide CAN bit rate range from 20kbit/s to 1Mbit/s. Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- USB CAN interface, support for SocketCAN and powered through USB
- Additional through holes pads for reliable soldering of connection cables
- Supports CAN FD, up to 8Mbit/s
- Quick and easy plug-and-play installation
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- Supports silent mode for analysis tools –listen to the bus without interfering
- 20000msg/s, each timestamped with a resolution of 50µs
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib
- Support simultaneous usage of multiple Kvaser interfaces
- Linux, Windows operating systems
Product details
| Networking Interface |
CAN, USB 2.0 |
| SVHC |
No SVHC (25-Jun-2025) |
| Product Range |
Leaf |
Other details
| Brand |
KVASER |
| Part Number |
01532-6 |
| Quantity |
Each |
| Technical Data Sheet (99.00B) EN |
View or download |
