Description
Product Overview

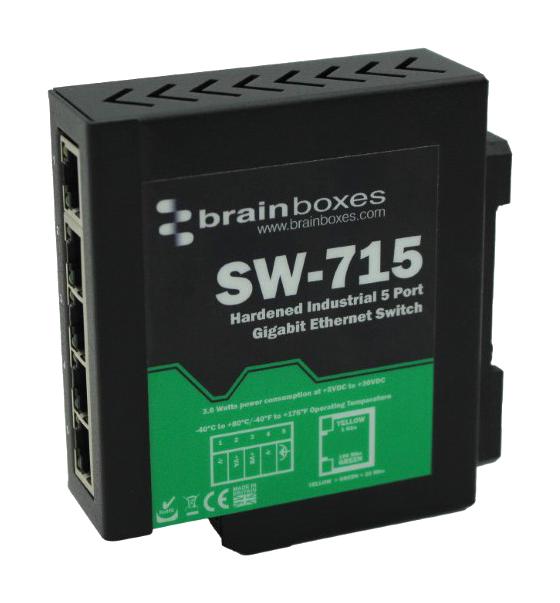

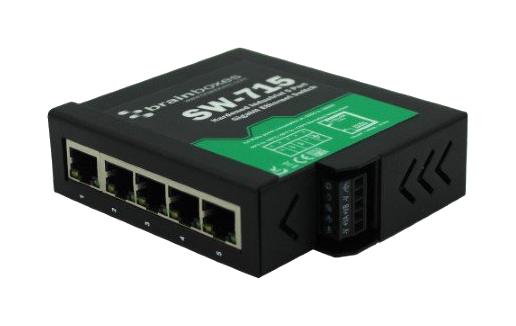

The SW-715 from Brainboxes is a compact, high speed 5 port Gigabit Ethernet switch designed for industrial applications. The switch is fitted with a hardened metal enclosure and is equipped with dual redundant power supply making it ideal for use in extreme industrial environments including factory floor and marine applications.
- Hardened metal case with IP20 rating and slim profile for use in harsh environments
- Extended operating temperature range for extreme conditions (-40°C to +80°C)
- Each Ethernet port is magnetically isolated
- Auto MDI/MDI-X crossover support on all ports
- Power consumption is optimised based on the status of the link device
- Dual redundant power input (+5V DC to +30V DC)

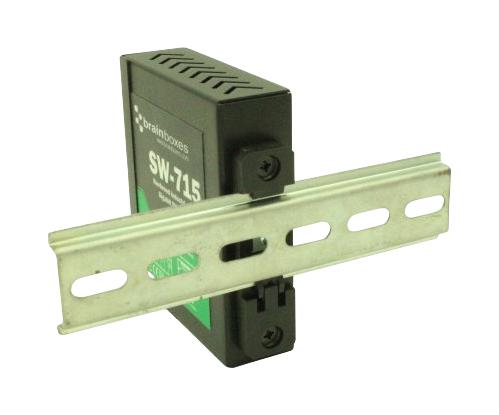

- Integrated DIN rail mounting with ground
- Easily wireable and removable screw terminal block
- Plug and play, no software required
Contents
Switch and user guide
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| No. of Ports | 5Ports |
| Ethernet Switch Type | 0 |
| Port Types | RJ45 x 5 |
| Input Voltage Type | VDC |
| SVHC | No SVHC (25-Jun-2025) |
| Ethernet Switch Application | Industrial |
| Ethernet Switch Mounting | DIN Rail |
| Network Speeds | 10Mbps, 100Mbps, 1Gbps |
| Product Range | Brainboxes SW-7xx Industrial Switches |
Other details
| Brand | BRAINBOXES |
| Part Number | SW-715 |
| Quantity | Each |
| Technical Data Sheet (1.22MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 97999999.02 |
| 3-5 | ₹ 96999999.03 |
| 5-10 | ₹ 94999999.05 |
| 10+ | ₹ 92999999.07 |
Bulk discount will be automatically applied during checkout based on quantity.
