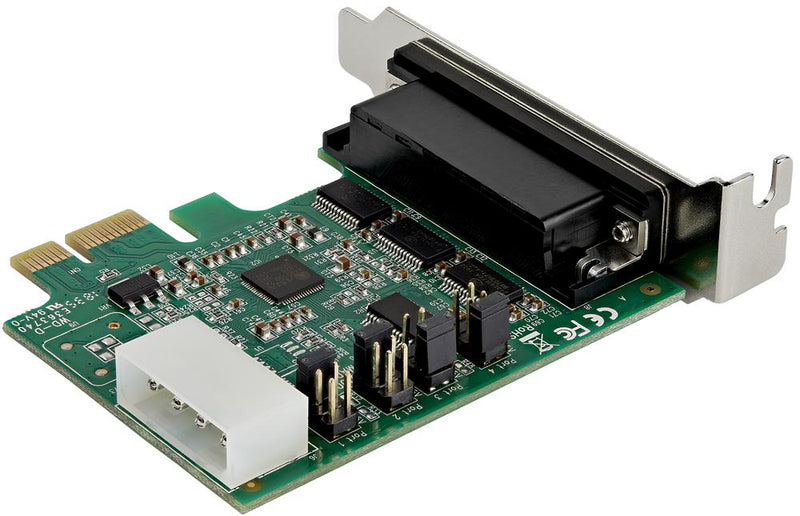

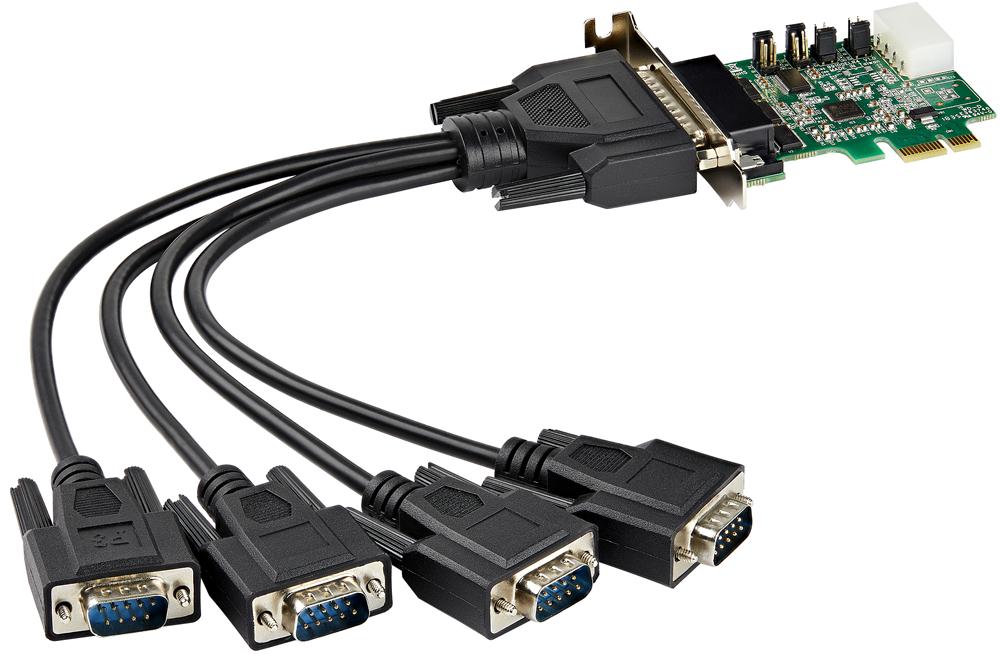

Provides four additional RS232 serial ports for your PC, ideal for connecting multiple legacy devices such as card readers, printers, PIN pads and modems. Serial connections are 9 Pin D-Sub male via the included 4-way breakout cable and the board is fitted with a low profile bracket.
- Compatible with industry standard 16950 UART
- Maximum data transfer rate of 921.6kb/s thanks to the ASIX AX99100 chipset
- Provides 5/12V power output on pin 9 (when external power is connected)
- 256-byte depth FIFO cache per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits (one per port)
- PCI-Express x1 interface

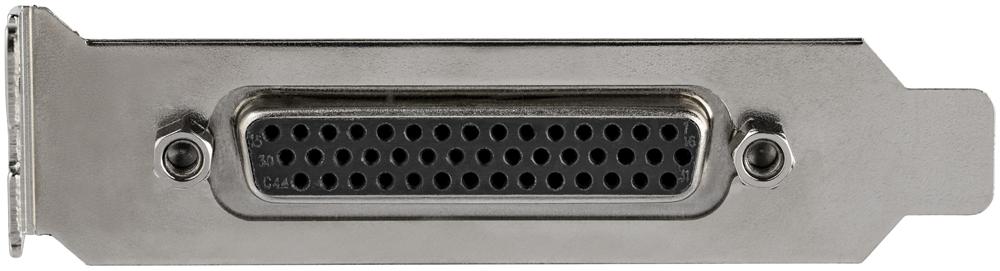

- Pre-fitted with Low Profile bracket and supplied with full size bracket
- Supports Win 7/8/10, Linux 2.4-2.6.x (LTS only)
- 2 Year manufacturer warranty
Contents
Serial card, full size bracket, breakout cable and user guide
Product details
| Computer Interface |
PCI Express, RS232 |
| Product Range |
- |
Other details
| Brand |
STARTECH |
| Part Number |
PEX4S953LP |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
