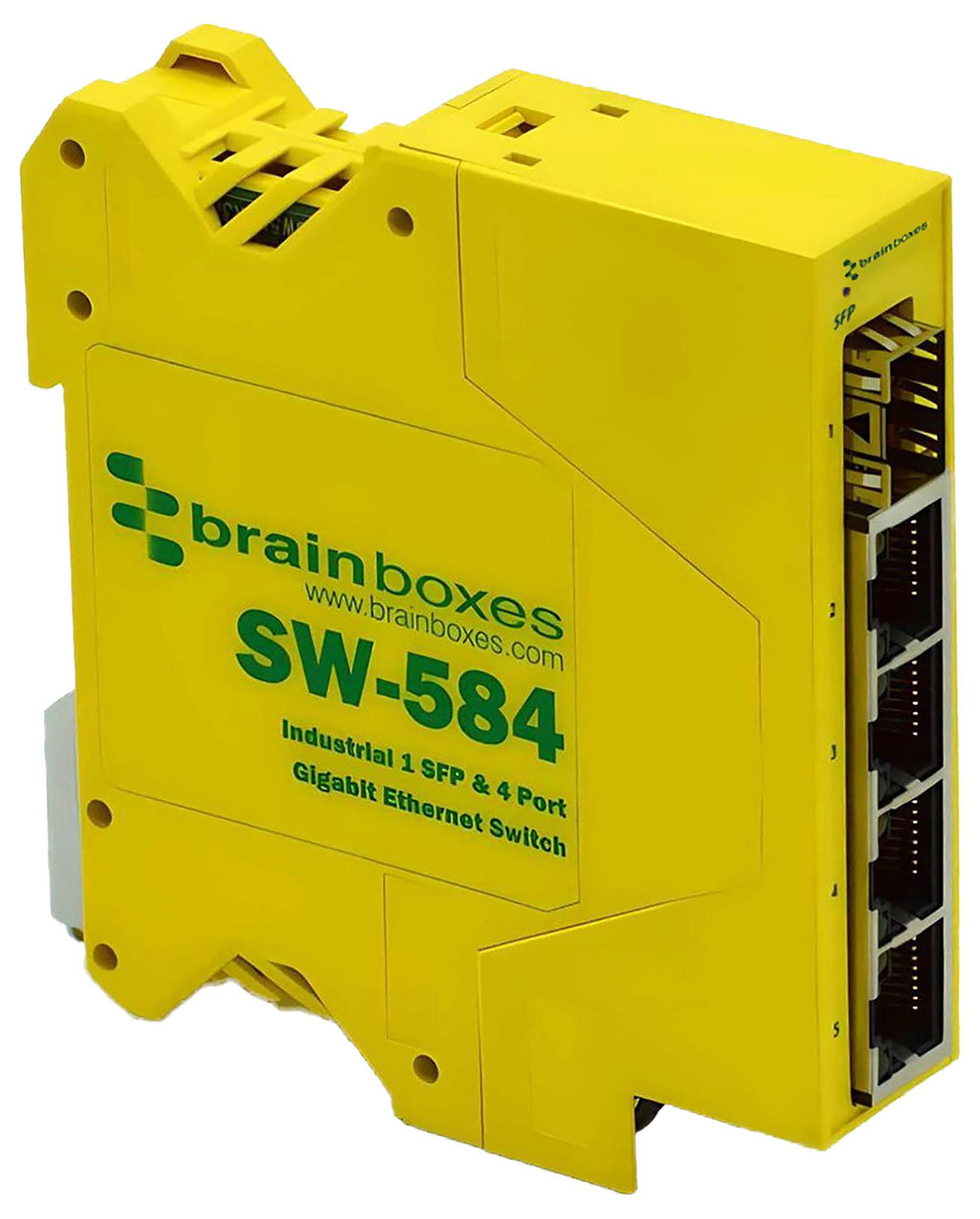

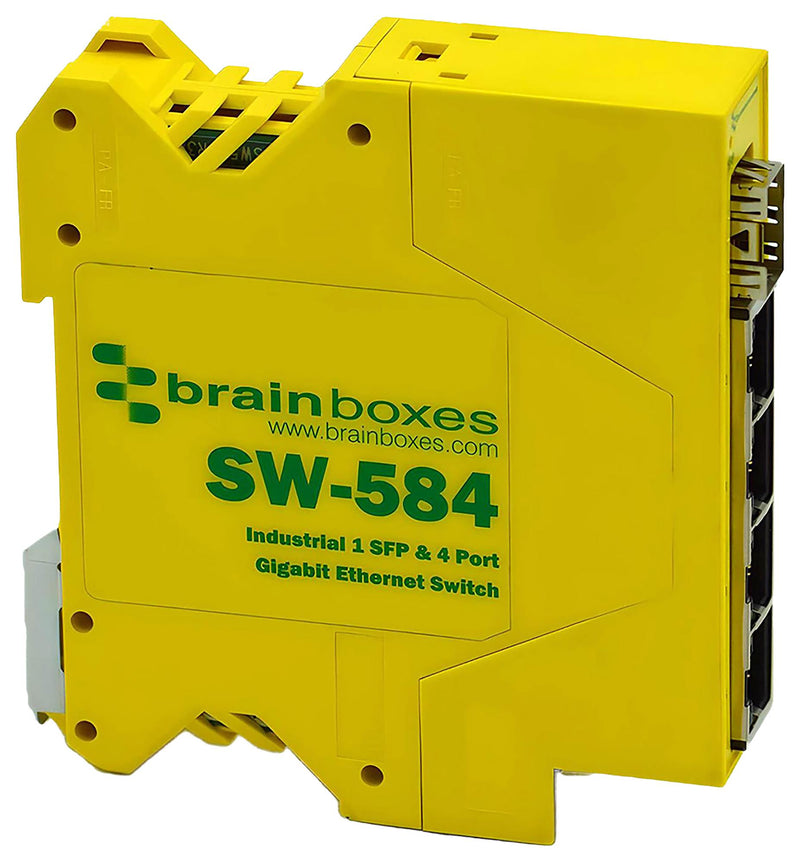

BRAINBOXES SW-584 Switch, 5 Ports, Industrial, Gigabit Ethernet, DIN Rail, RJ45 x 4, SFP x 1 GTIN UPC EAN: 0837324005004

The SW-584 is an industrial Gigabit Ethernet switch that provides 1 SFP & 4 LAN ports. Utilise the SFP port with optional modules (not included) to connect to a wide variety of fibre optic and copper cable types that allow for high-speed data connection over extended distances. The switch features galvanically isolated Ethernet ports and dual input redundant power supply, meaning it can be powered via a USB supply or directly from a 24V factory floor. The screw terminal block is removable with numbered pins for easy wiring. Designed to be plug & play, no software is required making the switch ideal for factory floor, vehicle and marine applications.

• Cost effective, future-proof switch that can be deployed over extended distances

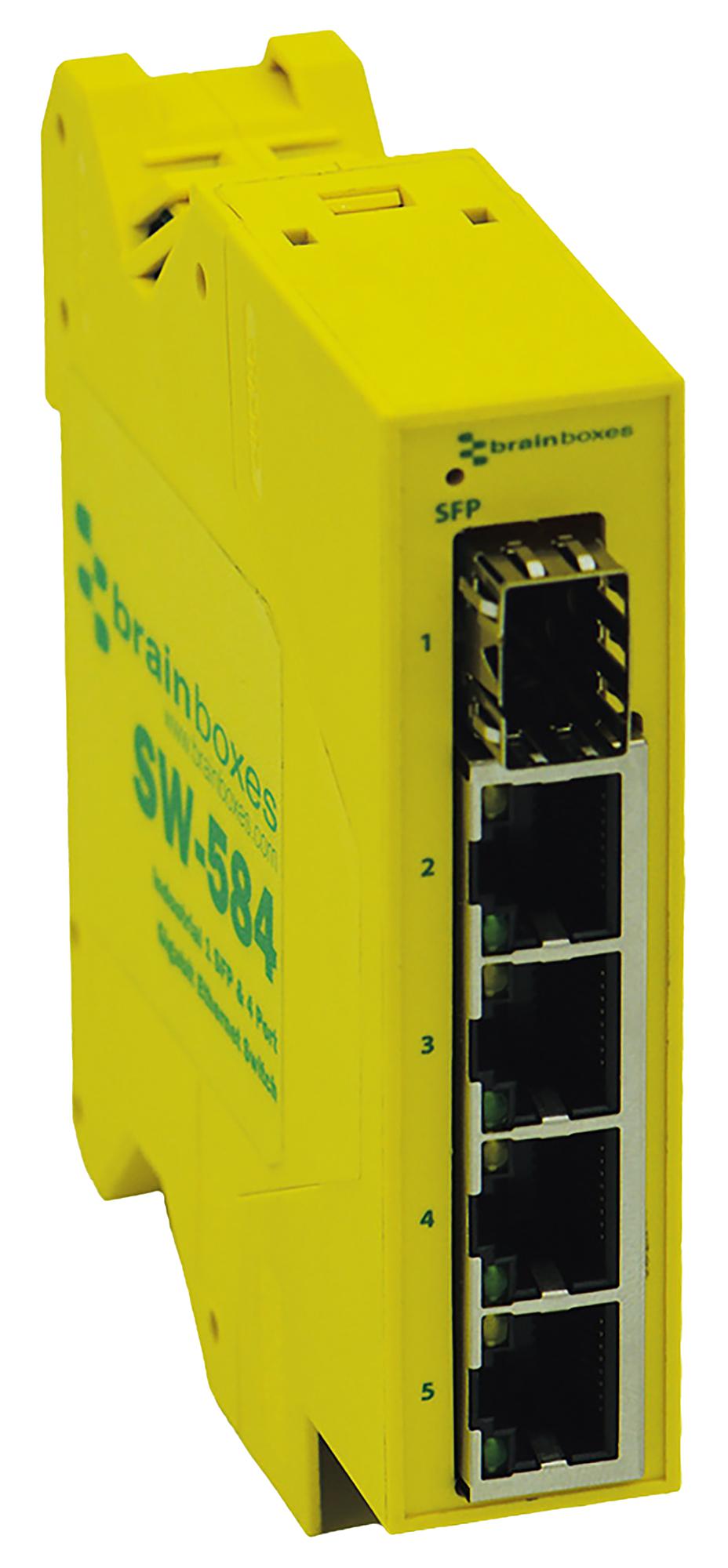

• Provides four Gigabit Ethernet RJ45 ports and one Gigabit SFP port (1000BASE-X)
• Add an SFP module (not included) to connect to a wide range of fibre optic and copper cable types
• Fibre optic cables are immune to electrical and magnetic interference and can cover great distances than standard network cables
• Galvanic isolation: Each Ethernet port is magnetically isolated at 1500VRMS
• Automatic MDI/MDI-X crossover on all Ethernet ports
• Extended operating temperature range for use in harsh environments (-40°C to +80°C)
• Slim profile IP20 rated non-conducting polyamide case that is ideal for industrial use
• SFP Port power overcurrent protection
• Dual redundant power input (+5V DC to +30V DC)

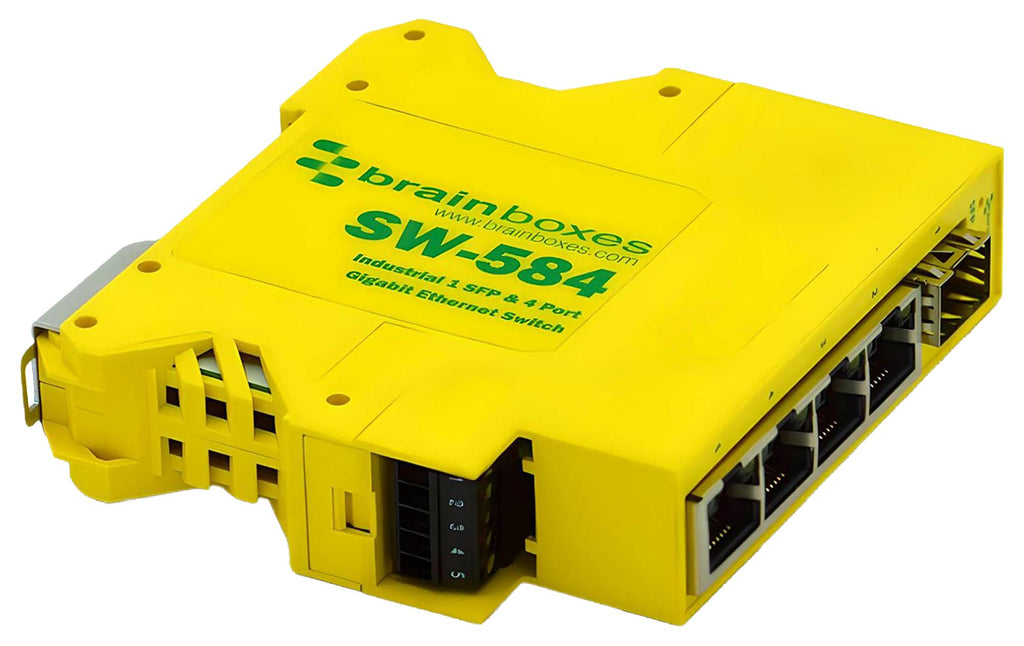

• Easily wireable and removable screw terminal block
• Integrated DIN rail mounting with ground
• Plug and play operation, no software required
• Dimensions (HxWxD): 99x22.6x95.4mm

Contents

Switch and user guide
