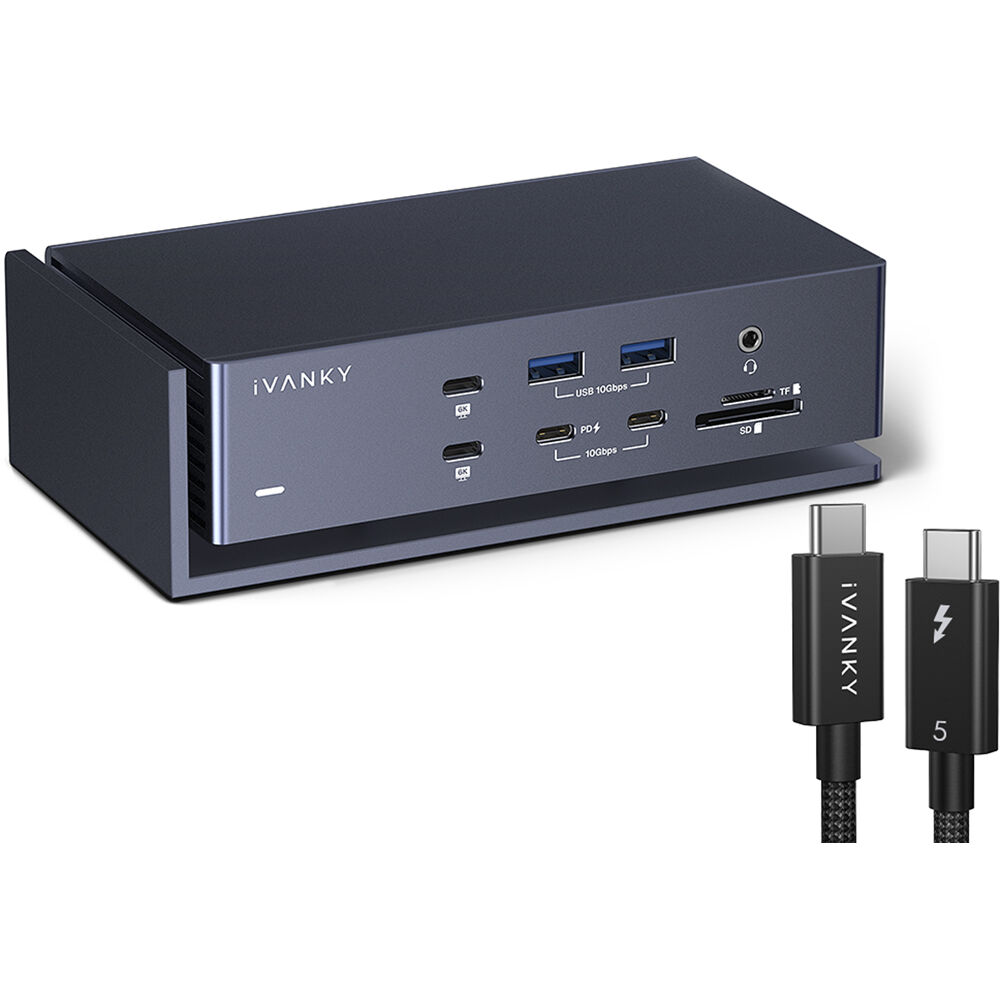

iVANKY FusionDock Max 1 with Thunderbolt 5 Cable (3.3')

Take your creative media workflow to a new level with the FusionDock Max 1 with Thunderbolt 5 Cable (3.3') bundle from iVANKY. Designed specifically for MacBooks and Mac Minis equipped with M1 to M4 chips, this docking station enhances your productivity by simultaneously supporting up to four high-resolution displays in addition to providing a variety of high-speed USB ports. This bundle includes a 240W Thunderbolt 5 cable from iVANKY that delivers up to 80 Gb/s bi-directional data and up to 120 Gb/s bandwidth.

Each of the four 15W Thunderbolt 4 downstream ports support a 6K, 60 Hz displays, providing an exceptional amount of high-resolution workspace for your projects. Depending on your MacBook model, you can configure a quad display workstation comprised of three 6K monitors and one 4K display. Alternatively, you can use the dual HDMI ports to connect 4K, 60 Hz monitors to create a configuration that best fits your needs. That would make two of the Thunderbolt 4 ports available for 40 Gb/s compatible storage drives and other devices.

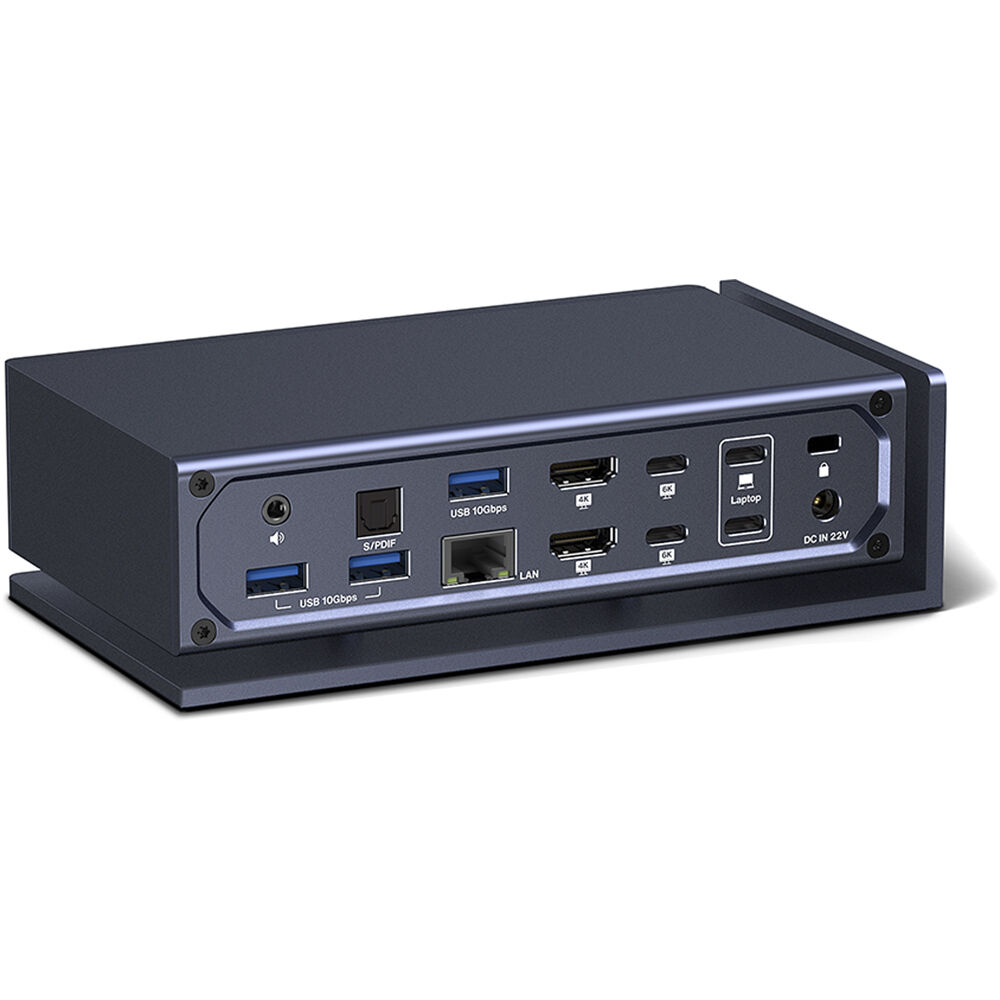

Other features include two 10 Gb/s USB-C ports, one of which supports up to 20W power output, alongside six USB-A ports. The SD and microSD card readers allow you to quickly transfer content while the 2.5G Ethernet port lets you connect to compatible high-speed wired networks. For audio, the front panel includes a 3.5mm audio in/out jack while the rear panel has a 3.5mm output alongside a S/PDIF optical connector.

Please be aware that the iVANKY FusionDock Max 1 does not work with Intel-based MacBooks, nor is it designed for Windows computers.

Dual Thunderbolt 4

Equipped with two Thunderbolt 4 chips, the FusionDock Max 1 provides smooth performance across up to four displays and all its data ports. The two Thunderbolt 4 upstream ports connect to your MacBook through the included dual USB-C cable and support up to 100W power delivery.

Import and Backup In a Snap

Spend less time waiting for files to transfer with four 40 Gb/s Thunderbolt 4 ports, which are available alongside two 10 Gb/s USB-C and six USB-A ports.

2.5G Ethernet

Take full advantage of multi-gig internet services and compatible network devices such as NAS systems with the 2.5 Gb/s Ethernet port.

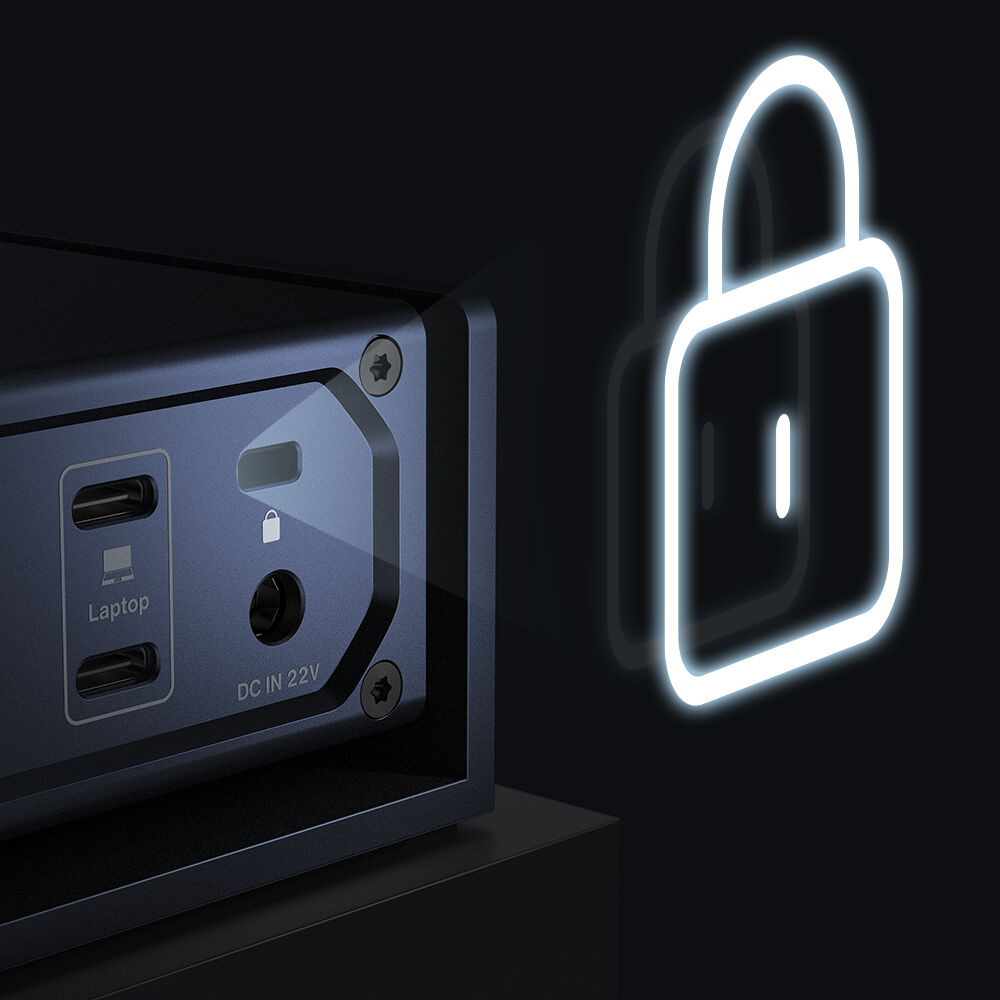

Dock Security

Safeguard your FusionDock Max 1 in co-working spaces, offices, or classrooms with the iVANKY security slot.

Floating Design

The iVANKY FusionDock Max 1 features a floating design that lifts the bottom from the desktop surface to provide efficient airflow and optimal performance. Connect the dock to your compatible Mac using the dual USB-C cable to get started.

iVANKY VCD10B Specs

USB I/O	4x USB-C (USB4) 1x USB-C 3.1/3.2 Gen 2 1x USB-C 3.1/3.2 Gen 2 / Supports 30 W Power Delivery 6x USB-A 3.1/3.2 Gen 2
Video I/O	2x HDMI
Max Resolution	4 Displays Supported: 6016 x 3384 at 60 Hz (Quad)
Audio I/O	2x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
Network I/O	1x RJ45 (2.5 Gb/s)
Host Connection	USB-C (Thunderbolt 5) Supporting USB Power Delivery up to 96 W via Built-In Connector

Video I/O	2x HDMI
Max Resolution	4 Displays Supported: 6016 x 3384 at 60 Hz (Quad)
Audio I/O	2x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
Network I/O	1x RJ45 (2.5 Gb/s)
Host Connection	USB-C (Thunderbolt 5) Supporting USB Power Delivery up to 96 W via Built-In Connector
Power Source	Included AC Adapter (180 W) with Unspecified Barrel Diameter Connector
Media Card Reader	1x SDXC (UHS-II [312 MB/s]) 1x microSDXC (UHS-II [312 MB/s])
Wireless Charging	No
OS Compatibility	macOS 11.5 or Later
Lock Slot	No
Cable Length	3.3' / 1 m
