Description

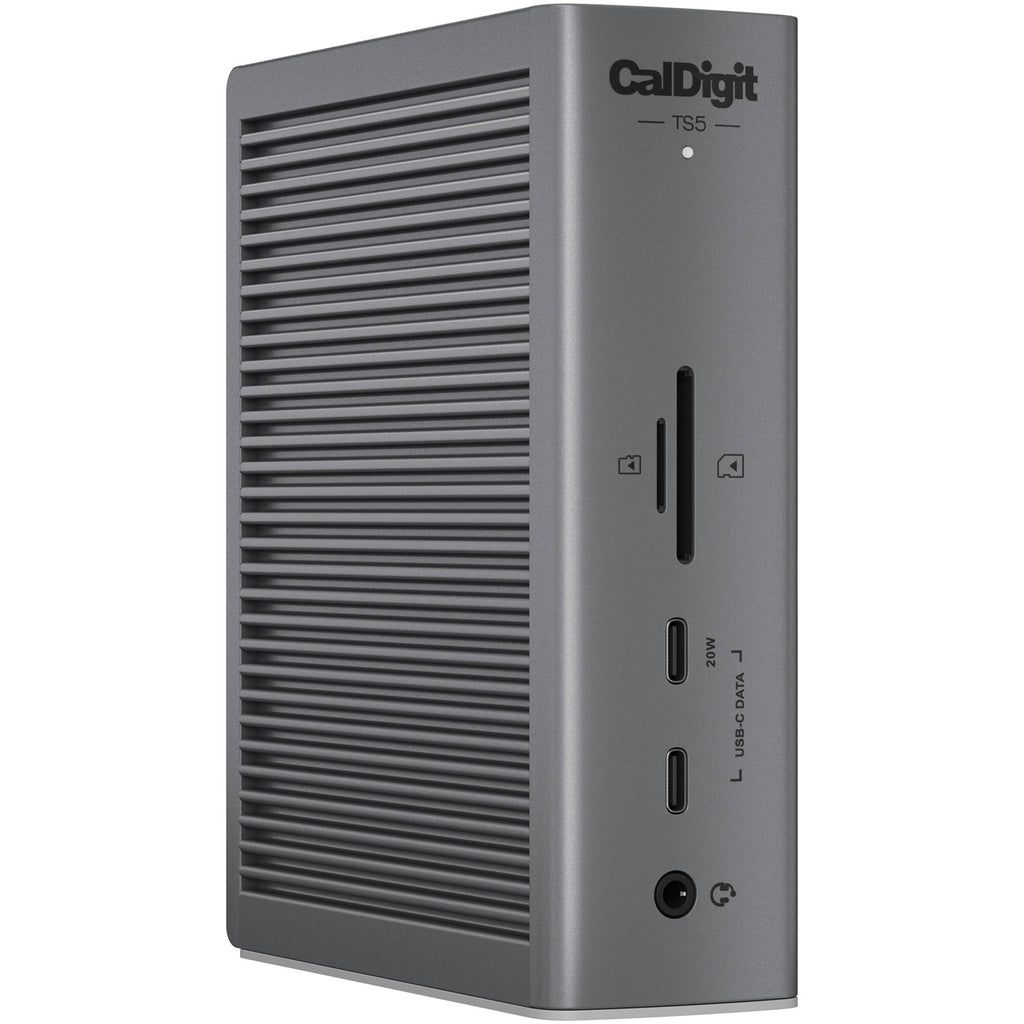

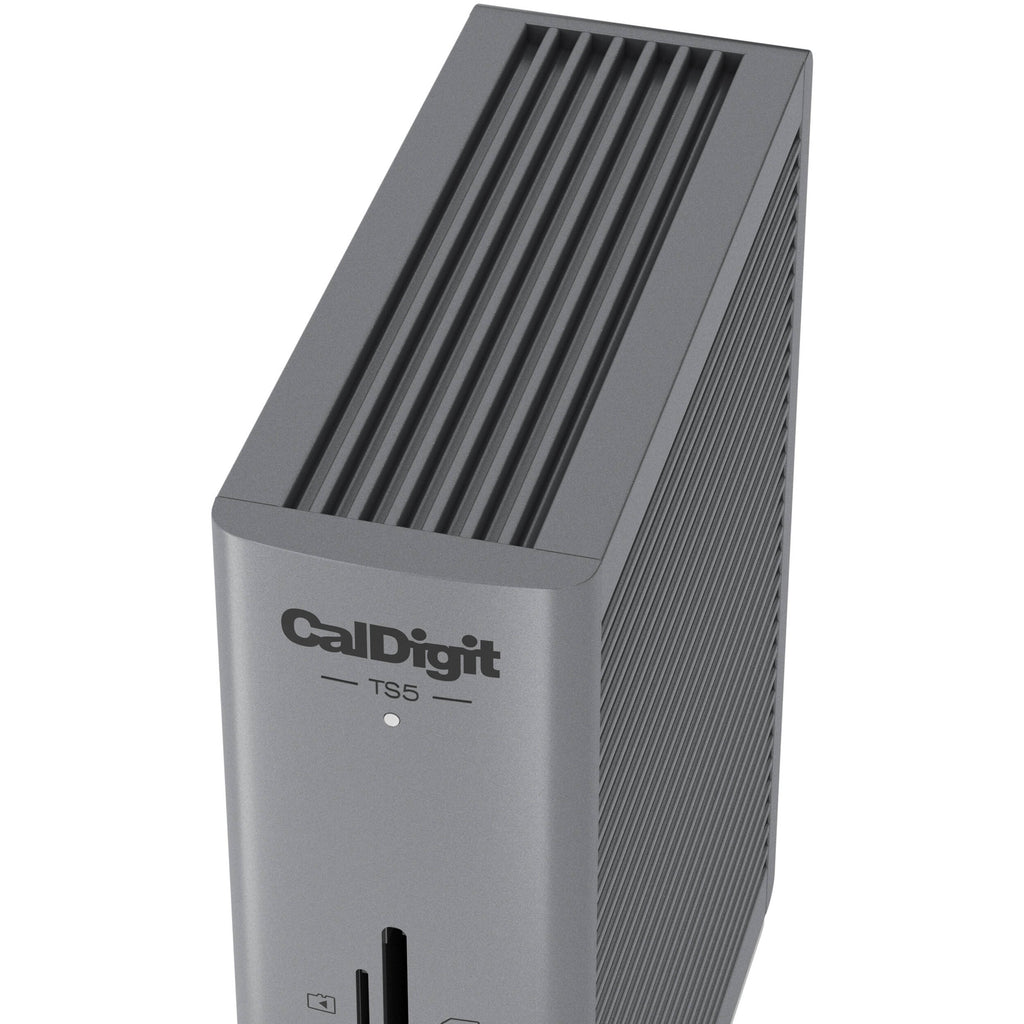

CalDigit TS5 Overview
Get the most out of your desktop or laptop setup with the TS5 Thunderbolt 5 Dock from CalDigit. This dock connects to your Windows, macOS, or ChromeOS system using a 120 Gb/s Thunderbolt 5 host port that also provides up to 140W of charging power.

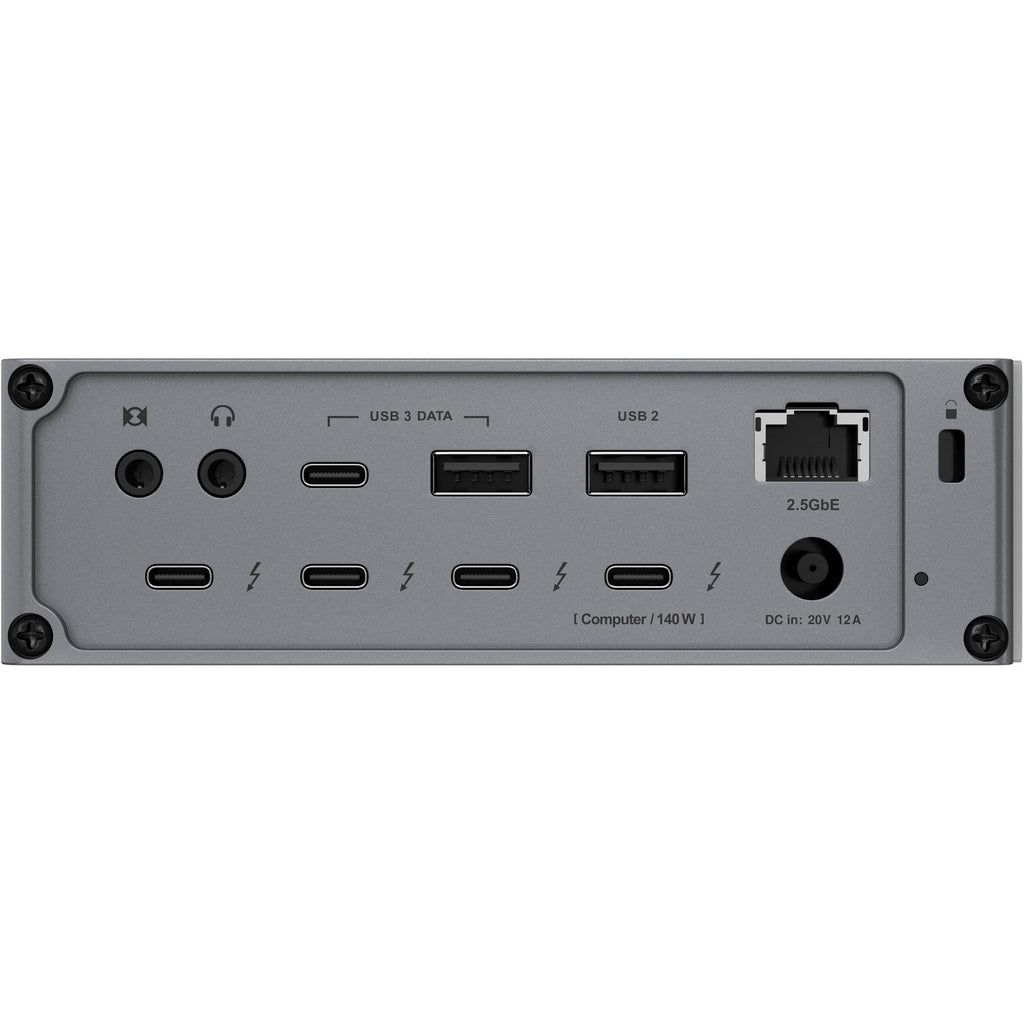

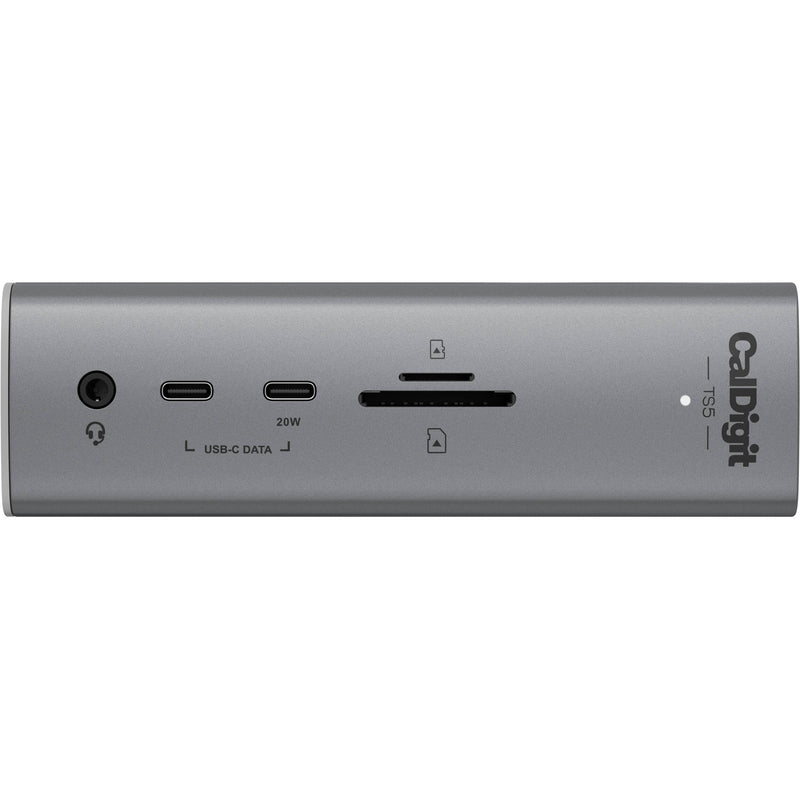

CalDigit has designed this dock to also feature three Thunderbolt 5 ports that provide speeds up to 80 Gb/s and up to 15W of charging power, three 10 Gb/s USB-C ports, one 10 Gb/s USB-A port, one 480 MB/s USB-A port, one 3.5mm front combo audio in/out port, one rear audio out port, and one rear audio in port. These ports, plus one SD 4.0 UHS-II slot and one microSD 4.0 UHS-II slot allow for extra peripheral connections, file transfers, and device charging. Additionally, the inclusion of a 2.5 Gigabit ethernet cable, means that you can add gigabit ethernet speeds to your setup with ease.
Single Monitor: If you're looking to add a single monitor to the TS5 you can connect it to one of the spare Thunderbolt 5 ports. If you wish to connect an HDMI monitor you can use a USB-C to HDMI adapter.
Dual Monitors: macOS users on base M4, M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2/M3 Ultra, or Intel based Macs can connect up to dual displays. Windows PC Thunderbolt 5 and Thunderbolt 4 users can connect up to dual displays.
Triple Monitors: Only Windows PC users with Thunderbolt 5 can connect up to three displays on supported host computers.
Items Included
- CalDigit TS5 Thunderbolt 5 Dock
- 3.3' Thunderbolt 5 Braided Cable
- 2 x Rubber Feet Strips
- Power Cord
- 240W Power Supply
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
CalDigit TS5 Specs
| USB I/O |
3x USB-C (Thunderbolt 5) / Supports 15 W Power Delivery
2x USB-C 3.1/3.2 Gen 2 / Supports 7.5 W per Port 1x USB-C 3.1/3.2 Gen 2 / Supports 20 W Output 1x USB-A 3.1/3.2 Gen 2 / Supports 7.5 W per Port 1x USB-A 2.0 / Supports 7.5 W Output |
| Max Resolution |
2 Displays Supported:
7680 x 4320 at 60 Hz (Dual) |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
1x 1/8" / 3.5 mm Microphone Input 1x 1/8" / 3.5 mm Headphone Output |
| Network I/O |
1x RJ45 (2.5 Gb/s)
|
| Host Connection |
USB-C (Thunderbolt 5) Supporting USB Power Delivery up to 140 W via Built-In Connector
|
| Max Resolution |
2 Displays Supported:
7680 x 4320 at 60 Hz (Dual) |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
1x 1/8" / 3.5 mm Microphone Input 1x 1/8" / 3.5 mm Headphone Output |
| Network I/O |
1x RJ45 (2.5 Gb/s)
|
| Host Connection |
USB-C (Thunderbolt 5) Supporting USB Power Delivery up to 140 W via Built-In Connector
|
| Power Source |
Included AC Adapter 20 VDC at 12 A with Unspecified Barrel Diameter Connector
|
| Media Card Reader |
1x SDXC (UHS-II [312 MB/s])
1x microSDXC (UHS-II [312 MB/s]) |
| Wireless Charging |
No
|
| OS Compatibility |
Computer: Windows 10 or Later / macOS 15 or Later / Chrome OS
Mobile: iPadOS Only |
| Lock Slot |
Yes
|
| Cable Length |
3.3' / 1 m
|
| Dimensions |
5.6 x 4.5 x 1.7" / 141 x 113.4 x 42 mm
|
| Weight |
1.41 lb / 0.64 kg
|
