| ₹ 67470.0 includes GST and import duties. | |
| B2B customers can avail ₹ 10289.18 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 802.11 a/b/g/n/ac Wi-Fi Standards
- Up to 1167 Mbps Wi-Fi Transfer Rates
- 600' Wireless Coverage
- 1 x 10/100/1000 Ethernet Port
- UniFi Controller Software
- Integrated Omni Antennas
- Guest Portal/Hotspot Support
- Passive Power over Ethernet
- 250+ Concurrent Clients
- Reset Button

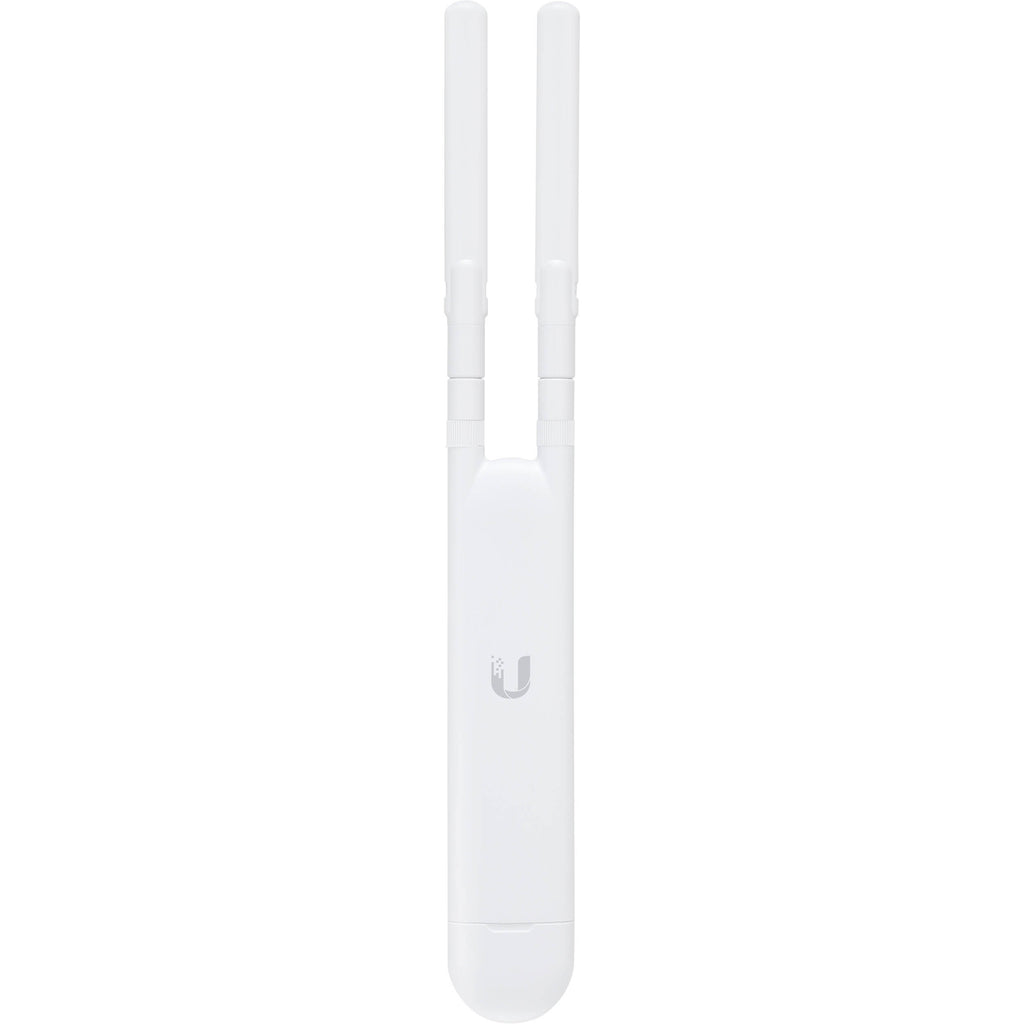

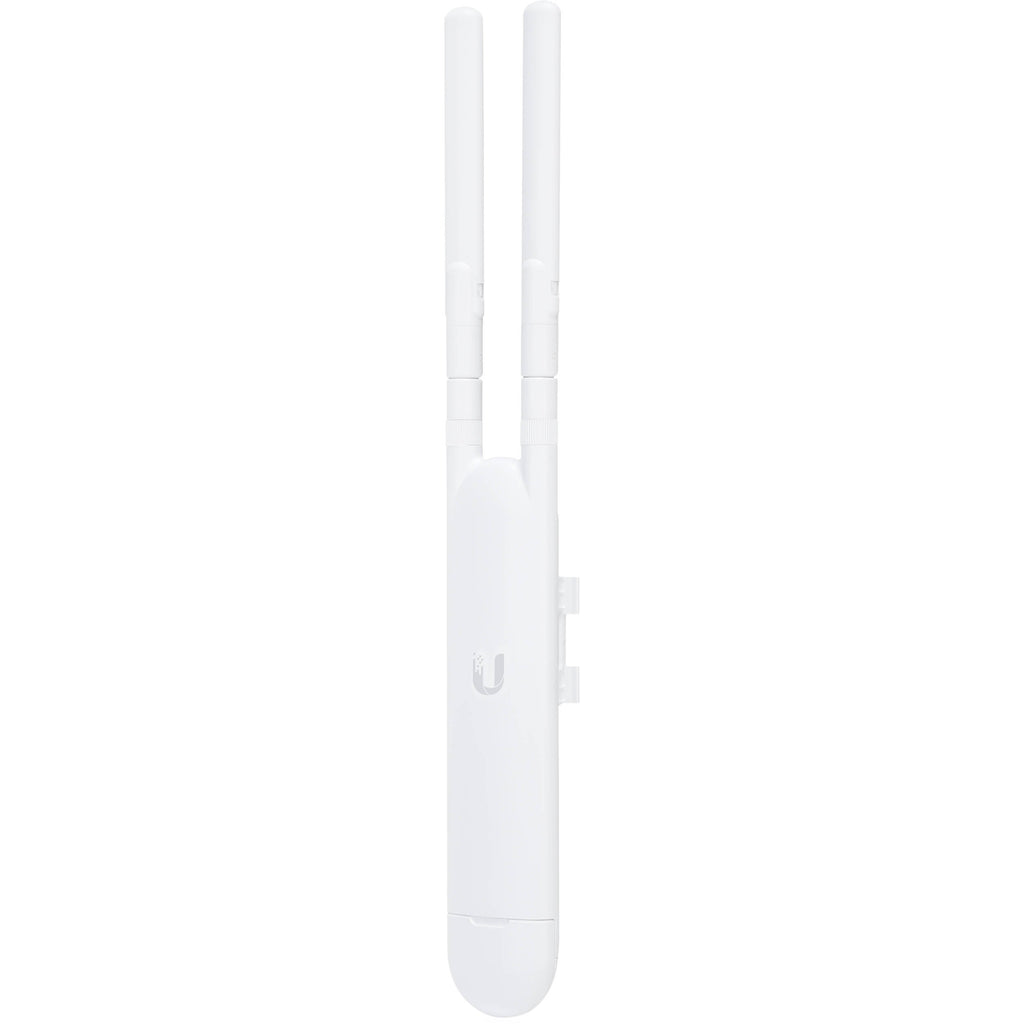

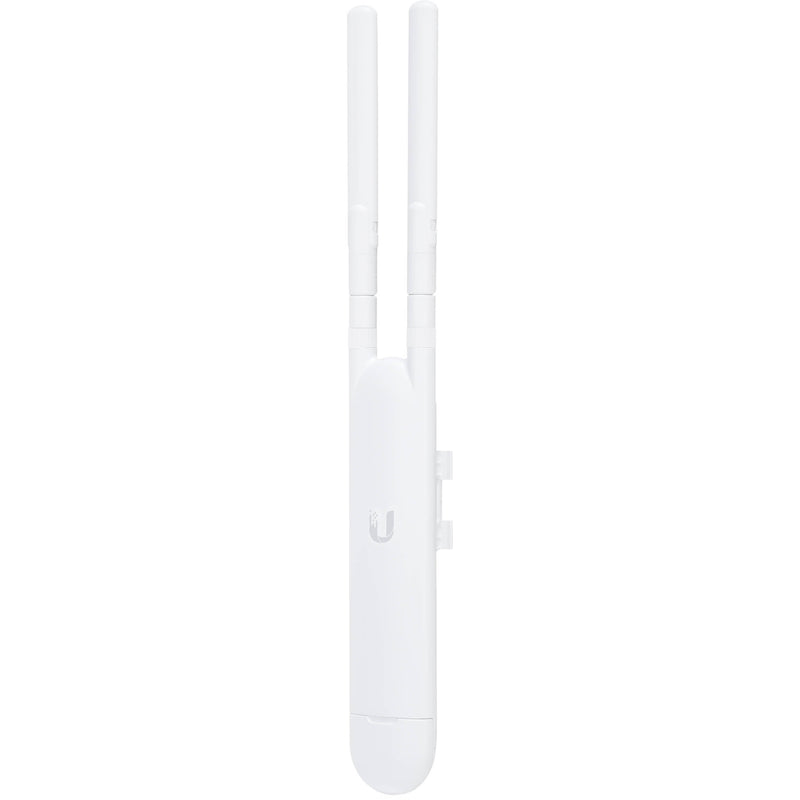

With the outdoor UniFi AC Mesh Wide-Area Outdoor Dual-Band Access Point from Ubiquiti Networks , users benefit from a wide coverage area reaching up to 600 feet, along with enhanced data transfer rates of up to 867 Mbps on the 5 GHz frequency. These enhanced data rates and coverage capabilities are supported by a 2x2 MIMO internal antenna configuration supporting multiple data paths for a more efficient end user network connection. Installation of the UAP-AC-M access point is simple as it is 802.3af PoE compliant and includes a wall/pole/fast-mount mounting kit. Once installed, users can take advantage of 802.11ac Wi-Fi access with combined wireless data transfer rates of up to 1167 Mbps.
The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.- Weather-Resistant Form Factor
- The enclosure of the UniFi AC Mesh AP is designed to withstand the elements, making it ideal for outdoor deployment.
- LED Indicators
- Unique provisioning LED provides administrator location tracking and alerts for each device.
- Powerful Coverage
- Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.
- Mounting Flexibility
- The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (All accessories are included.)

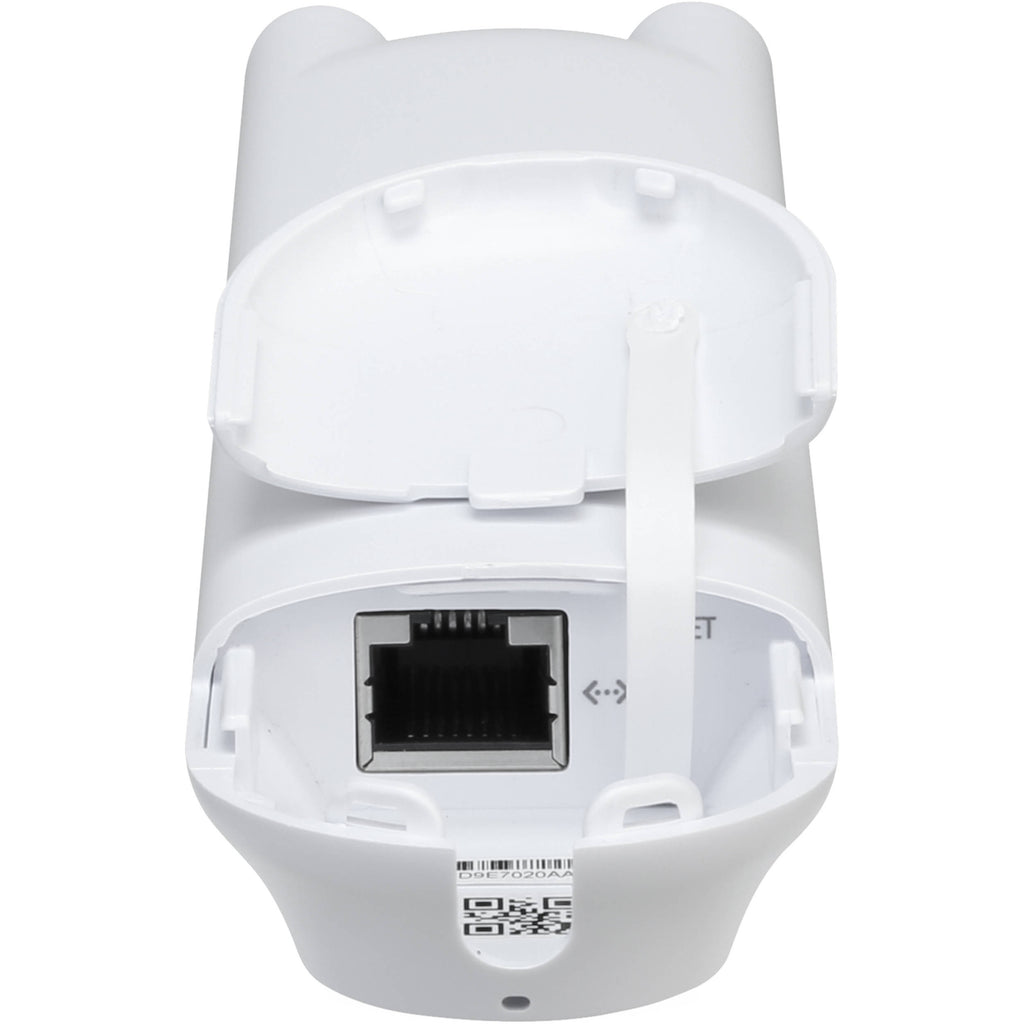

- Gigabit Ethernet Port
- The built-in Gigabit Ethernet port is for data and PoE.
- Multiple Power Options
- You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or an optional Gigabit PoE adapter.
- UniFi Controller
- Packed with Features
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
RF Map
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.
Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
Detailed Analytics
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink - so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.
Guest Portal/Hotspot Support
Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
� Built-in support for billing integration using major credit cards.
� Built-in support for voucher-based authentication.
� Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
� Full customization and branding of Hotspot portal pages.
Multi-Site Management
A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.
WLAN Groups
Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
UPC: 817882020589
In the Box
Ubiquiti Networks UniFi AC Mesh Wide-Area Outdoor Dual-Band Access Point (5-Pack)
- Limited 1-Year Manufacturer Warranty
| Networking Interface | 1 x 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Power Method | 24 V Passive PoE (Pairs 4, 5+; 7, 8 Return) 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported Voltage Range: 44 to 57 VDC) |
| Power Supply | Not included |
| Power Save | Supported |
| Maximum Power Consumption | 8.5 W |
| Maximum TX Power | 2.4 GHz: 20 dBm 5 GHz: 20 dBm |
| Antennas | 2 x External Dual-Band Antennas 2.4 GHz: 3 dBi 5 GHz: 4 dBi |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to Four per Radio |
| Mounting | Wall/Pole/Fast-Mount (Kits included) |
| Temperature & Humidity | Operating Temperature -22 to 158°F / -30 to 70°C Operating Humidity 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| Traffic Management and QoS | VLAN 802.1Q Advanced QoS Per-User Rate Limiting Guest Traffic Isolation Supported WMM Voice, Video, Best Effort, and Background Concurrent Clients 250+ |
| Supported Data Rates | 802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps |
| Dimensions | 13.90 x 1.81 x 1.35" / 353.00 x 46.00 x 34.40 mm |
| Weight | 5.36 oz / 152 g (with antennas) |
| Packaging Info | |
|---|---|
| Package Weight | 3.55 lb |
| Box Dimensions (LxWxH) | 9.6 x 9.3 x 5.5" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 66120.6 |
| 3-5 | ₹ 65445.9 |
| 5-10 | ₹ 64096.5 |
| 10+ | ₹ 62747.1 |
Bulk discount will be automatically applied during checkout based on quantity.
