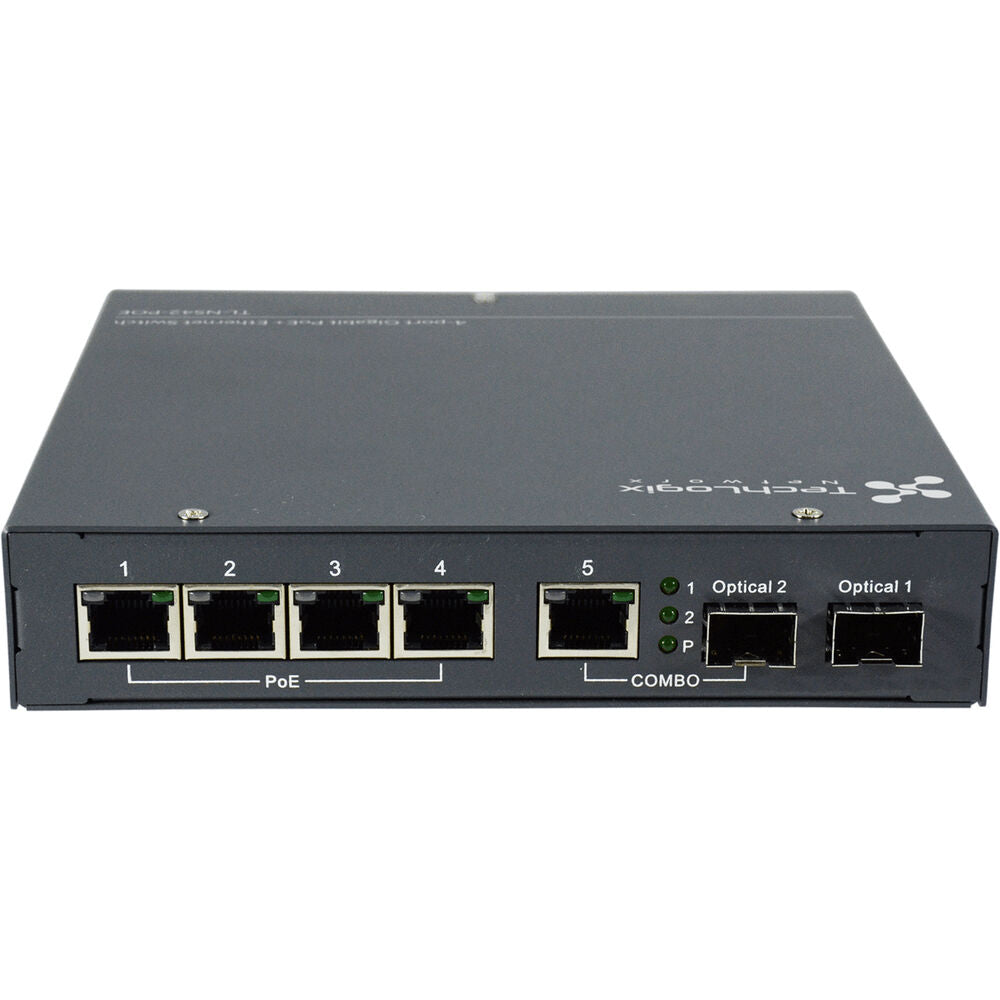

TechLogix Networx TL-NS42-POE Overview
Grow your business's network capacity to support network surveillance cameras, access points, printers, and other power-over-Ethernet devices with the TL-NS42-POE 4-Port Gigabit PoE+ Compliant Unmanaged Switch from TechLogix Networx. This compact unmanaged Layer 2 switch is designed to quickly integrate into your network to provide four Gigabit Ethernet ports, each providing up to 30W of power with a total budget of 120W. Using the DIP switches, you can manually turn PoE power on or off for each port. A non-PoE Gigabit RJ45/SFP combo port is also available alongside a Gigabit SFP port for fiber connections. You can daisy-chain multiple switches together using either copper or fiber connections to scale your network as your business continues to grow.
With its 16 Gb/s switching capacity and 11.9 Mpps forwarding rate, the TL-NS42-POE is designed to deliver smooth data transfers while operating silently from a desktop, wall, or DIN rail using the included mount. Other features include a redundant power supply that can support two DC inputs simultaneously and reverse power protection to maximize your up time should power issues arise.
![]()
UPC: 816927025640
In the Box
- TechLogix Networx TL-NS42-POE 4-Port Gigabit PoE+ Compliant Unmanaged Switch with SFP
- Power Adapter (48V)
- Wall/DIN Mounting Kit
- Limited 3-Year Warranty
TechLogix Networx TL-NS42-POE Specs
Interfaces
| Ports |
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit SFP
1 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) |
Protocols
| Layer Services Supported |
Layer 2 Support |
| Supported Protocols |
Auto-MDIX/MDI |
| Transmission Method |
Store-and-Forward |
| Jumbo Frames Support |
10,000 Bytes |
| MAC Address Table Size |
1K |
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z |
Performance
| Forwarding Rate |
11.9 Mpps |
| Switching Bandwidth |
16 Gb/s |
Electrical
| DC Input Power |
48 VDC at 2.5 A |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 1.4 A |
| PoE Power Budget |
120 W |
| PoE per Port |
30 W |
| Power Supply Type |
Redundant |
Environmental
| Operating Temperature |
-40 to 167°F / -40 to 75°C |
| Operating Humidity |
5 to 95% |
| Storage Temperature |
-40 to 185°F / -40 to 85°C |
| Storage Humidity |
5 to 90% |
General
| Cooling System |
Passive |
| Mean Time Between Failures (MTBF) |
50,000 Hours |
| Material of Construction |
Steel |
| Indicator Lights |
Link/Activity |
| Dimensions |
6.3 x 6.1 x 1.3" / 160 x 155 x 32 mm |
| Weight |
2.73 lb / 1.24 kg |
