Description
Luminex GigaCore 20T Overview
- 1Description
- 2AV Validated
- 3Robust & Silent Design
- 4Araneo

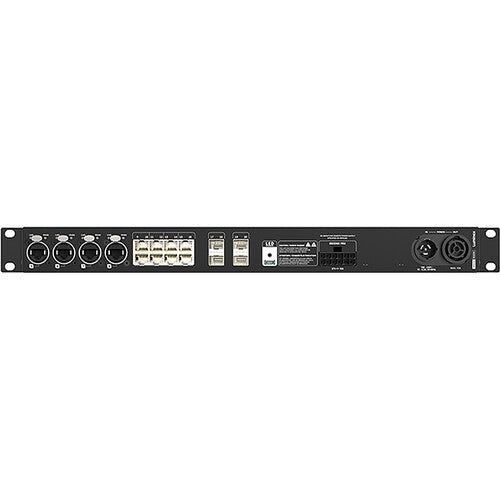

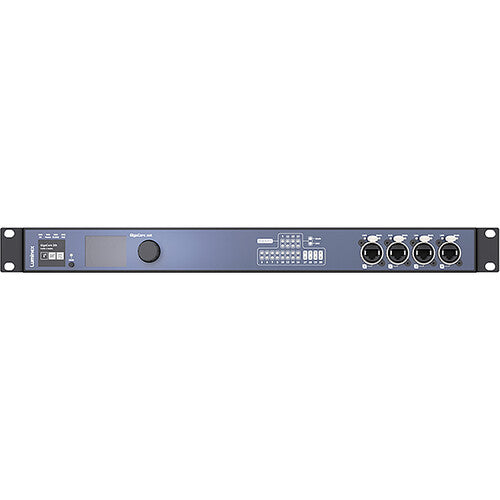

Designed specifically for live events and touring with advanced AV protocols, the GigaCore 20T 16-Port Gigabit EtherCon / RJ45 Managed AV Switch from Luminex allows you to smoothly manage your lighting, video, and audio network. Validated for professional applications such as Dante, NDI, and AES67, the front panel includes four Gigabit EtherCon connectors with four more on the rear panel alongside eight Gigabit speed RJ45 ports.
Four 10G SFP+ uplink ports allow the switch to become the backbone of a fully converged network, where multiple applications can operate on the same network. The ruggedized design makes the GigaCore 20T ideal for frequent tear down and build-up requirements. Two cooling fans help to maintain optimal performance with a 168 Gb/s switching capacity while producing minimal noise.
In the Box
- Luminex GigaCore 20T 16-Port Gigabit EtherCon / RJ45 Managed AV Switch with SFP+
- Limited 2-Year Manufacturer Warranty
- Description
- AV Validated
- Robust & Silent Design
- Araneo
Luminex GigaCore 20T Specs
| Inputs/Outputs |
16 x RJ45 Gigabit Ethernet PoE++ (Type 3)
4 x SFP+ 10 GbE |
| PoE Power Budget |
500 W
|
| Inputs/Outputs |
16 x RJ45 Gigabit Ethernet PoE++ (Type 3)
4 x SFP+ 10 GbE |
| Supported Protocols |
Auto-MDIX/MDI
IGMP Snooping Link Aggregation |
| Jumbo Frames Support |
12,000 Bytes
|
| MAC Address Table Size |
16K
|
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1qav, 802.1s, 802.1w, 802.2, 802.3ab, 802.3ae, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3ba, 802.3bt Type 4 (PoE++ 100 W), 802.3u, 802.3x
|
| Switching Bandwidth |
168 Gb/s (Non-Blocking)
|
| Flash Memory |
8 MB
|
| Memory |
1 GB
|
| Power Draw |
1050.00 W (Max)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
500 W
|
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
14 to 158°F / -10 to 70°C
|
| Certifications |
FCC, CAN, ICES, EN, IEC, UL, CAN, CSA, CE, UKCA, CB, RoHS, REACH
|
| Cooling System |
Fan
|
| Material of Construction |
Metal
|
| Indicator Lights |
Activity, PoE, Power, Speed, Status
|
| Dimensions |
19 x 8.5 x 1.7" / 482 x 216.9 x 44 mm
|
