Description
Luminex GigaCore 16T Overview
- 1Description
- 2AV Validated
- 3PoE++ Support
- 4Robust & Silent Design
- 5Araneo

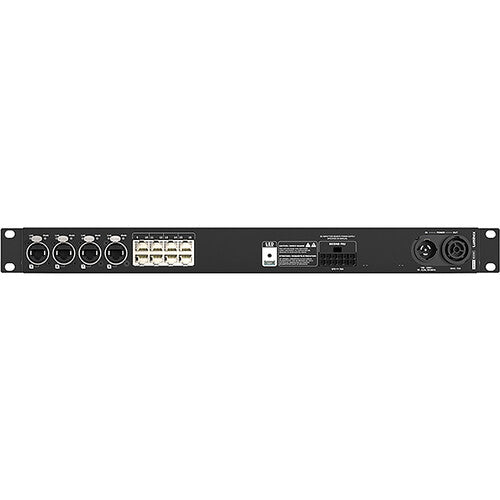

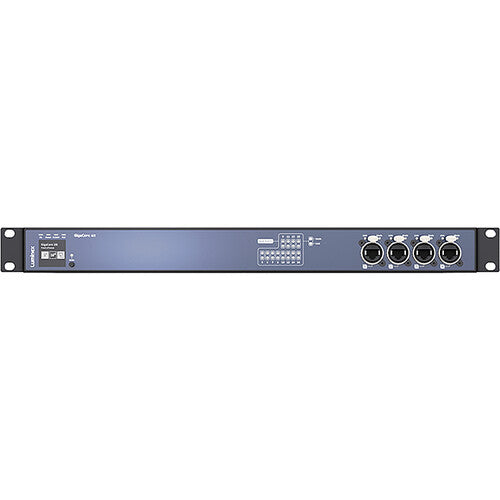

Designed specifically for live events and touring with advanced AV protocols, the GigaCore 16T 16-Port Gigabit EtherCon / RJ45 Managed AV Switch from Luminex allows you to smoothly manage your lighting, video, and audio network. Validated for professional applications such as Dante, NDI, and AES67, the front panel includes four Gigabit EtherCon connectors with four more on the rear panel alongside eight Gigabit speed RJ45 ports.
The ruggedized design makes the GigaCore 16T ideal for frequent tear down and build-up requirements. Two cooling fans help to maintain optimal performance with a 168 Gb/s switching capacity while producing minimal noise.
AV Validated
GigaCore switches are fully validated with major brands for different protocols, including NDI, Dante, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and more.
PoE++ Support
Each of the 16 copper ports provide up to 90W of power to PoE compatible devices with a total budget of 500W.
Robust & Silent Design
The two fans are speed controlled to have minimal noise impact and guarantee a long-life operation. This allows you to place the GigaCore in quiet environments such as theaters and studios.
Araneo
GigaCore switches can be managed using the Araneo tool. Araneo's online mode shows what you need to know about your network, with visualized data streams, topology, and port statuses. In offline mode, you can plan the complete network topology and settings in advance.
In the Box
- Luminex GigaCore 16T 16-Port Gigabit EtherCon / RJ45 Managed AV Switch
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- AV Validated
- PoE++ Support
- Robust & Silent Design
- Araneo
Luminex GigaCore 16T Specs
Key Specs
| Inputs/Outputs |
16 x RJ45 Gigabit Ethernet
|
| PoE Power Budget |
500 W
|
Interfaces
| Inputs/Outputs |
16 x RJ45 Gigabit Ethernet
|
Protocols
| Supported Protocols |
Auto-MDIX/MDI
IGMP Snooping Link Aggregation |
| Jumbo Frames Support |
12,000 Bytes
|
| MAC Address Table Size |
16K
|
Standards
| Supported IEEE Standards |
802.11d, 802.1p, 802.1qav, 802.1s, 802.1w, 802.2, 802.3, 802.3ab, 802.3ae, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 4 (PoE++ 100 W), 802.3u, 802.3x
|
Performance
| Switching Bandwidth |
168 Gb/s
|
Computer
| Flash Memory |
8 MB
|
| Memory |
1 GB
|
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
500 W
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
14 to 158°F / -10 to 70°C
|
General
| Certifications |
FCC, CAN, EN, UL, CAN, CSA, CE, UKCA, CB, RoHS, REACH
|
| Cooling System |
Fan
|
| Material of Construction |
Metal
|
| Indicator Lights |
Activity, PoE, Speed, Status
|
| Dimensions |
19 x 8.54 x 1.7" / 482 x 216.95 x 44 mm
|
