Description
HPE Networking Instant On 1830 Overview

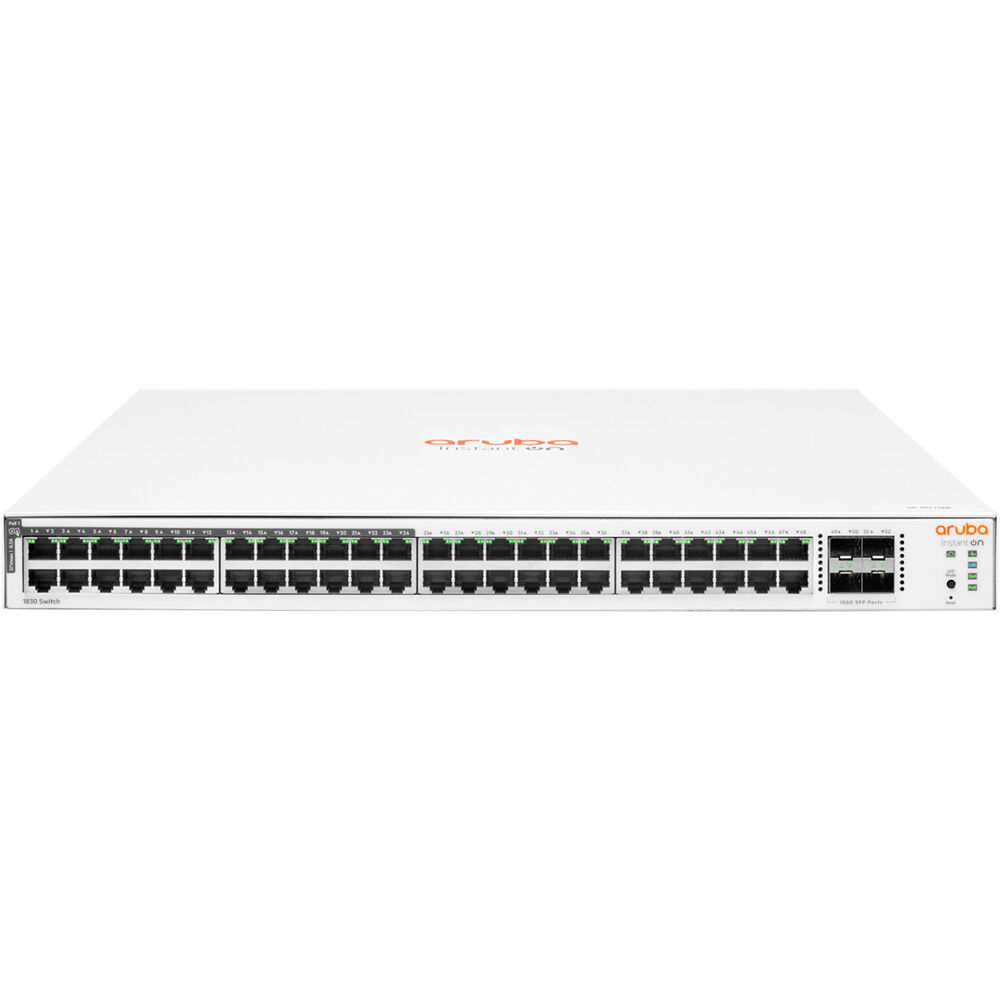

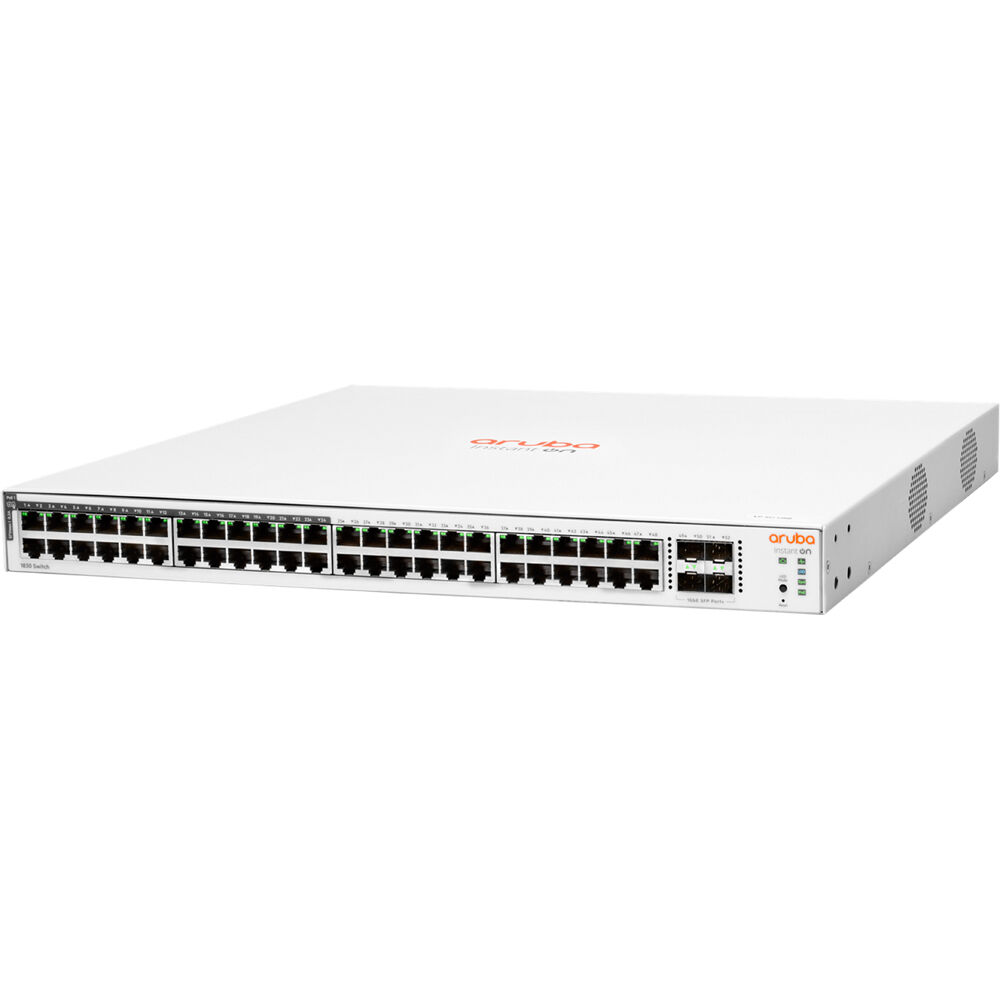

The HPE Networking Instant On 1830 JL815A 48-Port Gigabit PoE+ Compliant Managed Network Switch helps to quickly grow your small business's network capacity to keep up with the growing list of power over Ethernet devices such as IP security cameras, access points, and VoIP phones. This entry-level managed rackmount switch includes 48 Gigabit Ethernet ports, 24 of which are PoE+ compliant with a 370W power budget. Four Gigabit SFP ports are available for fiber connections. The JL815A also supports a host of Layer 2 features without any additional licensing fees. Use the HPE Networking Instant On mobile app, cloud-based web portal, or local web interface to quickly configure, manage, and monitor the HPE Networking Instant On 1830 network switch.
Performance
The HPE Networking Instant On 1830 switch features an 800 MHz ARM Cortex-A9 processor with 512MB of memory, 215MB of flash storage, and a 1.5MB packet buffer. It's designed to deliver smooth data transfers with a 104 Gb/s switching capacity and 77.37 Mpps forwarding rate.
Easy Management
The HPE Networking Instant On mobile app allows you to remotely configure, monitor, and manage your network switch without needing any additional hardware such as cloud keys or a VPN. You can also update firmware on your Instant On devices directly from the cloud, no matter where you are or what time it is.
Power-over-Ethernet
This switch includes 24 PoE+ complaint ports with a 370W power budget. Features such as automatic power configuration and scheduling allow you to efficiently operate your connected devices.
Multi-Site Remote Management
The cloud-hosted web interface and mobile app make it easy to remotely manage multiple sites and multiple networks with distributed and multi-tenant deployments. Each site is logically separated and has its own configuration, statistics, guest portal, and admin read/write privileges. Instant On also allows you to create three admin accounts per site, offering the option to lock accounts from accidental deletion.
Link Aggregation
This switch supports up to 16 groups of eight network ports, which may be configured to form high-bandwidth connections to compatible devices.
Management
Cloud-Based Management
Use the cloud-hosted web interface and mobile app to manage your networks and devices from almost anywhere.
Local Web GUI Management
The built-in web-based interface makes it easy for non-technical users to directly manage the Instant On 1830 switch. The interface supports up to five HTTP and HTTPS sessions.
Simple Network Time Protocol
The Simple Network Time Protocol (SNTP) automatically synchronizes the switch's date and time for accurate system event tracking and various schedules set by the administrator.
Security
Trusted Platform Module
The integrated Trusted Platform Module (TPM) provides secure, hardware-based generation and storage for cryptographic keys that are used for connections to the Instant On cloud portal.
Automatic Denial-of-Service Protection
The Instant On 1830 manages high-volume traffic and prevents denial-of-service (DoS) attacks against the network.
Global Storm Control
Protects against conditions where incoming packets flood the LAN, causing network performance degradation for unicast traffic with an unknown destination, and for broadcast and multicast traffic.
UPC: 190017524412
Items Included
- HPE Networking Instant On 1830 JL815A 48-Port Gigabit PoE+ Compliant Managed Network Switch with SFP
- Power Cable
- Limited Lifetime Warranty
Additional Resources
HPE Networking Instant On 1830 Specs
Key Specs
| Inputs/Outputs |
24x RJ45 Gigabit Ethernet PoE (Unspecified)
24x RJ45 Gigabit Ethernet 4x SFP Gigabit Ethernet |
| Stackable |
No
|
| Switching Bandwidth |
104 Gb/s
|
| PoE Power Budget |
370 W
|
| Stackable |
No
|
Protocols
| Layer Services Supported |
Layer 2
|
| Supported Protocols |
Auto-MDIX/MDI
IGMP Snooping Link Aggregation Port Mirroring |
| MAC Address Table Size |
16K
|
Security
| Security Features |
DoS Attack Prevention
Storm Control |
Performance
| Latency |
2.8 to 5.2 µs
|
| Forwarding Rate |
77.37 Mpps
|
| Switching Bandwidth |
104 Gb/s
|
| Packet Buffer |
1.5 MB
|
Computer
| Flash Memory |
256 MB
|
| CPU |
Single-Core: Up to 800 MHz Cortex A9
|
| Memory |
512 MB
|
Electrical
| PoE per Port |
30 W
|
| PoE Power Budget |
370 W
|
| Power Draw |
452.5 W (Max)
25.4 W (Idle) |
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 2.6 to 5.2 A
|
| Power Supply Type |
Internal
|
General
| Certifications |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 15 to 95% Humidity
|
| Storage Conditions |
-40 to 158°F / -40 to 70°C at 15 to 95% Humidity
|
| Noise Level |
25.0 dB (Active)
|
| Cooling System |
Fan
|
| Mean Time Between Failures (MTBF) |
0.7 Million Hours
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes 1 RU
|
| Dimensions |
17.4 x 13.8 x 1.7" / 443 x 351 x 43.9 mm
|
| Weight |
10.89 lb / 4.94 kg
|
Packaging Info
| Package Weight |
14.47 lb
|
| Box Dimensions (LxWxH) |
20.3 x 19.1 x 5.5"
|
