Description
EDIMAX Technology ES-1008PH V2 Overview
- 1Description
- 2DIP Switch Controls
- 3Extending Power
- 4Port-Based VLAN
- 5Hardware QoS
- 6Plug-and-Play

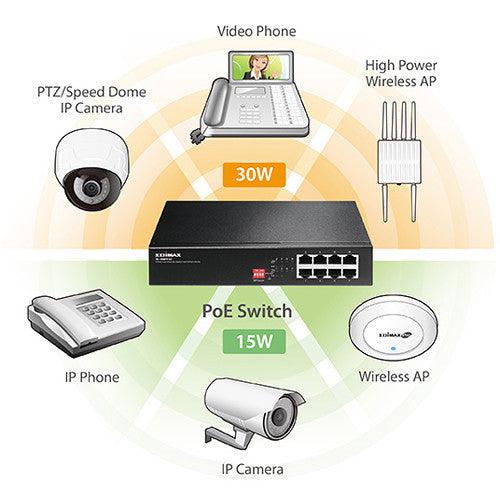

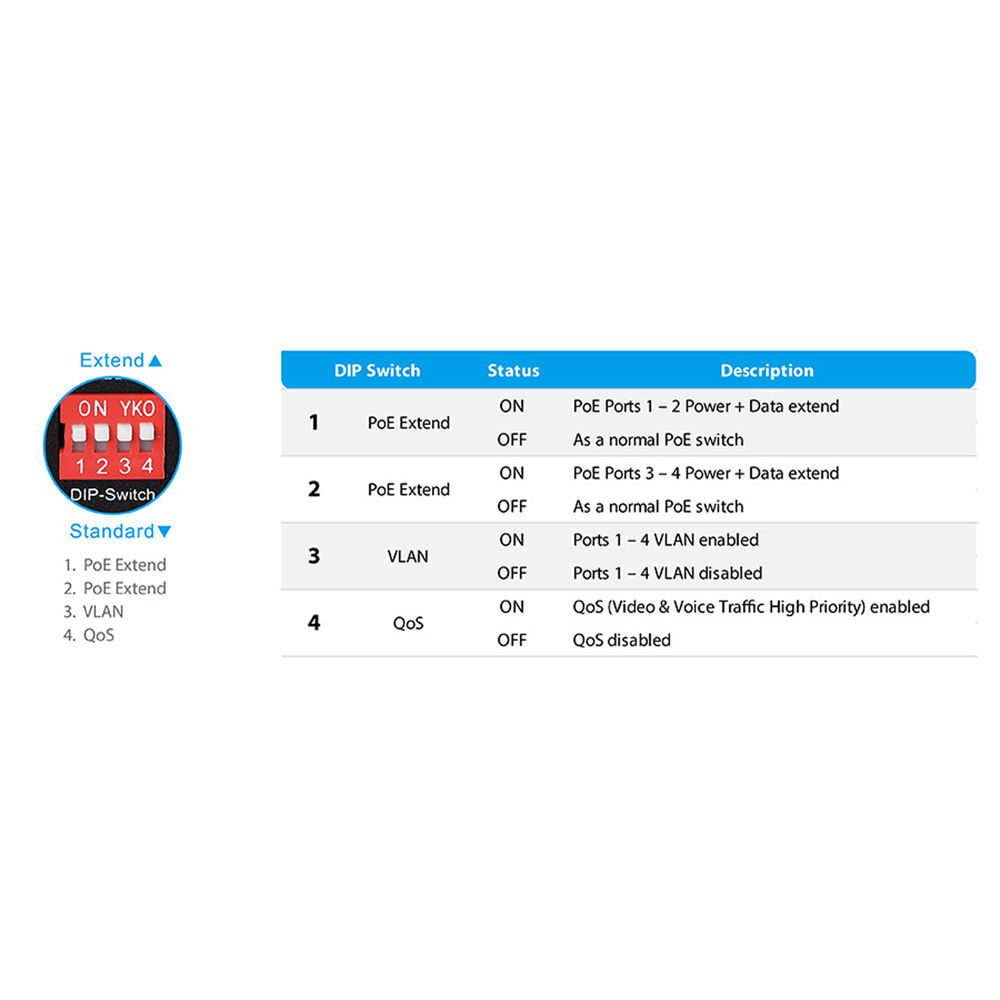

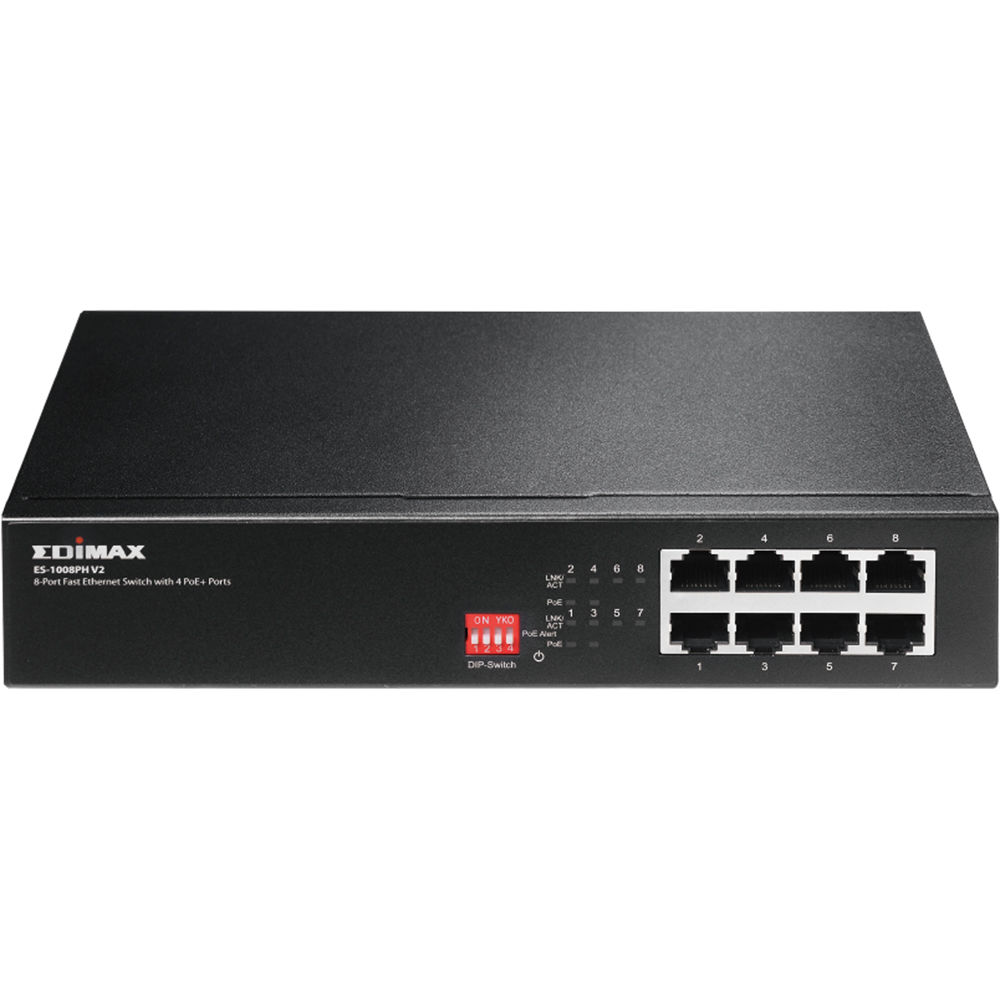

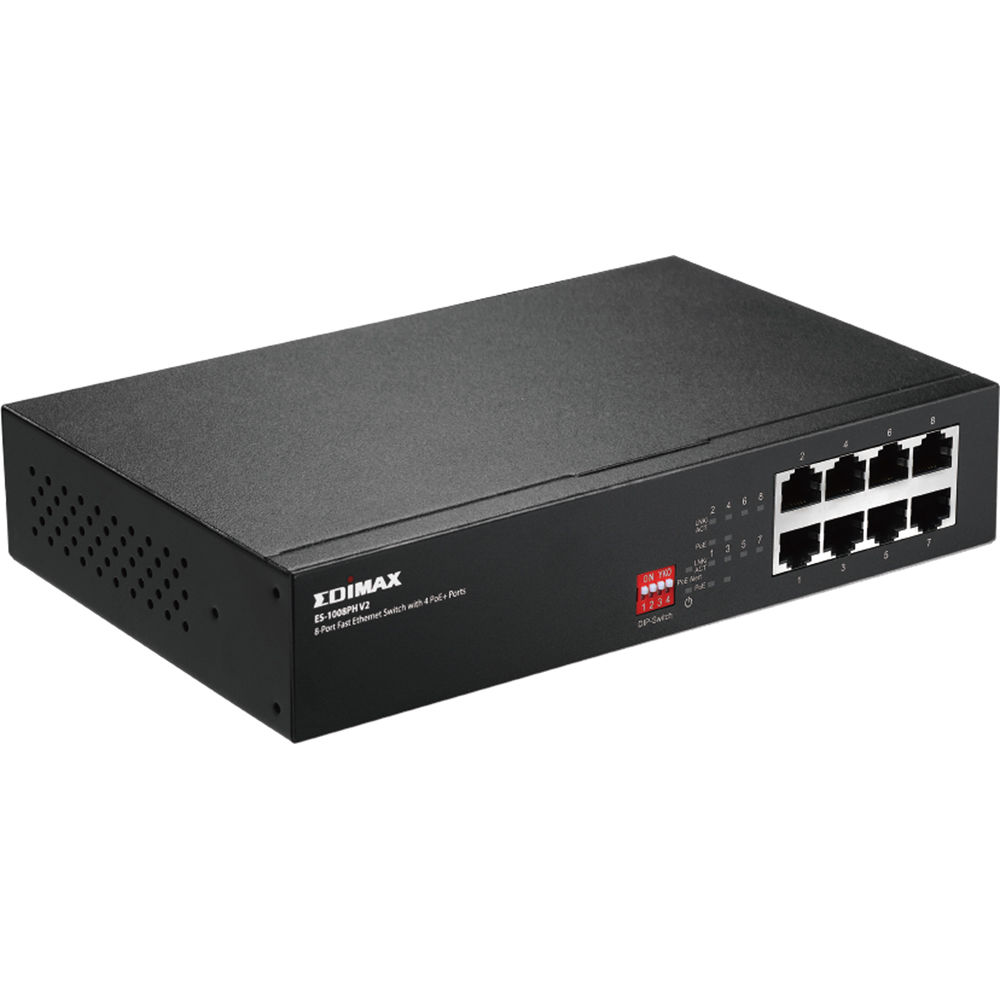

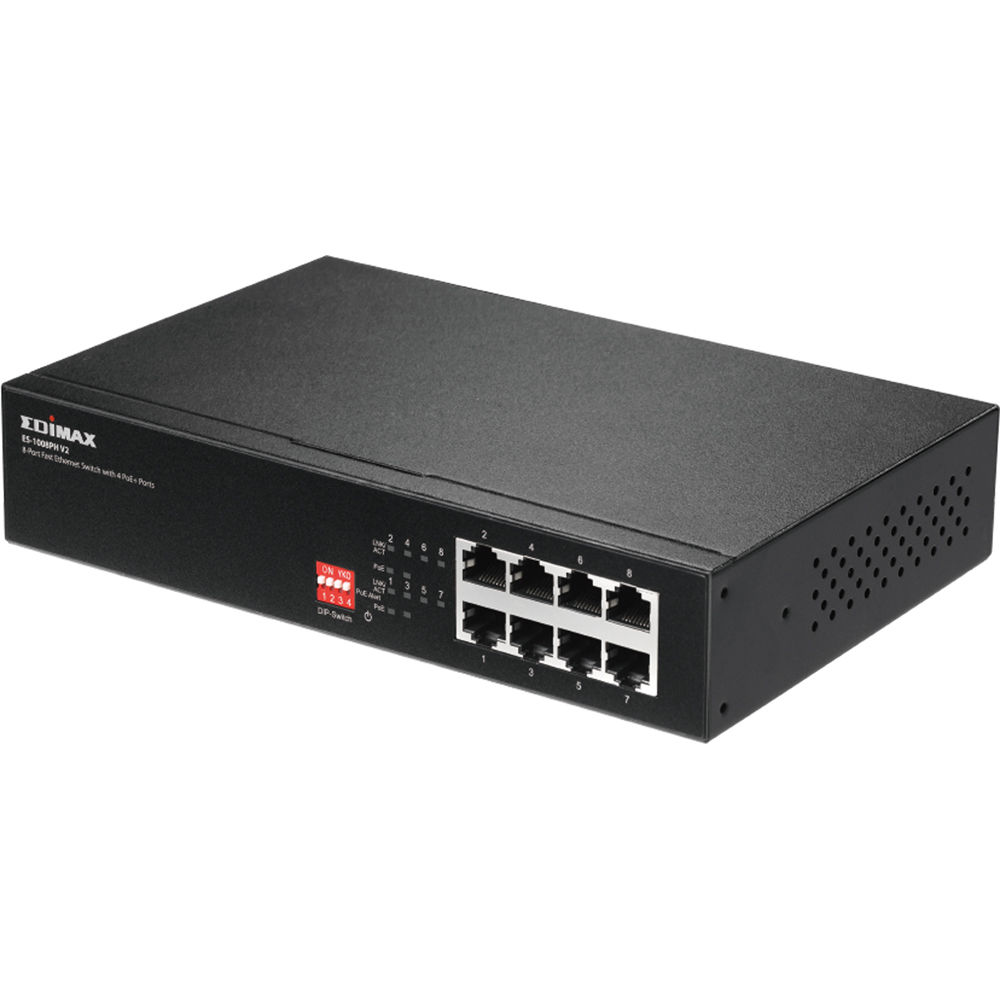

Expand the network capacity for your home or small to medium sized business with the ES-1008PH V2 8-Port 10/100 Mb/s PoE-Compliant Long-Range Unmanaged Switch from EDIMAX. This unmanaged switch features eight 10/100 Mb/s Fast Ethernet ports with four PoE-complaint ports that can be manually configured using the integrated DIP switches. Setting the switches from "Standard" to "Extend" mode allows the 30W ports to transmit power to devices up to 656' away with a 10 Mb/s transfer speed, making it ideal for surveillance and other long-distance installations. The ES-1008PH V2 has a total power budget of 70W in addition to a 1.6 Gb/s switching capacity and 0.14 Mpps forwarding rate, allowing you to operate a variety of devices such as IP cameras, VoIP phones, access points, and more. Other DIP switch controls include port-based VLAN isolation to help prevent camera multicast or broadcast storms from affecting each other, and 8021.p QoS support to prioritize voice and video traffic. Its compact and fanless design helps to ensure that the switch will operate quietly in your home or office.
In the Box
- EDIMAX Technology ES-1008PH V2 8-Port 10/100 Mb/s PoE+ Compliant Long-Range Unmanaged Switch with DIP Switch
- Power Cable
- Limited 1-Year Warranty
- Description
- DIP Switch Controls
- Extending Power
- Port-Based VLAN
- Hardware QoS
- Plug-and-Play
EDIMAX Technology ES-1008PH V2 Specs
| Inputs/Outputs |
4 x 10/100 Mb/s Ethernet (RJ45)
4 x 10/100 Mb/s Ethernet (RJ45) PoE+ |
| PoE Power Budget |
70 W
|
| Inputs/Outputs |
4 x 10/100 Mb/s Ethernet (RJ45)
4 x 10/100 Mb/s Ethernet (RJ45) PoE+ |
| Transmission Method |
Store-and-Forward
|
| MAC Address Table Size |
1K
|
| Supported IEEE Standards |
802.3, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x
|
| Forwarding Rate |
0.14 Mpps
|
| Switching Bandwidth |
1.6 Gb/s
|
| Packet Buffer |
56 Kb
|
| Power Draw |
5.0 W
|

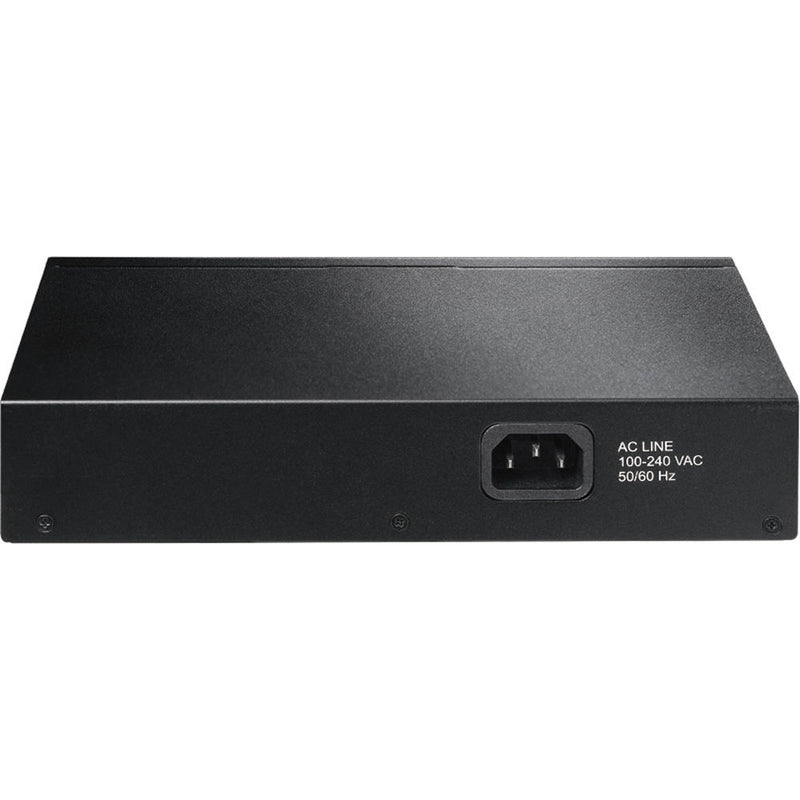

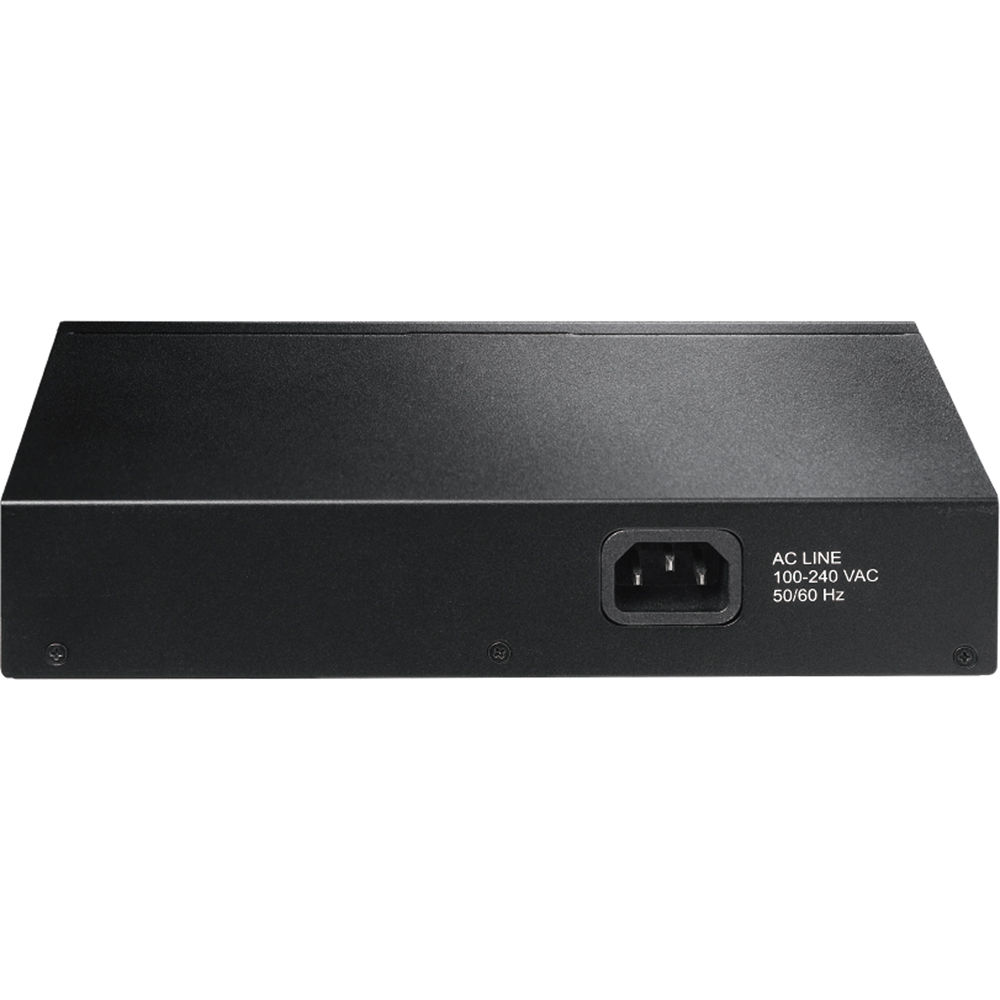

| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
70 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
Internal
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 90%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Storage Humidity |
5 to 90%
|
| Cooling System |
Passive
|
| Indicator Lights |
Link/Activity, PoE, Power
|
| Dimensions |
8.5 x 5.2 x 1.7" / 215.5 x 133 x 42 mm
|
| Weight |
2 lb / 889.5 g
|
