- 8 x Fast Ethernet PoE+ Ports
- 2 x Gigabit Ethernet Uplink Ports
- 5.6 Gb/s Switching Capacity
- 4.17 Mpps Forwarding Rate
- 4MB Packet Memory Buffer
- 2K MAC Address Table Size
- Flow Control Enabled By Default
- 60W PoE Power Budget
- 802.3at/af PoE Standards Compliant

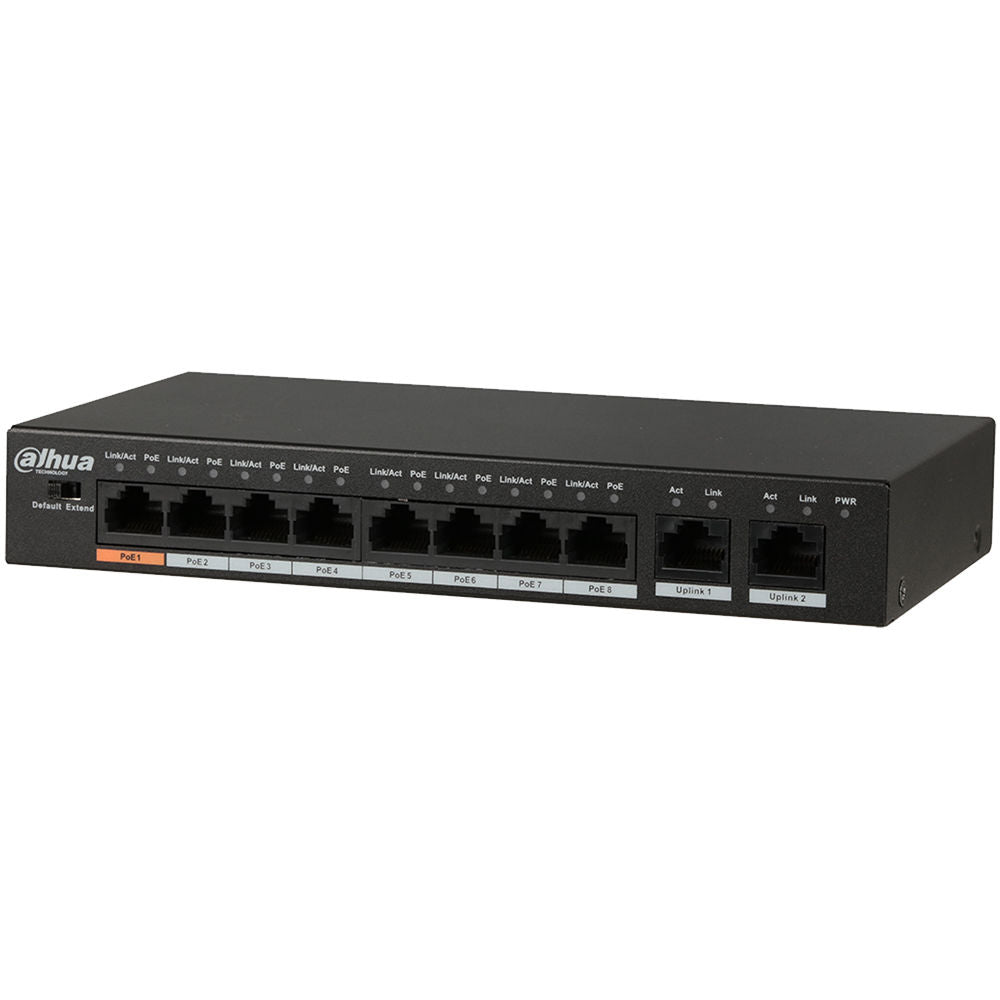

Designed for commercial use, the DH-PFS3010-8ET-96 10-Port Fast Ethernet PoE+ Switch from Dahua comes with a total PoE power budget of up to 60W so you can plug PoE compliant devices to any of the eight Fast Ethernet PoE+ ports. Alongside the eight Fast Ethernet ports, you will find dual Gigabit Ethernet uplink ports to connect various network components directly to the switch. Once configured, the Dahua switch resides on Layer 2 of the network and supports a variety of network standards including 802.3, 802.3u, 802.3X, 802.3af, and 802.3at. Furthermore, this PoE switch is capable of transmitting power and data at distances of up to 820' to give you maximum flexibility when configuring your devices.
-
- Layer 2 commercial switch
- Long-distance PoE (LD PoE) transmits power and data 820'
- Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
- Conforms to IEEE802.3af and IEEE803.3at
- Supports Hi-PoE (60W)
- MAC auto-learning and aging; 16K MAC address capacity
- MDI/MDIX self-adaptation
- Metal enclosure
UPC: 819290023916

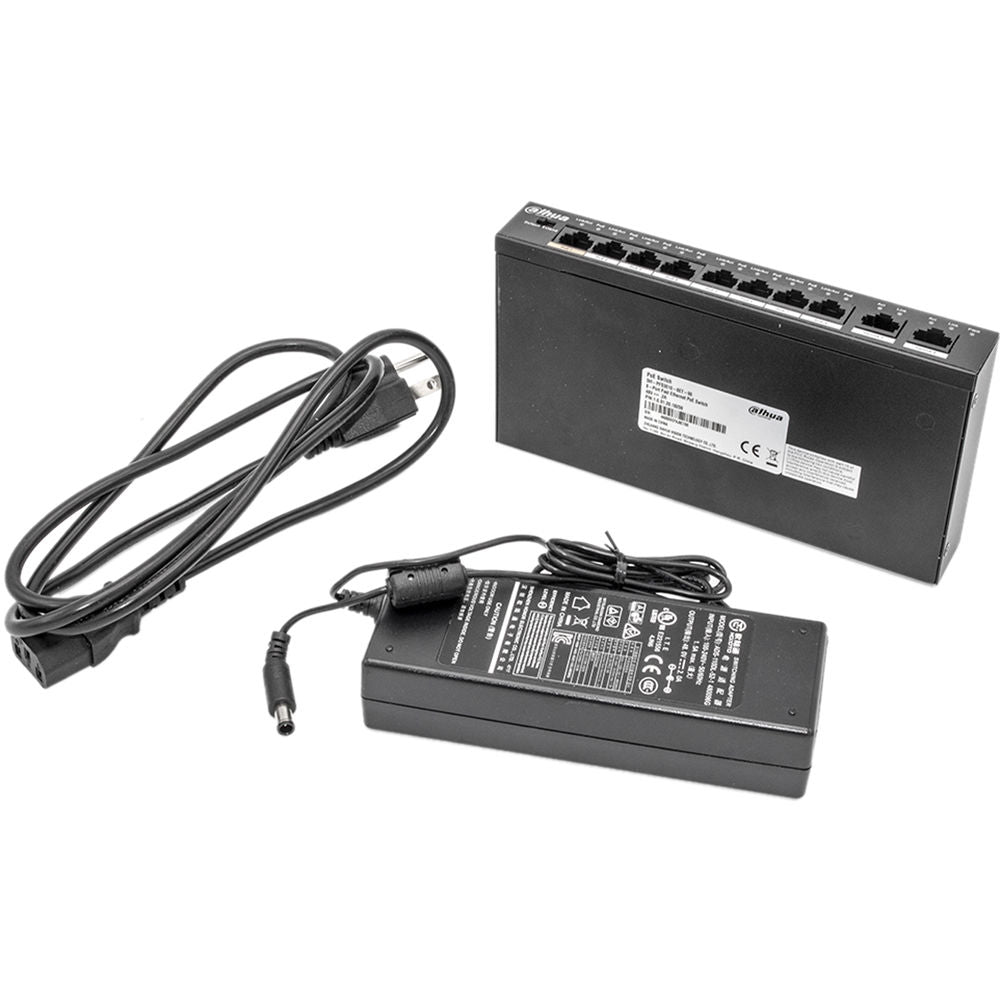

In the Box
Dahua Technology DH-PFS3010-8ET-96 10-Port Fast Ethernet PoE+ Switch
Limited 3-Year Warranty
Dahua Technology DH-PFS3010-8ET-96 specs
| Interfaces |
| Ports | 8 x 10/100 Mb/s Ethernet (RJ45) PoE+ (Type 2)
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Protocols |
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Auto-MDIX/MDI |
| MAC Address Table Size | 16K |
| Standards |
| Supported IEEE Standards | 802.3, 802.3af, 802.3at, 802.3u, 802.3x |
| Performance |
| Forwarding Rate | 4.17 Mpps |
| Switching Bandwidth | 5 Gb/s |
| Packet Buffer | 4 MB |
| Electrical |
| Power Draw | Not Specified by Manufacturer |
| DC Input Power | 48 to 57 VDC |
| AC Input Power | Not Specified by Manufacturer |
| PoE Power Budget | 96 W |
| PoE per Port | 30 to 60 W |
| Environmental |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Certifications | CE, FCC, UL, as per Manufacturer |
| General |
| Dimensions | 7.48 x 3.94 x 1.18" / 190 x 100 x 30 mm |
| Weight | 1.08 lb / 0.49 kg |
| Warranty Length | Limited 3-Year Warranty |
