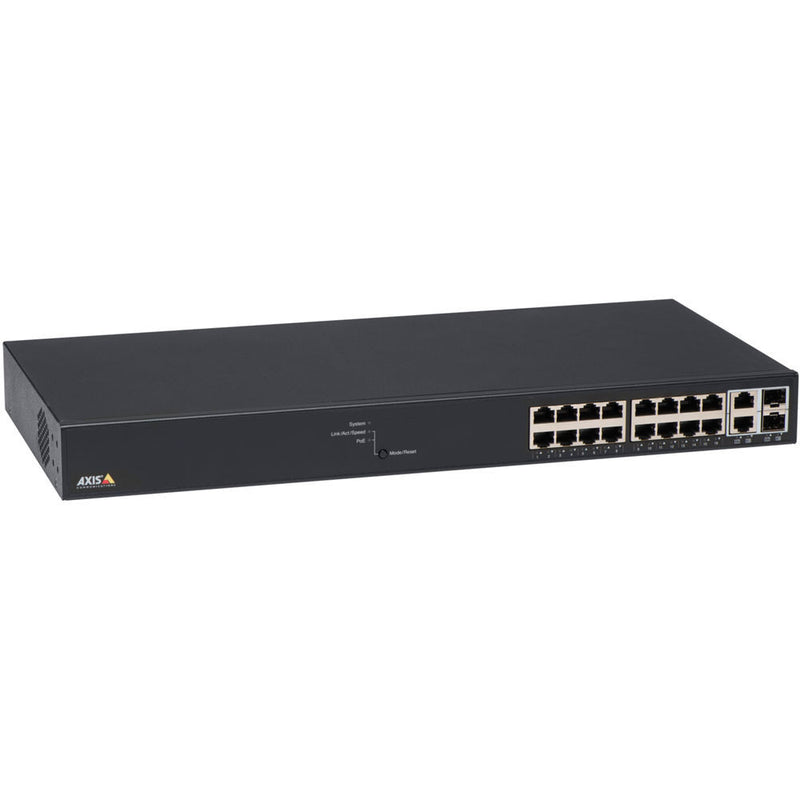

Provided by third party: AXIS T8516 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with an unique web graphic user interface with topology for easy overview and management of all devices in the system.
- Key Features
-
- Optimized for surveillance solutions
- Easy installation and configuration
- Unique web graphic user interface
- Easy to install and configure
- AXIS T8516 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP utility and AXIS Camera Management. AXIS T8516 also comes with an individual password and easy to use setup wizard. AXIS T8516 comes with a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.
- Perfect match for Axis surveillance solutions
- AXIS T8516 PoE+ Network Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S10 Series. This to simplify further setup and installation of the surveillance systems.
- Total overview with unique web graphic user interface
- The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.
| General |
| Device Type | Switch - managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Throughput: 26.8 Mpps
Switching capacity: 36 Gbps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMP |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH |
| Features | ARP support, VLAN support, IPv6 support, IP address filtering, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, IPv4 support, DNS server, LLDP support, NTP server, administrator's password, Bridge protocol data unit (BPDU) |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x, IEEE 802.3at |
| Power |
| Power Device | Internal power supply |
| Power Provided | 285 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Color | Black |
| Included Accessories | 4 rubber feet, 2 port dust covers(SFP) |
| Compliant Standards | SASO, JATE, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, WEEE, ANATEL, S Mark, REACH, FCC Part 15 B Class A, VCCI Class A, EAC, RCM, EN 55024, EN 55032 Class A |
| Localization | United States |
| Environmental Parameters |
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 122 �F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | 14 �F |
| Max Storage Temperature | 158 �F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
