Description

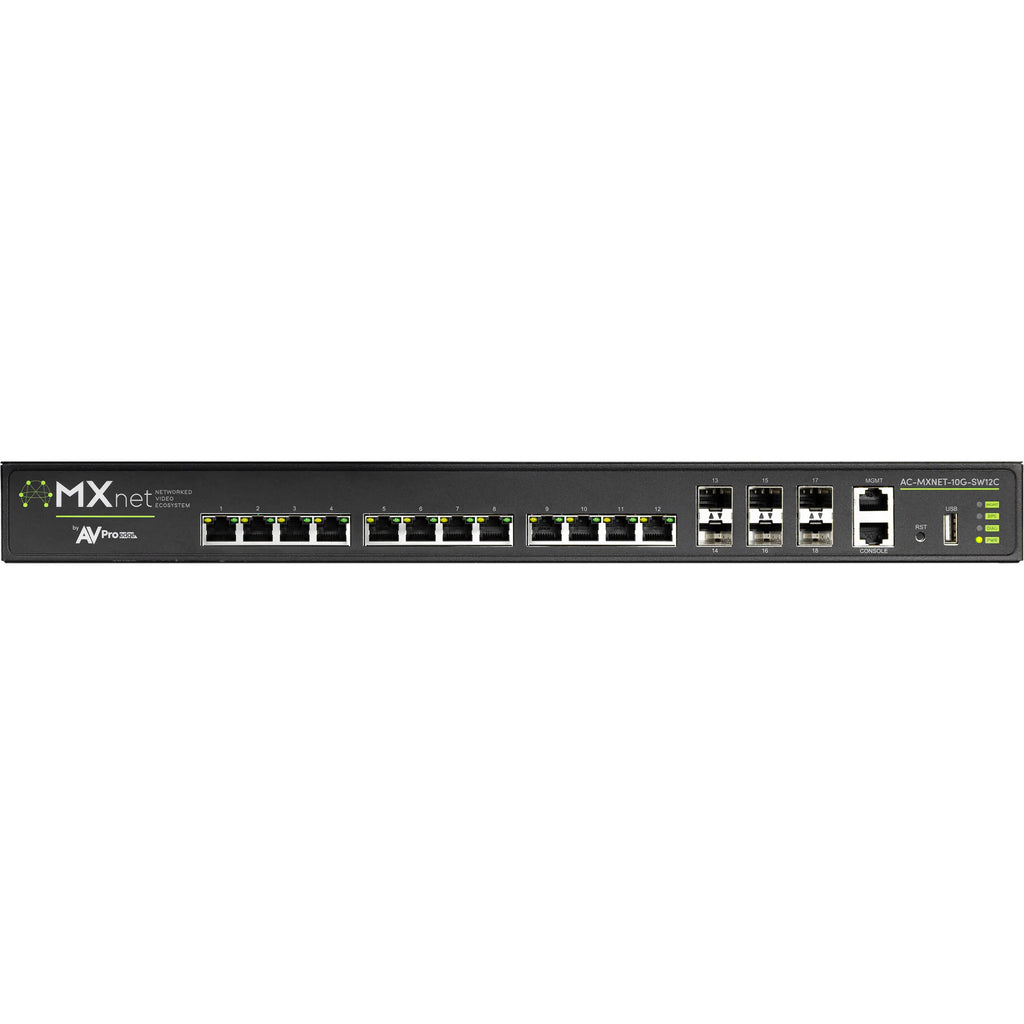

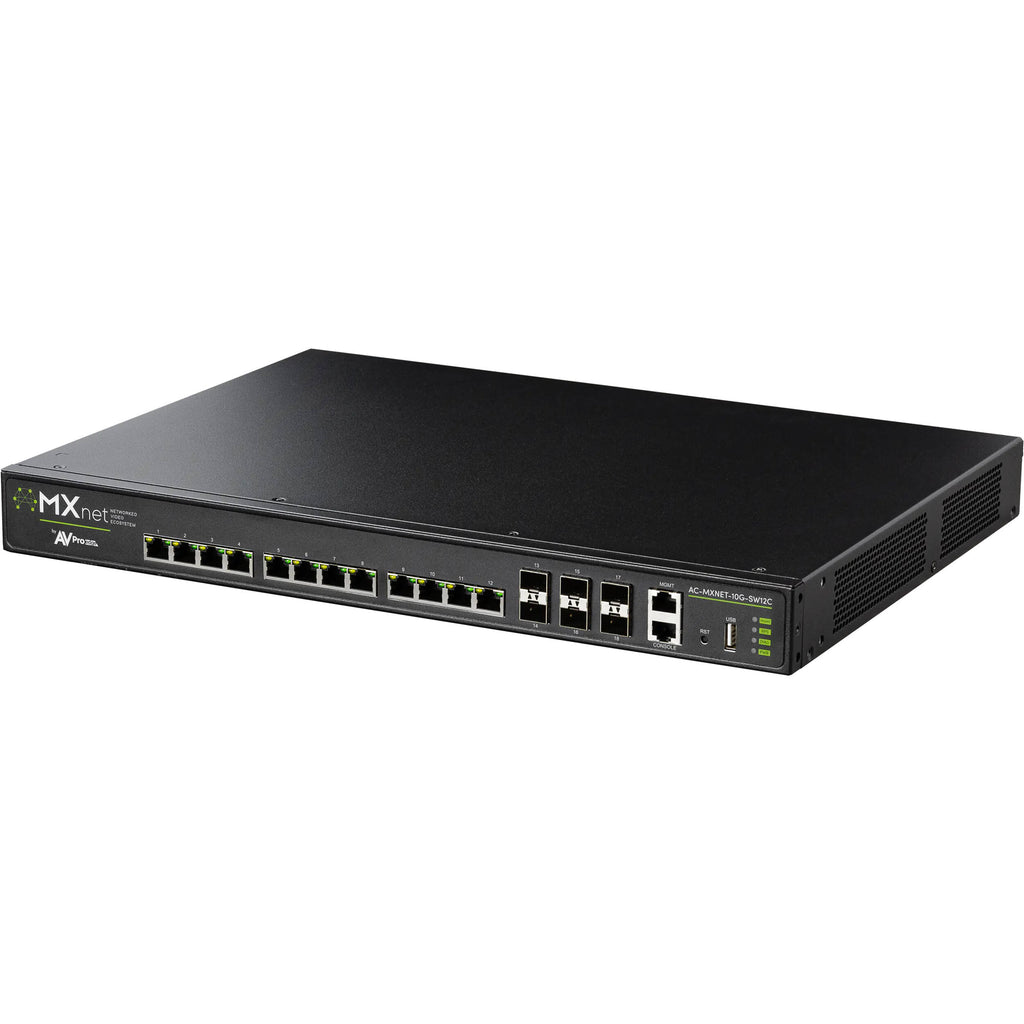

AVPro Edge AC-MXNET-10G-SW12C Overview

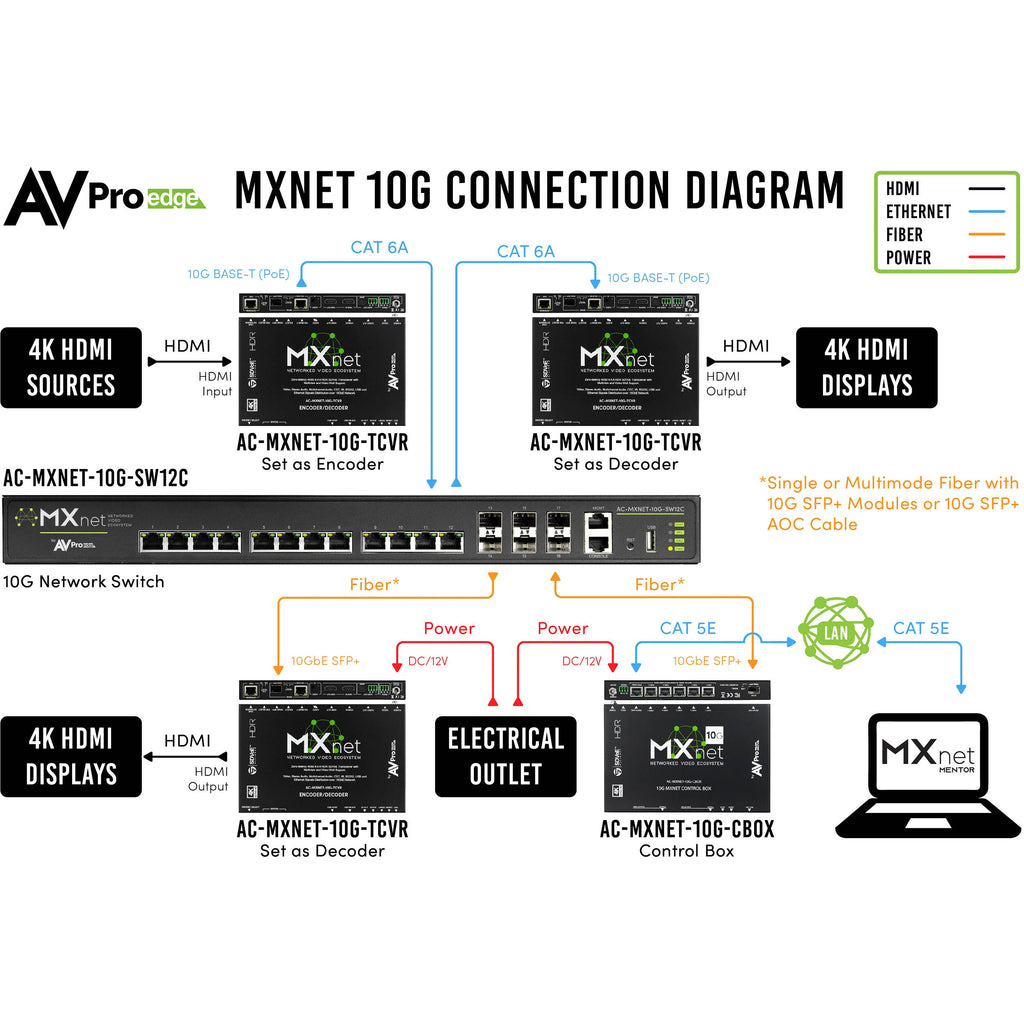

The AC-MXNET-10G-SW12C MXNet 10G 12-Port Network Switch from AVPRO Edge directs both data and POE through 12 common ports, and a single CAT6a cable is all that is required to provide power plus data. Onboard are six, 10G/25G SFP28 uplink ports, which are backward compatible with SFP+ ports to function with SFP+ optical modules or SFP+ DAC cables (please note: the 25Gbps data rate is not supported). These ports can be used to connect up to six, MXNET-10G TCVR SDVoE transceivers. Source-to-source switching to endpoints is virtually instantaneous if scaling is not required (100µs frame latency, or 1/150th of a frame). With scaling in use, switching speed is between one to two frames, or about 17-34 milliseconds, which is considered visually imperceptible.
In the Box
- AVPro Edge AC-MXNET-10G-SW12C MXNet 10G 12-Port Network Switch
AVPro Edge AC-MXNET-10G-SW12C Specs
| Inputs/Outputs |
12 x RJ45 10 GbE PoE++ (Type 4)
6 x SFP28 25 Gb/s 1 x RJ45 Gigabit Ethernet 1 x RS-232 1 x USB-A 2.0 |
| PoE Power Budget |
370 W
|
| Inputs/Outputs |
12 x RJ45 10 GbE PoE++ (Type 4)
6 x SFP28 25 Gb/s 1 x RJ45 Gigabit Ethernet 1 x RS-232 1 x USB-A 2.0 |
| Layer Services Supported |
Layer 3
|
| Jumbo Frames Support |
12,000 Bytes
|
| MAC Address Table Size |
32K
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 4 (PoE++ 100 W)
|
| Forwarding Rate |
405 Mpps
|
| Switching Bandwidth |
540 Gb/s
|
| Power Draw |
430.00 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
370 W
|
| PoE per Port |
90 W
|
| Power Supply Type |
Internal
|
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
10 to 90%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Certifications |
CE, FCC
|
| Dimensions |
170.9 x 12.6 x 1.75" / 4339.7 x 319.1 x 44.45 mm
|
| Weight |
9.4 lb / 4.3 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
