Description

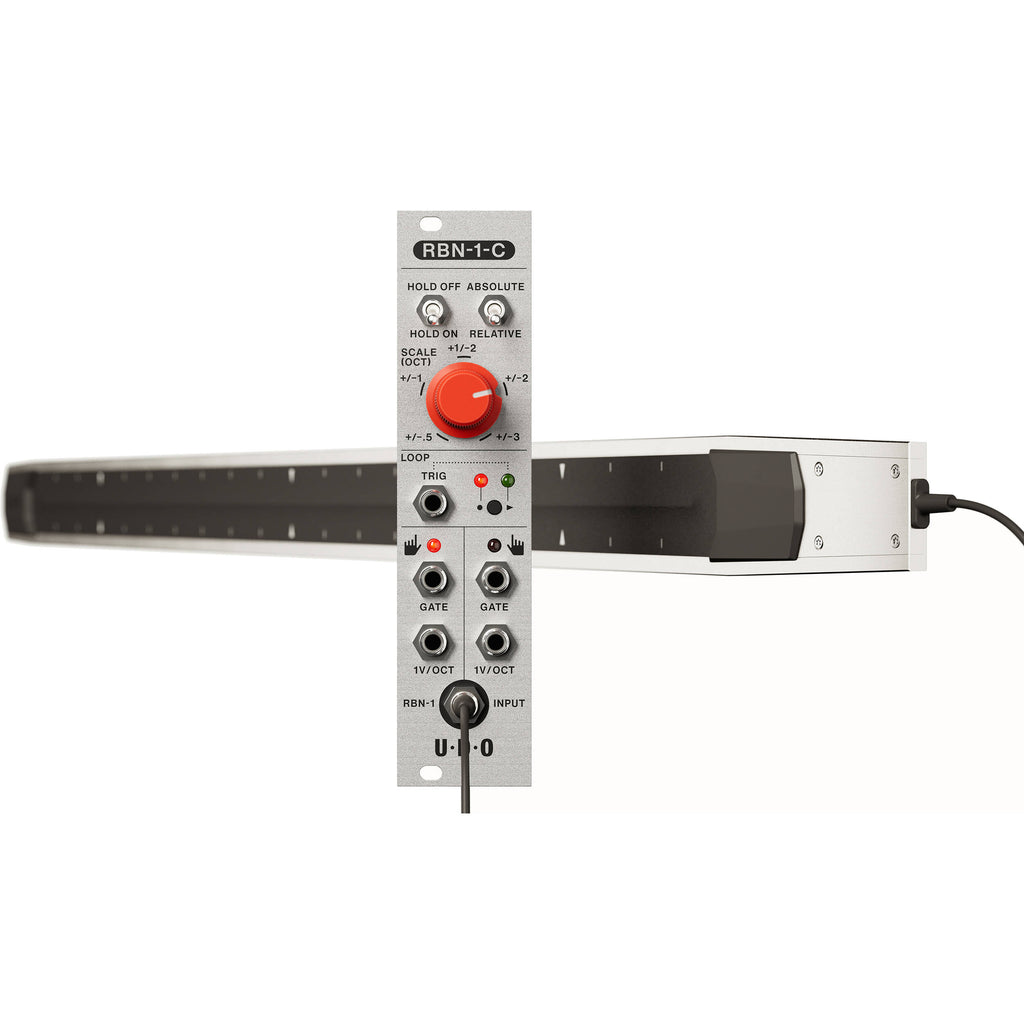

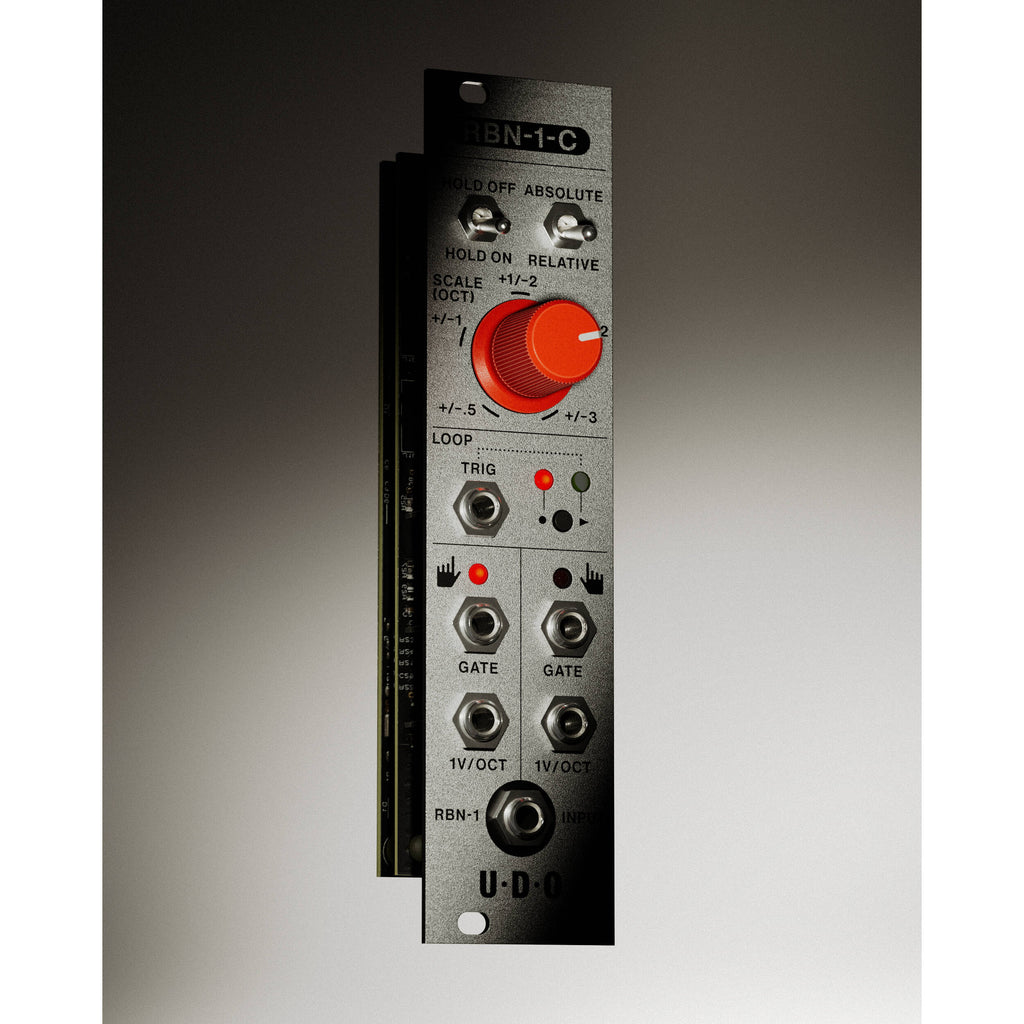

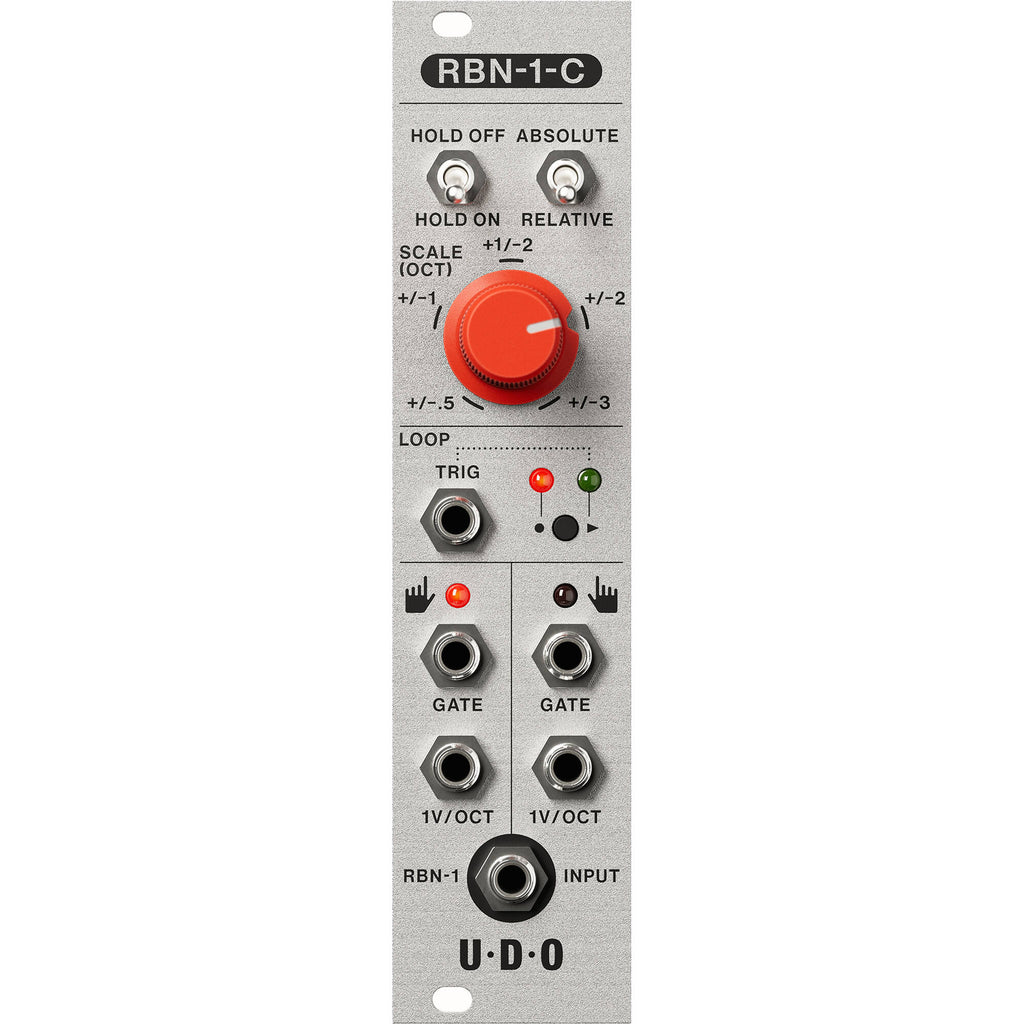

UDO Audio RBN-L-C RIBBON Overview

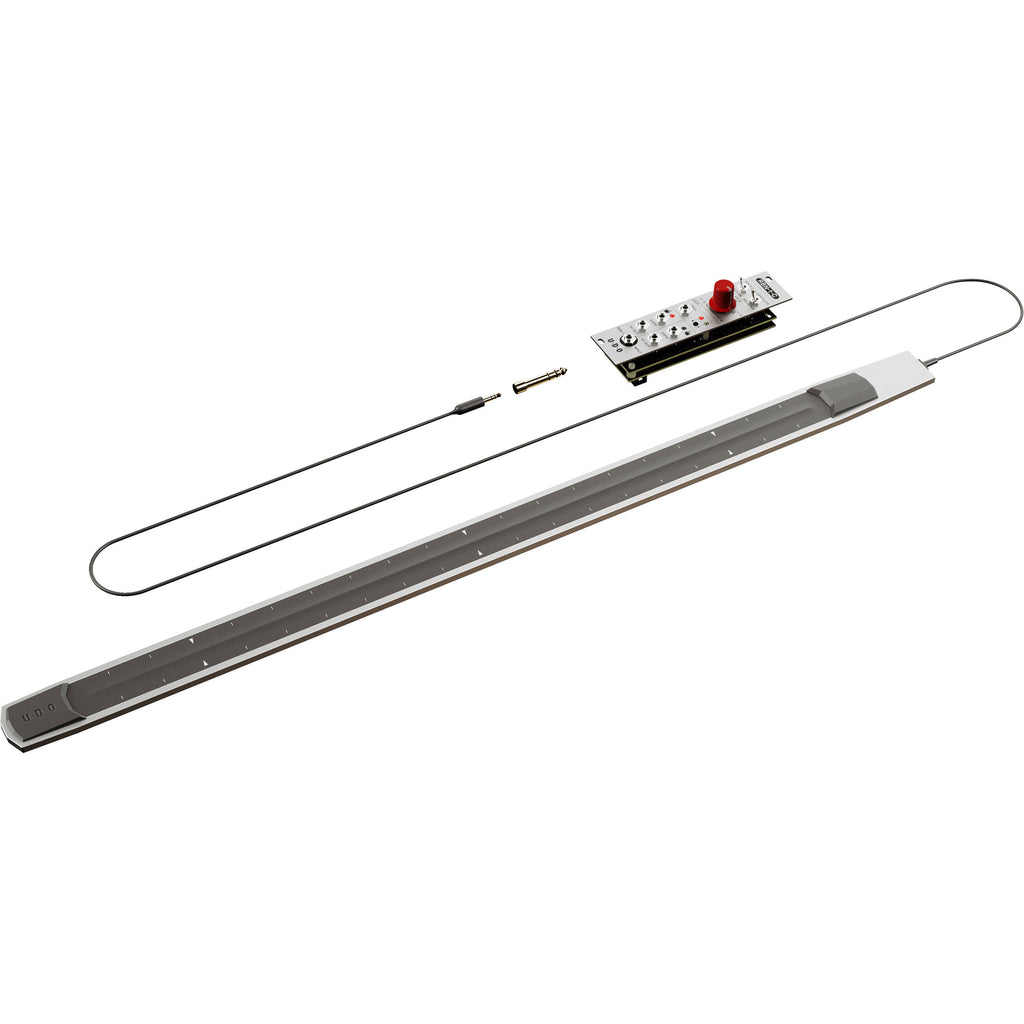

Add effortless and tactile control over your modular setup with the UDO Audio RBN-1-C, a Eurorack module that works with the RBN-1 performance ribbon controller that features flexible performance features, a live looper with trigger input, and two-touch CV/gate outputs. The module ships with a ribbon power cable and mounting screws.
Custom Ribbon Behavior
Flexible behavior controls allow you to fine-tune the touch response and octave scaling of the ribbon input to fit your specific setup or playing style.
Live Looper
The built-in looper allows you to quickly and easily record and loop ribbon expressions on the fly. Use the optional trig input to trigger playback loops and keep your ribbon jams synced up.
Two-Touch Outputs
Send two simultaneous CV and gate outputs from the two output sections, allowing for two-handed expression using the ribbon. For example, modulate an oscillator pitch with your left hand whilst modulating a filter cuttoff with your right.
Eurorack Ready
- Eurorack: 6 HP
- Depth: 1.3" / 33mm
- Eurorack Power: Ribbon cable with 10-pin connector. (+12V 30mA; -12V -15mA)
Items Included
- UDO Audio RBN-1-C Performance Ribbon Controller Module for Eurorack (6 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
UDO Audio RBN-L-C RIBBON Specs
General
| Compatibility |
UDO Audio
|
Inputs/Outputs
| Connectors |
Gate: 2 x 3.5 mm TS
CV: 2 x 3.5 mm TS Trigger Input: 3.5 mm TS (Record/Loop Playback) |
Wireless
| Mobile App Compatible |
No
|
Power
| Power Source |
Proprietary Interface
|
| Power |
Eurorack Power: +12V 30 mA; -12V -15 mA
|
Physical
| Color |
Silver
|
| Material of Construction |
Aluminum
|
Packaging Info
| Package Weight |
0.335 lb
|
| Box Dimensions (LxWxH) |
6.9 x 3.7 x 3.4"
|
