Description
Oberheim Analog Synthesizer TEO-5 Overview
Explore new sonic frontiers with the Oberheim TEO-5 Desktop Module, a compact and affordable 5-voice polyphonic analog synthesizer bursting with inspiration. Dive into legendary analog warmth reimagined with modern synthesis features and sculpt your sound with thru-zero FM pulsing though the iconic SEM filter and classic Oberheim FX. Compact and space-saving, the desktop TEO-5 integrates effortlessly into your synth setup, offering all the sonic power and hands-on control of its acclaimed keyboard sibling in less than half the size.
The TEO-5 captures the secrets of the OB-X, Four Voice, and TVS, distilling their signature sound-shaping capabilities into an instrument for everyone. Notable features include two VCOs plus a sub oscillator, a classic state-variable SEM filter, two DADSR envelopes, two LFOs, and a vintage knob that adds voice-to-voice variations in component behavior. You'll also be impressed with the polyphonic sequencer, arpeggiator, and built-in effects including a dedicated reverb, overdrive, and a digital multi-FX engine with chorus, delay, flanger, phaser, ring mod, and more. From studio to stage, TEO-5 is your sonic passport?a gateway to the Oberheim legacy and priced to unleash your own.
5-Voice VCO/VCF-Based Polysynth
Oscillators
- 5-Voice VCO/VCF-based polysynth
- Two VCOs and sub oscillator per voice
- Simultaneously selectable waveshapes for each oscillator: triangle, saw, variable pulse
- Oscillator 1 syncs to Oscillator 2
- Dedicated front-panel X-Mod control for through-zero FM
- Switchable key tracking per oscillator
- White-noise generator accessible in prefilter mixer
State Variable Filter
- Classic SEM filter with selectable Bandpass mode
- State knob continuously morphs from Low-Pass through Notch to High-Pass
- Bipolar filter envelope amount
- Velocity modulation of envelope amount
- Keyboard tracking
Filter Envelope
- Five-stage (DADSR) envelope generator
- Velocity modulation of envelope amount
- Freely assignable modulation destinations
Amplifier Envelope
- Five-stage (DADSR) envelope generator
- Velocity modulation of envelope amount
Two Low-Frequency Oscillators (LFO)
- Five wave shapes: Triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
- LFO tempo sync
- Initial amount setting
- Freely assignable modulation destinations
Vintage Knob
- Recreates vintage synth characteristics by adding voice-to-voice variations in component behavior
Aftertouch
- Channel (mono) aftertouch with bipolar amount
- Freely assignable modulation destinations
Clock
- Master clock with tap tempo
- BPM control and display
- MIDI clock sync
Arpeggiator
- Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
- One, two, or three octave range
- Up, down, up/down, random, and assign modes
Sequencer
Polyphonic step sequencer with up to 64 steps, including ties and rests
Effects
- One dedicated reverb with damping, predelay, decay, and tone
- One multi-effect with stereo delay, BBD delay, tape delay, chorus, flanger, Oberheim phase shifter and ring modulator emulations, vintage rotating speaker, distortion, high-pass filter, and Lo-Fi
- Dedicated Overdrive effect
Performance Controls
- Hold switch latches held notes on
- Polyphonic portamento (glide)
- Unison (monophonic) mode with configurable voice count, from one to all five voices, and key modes to control voice triggering priority
- Manual switch: when on, the front panel is live; what you see is what you hear
Patch Memory
- 256 user and 256 factory programs in 32 banks of 16 programs each
- Direct program access including single-button access to the current set of 16 programs

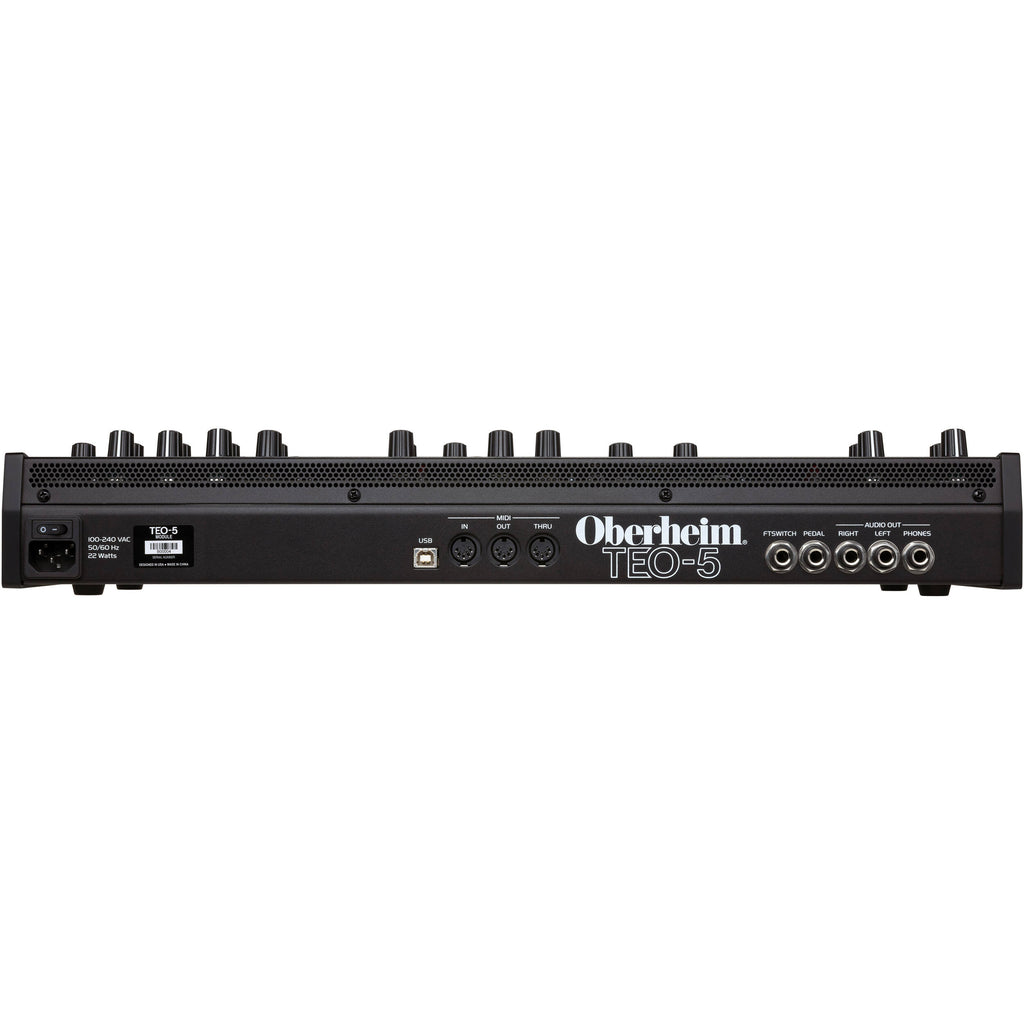

In/Out
- Left and right audio outputs (2 x 1/4" phone jack)
- Headphone output (stereo, 1/4? phone jack)
- MIDI in, out, and thru ports
- USB for bidirectional MIDI communication
- Volume expression pedal input
- Sustain footswitch input
UPC: 855346000494
Items Included
- Oberheim TEO-5 Analog Synthesizer Desktop Module
- Power Cord
- Limited 1-Year Manufacturer Warranty
Additional Resources
Firmware Updates
v1.1.0.4, Nov ' 25
Oberheim Analog Synthesizer TEO-5 Specs
Key Specs
| Sound Generation |
Analog
|
| Number of Sounds, Kits, or Samples |
256x Factory Sound Preset
256x User Sound Preset |
| Maximum Polyphony |
5 Voice (Stereo)
|
| Audio I/O |
2x 1/4" TS Line Output
1x 1/4" TRS Headphone Output |
| MIDI I/O |
1x DIN 5-Pin Input
1x DIN 5-Pin Output 1x DIN 5-Pin Thru |
| CV/Gate I/O |
No
|
| Patch Points |
No
|
General
| Item Type |
Desktop Synth Module
|
Kit Components
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
Sounds
| Display |
OLED
|
| Number of Sounds, Kits, or Samples |
256x Factory Sound Preset
256x User Sound Preset |
| Number of Song Presets |
No
|
| Maximum Polyphony |
5 Voice (Stereo)
|
| Multitimbrality |
1-Part (Monotimbral)
|
| Built-In Effects |
1x Reverb
1x Multi-Effect: Bucket Brigade Delay, Chorus, Delay, Distortion, Flanger, HPF, Lo-Fi, Phaser, Ring Modulator, Rotary, Tape Delay 1x Distortion/Drive: Overdrive |
| Performance Functions |
Arpeggiator, Sequencer
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
2x Variable (PWM, Sawtooth, Square, Triangle)
1x Fixed Sub (Square) |
| Mixer |
Oscillator, Sub-Oscillator, Oscillator 2, Noise, External Audio (Filter Routing)
|
| Amplifiers |
1x VCA per Voice
|
| Envelopes |
1x Filter/Assignable Envelope Generator per Voice: Delay, Attack, Decay, Sustain, Release, Depth (Loopable, Invertable)
1x Amp/Filter/VCA Envelope Generator per Voice: Attack, Decay, Sustain, Release |
| Filters |
Number of Filters: 1 per Voice
Characteristic: Analog Stereo SEM-Style Type: Low-Pass, Band-Pass, High-Pass Slope: 2-Pole/12 dB (HPF/LPF/BPF) Key Tracking: Yes (Off, Half, Full) Controls: Cutoff, Resonance |
| LFOs |
Number of LFOs: 2x Global per Voice
Waveforms: Sawtooth, Reverse Sawtooth, Square, Triangle, Random, Sample & Hold, Noise Key Tracking: Full Controls/Modes: Clock Sync, Rate/Frequency, Initial Amount |
| Glide/Portamento |
Yes: Portamento
|
Sequencing & Recording
| Sequencer |
Number of Steps: 64x Step
Number of Step Buttons: 16 |
| Arpeggiator |
Range: Up to 3 Octaves Note Values: 16th, 8th, 8th Note Triplet, Dotted 8th, Quarter Note Modes: Up, Down, Up & Down, Random, Assign |
| Media/Memory Card Slot |
No
|
Connectivity
| Audio I/O |
2x 1/4" TS Unbalanced Line Output (1 Stereo Pair)
1x 1/4" TRS Stereo Headphone Output |
| Pedal Support |
1x 1/4" TRS Expression
1x 1/4" Sustain |
| MIDI I/O |
1x DIN 5-Pin Input
1x DIN 5-Pin Output 1x DIN 5-Pin Thru |
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
1x USB-B (MIDI, Update)
|
| Bluetooth |
No
|
Compatibility
| OS Compatibility |
Windows / macOS
|
Power
| Power Requirements |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
22 W
|
Physical
| Color |
Gray
|
| Included Accessories |
No
|
| Dimensions |
21 x 7 x 3.5" / 53.3 x 17.8 x 8.9 cm
|
| Weight |
6.8 lb / 3.1 kg
|
Packaging Info
| Package Weight |
10.63 lb
|
| Box Dimensions (LxWxH) |
23.7 x 9.6 x 7.2"
|
