Description
Erica Synths VCNO Overview

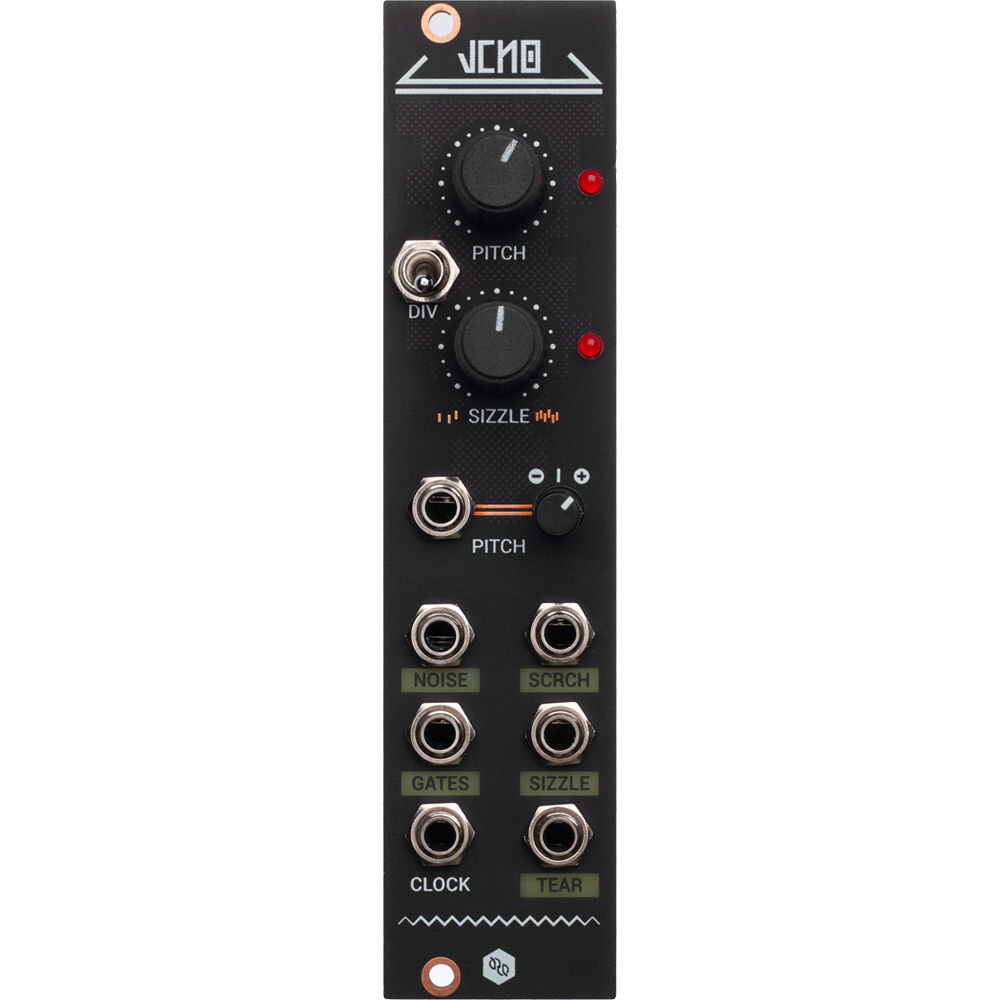

The Hexinverter VCNO Voltage-Controlled Noise Oscillator from Erica Synths is a 6 HP Eurorack module capable of outputting full-spectrum white noise and various random signals. Each of its four simultaneously active audio outputs offers distinct sonic character. Use the VCNO just like any VCO by modulating the pitch with CV.
Modes include Noise (bit-crushed noise), Screech (howling overtones), Sizzle (vinyl crackle to white noise), and Tear (broken/torn noise). Use VCNO in your Eurorack patches to add random modulation and noise spectra?great for experimental sound, harsh noise, and tones for creating percussion.
Noise and Gate Outputs
- NOISE is the main LFSR output. With the pitch knob turned fully clockwise, this will output pure white noise. As you turn the pitch down, the noise evolves into crunchy noise, reminiscent of vintage video game sounds.
- GATE is a DC-coupled output. This is perfect for supplying random triggers in your system.
Three Alternative Outputs
- Screech adds a dark, howling overtone to the main Noise output.
- Sizzle features a related control, which takes the output from pure white noise when turned fully clockwise to a vinyl-like crackle when turned counterclockwise.
- Tear sounds like the noise generator is broken and tearing itself apart.
Pitch Input
- All outputs work simultaneously and are affected by the pitch knob or CV.
- The frequency of VCNO can be modulated via CV?just patch any CV signal.
Clock Input
- A clock signal input bypasses the internal frequency generator. You can apply a clock from a trigger sequencer to create a pseudo-random drum trigger pattern synced to the rest of your drums.
Items Included
- Erica Synths Hexinverter VCNO Noise Oscillator Eurorack Module (6 HP)
- Power Cable
- Mounting Screws
- Limited 2-Year Manufacturer Warranty
Additional Resources
Erica Synths VCNO Specs
Key Specs
| Sound Generation |
Digital / Sample-Based
|
| Audio I/O |
4x 1/8" / 3.5 mm Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
1x 1/8" / 3.5 mm Pitch CV Input
1x 1/8" / 3.5 mm Gate Output |
| Patch Points |
No
|
| Eurorack Current Consumption |
49 mA on +12 V Rail
|
| Horizontal Pitch |
6 HP
|
General
| Item Type |
Eurorack Module
|
Kit Components
| Sound Generation |
Digital / Sample-Based
|
| Expression Controls |
No
|
| Number of Pads |
No
|
Sounds
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
1x Variable (Noise)
|
| Mixer |
No
|
| Amplifiers |
VCA
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
4x 1/8" / 3.5 mm Unbalanced Mono Output (Eurorack Compatible)
|
| MIDI I/O |
No
|
| CV/Gate I/O |
1x 1/8" / 3.5 mm Pitch CV Input
1x 1/8" / 3.5 mm Gate Output |
| Patch Points |
No
|
| Sync I/O |
No
|
Power
| Power Requirements |
AC/DC Power Adapter (Included)
|
| Eurorack Current Consumption |
49 mA on +12 V Rail
|
| AC/DC Power Adapter |
Included
|
Physical
| Horizontal Pitch |
6 HP
|
| Included Accessories |
Power Cord
|
Packaging Info
| Package Weight |
0.34 lb
|
| Box Dimensions (LxWxH) |
8.1 x 4.9 x 2.4"
|
