Description

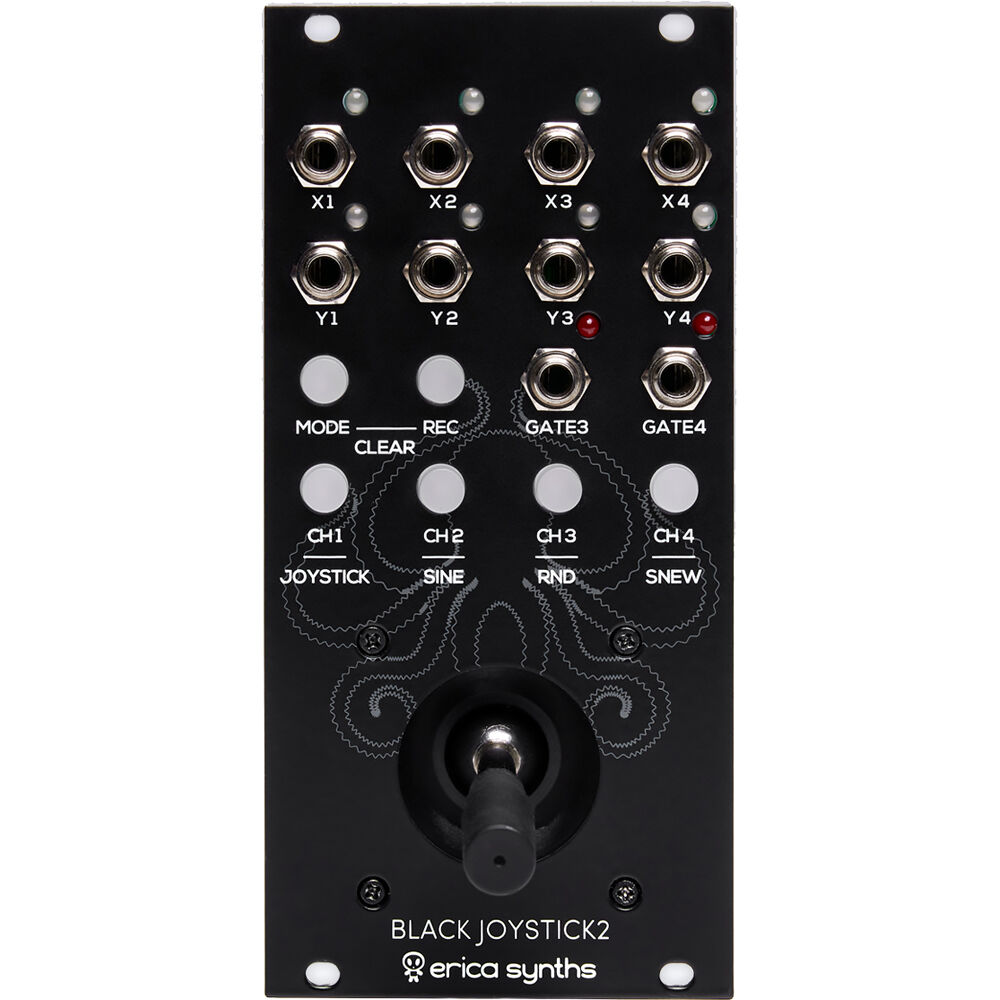

Erica Synths Joystick2 Overview
Modular synthesizer enthusiasts looking for a multifunctional CV and sound source will be impressed with the erica synths Black Joystick2, a 4-channel Eurorack module with a joystick, movement recorder, distinct LFOs, and drone/noise oscillator. It provides great interaction with your modular system and allows you to develop unconventional modulation patterns easily.
The Black Joystick2 offer numerous modes beyond the standard X/Y CV joystick, including independent channel modes, a random sinewave LFO, and noise oscillator mode, which controls the pitch and amplitude of the signal, and a SNEW panner (south, north, east, west). The module includes a power ribbon cable and a set of mounting screws.
- 8 simultaneous CV outputs
- 2 gate outputs
- 4 motion-record channels
- Sine and random LFOs with adjustable frequency and amplitude
- Drone/noise oscillator
- Gate record
- Two 4-position CV panners
- Skiff-friendly design
- Power Consumption: +71mA / -20mA
- Module Depth: 1.2" / 30mm
In the Box
- Erica Synths Black Joystick2 4-Channel Multifunctional CV and Sound Source Eurorack Module (12 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths Joystick2 Specs
| Sound Generation |
Analog / Digital
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8 x 1/8" / 3.5 mm TS CV Input
2 x 1/8" / 3.5 mm TS Gate Output |
| Patch Points |
No
|
| Eurorack Current Consumption |
71 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
12 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog / Digital
|
| Keyboard |
No
|
| Expression Controls |
1 x Joystick
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
4 x Fixed (Sine)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
Number of LFOs: 1 x Global
Waveforms: Sine, Random LFO Rate: 0.1 to 1000 Hz |
| Sequencer |
No
|
| Motion Sequencing |
Up to 4 Parameters
|
| Arpeggiator |
No
|
| Audio I/O |
No
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8 x 1/8" / 3.5 mm TS CV Input
2 x 1/8" / 3.5 mm TS Gate Output |
| Control Voltage Level |
CV In: -5 to +5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
71 mA on +12 V Rail
20 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
12 HP
|
| Included Accessories |
No
|
| Package Weight |
0.43 lb
|
| Box Dimensions (LxWxH) |
7 x 3.85 x 3.7"
|
