| ₹ 67221.19 includes GST and import duties. | |
| B2B customers can avail ₹ 10251.23 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

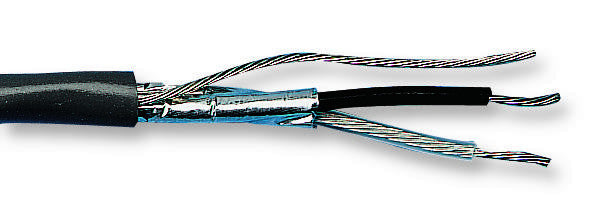

The 8761 060U500 from Belden is a multi conductor single pair cable. This cable is UL recognized and CSA certified.
- 22AWG stranded (7x30) tinned copper conductors
- Polyethylene insulation
- Overall Beldfoil shield (100% coverage)
- Polyvinyl chloride (PVC) jacket
- Overall nominal diameter of 0.175inch
- Operating temperature range from -20�C to 60�C
- Nominal characteristic impedance of 64ohm
- Nominal conductor DC resistance of 16ohm/1000ft at 20�C
- Maximum operating voltage of 300Vrms (UL AWM style 2092)
- Maximum recommended current of 2.9A per conductor at 25�C
Applications
Industrial
Product details
| Reel Length (Metric) | 152.4m |
| Conductor Material | Copper |
| Jacket Material | PVC |
| External Diameter | 4.445mm |
| No. of Pairs | 1 Pair |
| Voltage Rating | 300V |
| Reel Length (Imperial) | 498.69ft |
| Product Range | - |
| Wire Gauge | 22AWG |
| Jacket Colour | Chrome |
| No. of Max Strands x Strand Size | 7 x 0.255mm |
| Conductor Area CSA | 0.325mm� |
Other details
| Brand | BELDEN |
| Part Number | 8761 060U500 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 65876.77 |
| 3-5 | ₹ 65204.55 |
| 5-10 | ₹ 63860.13 |
| 10+ | ₹ 62515.71 |
Bulk discount will be automatically applied during checkout based on quantity.
