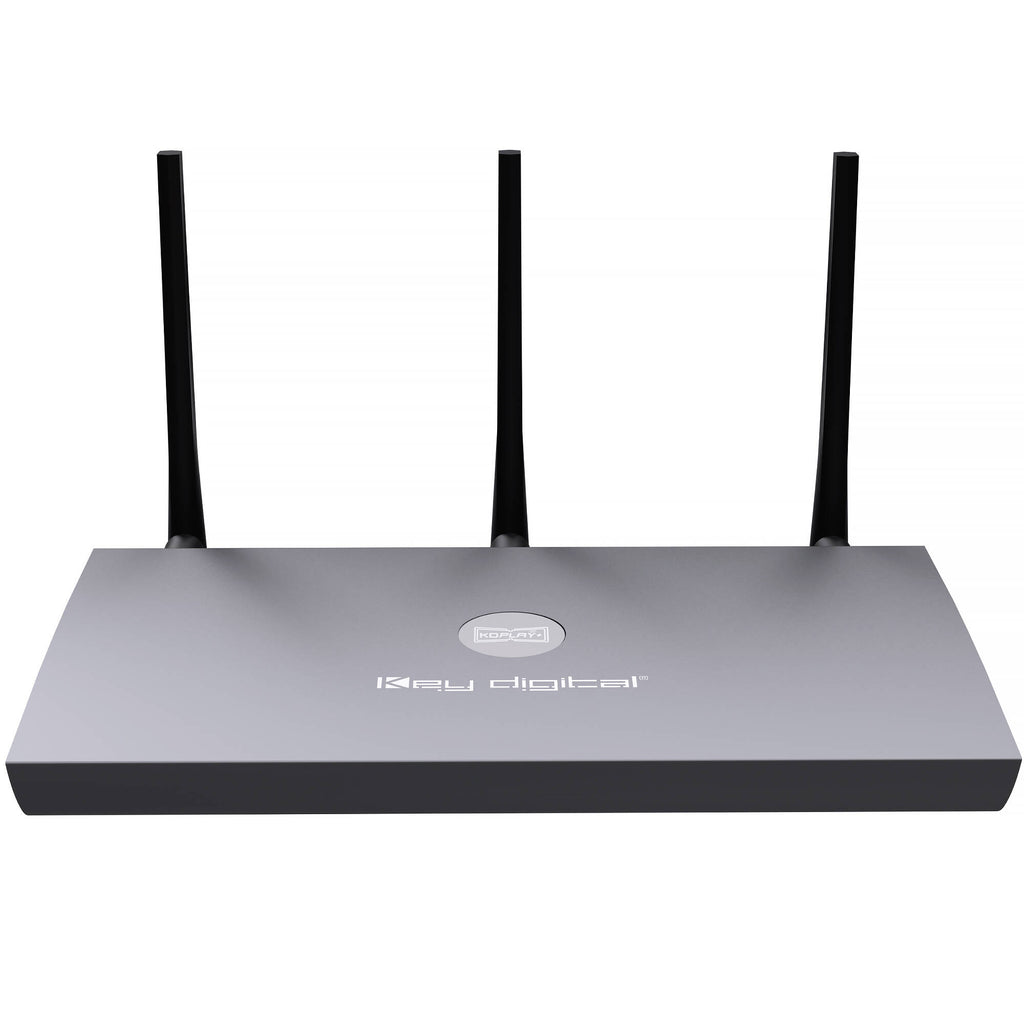

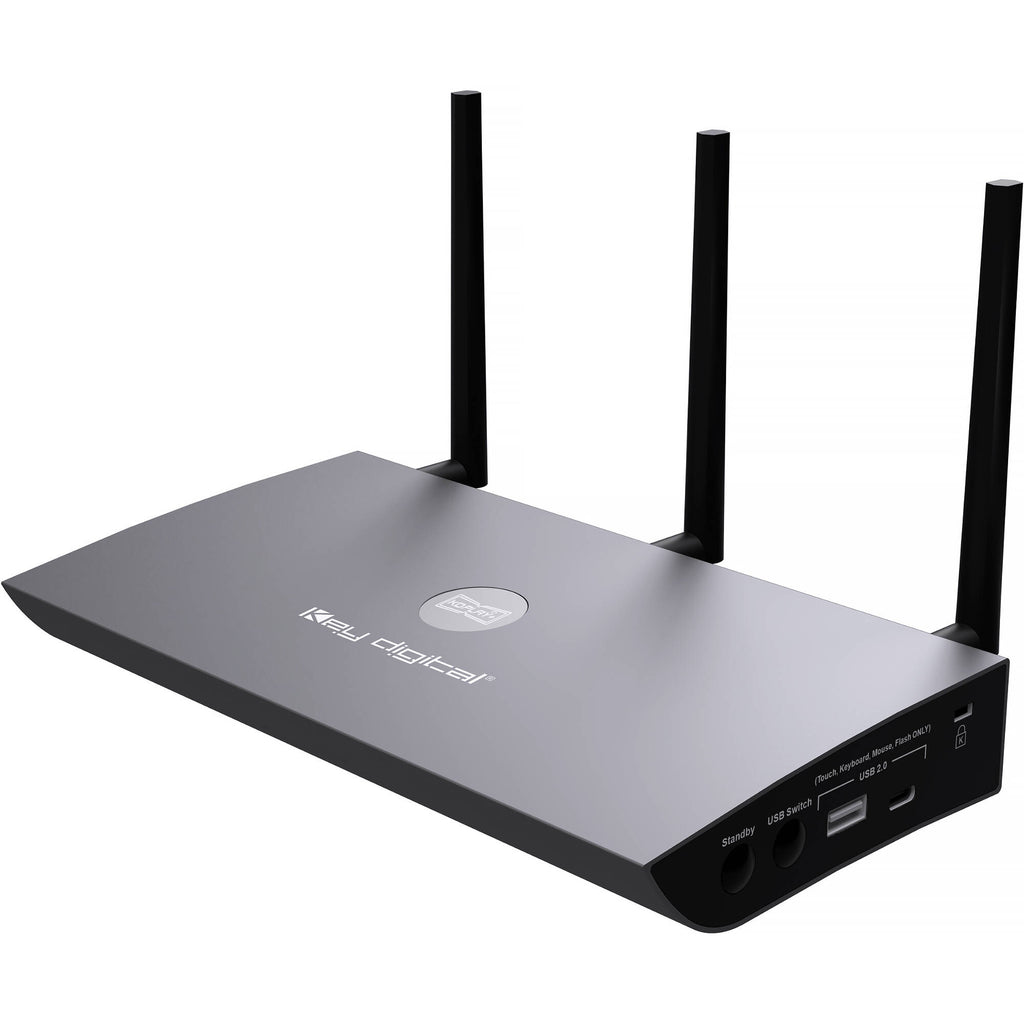

Key Digital 4K Wireless Presentation & Conferencing Hub

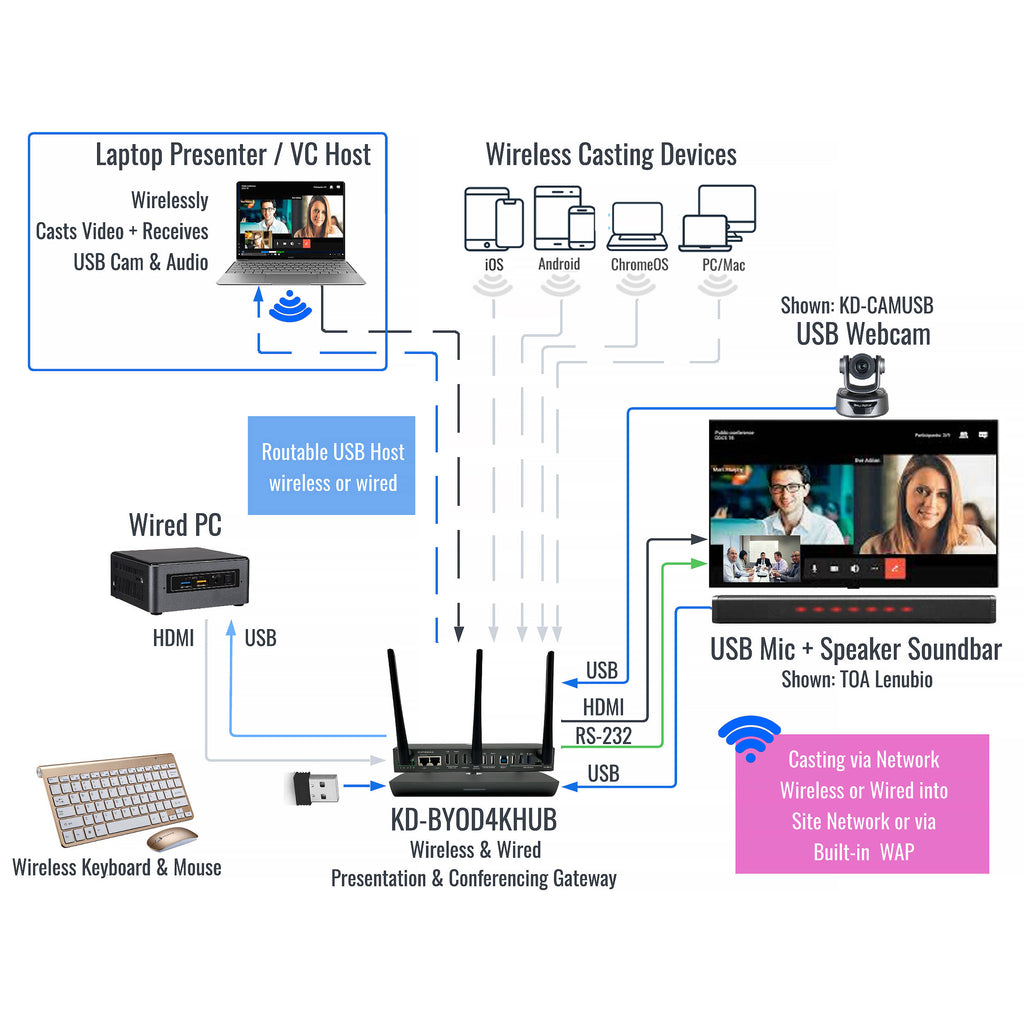

The presentation and conferencing gateway is a wireless solution for conference and presentation spaces enabling users to bring their own device, present to their display, and receive the USB camera, mic, and speaker in the room to collaborate with local and remote video conference participants.

Users with Windows, macOS, Chrome, iOS, or Android devices connect to the hub via the Wi-Fi network to present with up to five presenters sharing their ideas simultaneously on local displays or projectors. There is also a USB capture feature to mirror the room's display in your video conferencing software.

The hub includes a KD-BYODFD auto-launching flash drive for plug and play casting. Users who wish to follow the on-screen instructions can download the KDPlay app onto their device. The hub also boasts native support of Airplay from iOS devices, Chromecast from Chromebooks, and Miracast from Windows and Android OS.

Two HDMI outputs and an HDMI input complete the hub's dynamic offering, delivering the perfect balance of quality and flexibility. Dual network ports enable access via Employee and Guest network for easy internet access.

With 4K output resolution, auto sizing multi-presenter layouts, moderator management, annotation, and touchscreen/mouse control, the hub enables modern workforces to work more effectively than even before. Its display CEC and RS-232 room display management feature, customizable home screen, and digital signage mode can automate your displays, transforming them into branding canvases when not in use.

• Connect via Wi-Fi to wirelessly present and receive USB camera and audio
• Cast from Windows and macOS computers using KDPlay software. Cast from iOS devices with AirPlay
• Cast from Chrome OS using Chrome browser tool for tab or desktop. Native Miracast support for Windows and Android device casting
• Casting / pairing pin and device-type permission options, AES-256 + RSA-1024 encryption
• Glitch-free AV experience due to optimizations for video content and 30 fps casting

• Send connected USB camera, microphone, and speaker deices to host computer for use in any video conferencing software
• Send HDMI output content from Main or Sub display to the connected host computer to completely immerse video conference participants with multi-presenter brainstorming sessions, and more
• Included KDPlay flash software auto-launcher with USB-A and USB-C connections

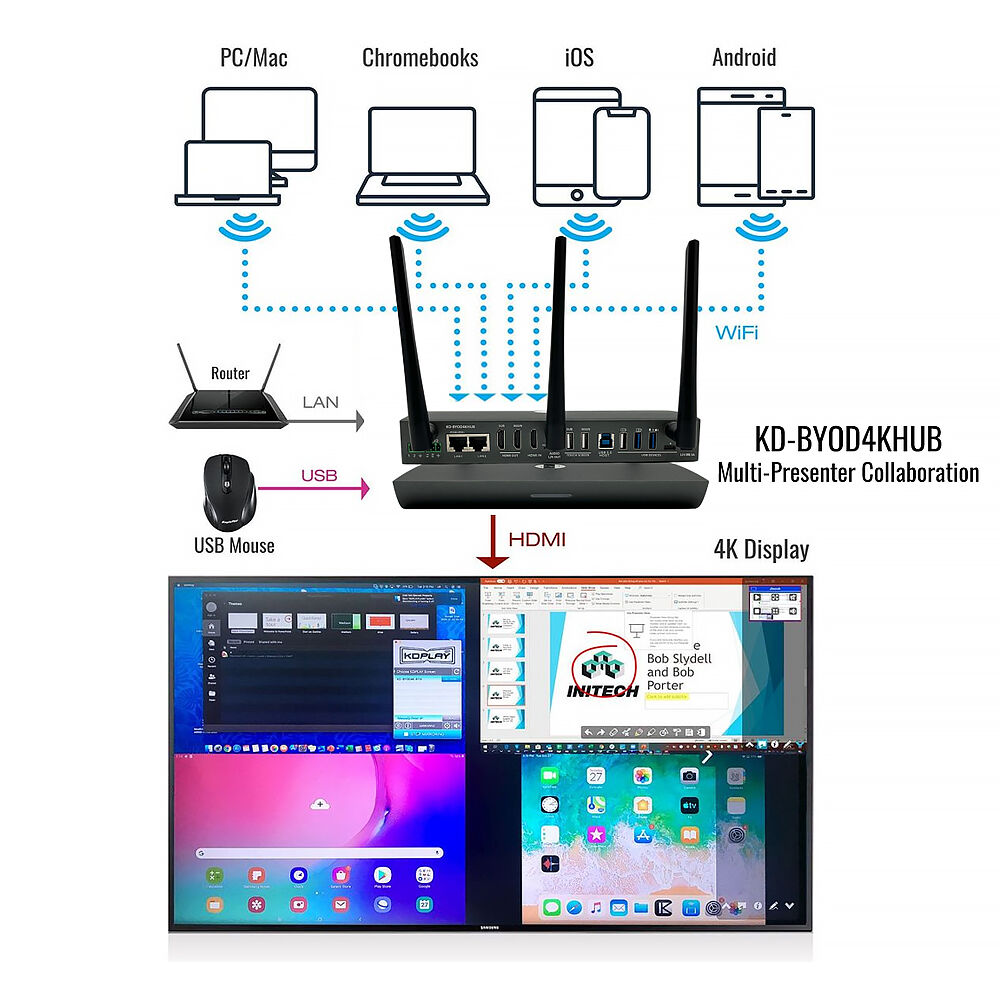

• Up to five presenters may share content at same time with auto adjusting screen layout. User preference layout setup for three or four presenters allows for optimal window placement based on usage
• Wired USB and wireless presentation options from laptops or dedicated room computers
• Mirrored or independent viewing on two connected displays / projectors
• May act as the Wireless Access Point or may be accessed by devices via the wired or wireless network connection in Wi-Fi Direct, Wi-Fi Client, and LAN connection modes
• Up to 16 simultaneous devices may connect, with access always provided to new connecting devices and automatic disconnect of oldest non-casting devices in case of maximum being reached
• Collapsible dock on side of display provides preview thumbnail and name of devices casting via KDPlay app
• Connect touchscreen or mouse USB to unit to point and click on casted device
• Administrator may start and stop device casting via web control page
• Access unit setup, moderator, and security tools on web browser through LAN
• Two network ports enable concurrent connection to Public and Private networks for ease of guest access without compromising security

• Outputs at 4K for optimal clarity of spreadsheets and data content
• Video Resolution: Selectable 4K 3840 x 2160p30 or 60 fps [4:2:0] 10.2 Gb/s, 1920 x 1080p60, 1280 x 800p60, 1280 x 720p60 output resolution options based on EDID from connected display
• Audio of the casted device is de-embedded at the unit's analog L/R audio connector for ease of integrating with audio amplification and mixing system

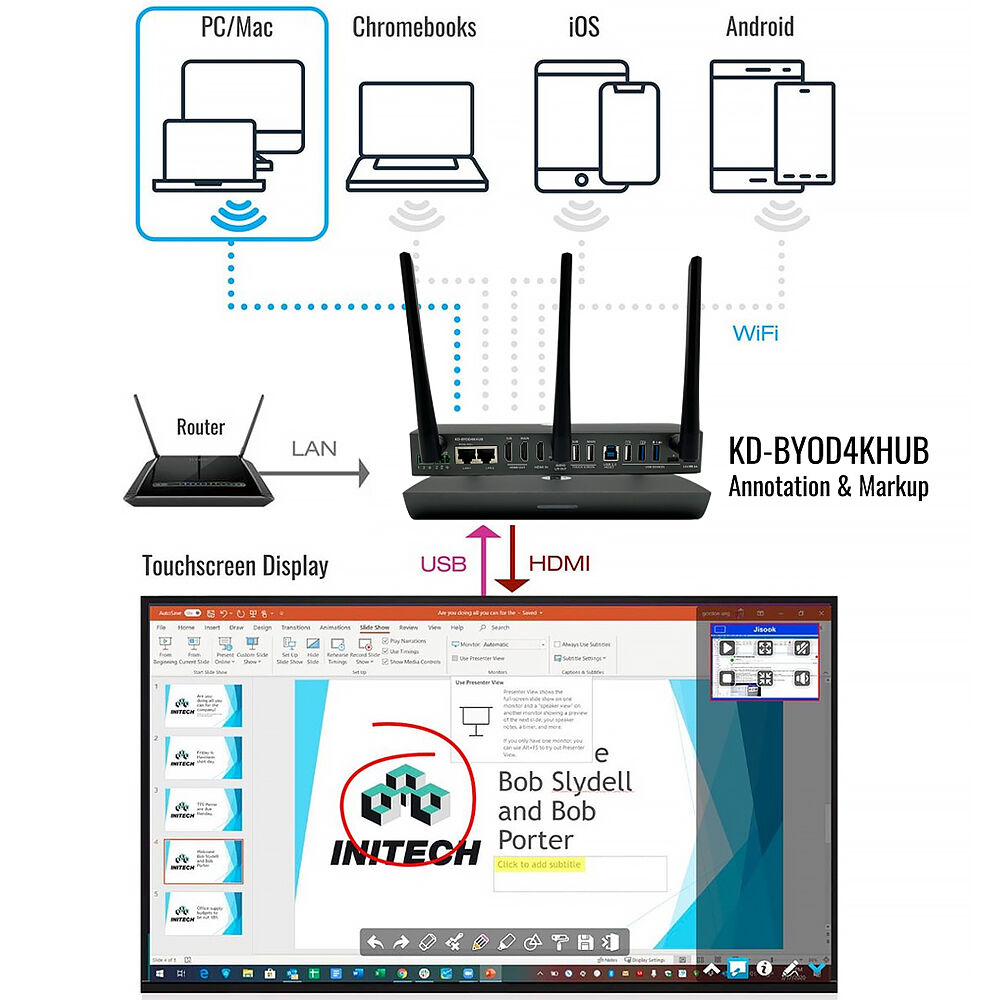

• Screen overlay tools for real-time collaboration
• Screen captures are easily downloaded by QR code on screen or in web browser
• Feature enables dual display setups such as video conference and presentation content view on side-by-side panels. Virtual Driver installation required for this feature
• CEC or RS-232 command sends during unit bootup, power on, and power off
• Load customer's logo or desired image on the home screen to show signage and branding when not casting
• Digital signage mode allows you to display a desired web page on scheduled start and stop times

Key Digital BYOD4KHUB Specs

Compatibility	Not Specified by Manufacturer
Other	HDCP 2.2, 1.4
Video Format	3840 x 2160p: 60, 30 1920 x 1080p: 60 1280 x 800p: 60 1280 x 720p: 60

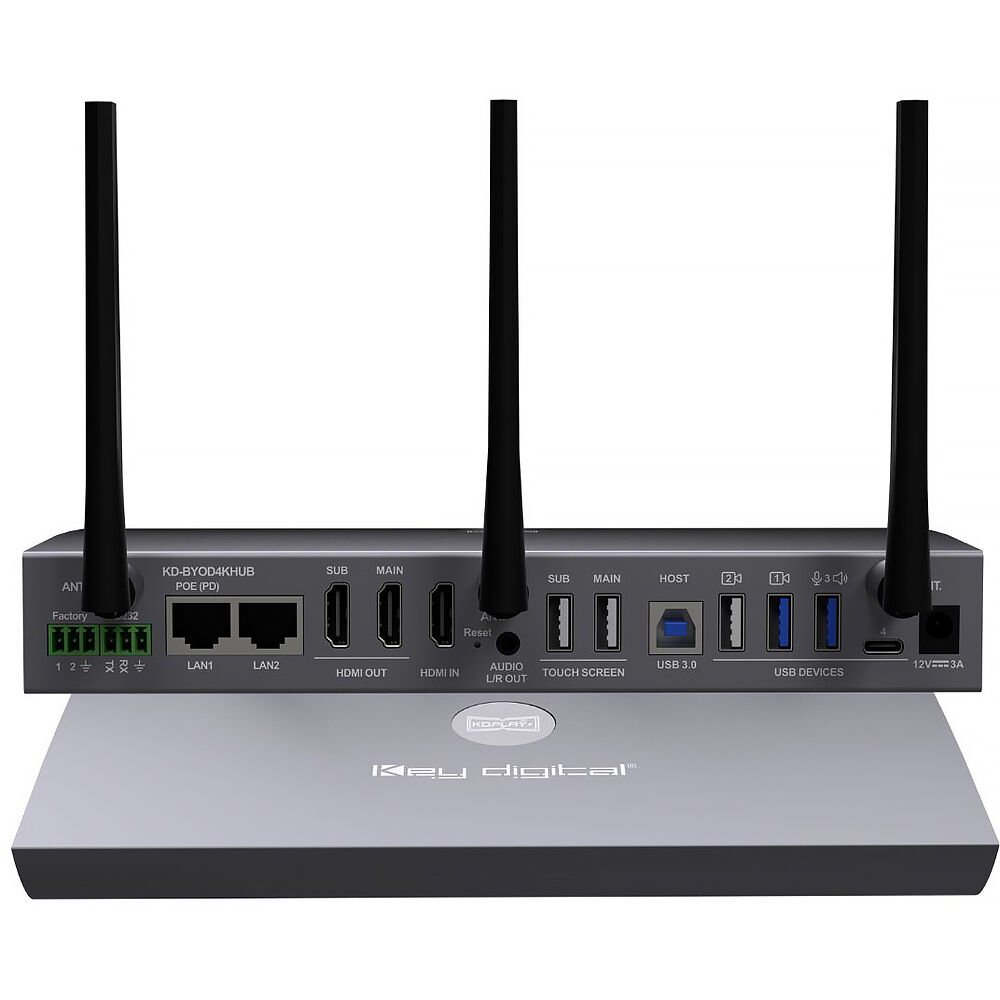

USB I/O	3 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input 6 x USB-A 2.0 Female Input 1 x USB-C Female Input
Video I/O	2x HDMI Output
Audio I/O	1x 1/8" / 3.5 mm Output
Other I/O	2 x RJ45 Gigabit Ethernet

Wireless

Wi-Fi 5 (802.11ac) / Wi-Fi 4 (802.11n) / WiGig (802.11ad) *Built-In

Power Source	AC Adapter with Power Brick, PoE
DC Input Power	12 VDC
Power Consumption	10 W

Color	Black
Operating Conditions	-4 to 140°F / -20 to 60°C
Storage Conditions	-4 to 140°F / -20 to 60°C

Package Weight	2.52 lb
Box Dimensions (LxWxH)	13.2 x 8.7 x 3.8"
