Description

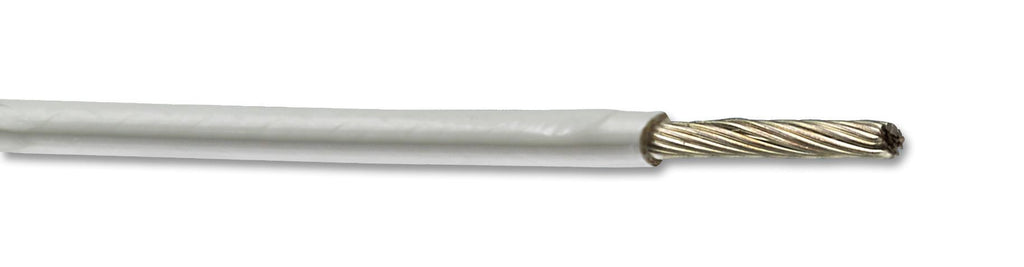

The 44A1121-24-2/6-9 is a 2-core white Shielded Cable for general purposes. It is made of tin-coated copper conductor and radiation-cross-linked modified PVF.
- 2500V (RMS) at 60Hz, 1 minute Dielectric withstand voltage
- 5% Maximum immersion
- 70% Minimum jacket concentricity
- 200% (minimum) Jacket elongation and tensile strength
- 1.5kV (RMS) Spark test
- 150�C Temperature rating
- Flexible
Applications
Power Management
Product details
| No. of Cores | 2Core |
| Reel Length (Metric) | 100m |
| Conductor Material | Copper |
| Jacket Material | PVF2 |
| External Diameter | 2.99mm |
| Voltage Rating | 600V |
| Reel Length (Imperial) | 328ft |
| Product Range | - |
| Wire Gauge | 24AWG |
| Jacket Colour | White |
| No. of Max Strands x Strand Size | 19 x 0.127mm |
| Conductor Area CSA | 0.24mm� |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | 44A1121-24-2/6-9 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
| Drawing EN | |
