Description

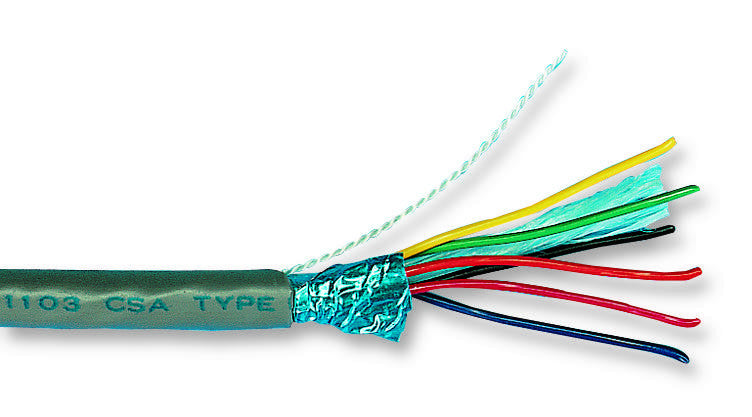

The Pro-Tekt braid shield multiconductor cables from Alpha Wire provide rugged, reliable, high performance in demanding applications. This cable feature a unique premium grade PVC insulation and jacket that makes routing of the cable easier in small, tight space. Pro-Tekt is ideal for applications ranging from industrial process controls and machine tools to medical electronics and motor supplies.
- IEC EN 60332-1, IEC EN 60332-2, UL CM, UL AWM 2464 VW-1 approval standards
- 2 to 70 conductors
- 0.09 to 1.23mm² (28-16AWG)
- Stranded tinned copper conductors with premium grey PVC jacket
- Tinned copper drain wire sized the same as cable conductors
- Working voltage of 300V
- Nylon ripcord
- UV resistant
- Available in 50, 100, 500, 1000m length
- Operating temperature ranges is -30°C to +80°C (AWM) and -30°C to +105°C (CM)
Applications
Industrial
Product details
| No. of Cores | 3Core |
| Reel Length (Metric) | - |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| External Diameter | 5mm |
| Voltage Rating | 300V |
| Reel Length (Imperial) | - |
| Product Range | - |
| Wire Gauge | 22AWG |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 30AWG |
| Conductor Area CSA | - |
Other details
| Brand | ALPHA WIRE |
| Part Number | B954033 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
