| ₹ 29020.06 includes GST and import duties. | |
| B2B customers can avail ₹ 4425.56 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

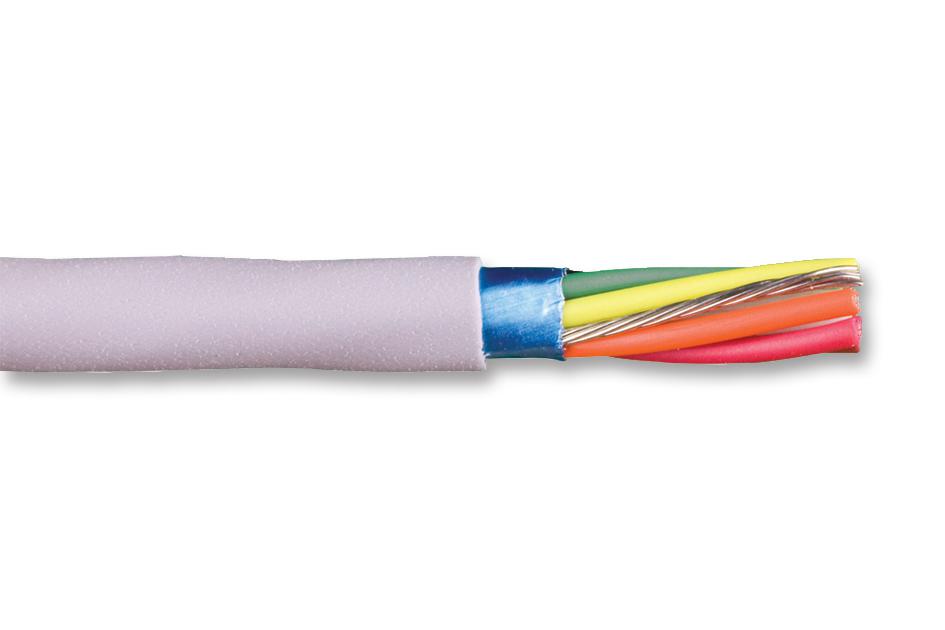

EcoGen EcoCable Mini recyclable, halogen-free cable has been developed by Alpha Wire to meet customers' needs for smaller, lighter 300V cable. It uses mPPE insulation and jacketing to provide application advantages in a cable that is 32% smaller and 44% lighter than standard PVC cable, combining better performance and minimum environmental impact. The reductions in size and weight make routing and installation even easier, saving more time during production and maintenance.
- CPR: Not Yet Qualified
- 300V cable ideal for power/signal transmission in medical devices and where size/weight are critical
- Up to 32% smaller and 44% lighter than standard 300V PVC cable
- Up to 92% lower outgassing than PVC control cable, reducing corrosion and contamination
- 10X cable diameter bend radius
- 100% recyclable mPPE insulation and jacketing
- Contains no halogens, phthalates, or heavy metals
- Finely stranded tinned copper conductors for excellent flexibility
- -40°C to +80°C temperature range
- Approvals: UL AWM 21460; UL VW-1; CSA I A/B FT1; CE, RoHS, REACH and WEEE Compliant
Applications
Medical, Audio, Communications & Networking, Consumer Electronics, Lighting, Maintenance & Repair, Motor Drive & Control, Sensing & Instrumentation, System Monitoring, Test & Measurement
Product details
| Cable Shielding: Screened |
| No. of Cores: 6Core |
| Wire Gauge: 28AWG |
| Conductor Area CSA: 0.0925mm² |
| Reel Length (Imperial): 100ft |
| Reel Length (Metric): 30.5m |
| Jacket Colour: Slate |
| No. of Max Strands x Strand Size: 19 x 40AWG |
| Conductor Material: Tinned Copper |
| Jacket Material: MPPE |
| External Diameter: 3.25mm |
| Voltage Rating: 300V |
| Product Range: EcoCable Mini |
Other details
| Brand | ALPHA WIRE |
| Part Number | 78106 SL005 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 28439.66 |
| 3-5 | ₹ 28149.46 |
| 5-10 | ₹ 27569.06 |
| 10+ | ₹ 26988.66 |
Bulk discount will be automatically applied during checkout based on quantity.
