- Load Capacity up to 150 lb (68 kg)
- Create Video Walls in Any Configuration
- Landscape Display Orientation
- Pull-Out/Prop-Open Hinge Mechanism
- Open Wall Plate Architecture
- Spring-loaded Mechanism
- Tool-Less Micro-Adjustments at 8 Points
- Integrated Cable Management Tie-backs
- Adjustable VESA Mounting Hole Patterns
- Security Hardware for Added Safety
The Peerless Industries Full-Service Video Wall Mount for 40 to 65" Displays holds flat-panel displays up to 150 lb (68 kg) in landscape display orientation to form a perfectly spaced video wall.

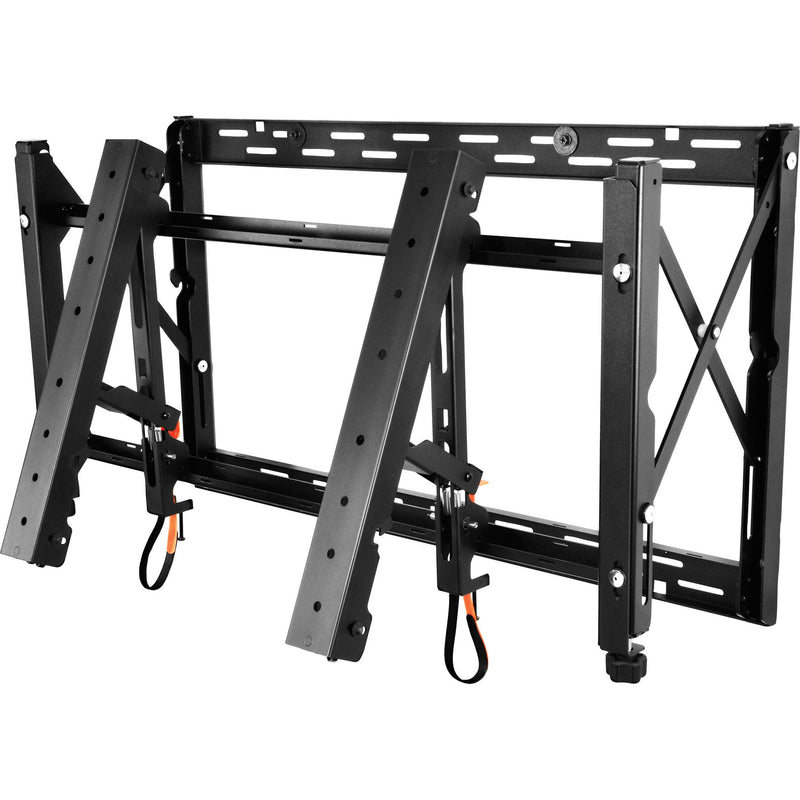

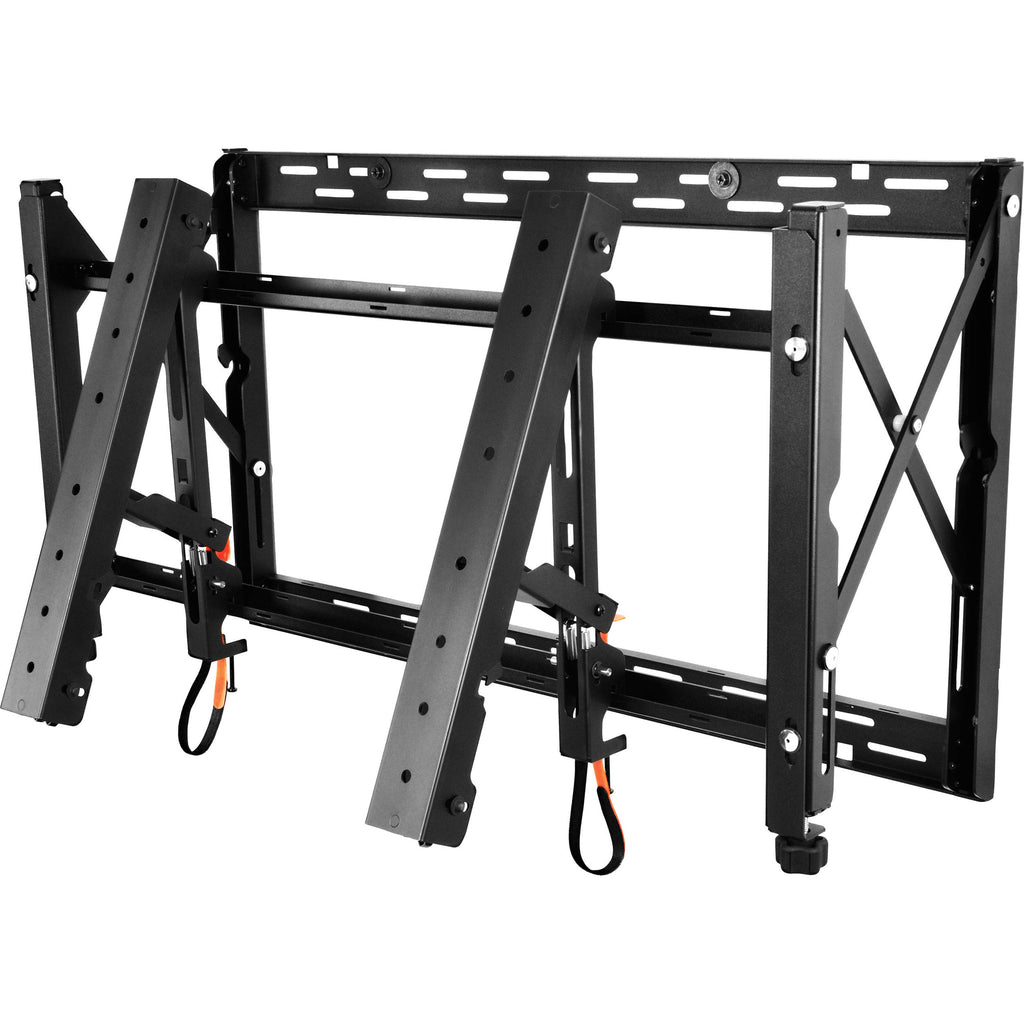

An innovative pull-out/prop-open hinge mechanism provides rapid service access to individual displays in a video wall, while the spring-loaded mechanism smoothly places the display back in place. Custom wall plate spacers ensure easy and quick installation of additional mount on the wall, saving tedious measurement time. The Full-Service Mount offers tool-less micro-adjustments at 8 points for precise and effortless alignment of the displays. Displays and mounts can sit flush against the wall, providing a neat look to the setup.
Note: Wall Plate Spacers sold separately.
- Video Wall Mounting
-
- Provides best viewing positions to flat-panel displays ranging from 40 to 65" (102 to 165 cm)
- Can hold displays up to 150 lb (68 kg)
- Allows you to create video walls in any number of configurations
- Landscape display position
- Quick Screen Access
-

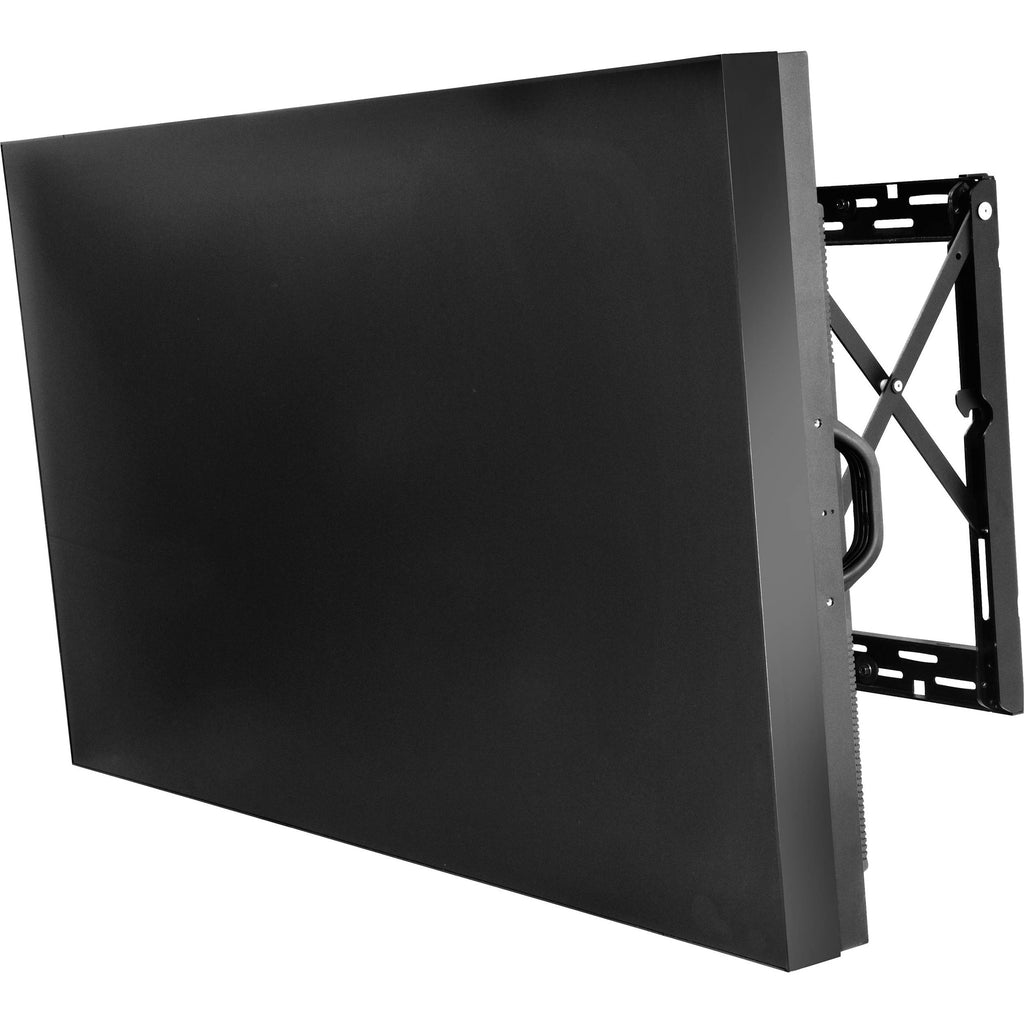

- Pull-out/prop-open hinge mechanism provides rapid service access to individual displays in a video wall
- Spring-loaded mechanism smoothly places the display back in place
- Easy Setup
-
- Custom wall plate spacers (not included) save tedious measurement time

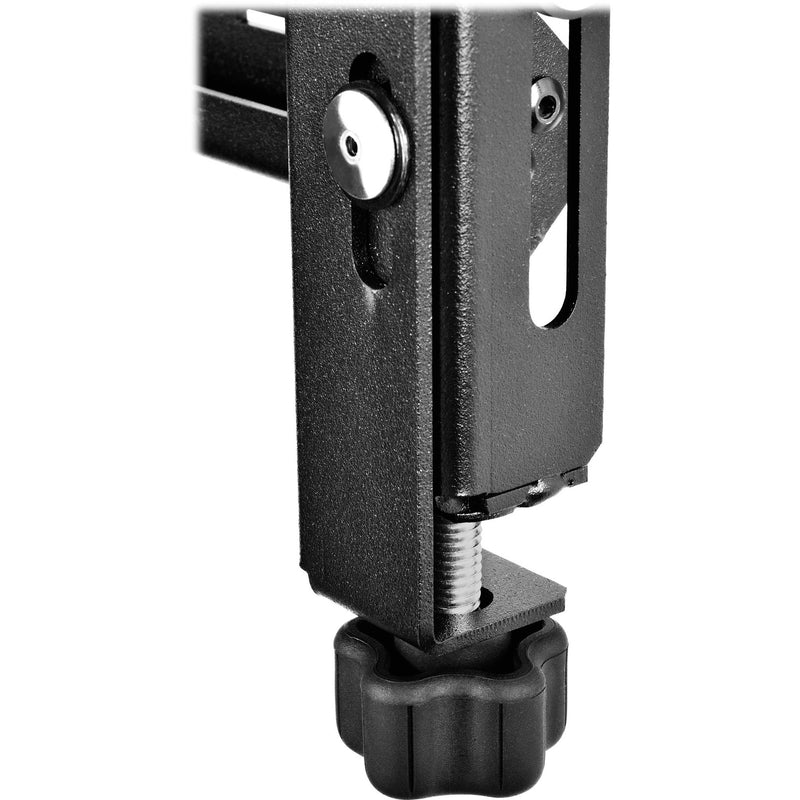

- Tool-less micro-adjustments at 8 points for precise and effortless alignment of the displays
- Clutter-free Look
-
- Displays and mounts can sit flush against the wall, providing a neat look to the setup
- Open wall plate architecture offers increased electrical and cable management options
- Integrated cable management tie-backs organize cables
- Monitor Mounting
-
- Adjustable VESA mounting hole patterns in 100 mm increments, starting at 200 x 200 mm up to 700 x 400 mm
- Additional VESA patterns are supported with adapter plates
- Security hardware for preventing the mount from extending out from the wall
UPC: 735029278771
| TV Size | 40 to 65" (102 to 165 cm) |
| Load Capacity | 150 lb (68 kg) |
| Finish | Scratch resistant fused epoxy |
| Color | Black |
| Dimensions (W x H x D) | 35.04 x 20 x 3.08-3.83" (890 x 508 x 78-97 mm) |
| Weight | 39 lb (18 kg) |
| Packaging Info |
| Package Weight | 38.8 lb |
| Box Dimensions (LxWxH) | 36.0 x 22.0 x 3.6" |
In the Box
Peerless-AV Full-Service Video Wall Mount for 40 to 65" Displays
- Wall Mount Assembly
- Mounting Attachment Rails
- Fasteners
- 5-Year Limited Warranty
