Description
Gabor FSM-HD Overview

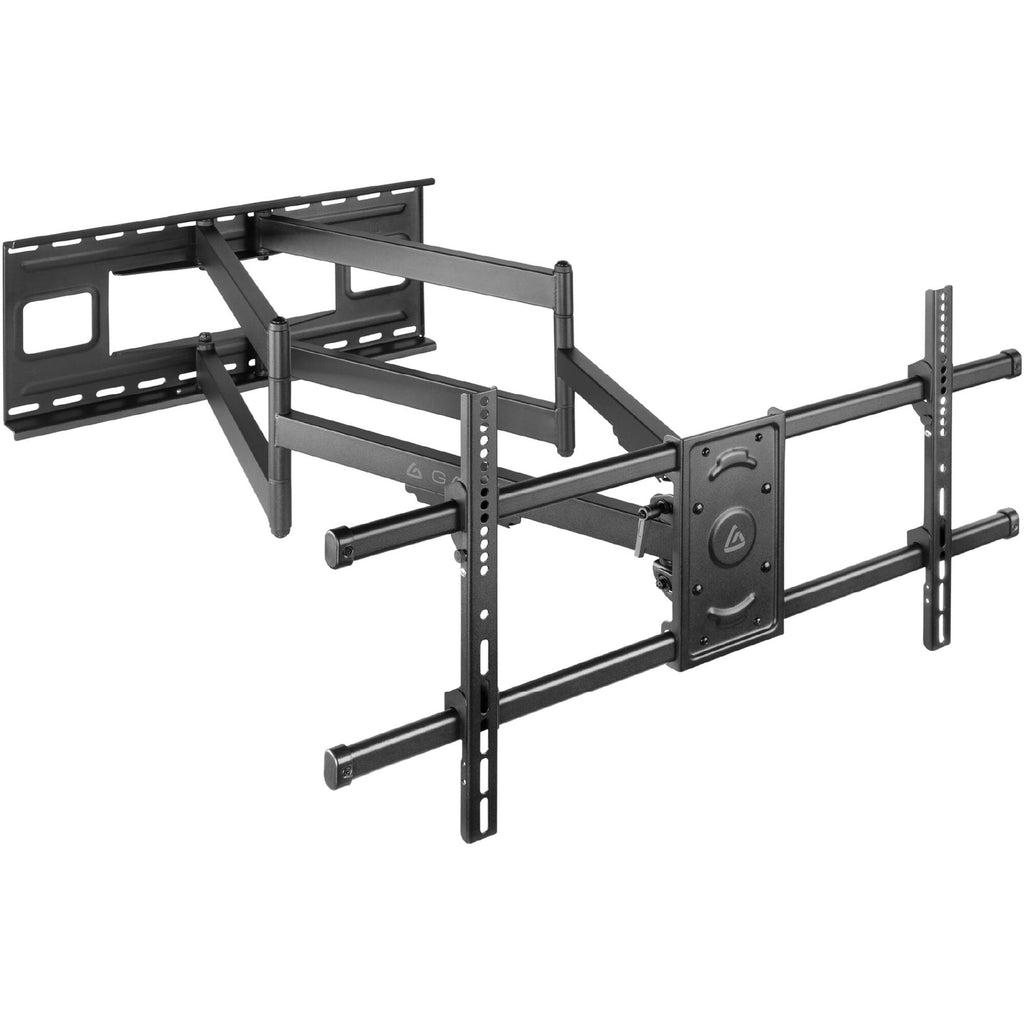

Mount your compatible 43 to 90" flat-panel display weighing up to 176 lb and achieve your preferred viewing angle with the Gabor Long Extension Heavy-Duty Full-Motion Wall Mount. It supports flat displays with select VESA patterns from 200 x 200 to 800 x 400mm and provides -15 to 5° of tilt adjustment and up to ±60° of swing to help you achieve your viewing angle of choice, then retract to the wall to keep your display out of the way. Integrated cable management helps keep your wiring neat.
Please note that this mount must be secured to a double stud or solid wall.
This heavy-duty support accommodates medium to large TVs that measure 43 to 90" with a flat or curved frame. The steel construction holds displays weighing up to 176 pounds.
Easily install the Gabor Heavy-Duty Full Motion Wall Mount with a few steps and parts. The included mounting template takes the guesswork out of drilling into your wall and the quick-hang installation offers a two-step process to attach your display to the mount.

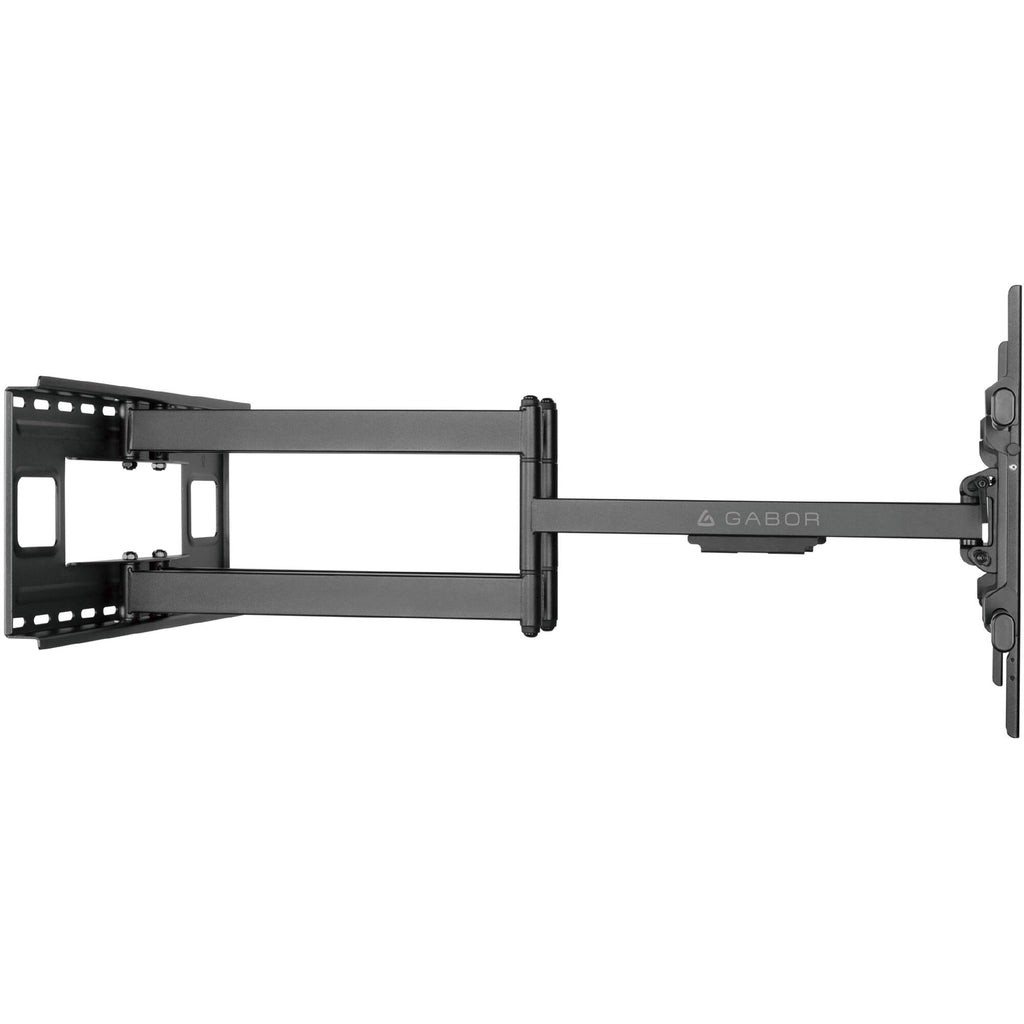

The swing-arm extension allows you to pivot your display up to 120° and extend your screen from 2.75 to 41.5". Position your display away from the wall, around corners, and over objects.
Tilt your display -15/+5°. By tilting your display, you eliminate screen glare and get a more comfortable viewing angle.
Easily adjust the display bracket to accommodate VESA mounting hole patterns from 200 x 200 to 800 x 400mm on your display. This range allows you to mount 43 to 90" TVs on your wall.
The provided mounting template helps you mark and drill holes into your wall. Use a bubble level for accuracy and the template takes care of the rest.
Integrated cable management keeps your space looking clean. Organize your cables and minimize the mess behind your display.
After you mount your display, you can alter the horizontal level from -3 to +3°. This ensures easy and accurate post-installation alignment.
Items Included
- Gabor Long Extension Heavy-Duty Full-Motion Wall Mount for 43-90" Displays
- Display Bracket
- Wall Bracket Template
- Mounting Hardware
- Limited 1-Year Manufacturer Warranty
Additional Resources
Gabor FSM-HD Specs
| Compatible Models |
Displays 43 to 90"
|
| VESA Mounting-Hole Pattern |
200 x 200 mm
300 x 200 mm 300 x 300 mm 400 x 200 mm 400 x 300 mm 400 x 400 mm 600 x 400 mm 800 x 400 mm |
| Load Capacity |
176 lb / 79.8 kg
|
| Mounting Compatibility |
Solid Wall / Single Stud
|
| Adjustments |
Tilt 20° (-15 to 5°)
Pan 6° (-3 to 3°) Screen Pivot (Arm) 120° (-60 to 60°) |
| Orientation |
Landscape
|
| Distance from Mounting Surface |
2.75" / 6.99 cm
|
| Material of Construction |
Steel
|
| Weight |
33.4 lb / 15.1 kg
|
Packaging Info
| Package Weight |
40 lb
|
| Box Dimensions (LxWxH) |
45 x 15.75 x 3.75"
|
