Description
Gabor FSM-L Overview
- 1Description
- 2Quick-Hang Installation
- 3Swing Arm Extension
- 4Tilt Adjustment
- 5Horizontal Leveling
- 6Cable Management
- 7Mounting Template
- 8Extra Security

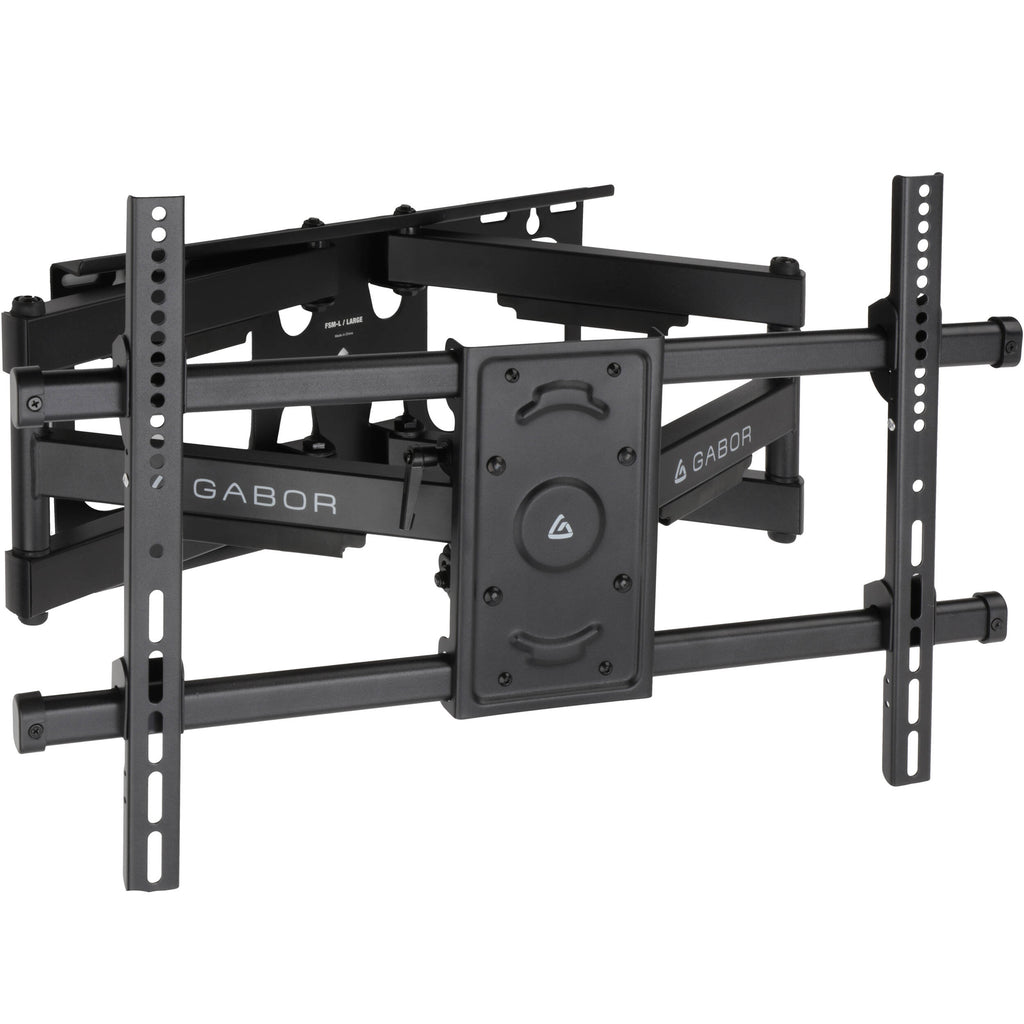

Mount your compatible 40 to 70" display weighing up to 143 lb and achieve your preferred viewing angle with the Gabor FSM-L Full-Swing Large Wall Mount. It supports displays with select VESA patterns from 200 x 200 to 600 x 400mm and provides -15 to 5° of tilt adjustment and up to 120° of swing to help you achieve your viewing angle of choice, then retracts to the wall to keep your display out of the way. Integrated cable management helps keep your wiring neat. The included bubble level helps simplify installation, and the mounting template features a dust pocket to catch the debris produced from drilling.
Quick-Hang Installation
The quick-hang installation allows a single person to attach the mount to the concrete or wooden stud wall and simply hang your display on the mount.
Swing Arm Extension

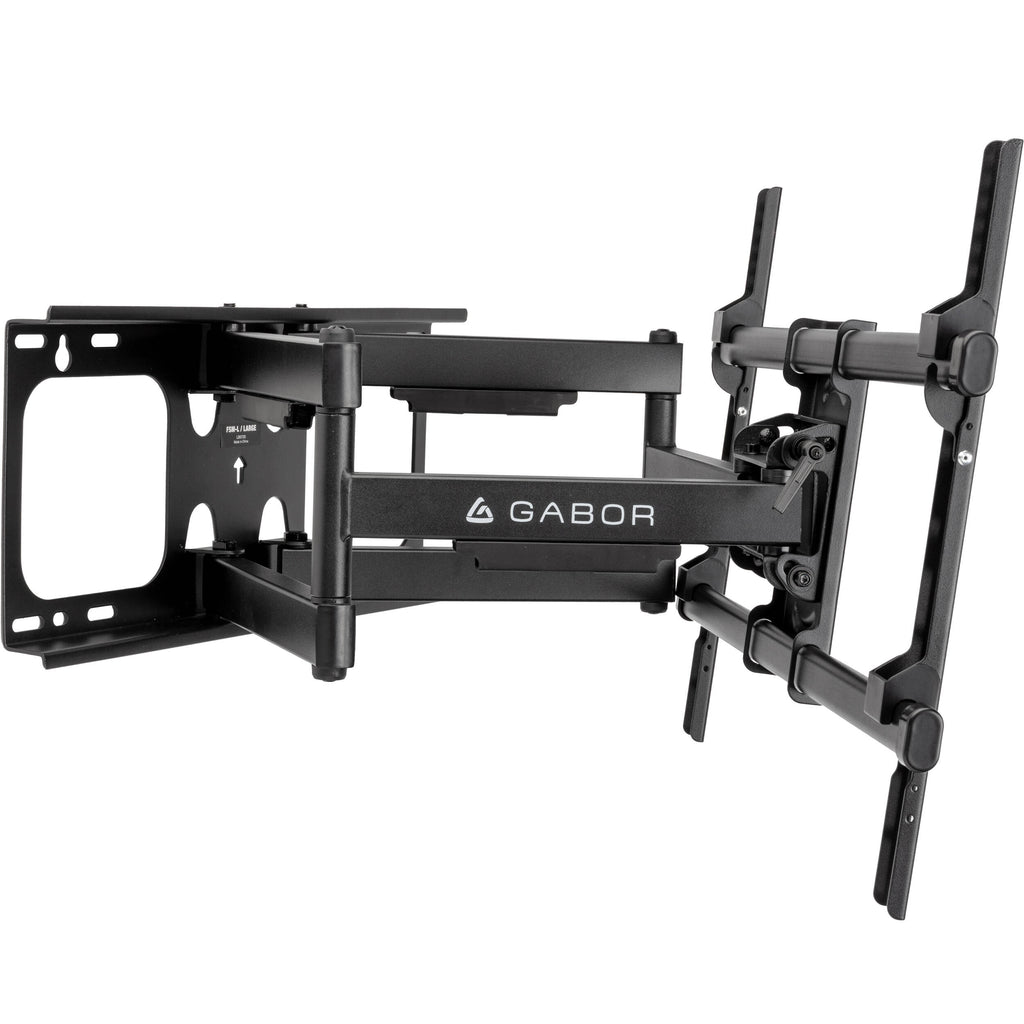

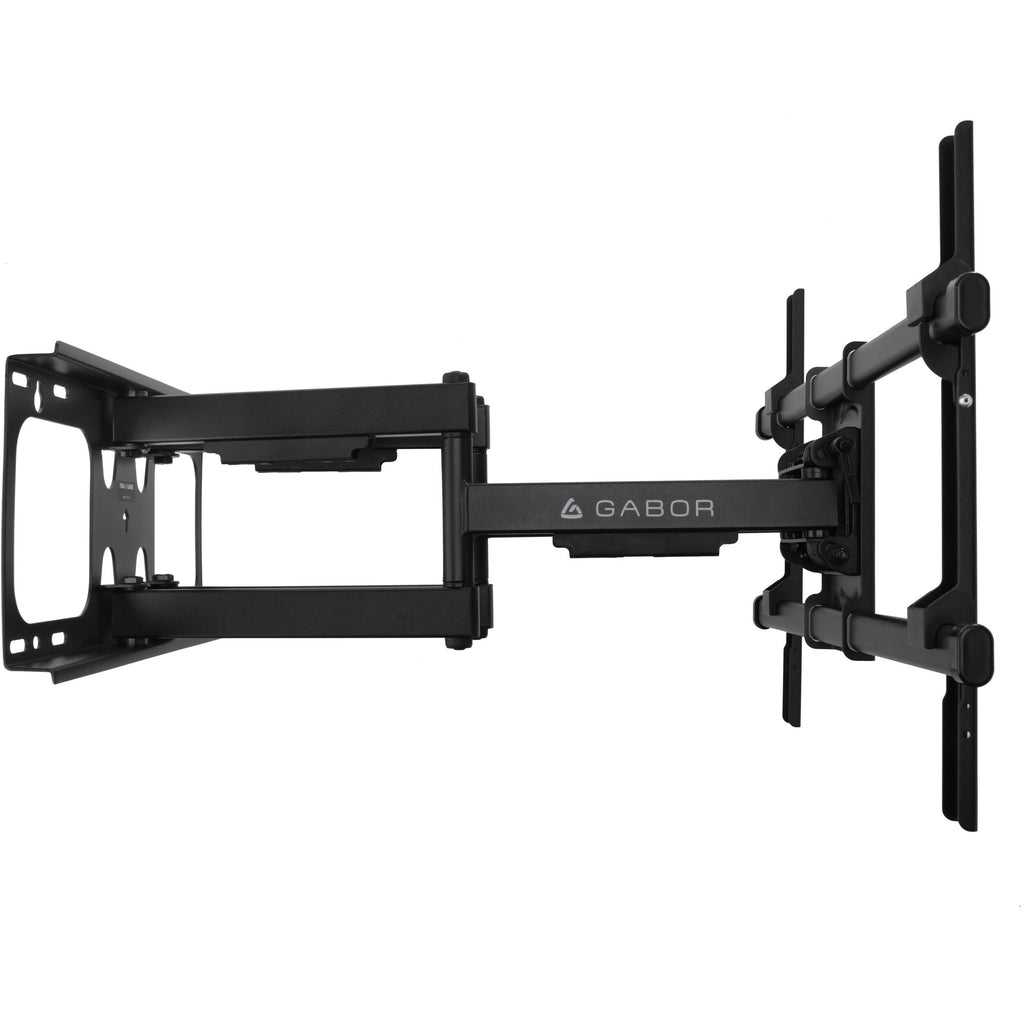

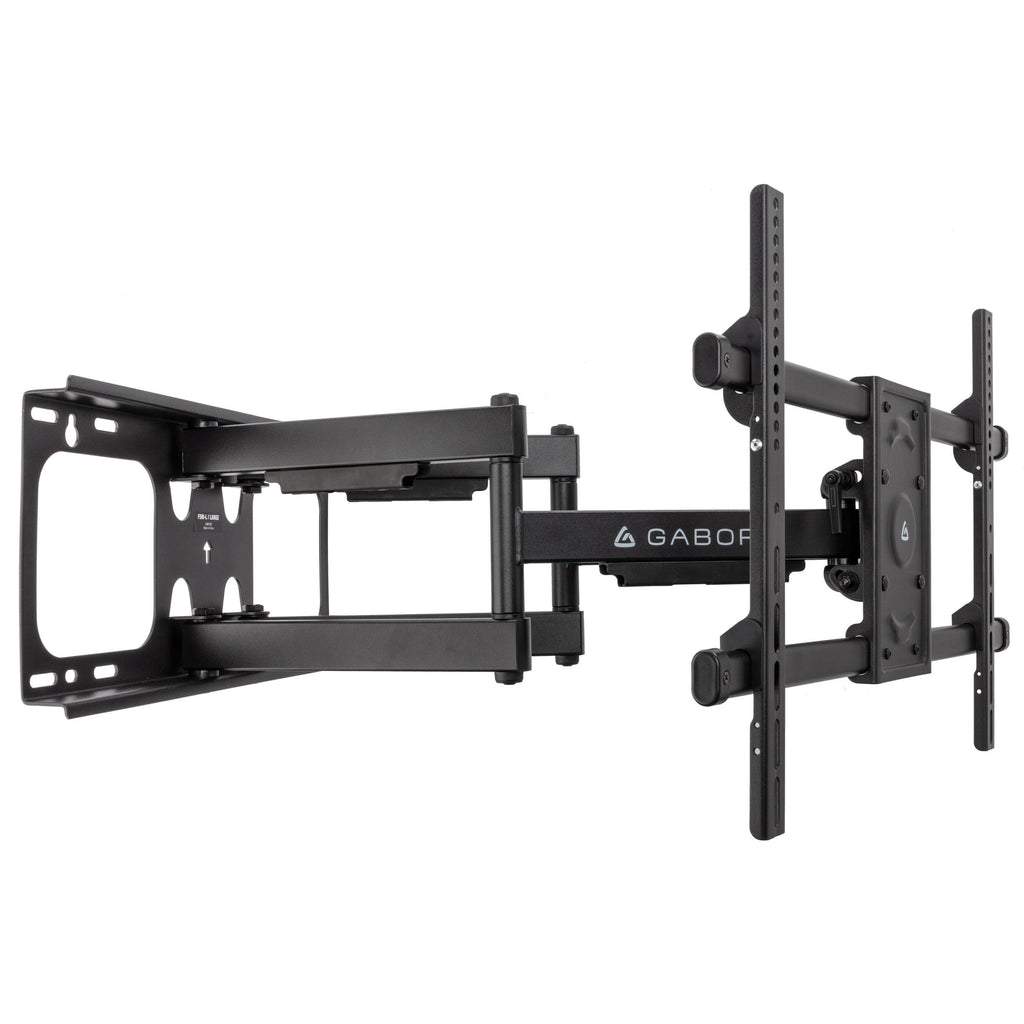

The swing-arm extension allows you to pivot your display up to 120° and extend your screen from 2.7 to 25". Position your display away from the wall, around corners, and over objects. Enjoy the flexibility of mounting your display on nearly any wall and always achieving the perfect view.
Tilt Adjustment

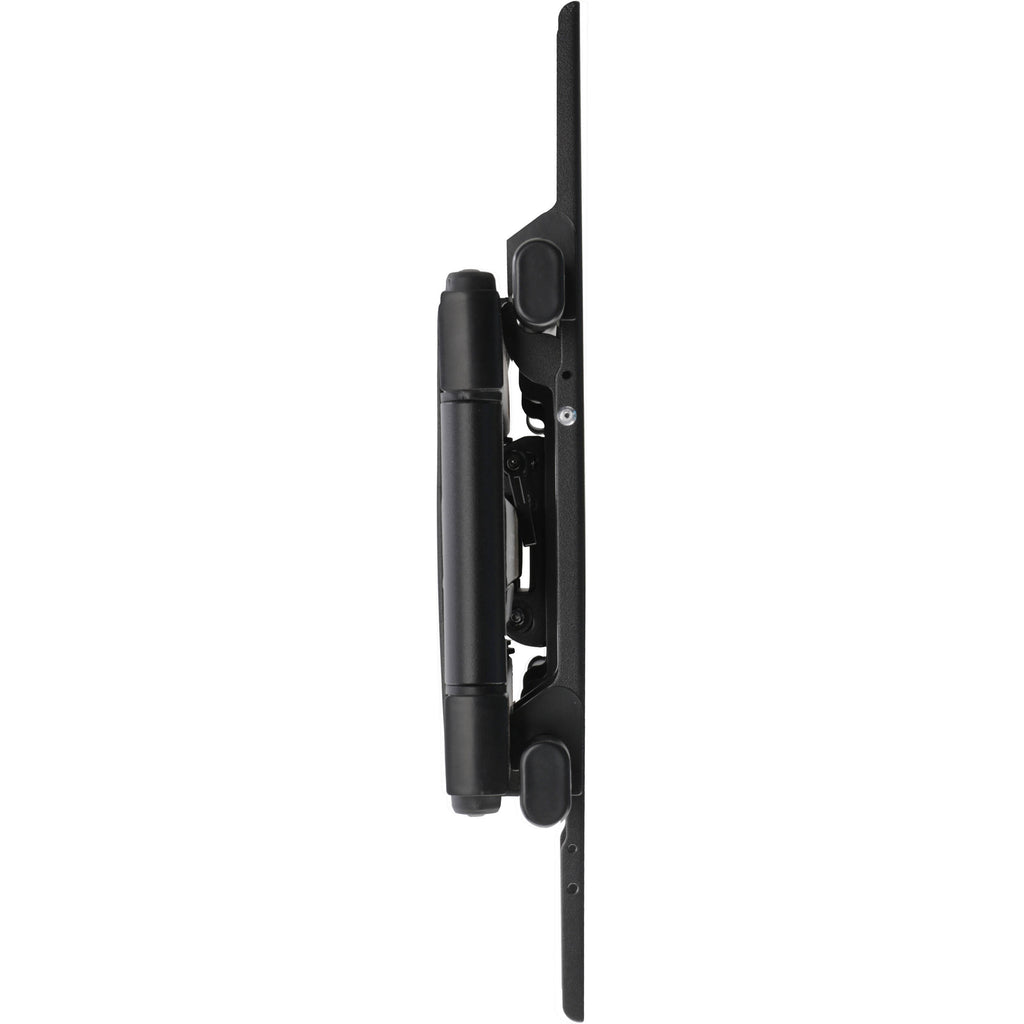

Tilt your display -15 to 5° for optimal viewing. By tilting your display, you can eliminate screen glare and get a more comfortable viewing angle.
Horizontal Leveling
After you mount your display, you can alter the horizontal level ±3°. This ensures easy and accurate installation with simple adjustments for proper placement.
Cable Management
Integrated cable management keeps your cables hidden and offers a clean look. The openings of the wall plate offer space to place outlets behind your display and hide the cables with your hookups.
Mounting Template
The provided mounting template allows you to confidently mark and drill holes for mounting. A convenient dust pocket catches debris and helps minimize cleanup.
Extra Security

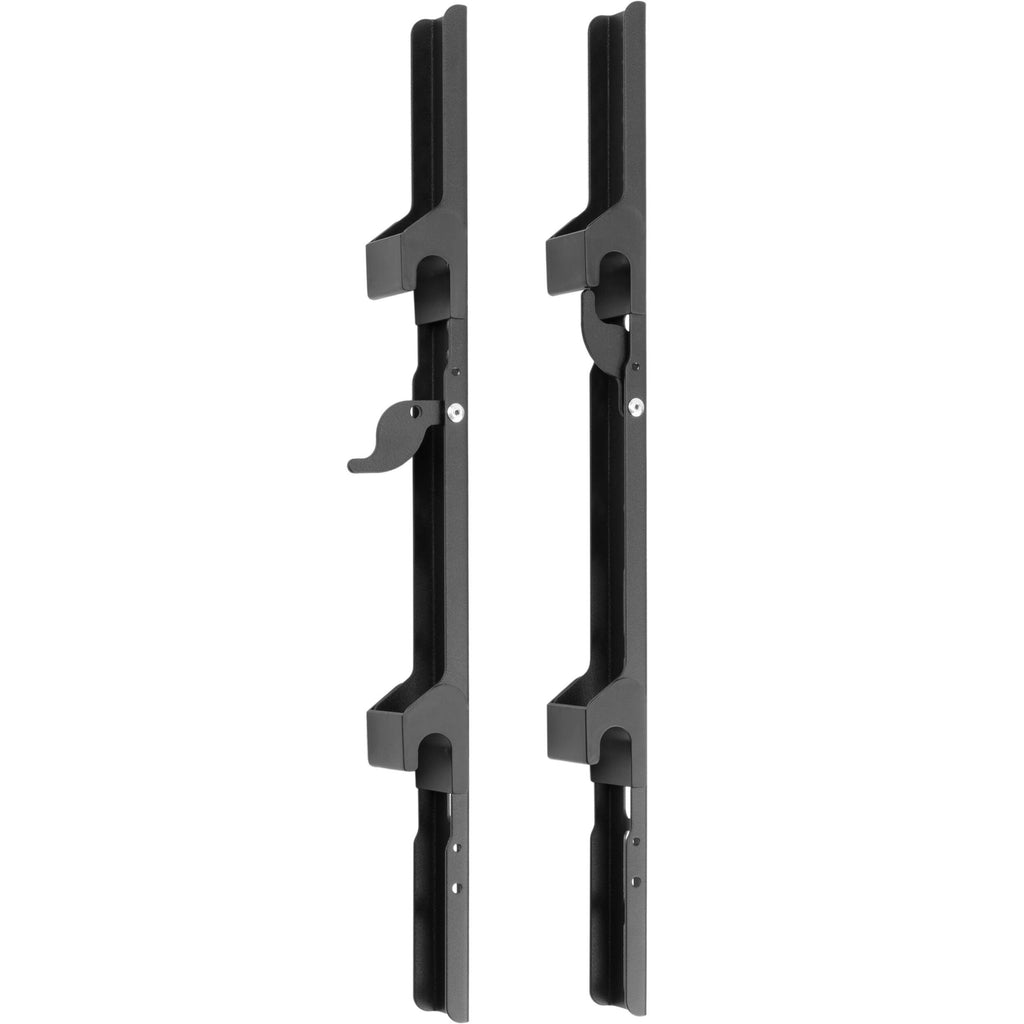

Two latches help keep your display in place while hanging it on the mount. These prevent your display from being easily moved or removed and provide extra security.
UPC: 847628035478
In the Box
- Gabor FSM-L Full-Swing Large Wall Mount for 40 to 70" Displays
- Assembly Hardware
- Mounting Hardware
- Wall Mounting Template
- Bubble Level
- Limited 5-Year Warranty
Table of Contents
- Description
- Quick-Hang Installation
- Swing Arm Extension
- Tilt Adjustment
- Horizontal Leveling
- Cable Management
- Mounting Template
- Extra Security
Gabor FSM-L Specs
Compatibility
| Supported Screen Sizes | 40 to 70" / 101.6 to 177.8 cm |
| Weight Capacity | 143 lb / 64.9 kg |
| Mounting-Hole Pattern | 200 x 200 mm 300 x 300 mm 400 x 200 mm 400 x 400 mm 600 x 400 mm |
Adjustments
| Tilt Adjustment | -15 to +5° |
| Rotation Adjustment | -3 to +3° |
| Screen Pivot (Arm) | 120° |
| Orientation | Landscape |
General
| Construction Material | Steel |
| Arm Length | 25" / 63.5 cm |
| Distance from Mounting Surface | 2.7 to 25.00" / 6.9 to 63.5 cm |
| Weight | 22.6 lb / 10.3 kg |
Packaging Info
| Package Weight | 22.34 lb |
| Box Dimensions (LxWxH) | 28.5 x 11.4 x 3" |
