| ₹ 11143710.0 includes GST and import duties. | |
| B2B customers can avail ₹ 1699415.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Vinten FHR-155 Overview

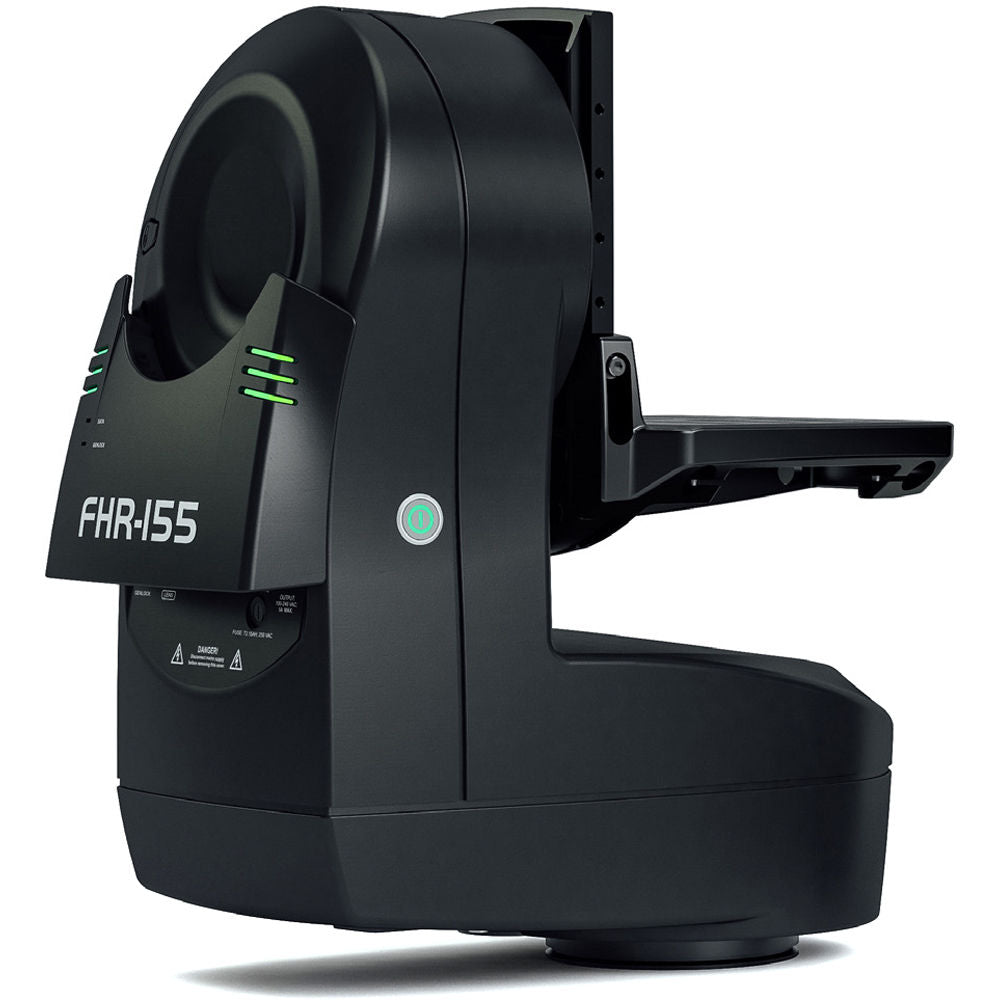

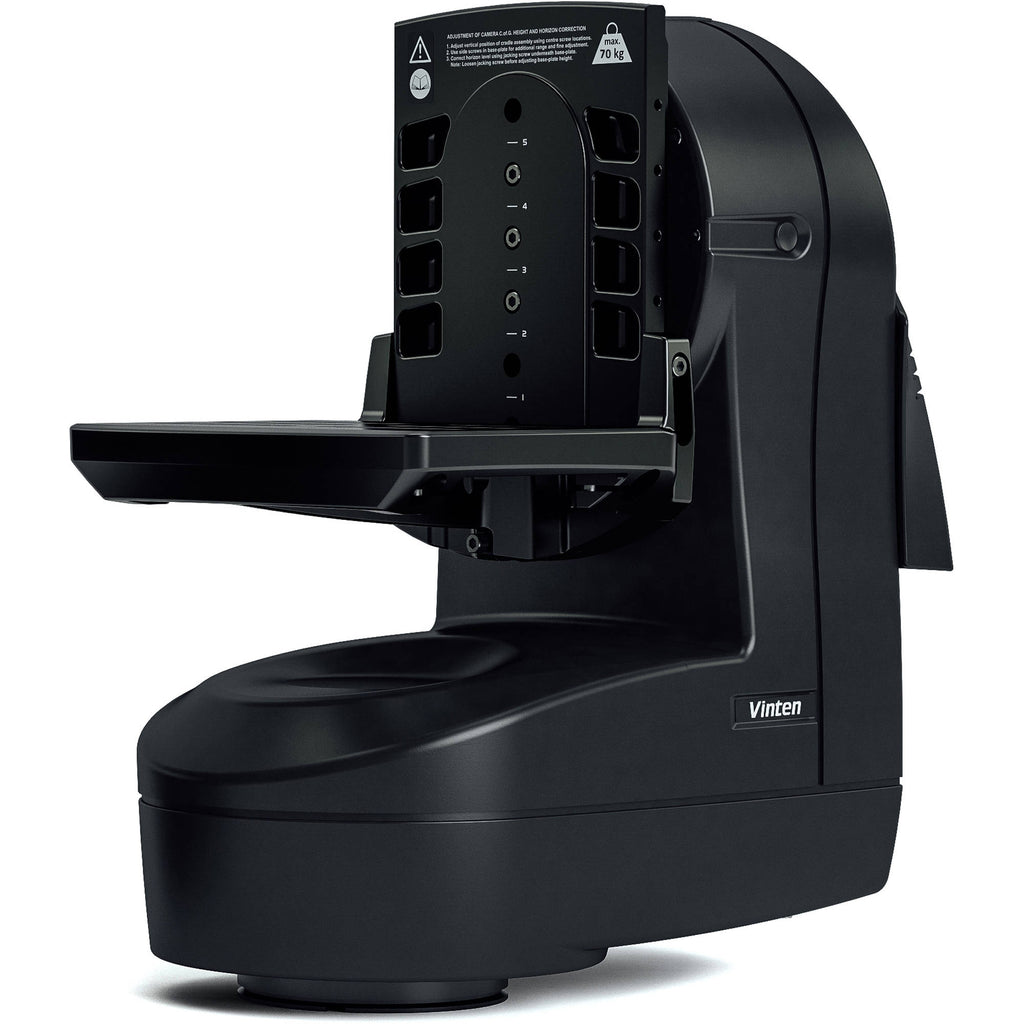

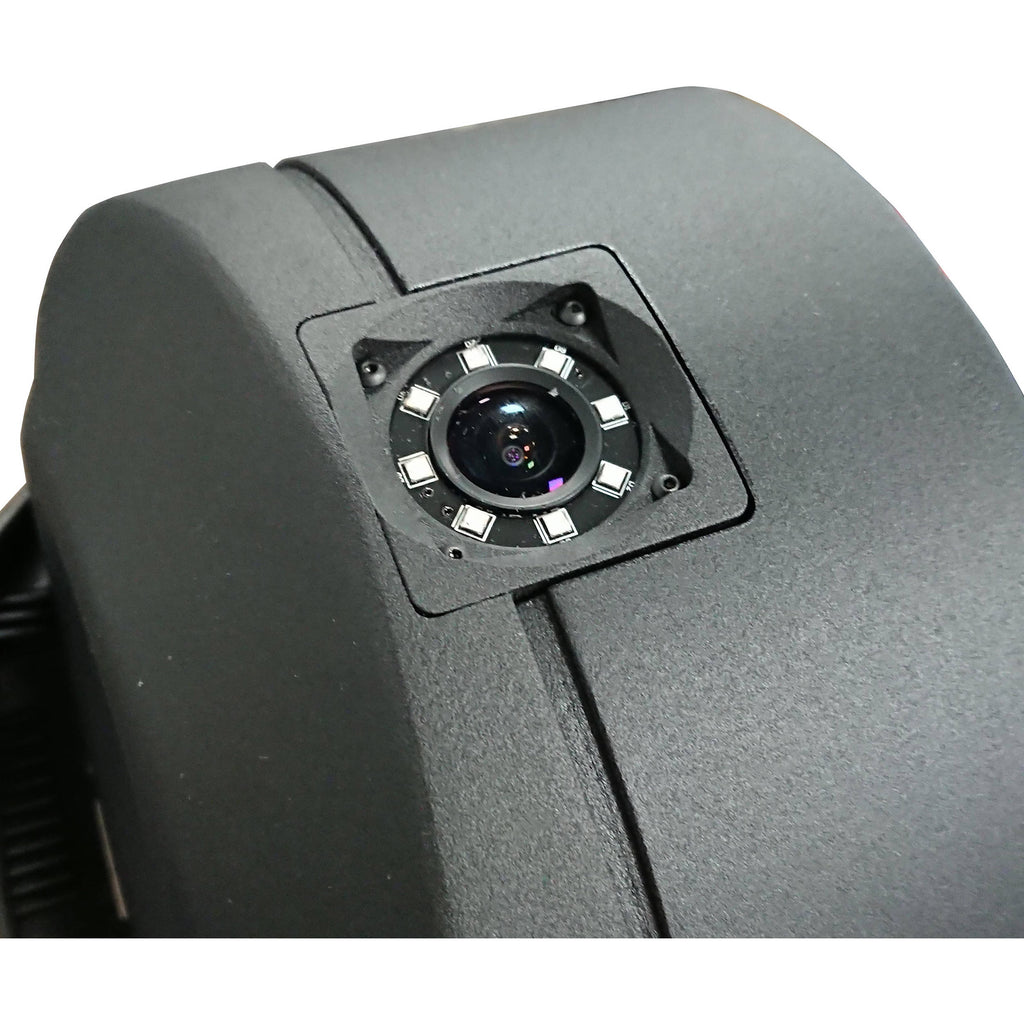

The Vinten FHR-155 Robotic Head with Integrated StarTracker System is a fully functional robotic head. Suitable for studio or remote work, the head is nearly silent and supports up to 155 pounds. It has a cradle to adjust the center of gravity and balance of your camera on the head for best results. It also features a built-in floor movement tracking system, the StarTracker system, which provides information on the head's position in relation to the floor. The head is capable of accurate and highly repeatable motion control movement of your camera as well as compatible Canon and Fujinon servo-controlled lenses.
The head can tilt a total of 100° (50° down and 50° up), and can pan 359°. The built-in 3-port Ethernet switch simplifies integration with robotic pedestals and IP prompting equipment. Mounting the head on a tripod or pedestal requires an optional mounting adapter.
In the Box
- Vinten FHR-155 Robotic Head with Integrated StarTracker System
- Camera Cradle (Comprising Backplate and Mounting Plate)
- 3 x Center Screw
- Cable Management Bracket
- Power Cable (10')
- CAT 5e Ethernet Cable (10')
- 5 x Cable Tie
- 3 x M4 Countersunk Screw
- 2 x 3/8" BSW x 3/4" Cap Head Screw
- 4 x 3/8" Head Fixing Bolt
- Vinten Spanner (for Head Fixing Bolt)
- 5mm Allen Key
- 5/16" Allen Key
- 5/64" Allen Key
- Flat Blade Screwdriver
- Limited 1-Year Warranty
Vinten FHR-155 Specs
| Payload | 155 lb / 70.31 kg |
| Pan & Tilt Range | Pan: 359° Tilt: ±50° |
| Drag Control | Continuous Drag Adjustment, Servo Controlled |
| Angular Speed | Velocity: 0.05 to 60°/s Acceleration Typical: 60°/s 2 Acceleration Peak: 120°/s 2 |
| Lens Control | Canon Lenses: Full-Servo Fujinon Lenses: Full-Servo |
| Genlock | Black Burst / Tri-Level |
| Connectors | Power: powerCON Ethernet: 3 x RJ45 Genlock: 1 x Micro BNC Aux Port: 26-pin LANC Port |
| Shot Recall Repeatability | ±60 Arcseconds (±0.016°) |
| System Resolution / Accuracy | 22-bit, >0.01? |
| Rated Load Inertia | 16.53 lb ft 2 / 7.5 m 2 kg |
| Motor Noise | 41dBA at Max Speed |
| Network | IP Ethernet |
| Power | Input: 100 to 240 VAC, 50/60 Hz Consumption: 175 W |
| Fuse Protection | 250 VAC, 3.15 A |
| Temperature Range | 41 to 104°F / 5 to 40°C |
| Dimensions | 19.29 x 17.17 x 9.25" / 490 x 436 x 235 mm |
| Weight | 49.6 lb / 22.5 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 10920835.8 |
| 3-5 | ₹ 10809398.7 |
| 5-10 | ₹ 10586524.5 |
| 10+ | ₹ 10363650.3 |
Bulk discount will be automatically applied during checkout based on quantity.
