Description

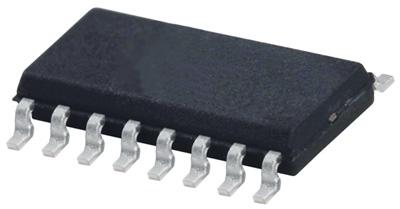

The MAX3232CDR is a Multichannel RS-232 Line Driver/Receiver with ±15kV ESD protection. This device consists of two line drivers, two line receivers and a dual charge-pump circuit with ±15kV ESD protection terminal to terminal (serial-port connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3 to 5.5V supply. The devices operate at data signalling rates up to 250kbps and a maximum of 30V/µs driver output slew rate.
- Two drivers and two receivers
- 300µA Typical low supply current
- 4 x 0.1µF External capacitors
- Alternative high-speed terminal-compatible devices
- Green product and no Sb/Br
Applications
Computers & Computer Peripherals, Portable Devices
Warnings
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Product details
| Product Range: -888 |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | MAX3232CDR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
