Description
ViewZ VZ-022MCT Overview

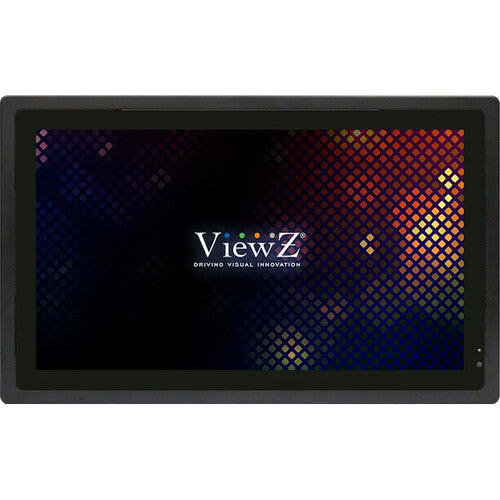

The ViewZ VZ-022MCT 22" Full HD Touchscreen Surveillance Monitor is a 1000-nit high-brightness IPS LCD panel for a wide range of applications, including security, systems control, and digital signage. The VZ-022MCT features a metal housing with an IP65 dust and waterproof rated touchscreen for durable and reliable use in demanding situations.
Additional Details
- Auto dimming supported
- 10-point capacitive touch screen
- Supports HDR and Marker
- Supports scan, aspect, freeze, and image flip
Items Included
- ViewZ VZ-022MCT 22" Full HD Touchscreen Surveillance Monitor
- DC Power Adapter
- AC Power Cord
- HDMI Cable
- VGA Cable
- RCA Composite Cable
- 3.5mm Audio Cable
- Mount Bracket
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
ViewZ VZ-022MCT Specs
Key Specs
| Display Size |
21.5"
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Touchscreen |
Yes: Capacitive
|
| A/V Inputs |
1x HDMI
1x DE-15/DB-15 (VGA) 1x RCA (Composite) 1x 1/8" / 3.5 mm (Analog Audio) |
| USB I/O |
2x USB-A 2.0
|
| Ethernet I/O |
No
|
| Built-In Speakers |
Yes: 2
|
Display
| Display Size |
21.5"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
1000 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
1000:1
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| Viewing Angle (H x V) |
178 x 178?
|
Surface
| Touchscreen |
Yes: Capacitive
|
| Multi-Touch Points |
10
|
Video
| TV Tuner |
No
|
Connectivity
| A/V Inputs |
1x HDMI
1x DE-15/DB-15 (VGA) 1x RCA (Composite) 1x 1/8" / 3.5 mm (Analog Audio) |
| A/V Outputs |
1x 1/8" / 3.5 mm (Headphone)
|
| HDCP Support |
Yes
|
| USB I/O |
2x USB-A 2.0
|
| Ethernet I/O |
No
|
| NFC |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes: 2
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Operational: < 37.0 W
|
| Input Power |
12 to 24 VDC
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 122?F / 0 to 50?C up to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| VESA Mounting-Hole Pattern |
100 x 100 mm, 75 x 75 mm
|
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Impact Resistance |
No
|
| Dimensions |
21.9 x 13.6 x 1.9" / 556 x 344.5 x 48.2 mm
|
| Weight |
13.2 lb / 6.0 kg
|
