Description
- HD 1924 x 768 resolution
- LED Backlighting
- BNC and HDMI Connectivity
- Durable Metal Case
- 1000:1 Contrast Ratio
- Fast 2ms/2ms Response Time
- Wide Viewing Angles (178° HxV)
- 3D Interlace Comb, DNR and 4H Filter

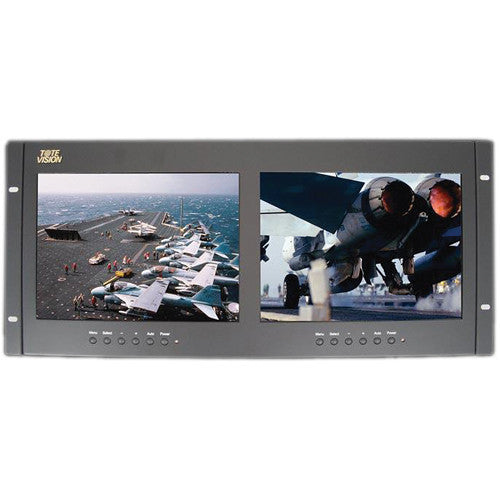

The Tote Vision Dual 9.7" Rack Mount Monitors feature two HD displays with 1924 x 768 resolution in a 19" rack mount. Each display has two BNC in, two BNC out, one HDMI in and one VGA terminal for connecting to a PC. The unit is powered via a 2.1mm DC jack and housed in a durable metal case.
LED backlighting improves color, lifetime, and power consumption. Each dislpay exhibits an 1000:1 contrast ratio, and response time is rated at 2 ms rising and 2 ms falling. The unit is suitable for wide viewing angles, ranging 178° horizontal and vertical. Advanced features include a 3D Interlace comb filter, DNR, and 4H filter.
- Key Features
-
- High Definition 1924 x 768 resolution
- LED Backlighting for improved color, longer life and lower power consumption
- BNC, HDMI and PC (15-pin mini D-sub) connectivity
- Durable metal case
- 1000:1 Contrast Ratio
- Response time rated at 2 ms rising and 2 ms falling
- Wide viewing angles ranging 178° horizontal and vertical
- 3D Interlace Comb, DNR and 4H Filter
UPC: 081651481349
| Display | |
|---|---|
| Number of Displays | 2 |
| Aspect Ratio | 4:3 |
| Screen Size | Diagonal: 9.7" WxH: 7.8 x 5.9" (19.76 x 14.88 cm) |
| Resolution | 1024 x 768 dots |
| Dot Pitch | 0.192 x 0.192 mm (HxV) |
| Brightness | 400 cd/m² (Nit) |
| Contrast Ratio | 1000:1 |
| Colors | 262,144 |
| Number of Pixels | 786,432 |
| Pixel Configuration | RGB Vertical Stripe |
| Response Time | 2ms/2ms (rising/falling) |
| Back Light | LED (30K) |
| Viewing Angle | Left: 89° Right:89° Top: 89° Bottom: 89° |
| Interface | |
|---|---|
| Input Signal Level | 1.0V P-P (positive) 75 Ohm |
| Input/Output Connectors | Composite Input: BNC (x2 per display) Composite Output: BNC (x2 per display) HDMI Input: x1 per display PC (VGA): 15-pin mini D-sub Power Input: 2.1 mm DC jack |
| General | |
|---|---|
| Mount | 19" Rack Mount (5RU) |
| Features | Anti-Glare Coating Selectable Color Temperature 3D Comb Filter (3D interlace & DNR, 4H filter) |
| Power Requirements | 12VDC, 2A, negative ground |
| Power Consumption | 30W (max) |
| Operating Temperature | 32 ~ 104° F (0 ~ 40° C) |
| Dimensions | LxWxD: 18.9 x 8.72 x 1.85" (47.9 x 22.14 x 4.7 cm) Rack Units: 5RU |
| Weight | Net: 6.8 lb (3.1 kg) Gross: 8.2 lb (3.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 11.0 lb |
| Box Dimensions (LxWxH) | 23.1 x 16.45 x 5.5" |
In the Box
Tote Vision Dual 9.7" Rack Mount Monitors
- 3-Year Limited Warranty
