Description

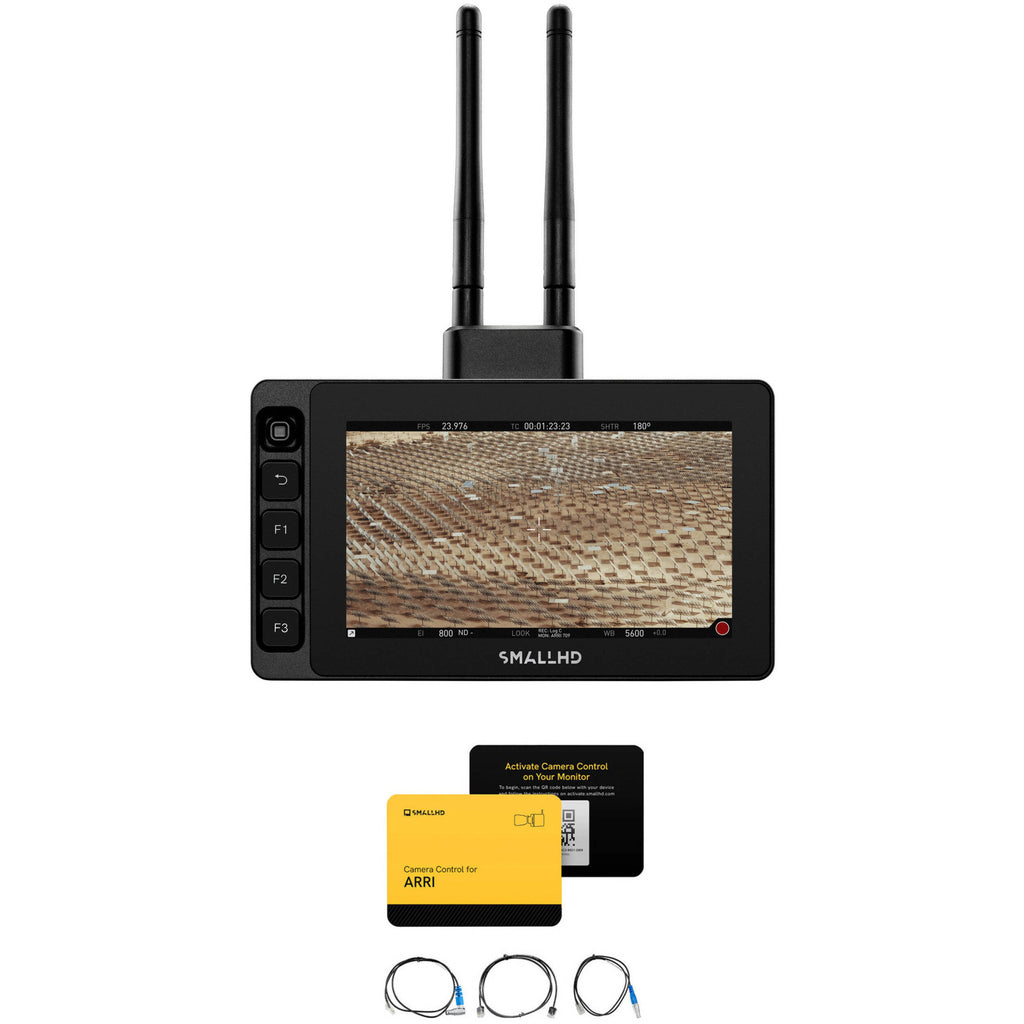

Use the compact SmallHD ULTRA 5 Bolt 6 TX 750 Monitor with Control Kit for ARRI put together by to provide professional monitoring and remote control for your ARRI ALEXA Mini, ALEXA Mini LF, or AMIRA camera with a sharp 5" display suitable for indoor or outdoor use. The kit includes the ULTRA 5 bright 5" monitor, the Teradek Bolt 6 Monitor Module 750 TX, and the ARRI camera control kit that includes software and a LEMO-to-Ethernet control cable and Ethernet patch cable.
The indoor/outdoor 5" monitor provides 3000 cd/m? brightness, and the Bolt 6 TX mounts onto the back and can transmit wireless video up to 750' away. The ARRI control software loads onto the monitor and allows you to control camera functions such as RecordStart, RecordStop, Playback Control, Set & Read TC, and much more via the SmallHD monitor touchscreen.

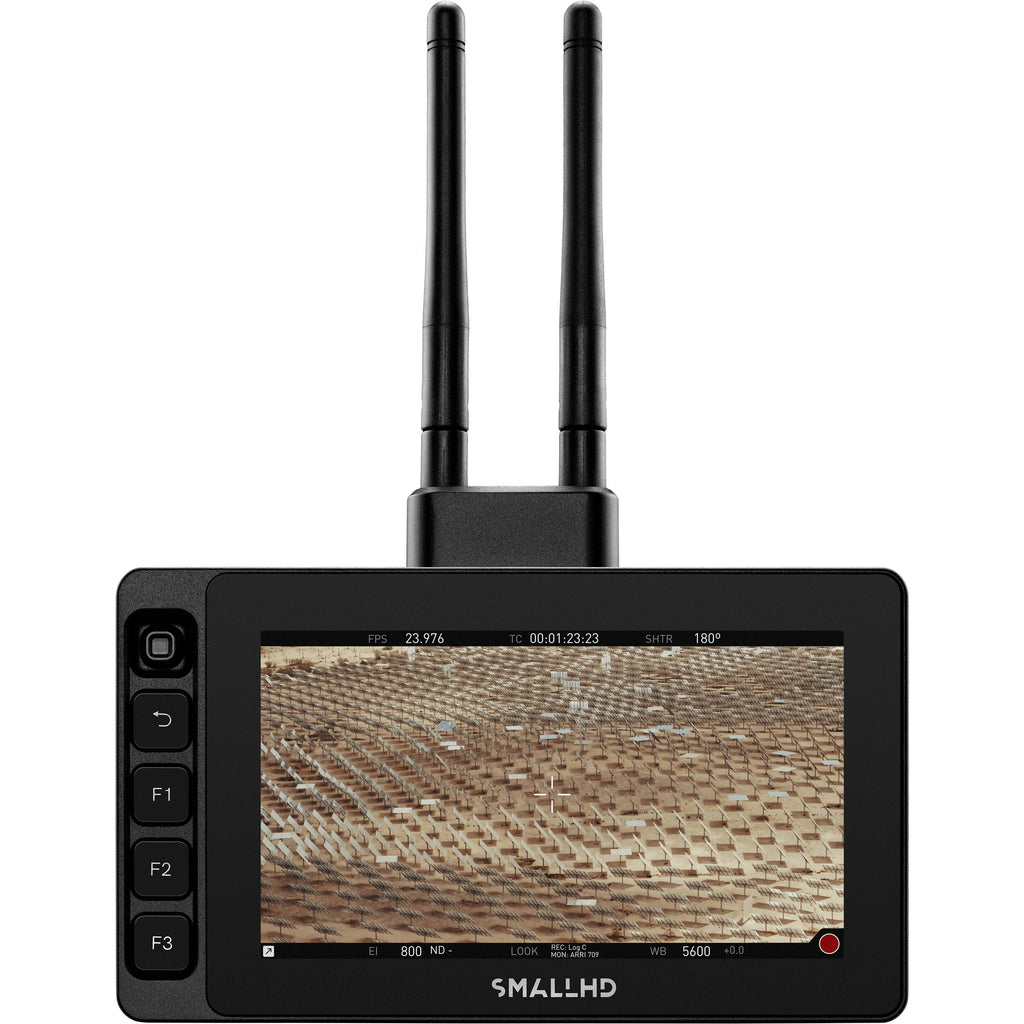

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a 3000 bright cd/m? display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.
The built-in transmitter module provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with a dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to eight channels

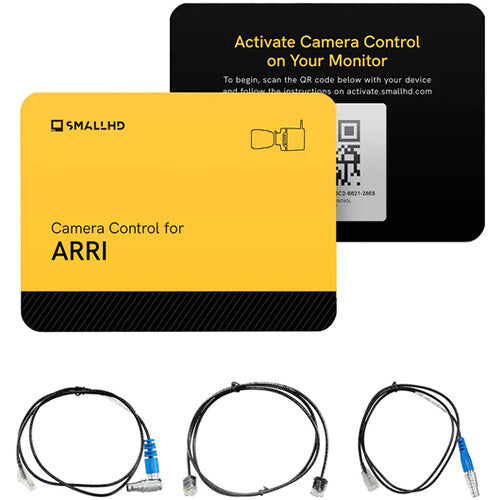

Control your ARRI ALEXA 35, ALEXA Mini, ALEXA Mini LF, or AMIRA cinema camera functions using your Ultra 5 or Cine 7 monitor with this Camera Control Kit from SmallHD. The kit includes a software license that provides full control via ARRI control protocol over your camera functions and settings, as well as two 10-pin LEMO-type to Ethernet camera control cables and an Ethernet patch cable. This software allows you to access and control all camera functions available, such as run/stop, playback, menu control, and more, via the SmallHD monitor touchscreen.
- Record/Start, Record/Stop, Playback Control
- Set and Read TC; Set and Read Project Rate
- Read and Set System Date/Time, Read Clip List from Medium
- Camera Type, Camera Serial, Camera State
- Look Filename, Color Temperature, Tint Variable
- Exposure Index, Sensor FPS List, Sensor FPS
- Shutter Angle List, Shutter Angle
- Exposure Time List, Exposure Time, Exposure Index List
- ND Filter List, ND Filter, White, Balance List
- Media Status, Recording Mode, Clip Scene, Clip Take
- Medium Type, Model, Name, Serial Number, Clip Count
- Current Reel, Medium Size, Medium Status
- Write Protection, Clip, Count, Current Reel
- Free Capacity, Clip Filename, Clip UUID
- Clip Project Rate, Clip Start TC, Clip Duration TC
Items Included
- SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Camera Control Kit for ARRI
- ARRI Camera Control Software Upgrade
- Locking 10-Pin ALEXA to Ethernet Camera Control Cable (36")
- SmallHD Camera Control Cable with Right-Angle LEMO for ARRI ALEXA Cameras (36")
- Micro Ethernet Patch Cable
- Limited 1-Year Manufacturer Warranty (on Hardware)
Additional Resources
No additional resources available
SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [Firmware Update Only]
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i 576i |
| Battery |
Interchangeable Mount (No Plate Included)
|
| Panel Type |
LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
3000 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% DCI-P3
|
| Image Controls |
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
|
| Other I/O |
1x LEMO 5-Pin Output
1x RJ45 Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [Firmware Update Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i 576i |
| Input Power |
10 to 34 VDC at 2.1 A
|
| Battery |
Interchangeable Mount (No Plate Included)
|
| Tripod/Accessory Mounting |
6x 1/4"-20 Female
|
| Environmental Resistance |
No
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm
|
| Weight |
1.2 lb / 558.00 g
|
| Package Weight |
2.08 lb
|
| Box Dimensions (LxWxH) |
10.1 x 7.3 x 2.4"
|
