Description

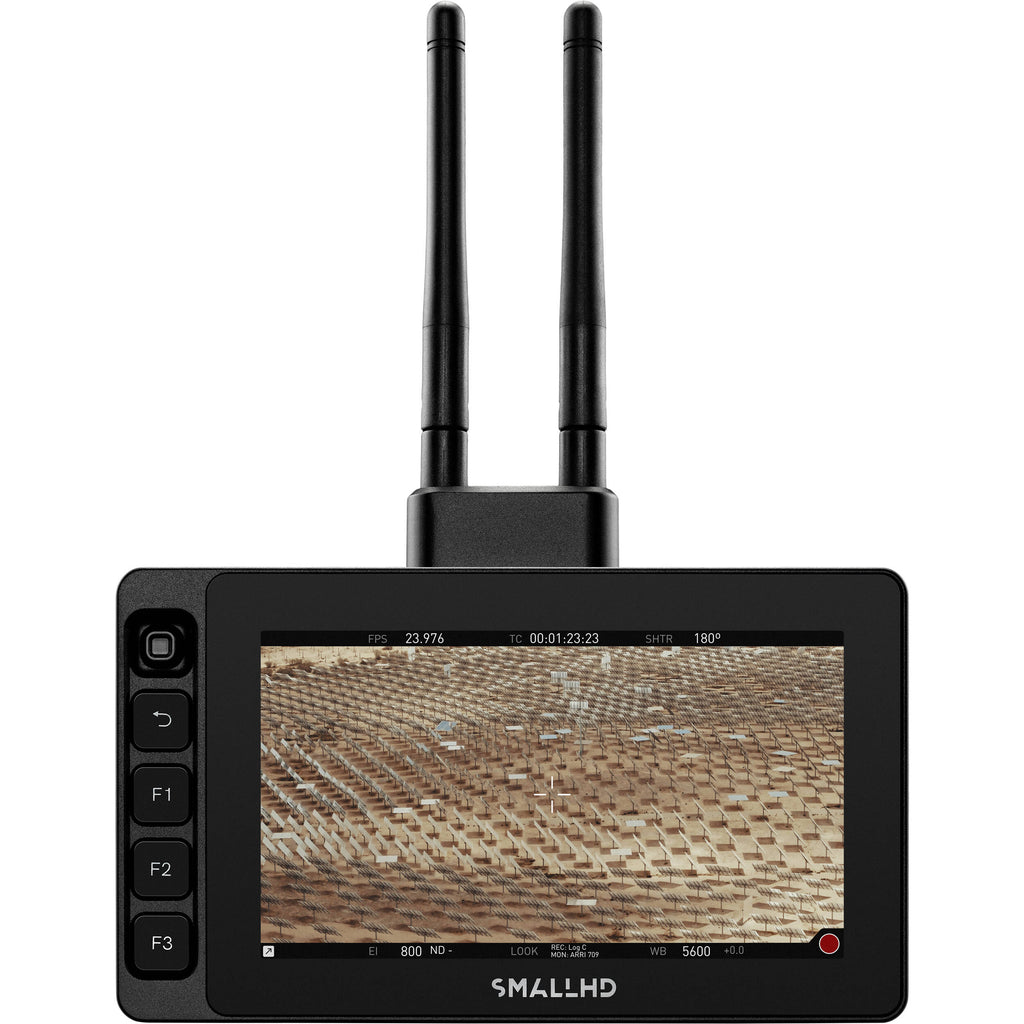

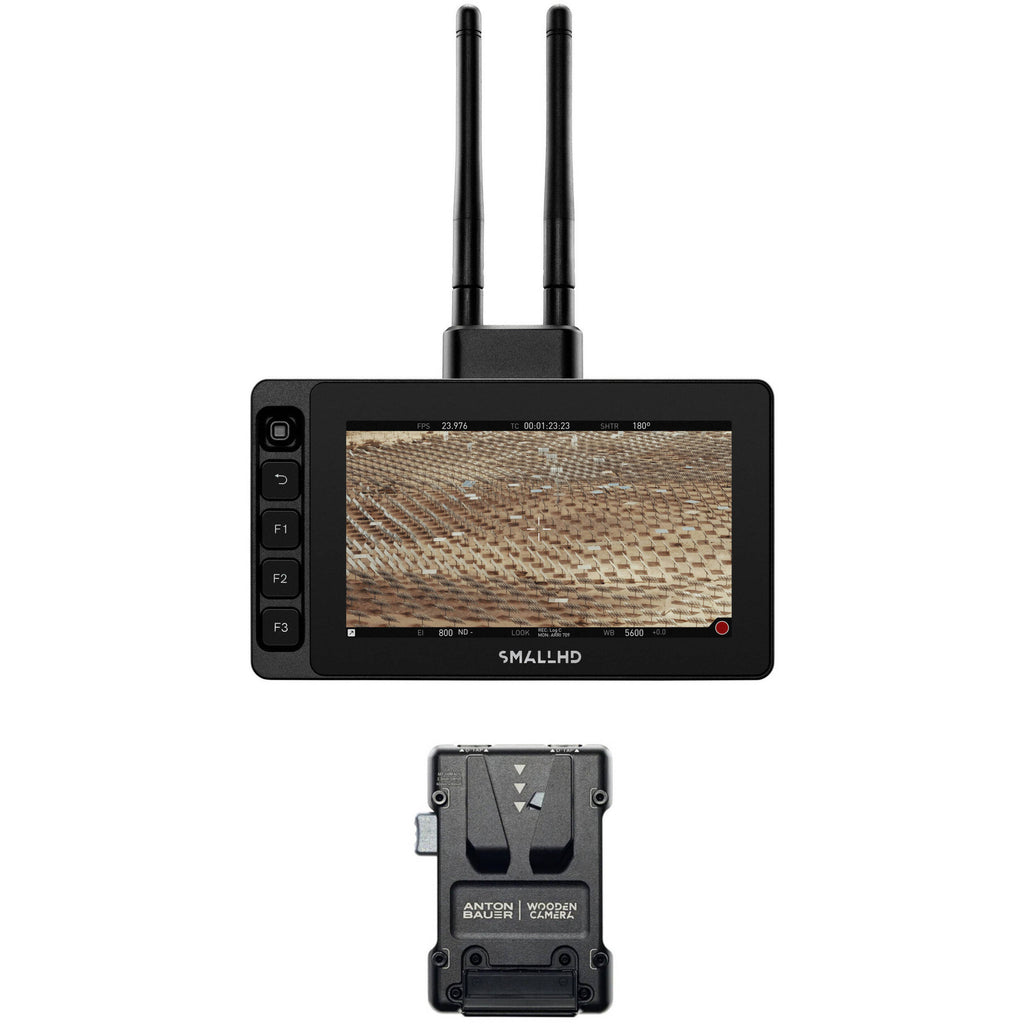

This SmallHD ULTRA 5 Bolt 6 TX 750 Monitor and Battery Plate Kit from provides you with a 5" ultra-bright touchscreen monitor, transmission module, and a V-mount micro battery plate that mounts directly onto the back of it. The Bolt 6 750 TX monitor module transmits up to 4K video from your camera to your monitor via 6 GHz wireless. Power the 1920 x 1080 monitor with a V-mount battery as well as additional accessories via the integrated D-Tap ports.
Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a 3000 bright cd/m? display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.
The built-in transmitter module provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with a dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to eight channels

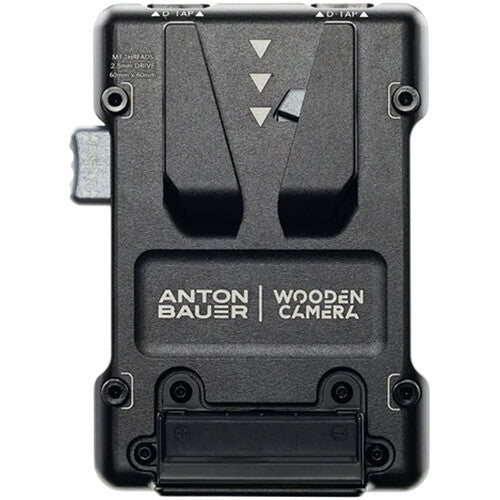

Power your Ultra series monitor using a V-mount battery with this Micro Battery Plate from SmallHD. The battery plate mounts directly onto your monitor using included captive mounting screws, and it provides power to the monitor from a separately available standard or micro-sized V-mount battery.
The battery plate also features two D-Tap outputs that provide 11 to 17 VDC of power for additional accessories. The ports have a 5.8V digital E-fuse that is resettable, providing current protection that will shut the ports down if they are overloaded, without affecting the monitor power.
Items Included
- SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Micro Battery Plate for Ultra Series Monitor (V-Mount)
- Mounting Screw Set
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [Firmware Update Only]
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i 576i |
| Battery |
Interchangeable Mount (No Plate Included)
|
| Panel Type |
LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
3000 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% DCI-P3
|
| Image Controls |
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
|
| Other I/O |
1x LEMO 5-Pin Output
1x RJ45 Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [Firmware Update Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i 576i |
| Input Power |
10 to 34 VDC at 2.1 A
|
| Battery |
Interchangeable Mount (No Plate Included)
|
| Tripod/Accessory Mounting |
6x 1/4"-20 Female
|
| Environmental Resistance |
No
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm
|
| Weight |
1.2 lb / 558.00 g
|
| Package Weight |
2.08 lb
|
| Box Dimensions (LxWxH) |
10.1 x 7.3 x 2.4"
|
