Description

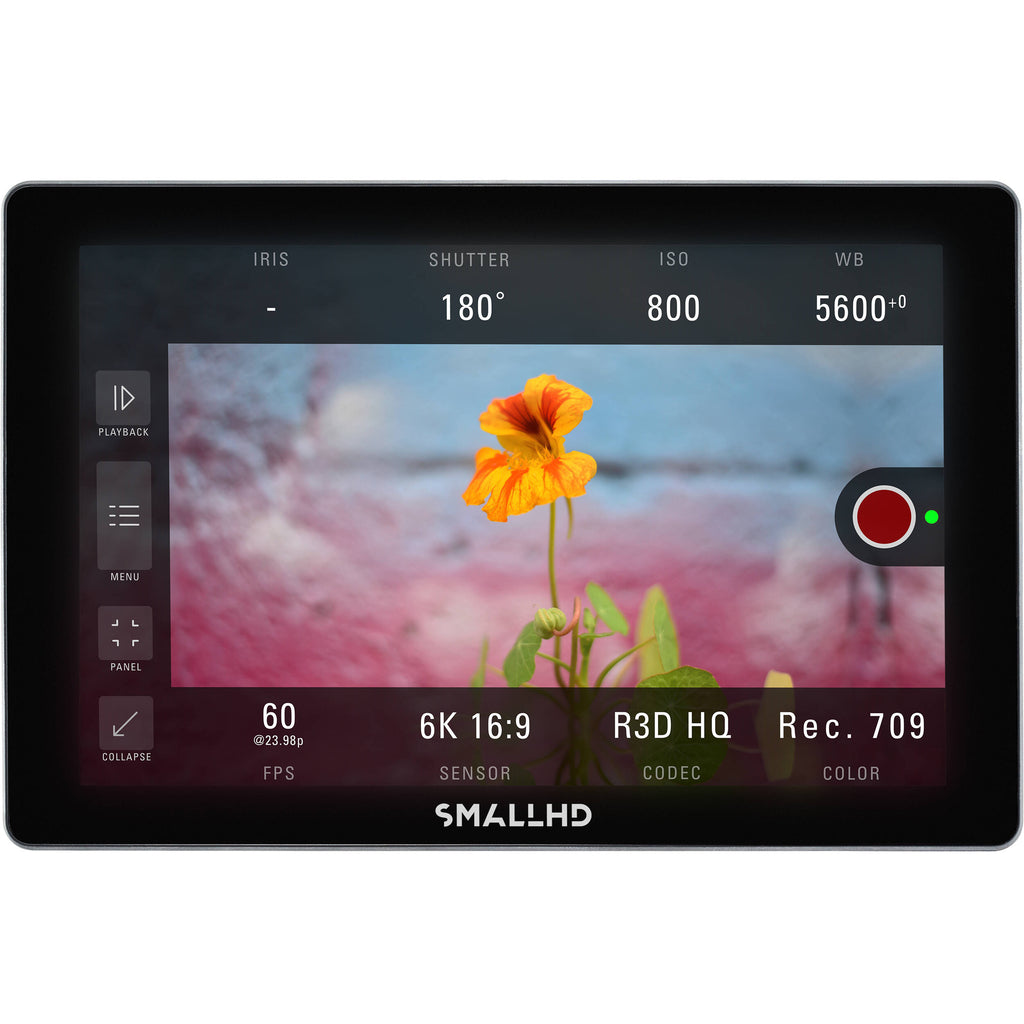

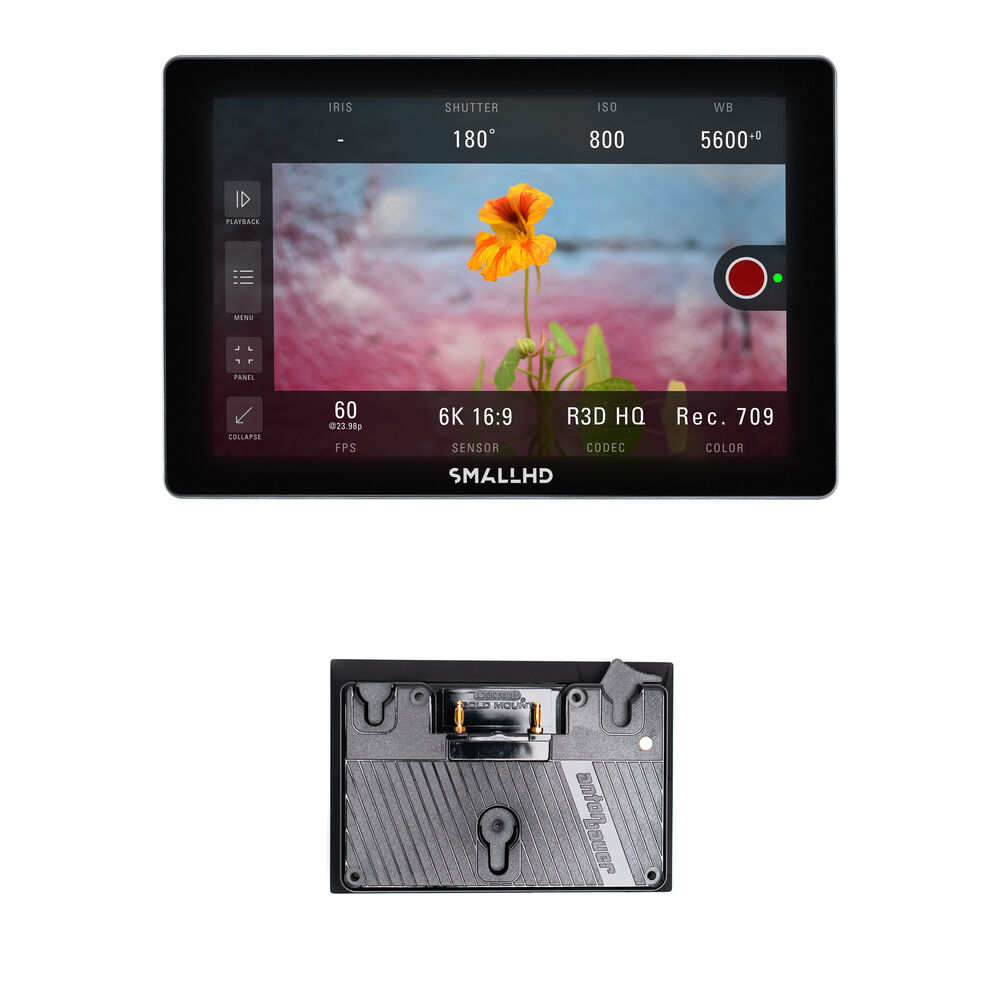

Designed for extended on-set viewing, the SmallHD INDIE 7 Touchscreen Monitor with Pro Battery Plate Kit from bundles the 7" INDIE 7 touchscreen HDMI/3G-SDI 1920 x 1200 monitor with a plate for a long-lasting Gold mount pro battery.
The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m? brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.
The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels

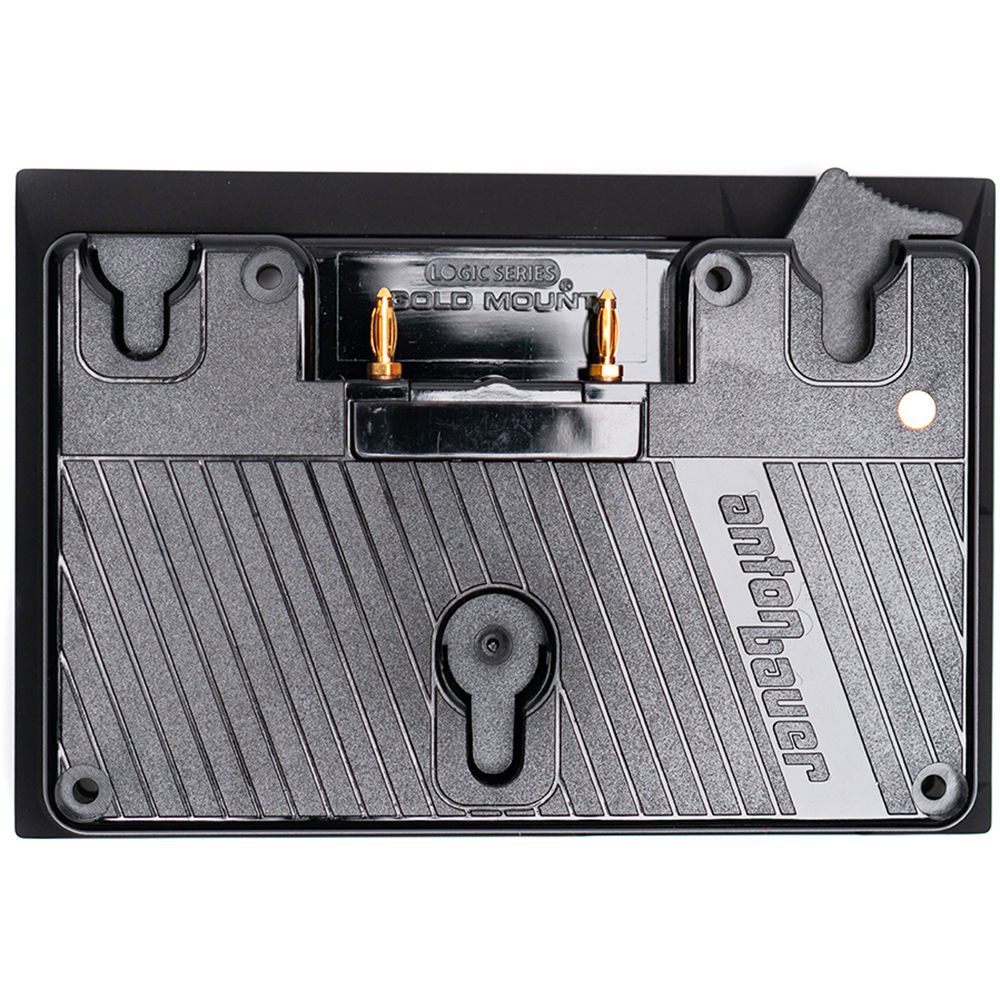

Power your Indie 7, Cine 7, or 702 Touch monitor using Gold mount batteries with the SmallHD Battery Plate for Smart 7-Series Monitors. The battery plate mounts easily to your monitor with four included mounting screws, and it is quickly interchangeable with a V-mount, or dual L-series battery plate, as well as a blank cover that protects your monitor's electronics.
The plate is overload protected and compatible with Indie 7 and Cine 7 monitors, including wireless models, as well as the 702 Touch. The battery plate attaches electrically using pogo pins on a PCB when it is attached to your monitor, so there are no connections to make when attaching the plate. The plate features a built in D-Tap port for powering accessories.
Items Included
- SmallHD INDIE 7 Touchscreen On-Camera Monitor
- Limited 1-Year Warranty
- SmallHD Battery Plate for Smart 7-Series Monitors (Gold Mount)
- 4 x Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not Included
-
BatteriesEssential
Additional Resources
SmallHD INDIE 7 Touchscreen On-Camera Monitor
| Display Size |
7.02" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [LUT Upload Only]
|
| Video Format |
HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
| Battery |
2x L-Series Mount on Included, Interchangeable Plate
|
| Power Consumption |
17.3 W
|
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.02" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160?
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% Rec. 709
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (10 VDC) Input
|
| Other I/O |
1x Micro-USB 2.0 Input
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [LUT Upload Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
| Video Signal Conversion |
HDMI to SDI
SDI to HDMI |
| Input Power |
10 to 34 VDC
|
| Battery |
2x L-Series Mount on Included, Interchangeable Plate
|
| Power Consumption |
17.3 W
|
| Tripod/Accessory Mounting |
Bottom/Left/Right/Back
1x 1/4"-20 Female |
| Operating Conditions |
30 to 100?F / -1 to 38?C
|
| Storage Conditions |
0 to 120?F / -17 to 48?C
|
| Material of Construction |
Aluminum
|
| Dimensions |
7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm
|
| Weight |
26.00 oz / 737.00 g
|
| Package Weight |
1.885 lb
|
| Box Dimensions (LxWxH) |
10.3 x 7.4 x 2"
|
