Description
From Manufacturer

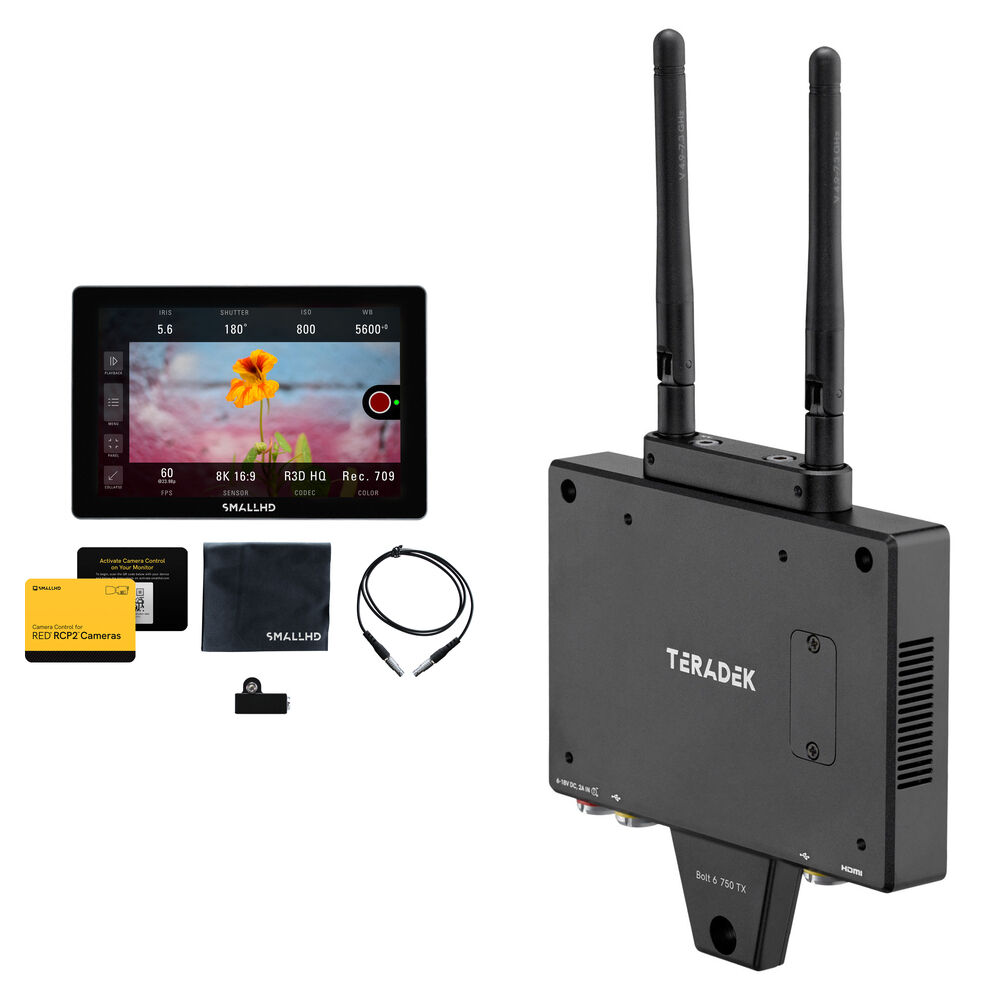

The SmallHD INDIE 7 RED RCP2 Monitor for KOMODO/DSMC3 with Bolt 6 750 Transmitter Kit from offers camera control and viewing plus transmission to a separate Bolt receiver up to 750' away. This kit bundles the INDIE 7 RED RCP2 Monitor for KOMODO/DSMC3 with a Bolt 6 750 transmitter module, cable, and mounting screws.

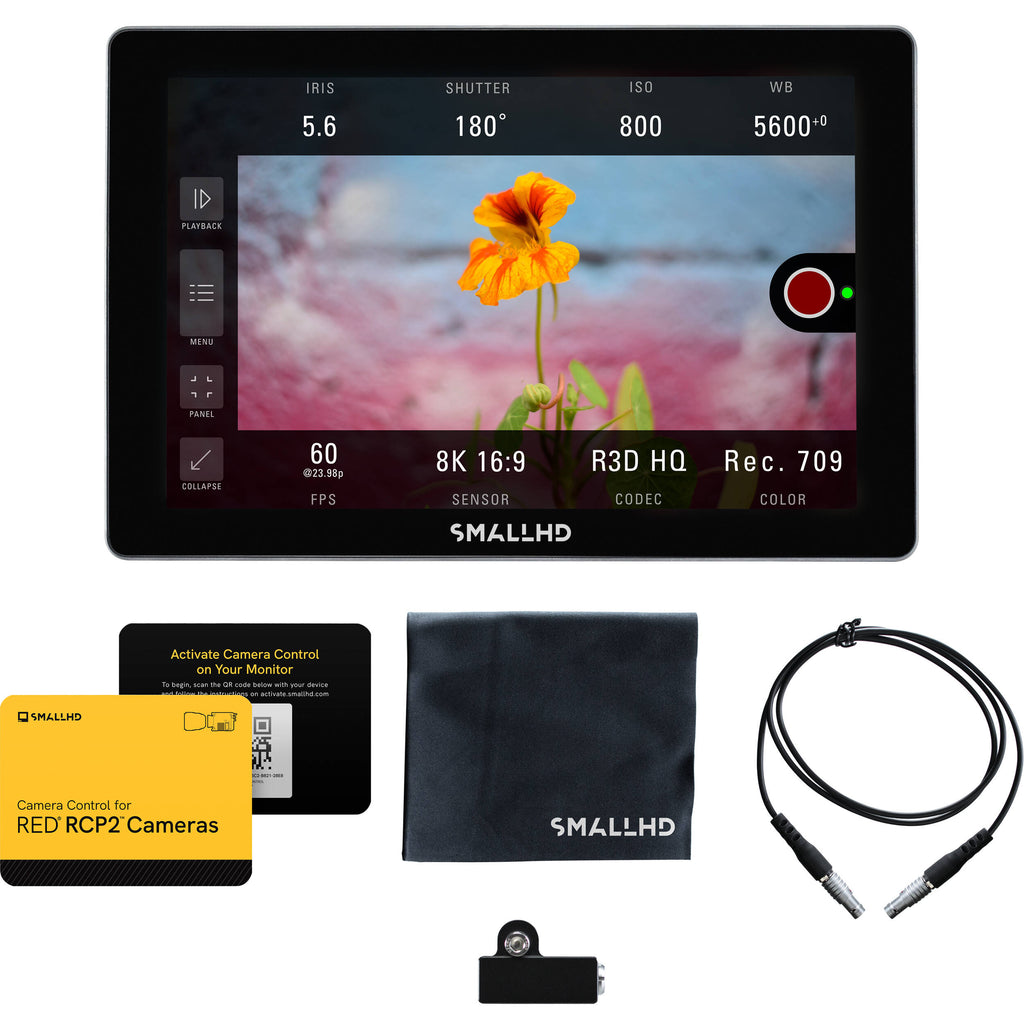

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m? brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.
The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.
The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.
Teradek RT CTRL.1 and CTRL.3 lens controllers
- The monitor inputs up to UHD 4K30 video from the camera for a high-resolution preview and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support.
- It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters.
- Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
- Though this module can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
- Transmits video on the newly available 6 GHz wireless frequency band
- Transmit to up to six Bolt 4K or Bolt 6 series receivers
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Can coexist with Wi-Fi and 5 GHz cordless phones
- Cross-compatible with all Bolt 4K and 4K LT series receivers and the Bolt 4K RX monitor module
- Mounts on the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor
- Compatible with ARRI, RED KOMODO, and Sony VENICE cameras with separately available licenses
Items Included
- SmallHD INDIE 7 Touchscreen On-Camera Monitor
- Limited 1-Year Warranty
- SmallHD Microfiber Cleaning Cloth
- SmallHD Micro-USB to 5-Pin LEMO Adapter
- Limited 1-Year Warranty

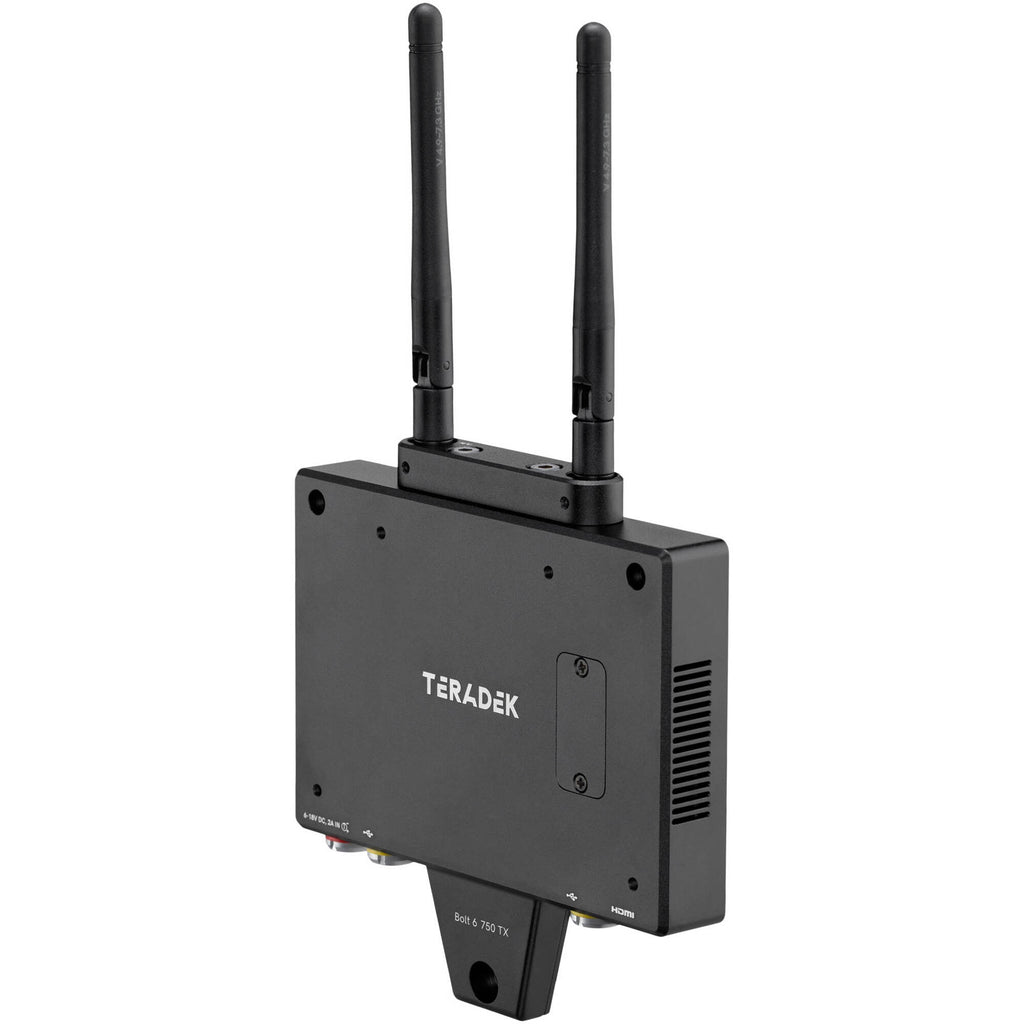

- Teradek Bolt 6 Monitor Module 750 TX for Smart 7 Series Monitors
- 2 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
- Limited 1-Year Manufacturer Warranty
Additional Resources
SmallHD INDIE 7 Touchscreen On-Camera Monitor
| Display Size |
7.02" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [LUT Upload Only]
|
| Video Format |
HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
| Battery |
2x L-Series Mount on Included, Interchangeable Plate
|
| Power Consumption |
17.3 W
|
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.02" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160?
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% Rec. 709
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
