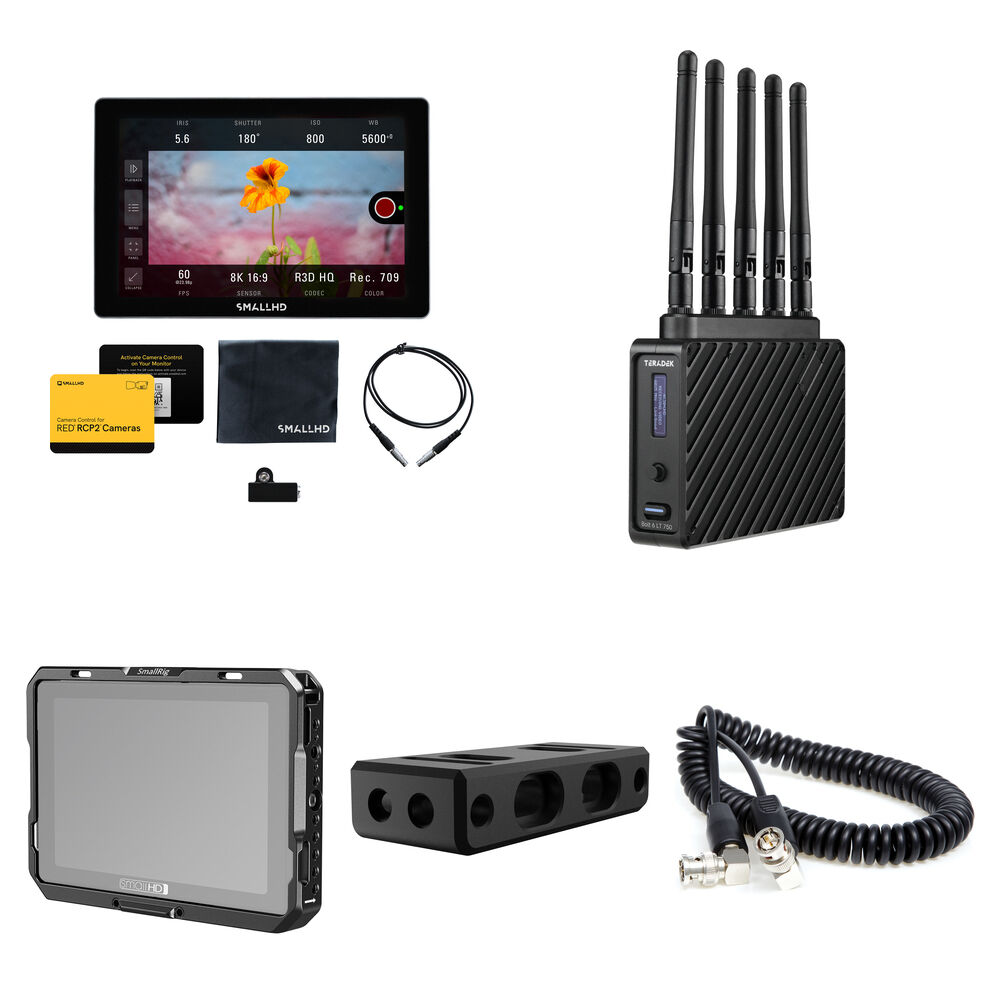

SmallHD INDIE 7 RED RCP2 Monitor for KOMODO/DSMC3 with Bolt 6 750 Receiver On-Camera Kit

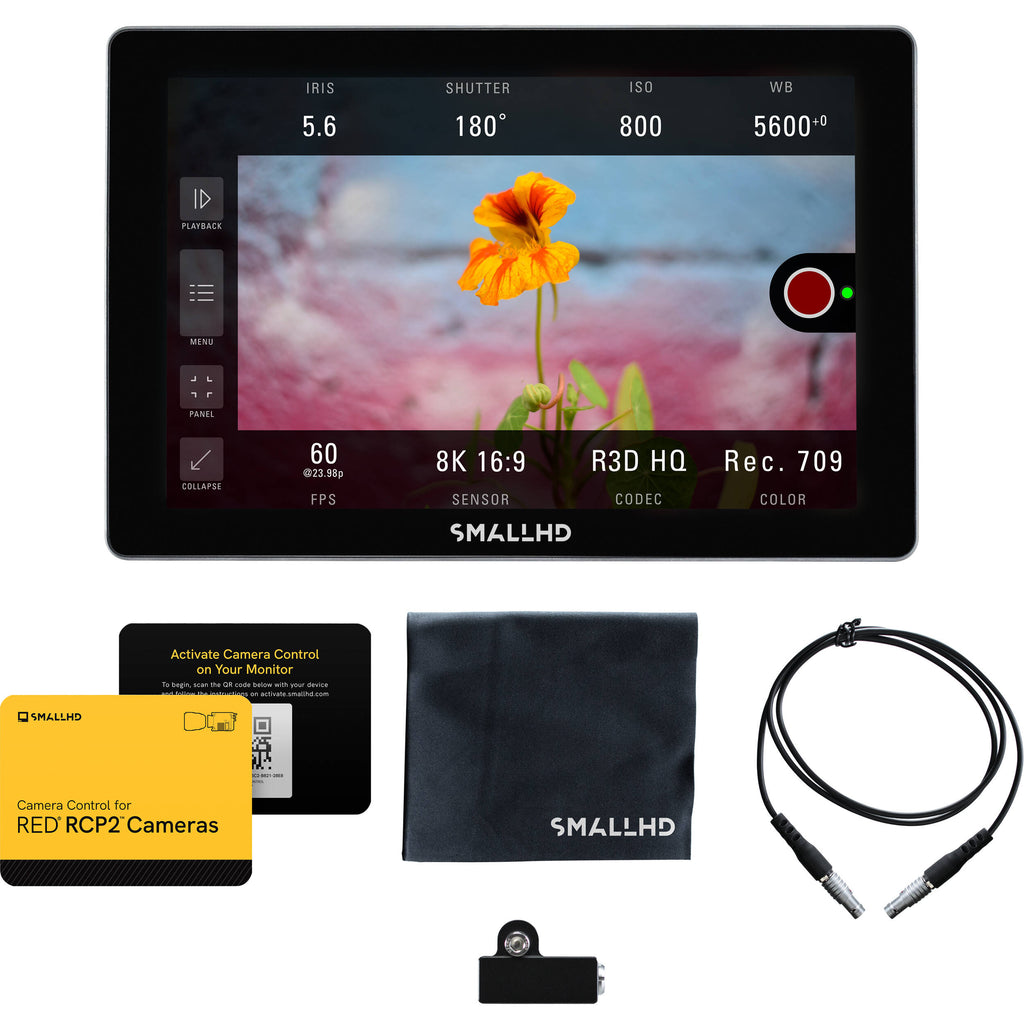

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m? brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.

Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.

The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.

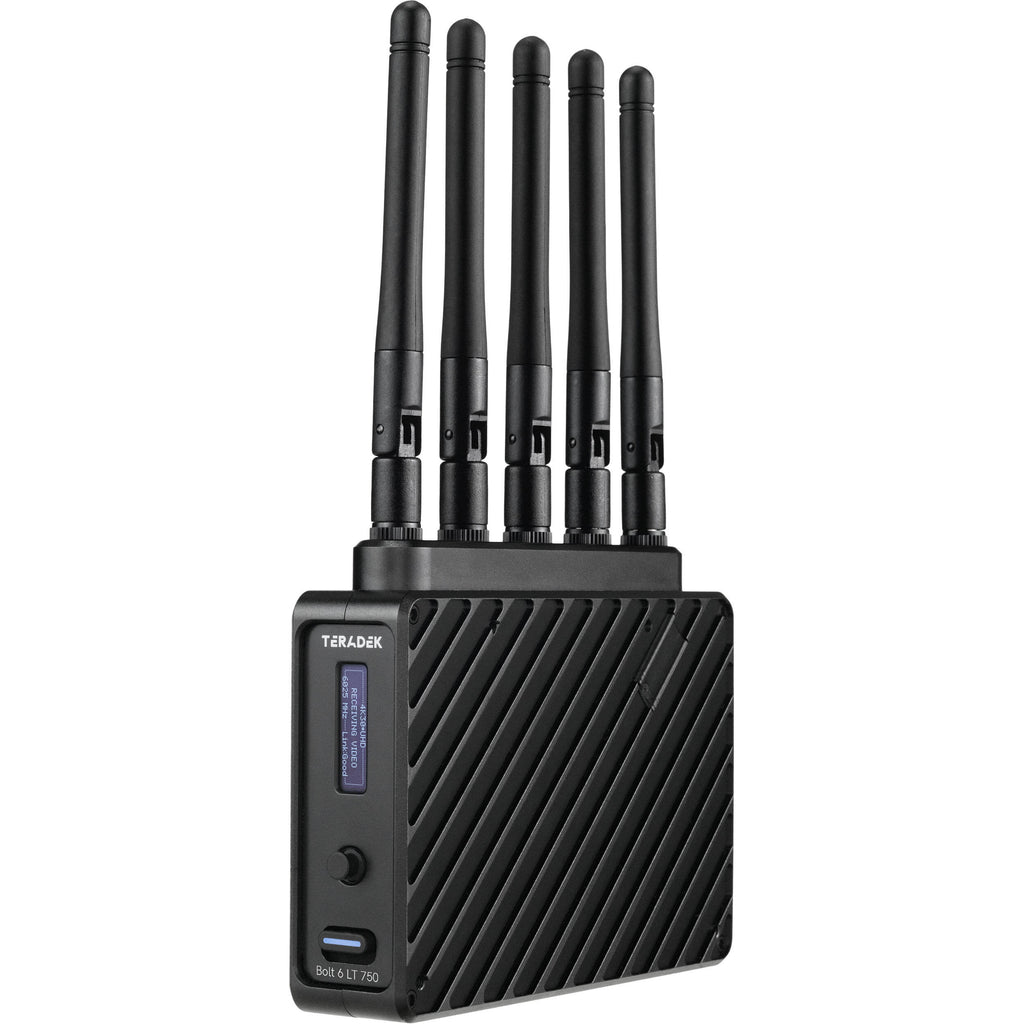

Receive lossless HD video from up to 750' away along line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to 4K30 video with 10-bit HDR support, features a bright OLED display, and features HDMI and 3G-SDI outputs. With the same form factor as the Bolt 4K LT 750, this new line supports the 6 GHz wireless band, which is now freely available.

The receiver supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of time code and start/stop triggers.

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.

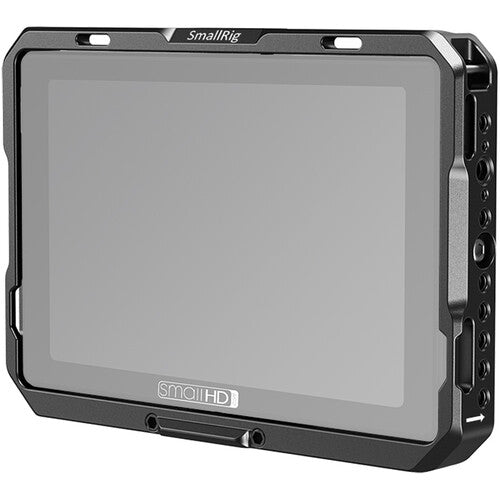

Add accessories and protect your 7" SmallHD Indie 7 or 702 Touch monitor with this formfitting Monitor Cage with Sun Hood from SmallRig. The kit includes a monitor cage, a sun hood, and monitor mounting screws.

The cage fastens to your monitor via three 1/4"-20 screws and features rubber padding to protect your monitor from scratching. There is a NATO rail on the bottom for quick mounting of compatible accessories, and it also incorporates multiple 1/4"-20 and 3/8"-16 ARRI-style anti-twist accessory threads all around the cage. A three-sided folding sunshade shields your monitor from glare while maintaining access to the control buttons.

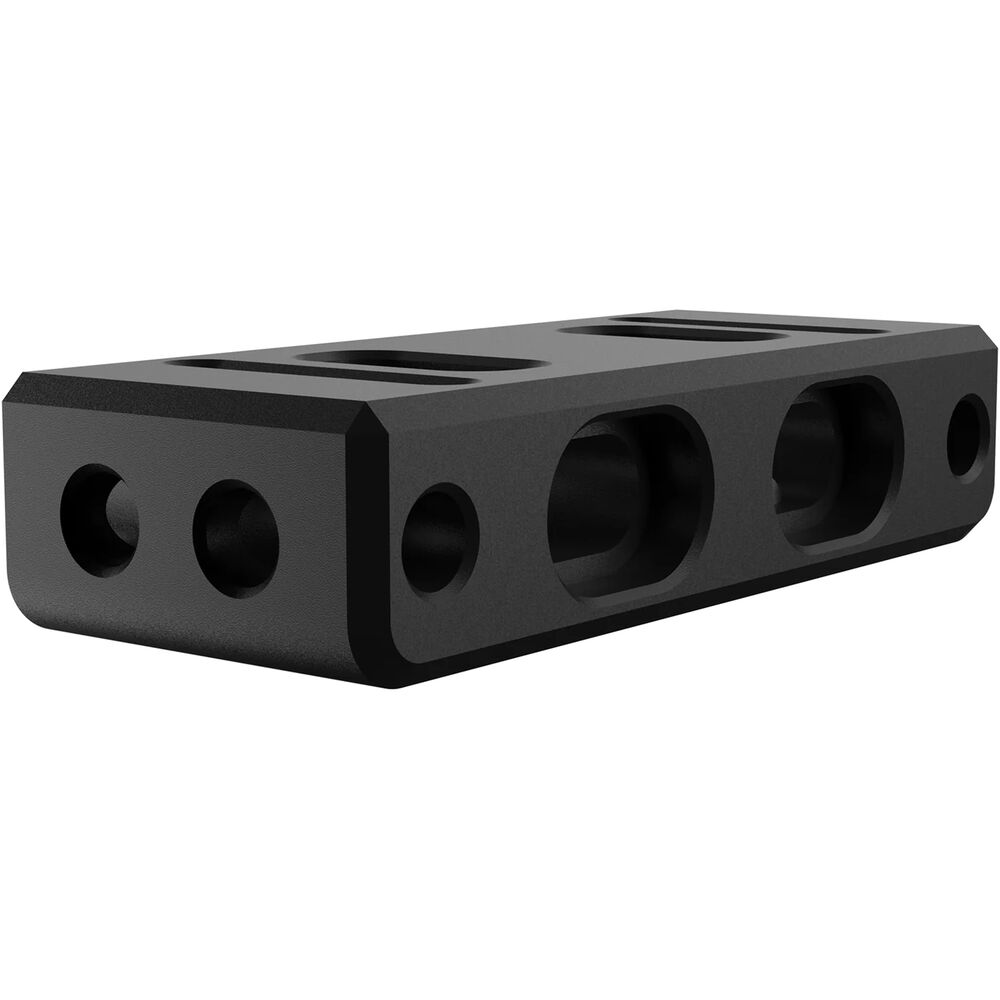

Mount your Bolt 6 series transmitter or receiver securely onto your cage or rig with this Universal Mounting Block from Teradek. The block is hollow, so it maintains the light weight of your transmitter or receiver, and it features multiple threaded and unthreaded holes and slots for mounting your TX or RX unit onto a cage or rig.

To mount your receiver or transmitter onto the block, 1/4"-20 and M3 screws are included. The mount is compatible with Bolt 6 LT, LT HDMI, or XT transmitters and receivers.

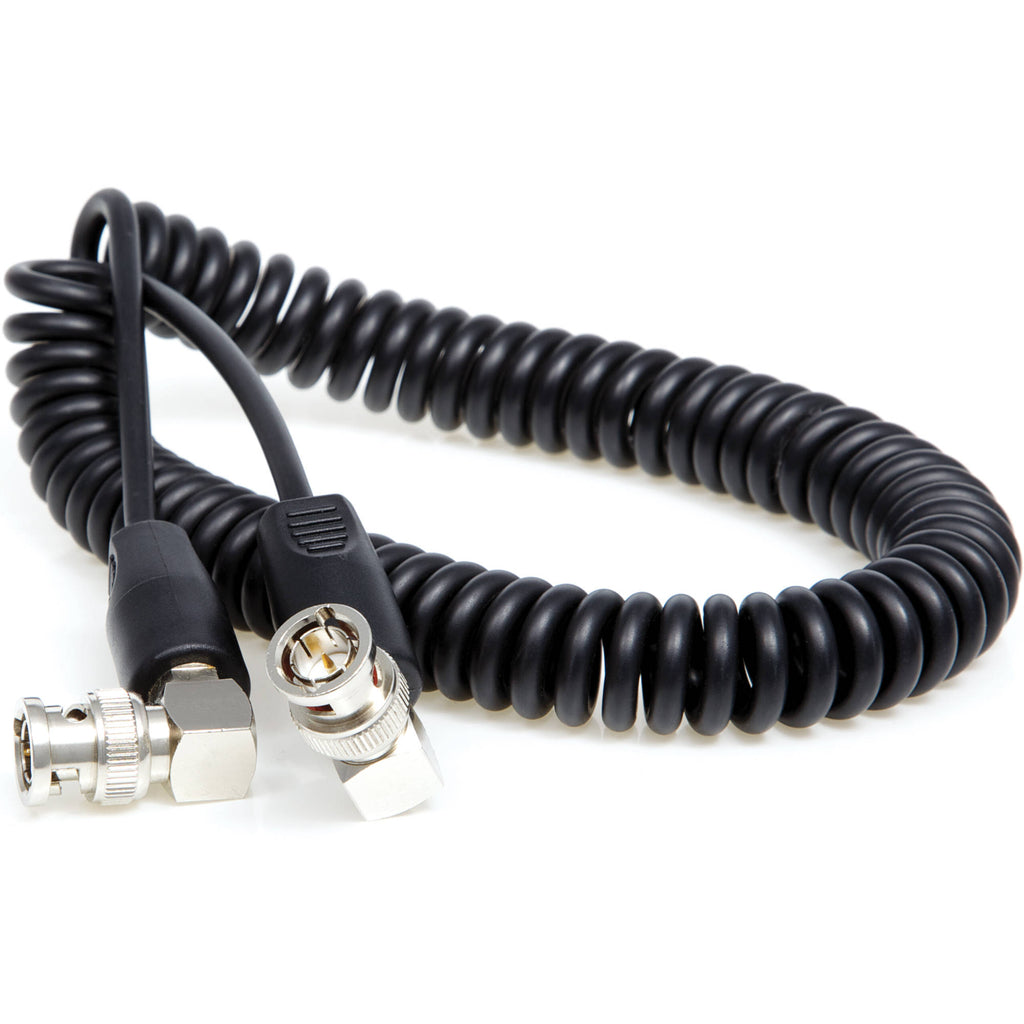

Teradek's CineCoil 3G/HD/SD-SDI Cable is a 10" coiled BNC to BNC cable. Its coiled cord extends up to an additional 12" when straightened to allow mobility and adjustment of on board monitors, wireless systems, and recorders. It works well with Steadicam configurations, studio configurations as well as patching. It is RoHS compliant and the 30 AWG shielding prevents signal loss.
