Marshall Electronics ML-454 V2 Overview
- 1Description
- 2Quad 4.5" LCD Screens
- 3I/O
- 4On-Screen Tally Displays
- 5Display Tools
- 6Rack Mounting

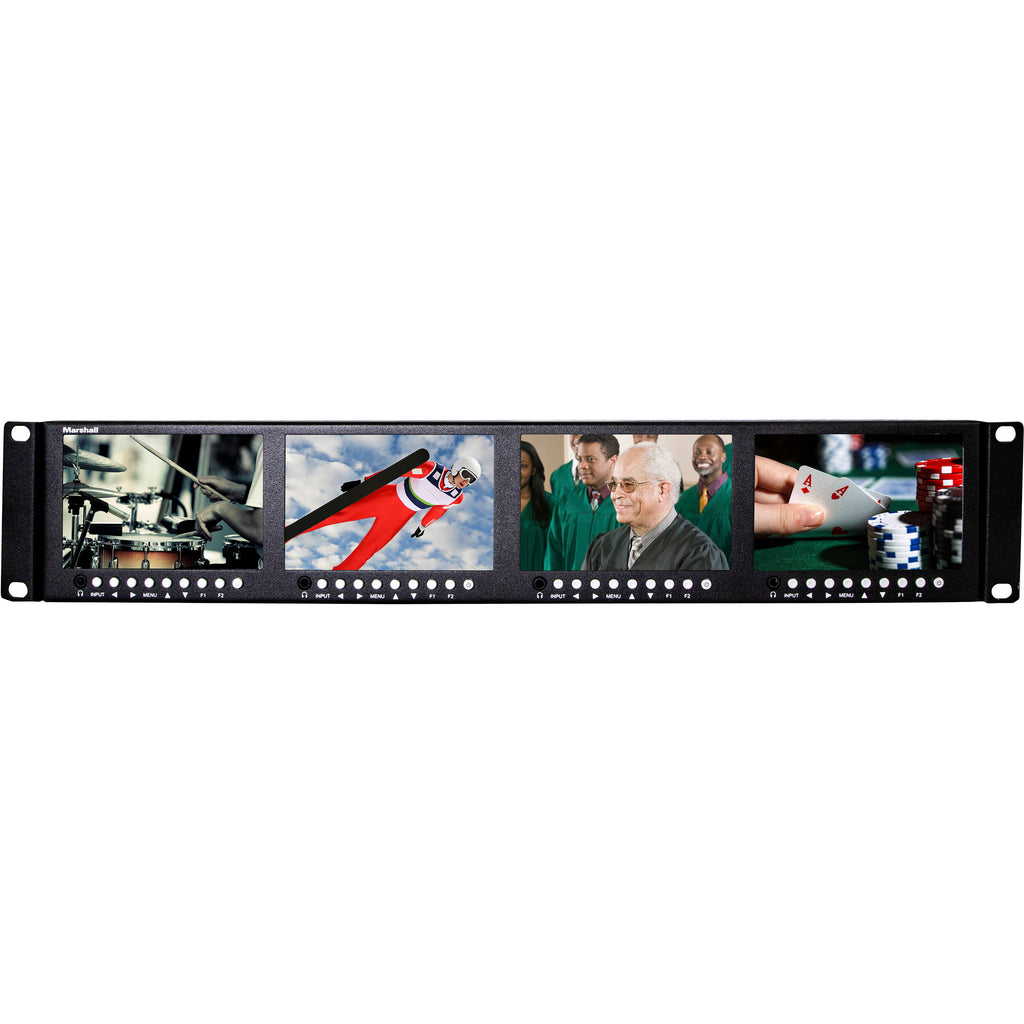

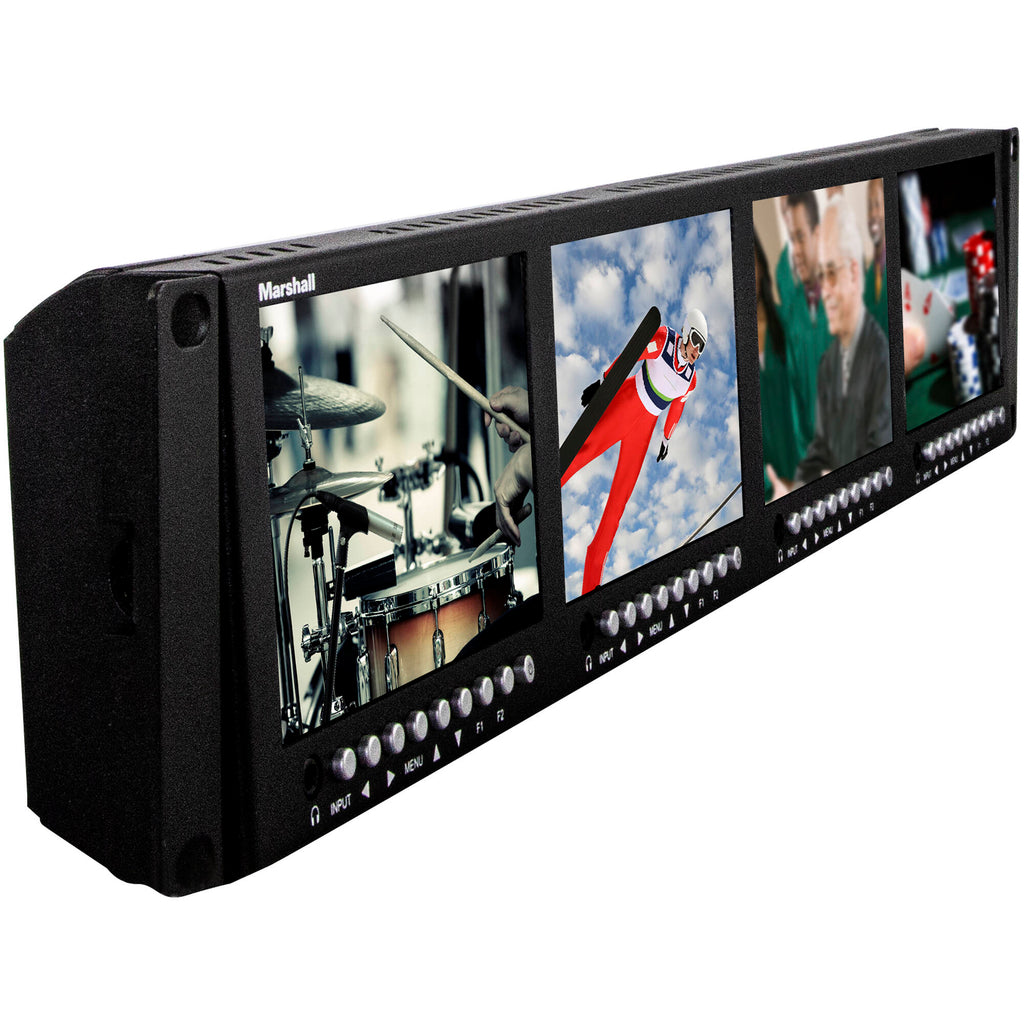

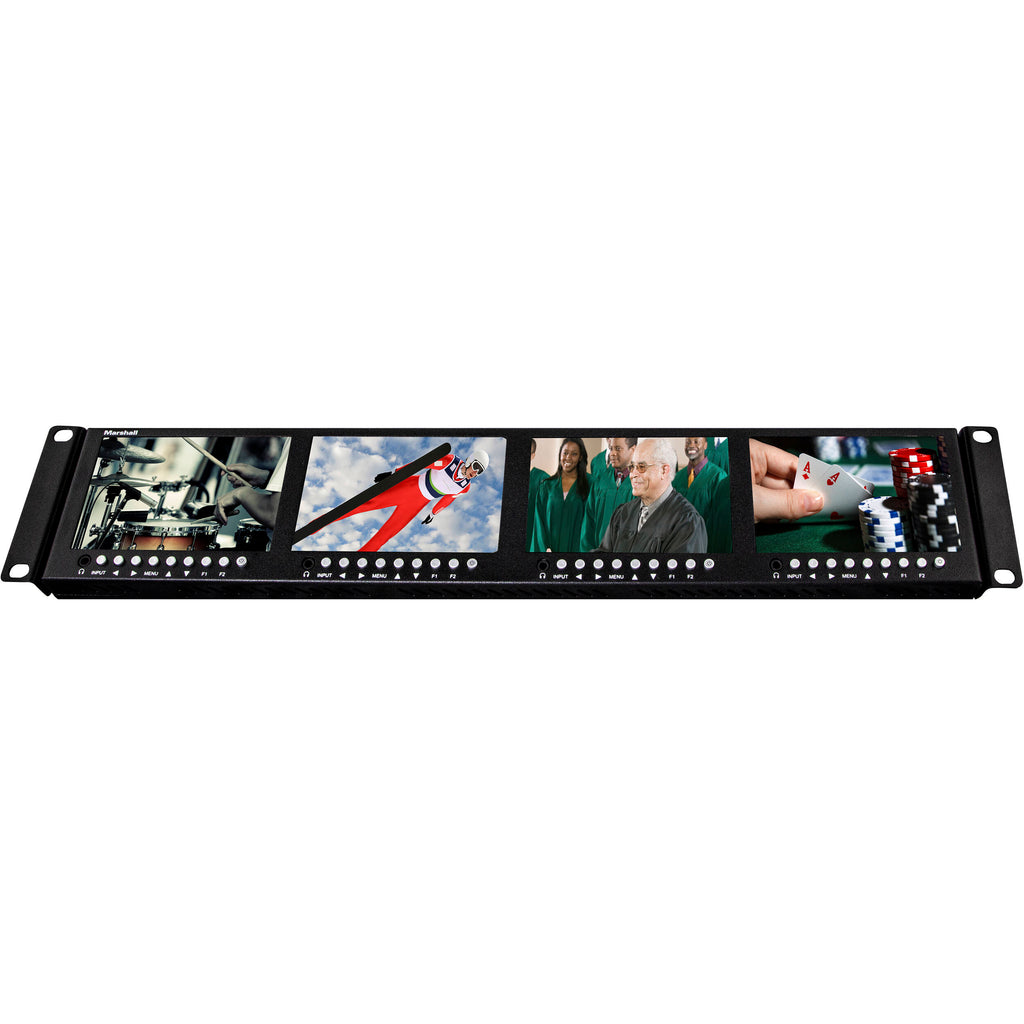

Ideal for fly-pack, studio, or truck use, the Quad 4.5" Rack-Mountable Monitor Unit from Marshall Electronics fits four separate 4.5" displays into a single 2 RU unit. Use this compact unit to monitor individual HDMI, 3G-SDI, or composite feeds. The high-resolution 1280 x 720 LCD panels offer excellent off-axis viewing, a 16:9 aspect ratio, can be easily matched and can maintain calibration almost indefinitely.
Each of the 3G-SDI and composite inputs has individual loop-through outputs for daisy-chaining to larger monitors (no loop-outs on the HDMI ports). This unit has a durable metal housing and integrated rack ears for easy installation.
Quad 4.5" LCD Screens
- Four bright, high-resolution 1280 x 720 bright TFT LCD screens
- Adjustable backlighting to suit your ambient light
- Off-axis viewing

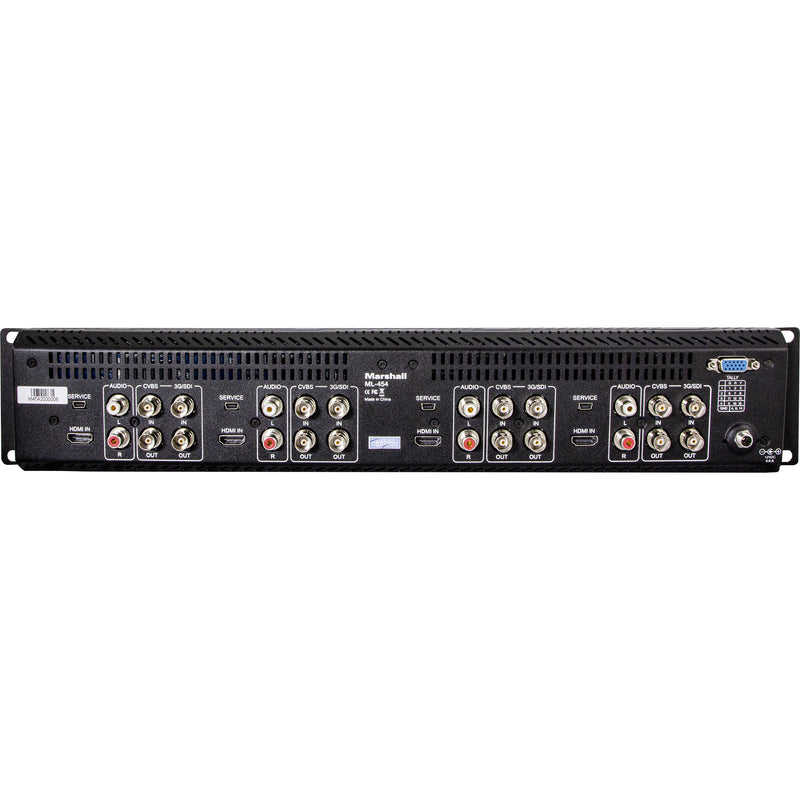

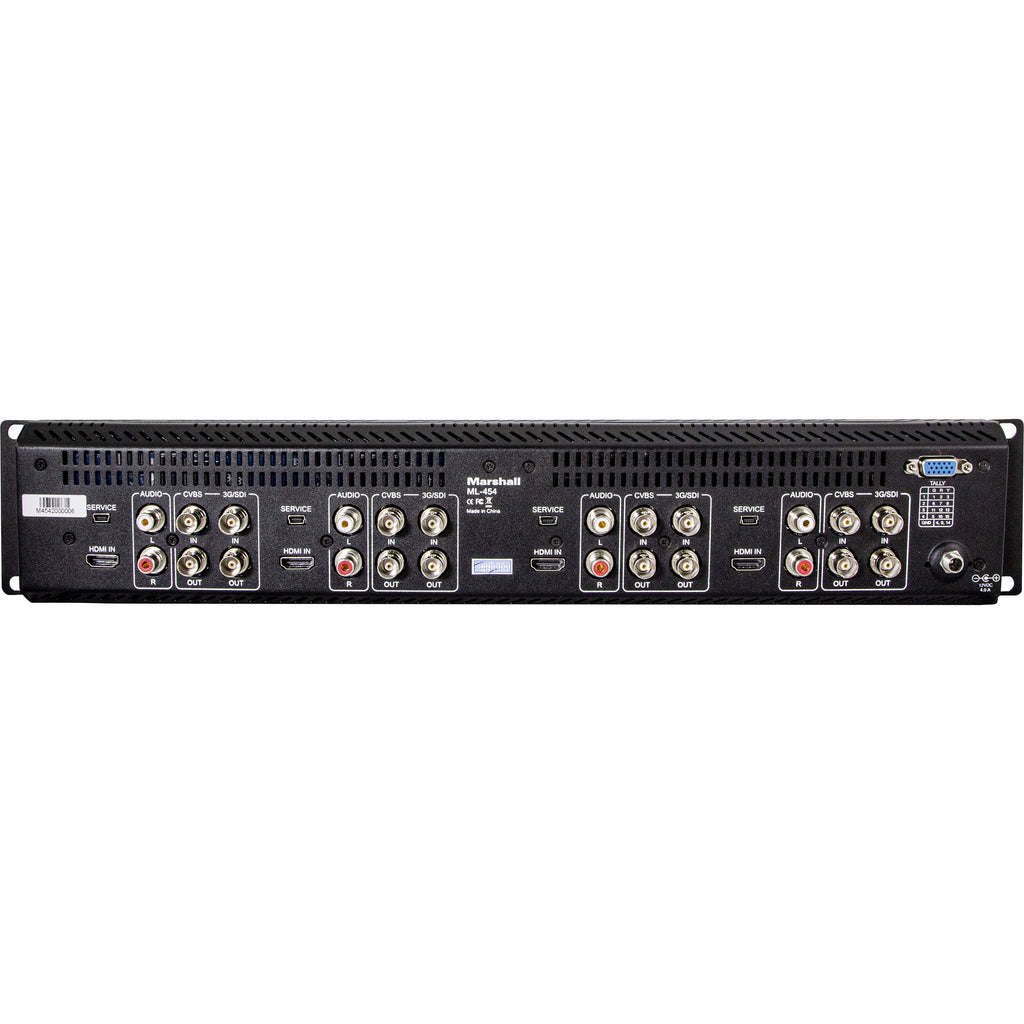

I/O
- Four HDMI inputs
- Four 3G-SDI inputs and loop-outs
- Four composite (CVBS) inputs and loop-outs
- Stereo RCA inputs
- Headphone output
On-Screen Tally Displays
Red, green, and yellow tally borders for instant status recognition by the operator
Display Tools
Center and safety markers, selectable aspect ratios, image flip, focus peaking, and additional imaging tools

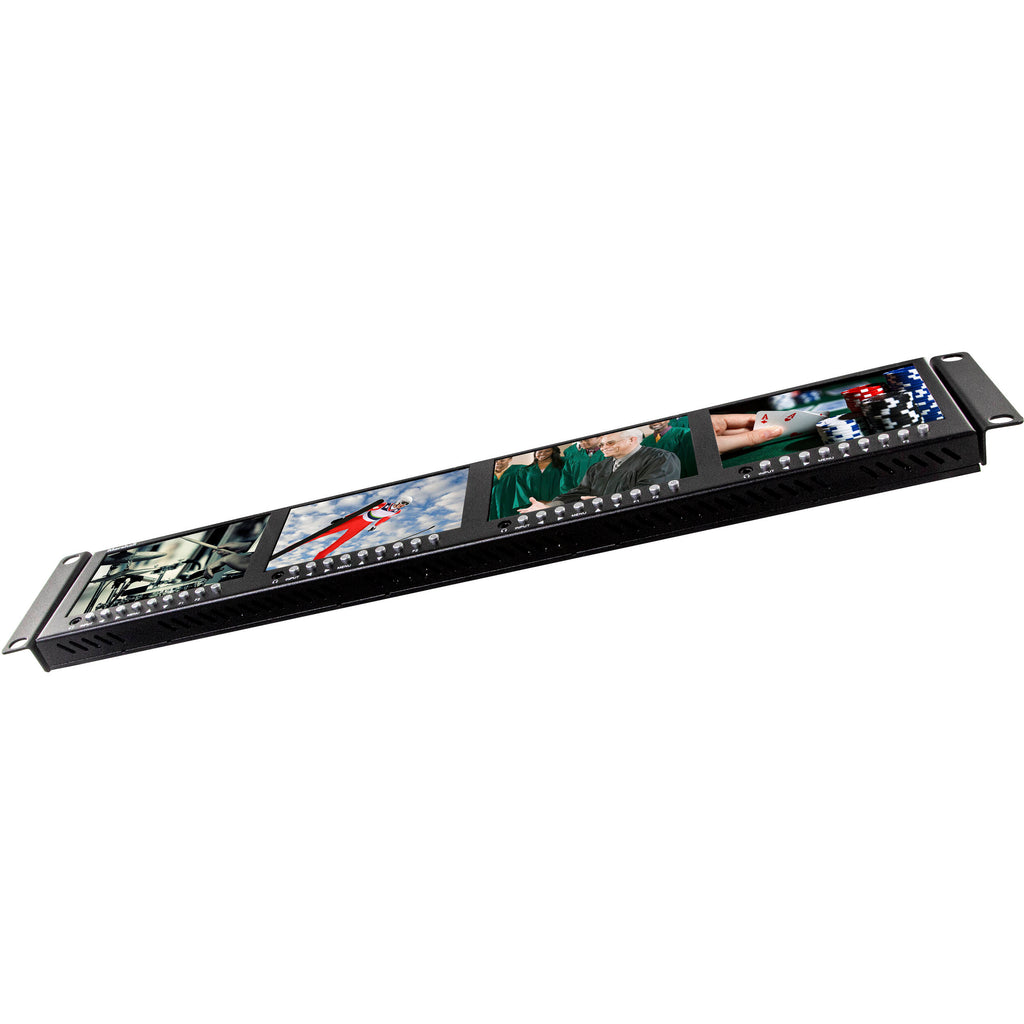

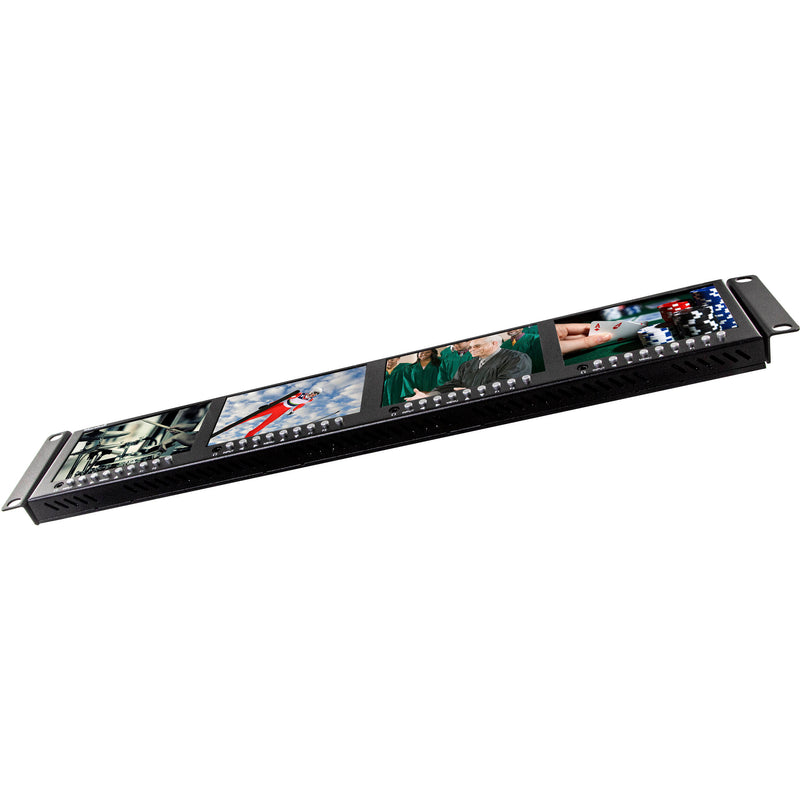

Rack Mounting
- Compact, 2 RU form for rack-mounted or standalone use
- Durable metal housing
UPC: 801813230031
In the Box
- Marshall Electronics Quad 4.5" Rack-Mountable Monitor Unit with 3G-SDI, HDMI & Composite (2 RU)
- 12V Power Supply
- AC Power Cord
Table of Contents
- Description
- Quad 4.5" LCD Screens
- I/O
- On-Screen Tally Displays
- Display Tools
- Rack Mounting
Marshall Electronics ML-454 V2 Specs
Display
| Panel Type | TFT LCD |
| Display Size | 4.5" / 11.4 cm |
| Resolution | 1280 x 720 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | No |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 326 ppi |
| Image Controls | Check Field, Color Temperature Selection, Customizable Aspect Ratios, Focus Peaking, Image Flip, Marker Color, Pixel-to-Pixel Zoom, Scaling, Screen Markers |
Inputs / Outputs
| Video I/O | 4 x HDMI Input 4 x BNC (3G-SDI) Input 4 x BNC (Composite) Input 4 x BNC (3G-SDI) Loop Output 4 x BNC (Composite) Loop Output |
| Audio I/O | 4 x 2RCA Input 4 x 2RCA Output 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel 2.1 mm (12 VDC) Input |
| Other I/O | 1 x DE-15/DB-15 (Tally) 4 x Micro-USB |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p: 59.94/50 480p: 59.94/50 576i: 59.94/50 480i: 59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i |
| Video Standard Compliance | SMPTE 125M/274M/296M/424M ITU -R BT.656 |
Power
| DC Input Power | 10 to 24 VDC |
| Power Consumption | 28 W (Typical) |
Mounting
| Rack Form Factor | 2 RU |
Environmental
| Certifications | CE, FCC, FCC-A *as per Manufacturer |
General
| Material of Construction | Metal |
| Dimensions | 19 x 3.3 x 1.4" / 482.5 x 84 x 35.8 mm |
| Weight | 3.53 lb / 1.60 kg |
Packaging Info
| Package Weight | 5.47 lb |
| Box Dimensions (LxWxH) | 21.1 x 6.9 x 3.5" |
