Description
Marshall Electronics ML-454 V3 Overview

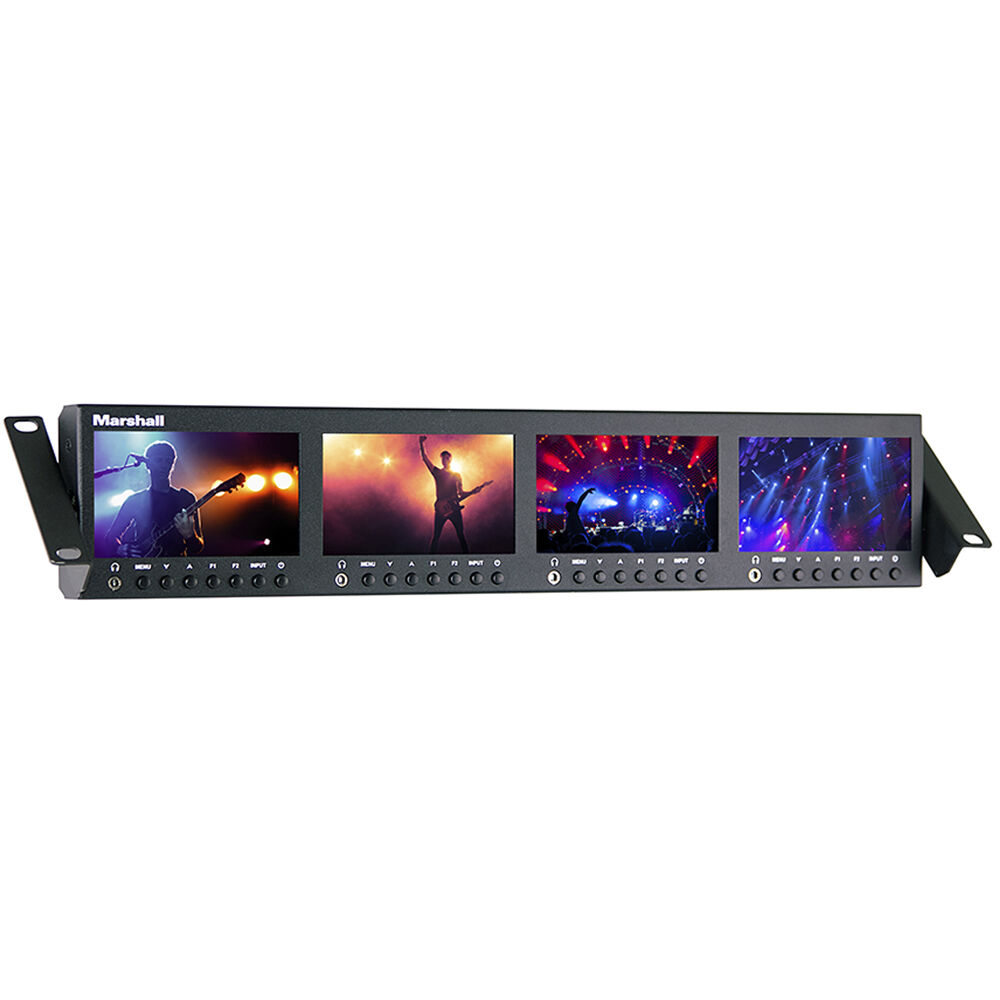

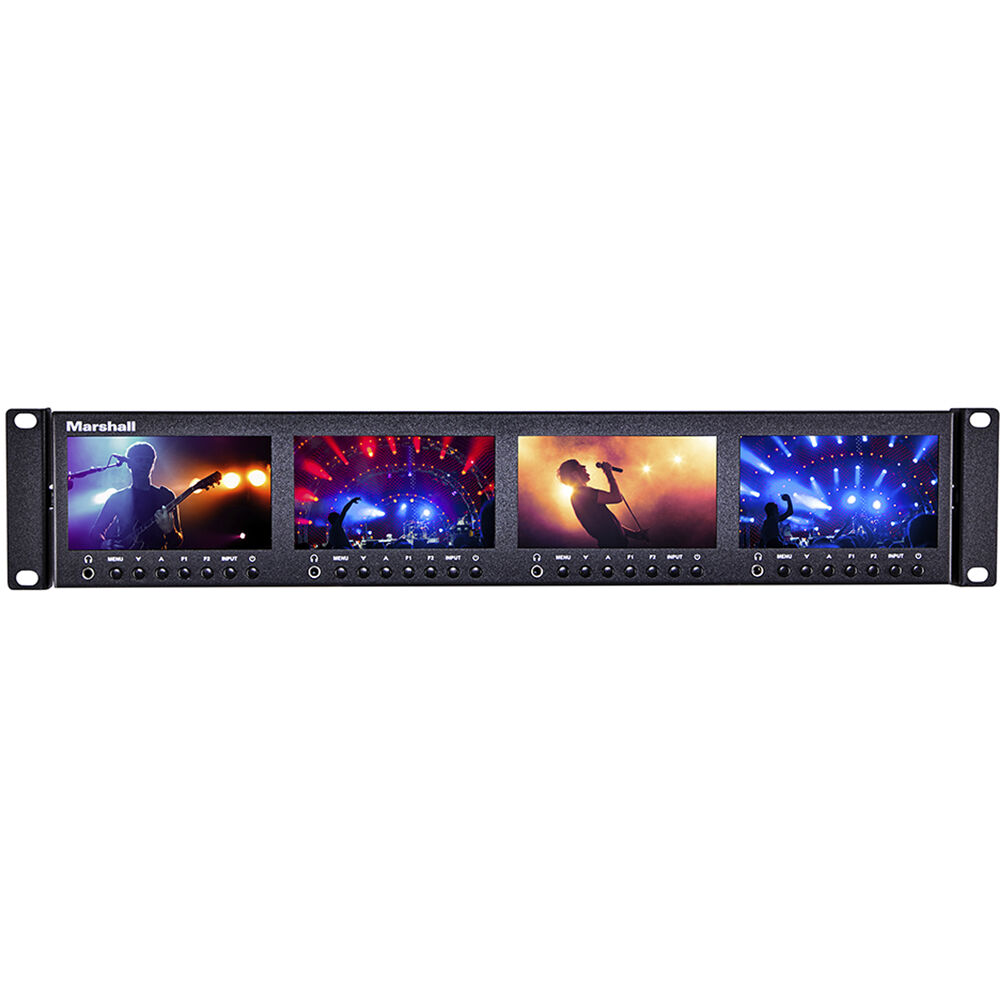

Ideal for fly-pack, studio, or truck use, the ML-454-V3 Quad 4.5" Rackmount Monitor from Marshall Electronics fits four separate 4.5" displays into a single 2 RU unit. Use this compact unit to monitor individual HDMI and 3G-SDI feeds. The high-resolution 1280 x 720 LCD panels offer excellent off-axis viewing, a 16:9 aspect ratio, can be easily matched, and can maintain calibration almost indefinitely.
Each of the HDMI and 3G-SDI inputs has individual loop-through outputs for daisy-chaining to larger monitors. This unit has a durable metal housing and integrated rack ears for easy installation.
Quad 4.5" LCD Screens
- Four bright, high-resolution 1280 x 720 bright TFT LCD screens
- Adjustable backlighting to suit your ambient light
- Off-axis viewing

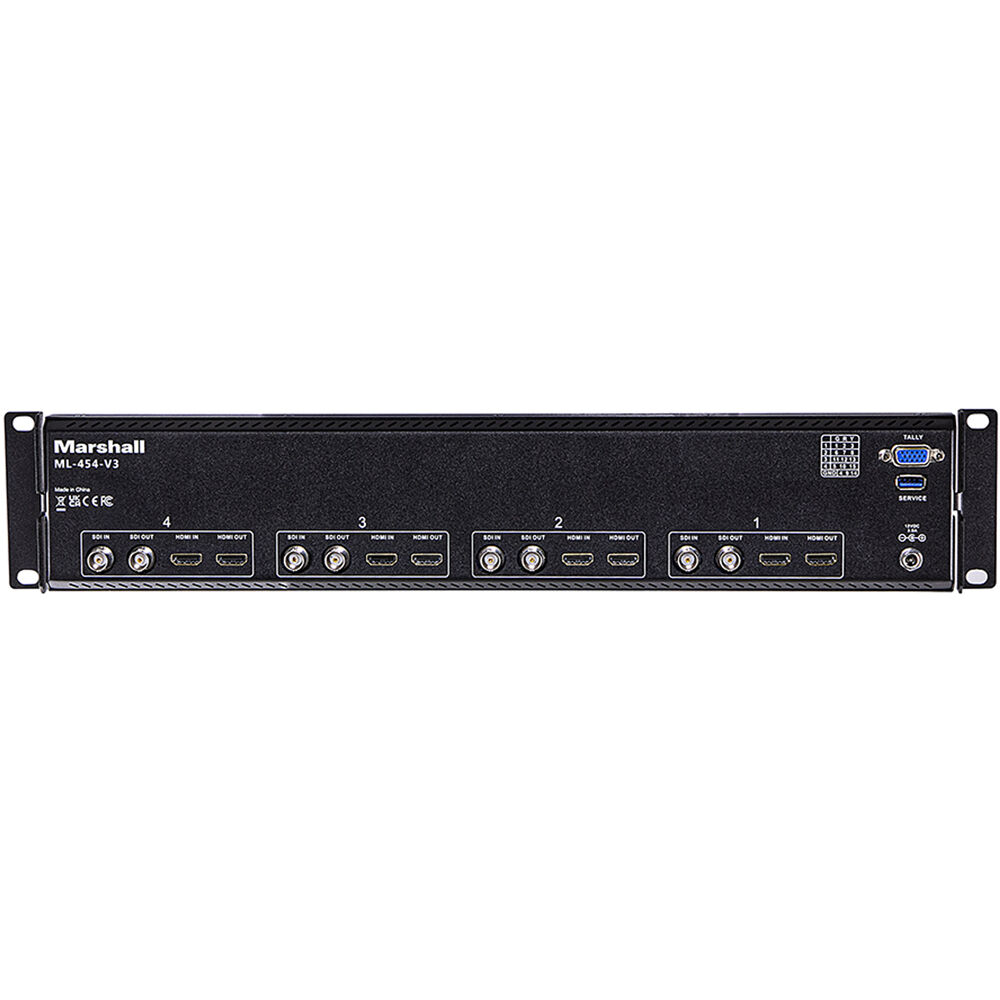

I/O
- Four HDMI inputs and loop outputs
- Four 3G-SDI inputs and loop outputs
- Headphone output
- Tally input
On-Screen Tally Displays
Red, green, and yellow tally borders for instant status recognition by the operator
Display Tools
Center and safety markers, selectable aspect ratios, image flip, focus peaking, and additional imaging tools
Rack Mounting
- Compact, 2 RU form for rack-mounted or standalone use
- Durable metal housing
UPC: 801813233940
Items Included
- Marshall Electronics ML-454-V3 Quad 4.5" Rackmount Monitor
- Power Adapter
- 15-Pin Breakout Tally Connector
- Limited 1-Year Manufacturer Warranty
Additional Resources
Marshall Electronics ML-454 V3 Specs
Key Specs
| Display Size |
4.41" / 11.2 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Support |
No
|
| Video I/O |
4x BNC (3G-SDI) Loop Output
4x BNC (3G-SDI) Loop Output 4x HDMI Input 4x HDMI Output |
| Media/Memory Card Slot |
No
|
| Video Format |
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Battery |
No
|
| Power Consumption |
24 W
|
Display
| Panel Type |
LCD
|
| Display Size |
4.41" / 11.2 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170?
Vertical: 170? |
| Touchscreen |
No
|
| Maximum Brightness |
400 nits / cd/m2
|
| Contrast Ratio |
1500:1
|
| HDR Support |
No
|
| Image Controls |
Check Field, Color Temperature Selection, Customizable Aspect Ratios, Focus Peaking, Image Flip, Image Freeze, Marker Color, Overscan, Screen Markers
|
Inputs/Outputs
| Video I/O |
4x BNC (3G-SDI) Loop Output
4x BNC (3G-SDI) Loop Output 4x HDMI Input 4x HDMI Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
4x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (12 VDC / 3 A) Input
|
| Other I/O |
1x DE-15/DB-15 (Tally)
1x USB-A (Firmware) |
| Media/Memory Card Slot |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
Power
| Input Power |
12 VDC at 3 A
|
| Battery |
No
|
| Power Consumption |
24 W
|
Mounting
| Rack Form Factor |
2 U
|
General
| Operating Conditions |
32 to 122?F / 0 to 50?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Dimensions |
19 x 3.5 x 1.5" / 482.7 x 88 x 38 mm
|
| Weight |
3.5 lb / 1.6 kg
|
Packaging Info
| Package Weight |
5.295 lb
|
| Box Dimensions (LxWxH) |
22 x 8.5 x 3.3"
|
